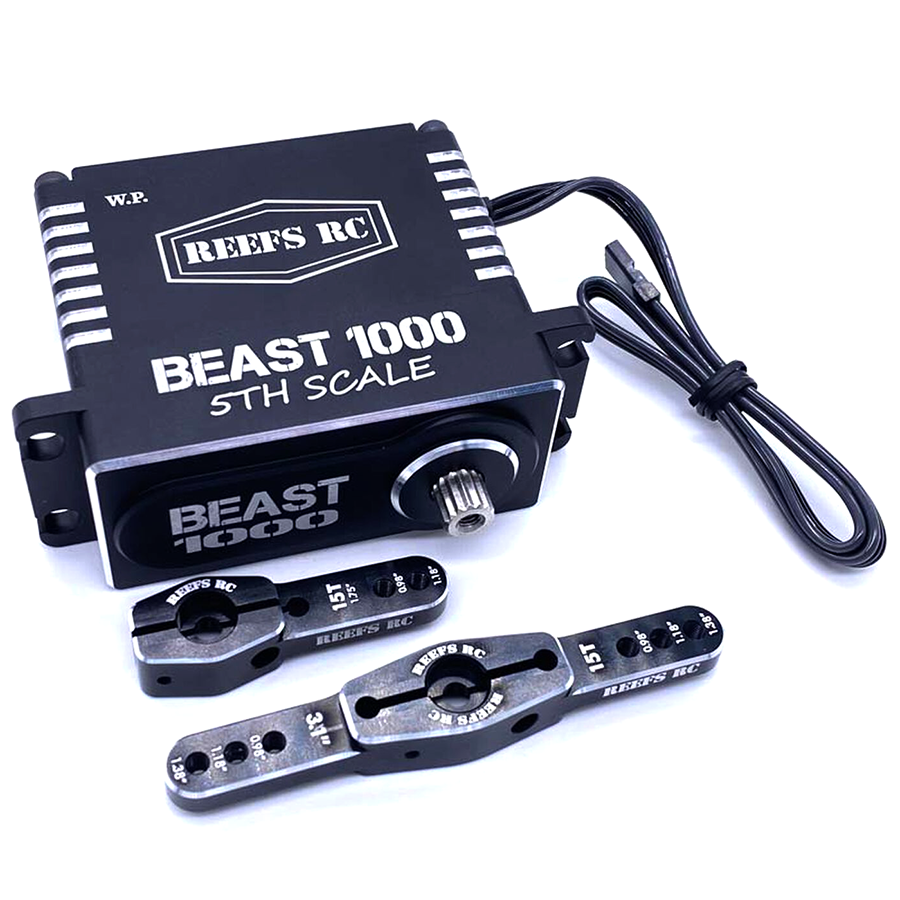

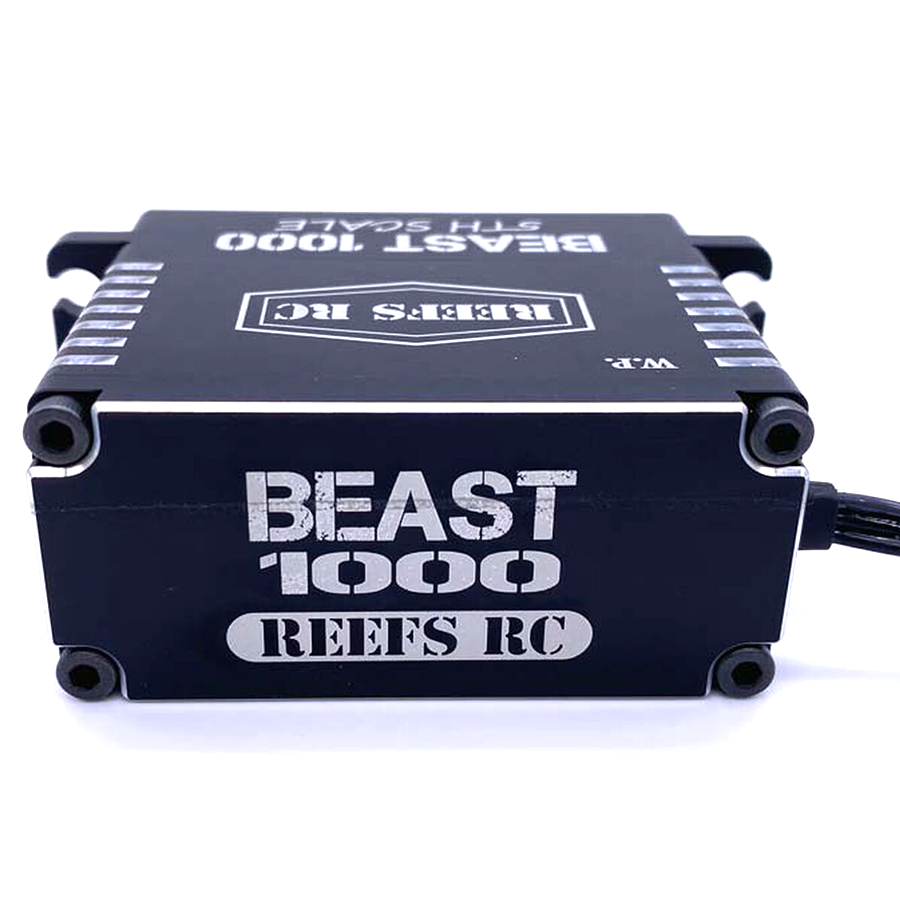

BEAST 1000 Servo with Aluminum Horns: 1/5 Scale

Features:

  • SUBMARINE WATERPROOF: 7 Point Seals
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control

In The Box:
(1) BEAST 1000 Servo
(1) REEFS Single Horn
(1) REEFS Double Horn
(1) Servo Horn Screw 3.5x8mm
(3) 3x16mm Cap Head Screws for end of horns
(4) 2mm Horn Clamping Cap Head Screws

Deadband: 2 uSec
Input Voltage: 4.8V - 8.4V
Product Height: 2.32" (59 mm)
Bushing or Bearing: Bearing
Gear Type: Metal
Maximum Servo Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v
Wire Gauge: 22 AWG
Bearing: 5 Ball Bearings
Max Servo Torque: 500+ oz-in
Product Weight: 10oz (285g)
Spline Count: 15 - Tooth
Maximum Servo Torque: 800oz @ 6v/ 900oz @7.4v/ 1080oz @8.4v
Servo Operating Voltage: 4.8 - 8.4V (HV)
Product Width: 1.18" (30 mm)
Product Length: 2.59" (66 mm)
