14.0 x 9.0 CAM Carbon Z Folding Blades
$14.79
Skip to product information

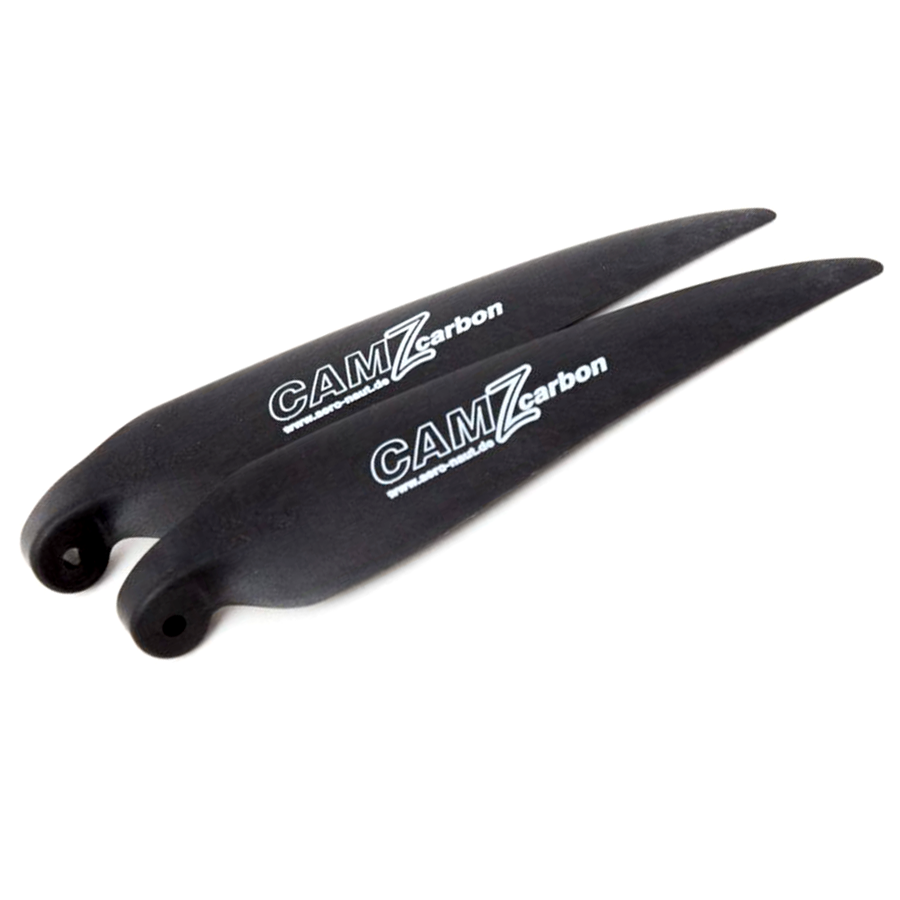

14.0 x 9.0 CAM Carbon Z Folding Blades
$14.79
Carbon Reinforced
High strength composite construction
Aero Optimized
Flushes tight against fuselage
11000 Max RPM
Rated for high performance
In Stock
Streamlined Glider PerformanceNext generation folding propeller engineering
The AeroNaut CAM Carbon Z Folding Propeller Blades 14.0x9.0" represent the ultimate evolution in low-drag electric flight props for high-performance RC sailplanes and gliders. Designed specifically to fold ultra-tight against both round and box-shaped glider fuselages, these carbon fiber reinforced propeller blades reduce aerodynamic drag during unpowered soaring. Optimized for standard 8mm blade roots, they deliver maximum efficiency and thrust for your electric power setup.
Precision German Airfoil CraftsmanshipEngineered for maximum thrust and minimal drag
Engineered for demanding electric RC gliders, the AeroNaut CAM Carbon Z Folding Propeller Blades 14.0x9.0" feature a redesigned root section that allows the blades to pivot closer to narrow fuselages than ever before. Constructed from advanced carbon fiber reinforced plastic, these blades offer high rigidity and resistance to deformation under load while maintaining lightweight efficiency. Intended for use with a 42mm middle piece to achieve the nominal 14x9" pitch profile, they are fully compatible with standard 8mm blade root folding propeller spinners and hubs. Ensure safe operation by observing the 11,000 RPM maximum speed rating and utilizing a soft-start motor program on your speed controller.
Technical SpecificationsDetailed dimensions and operational limits
Compatible Vehicles
Electric RC Gliders & Sailplanes
Part Type
Folding Propeller Blades
Material
Carbon Fiber Reinforced Plastic
Placement/Position
Front Motor Hub / Spinner Assembly
Blade Root Width
8mm
Diameter
14.0 inches
Pitch
9.0 inches
Reference Middle Piece
42mm
Max Speed Limit
11,000 RPM
Package Contents
2 Matched Blades
Key Design EnhancementsAdvanced characteristics for soaring performance
Z-Shape OptimizationSits flush against narrow or box fuselages to minimize drag
Carbon Reinforced CompositeDelivers exceptional stiffness and high strength under acceleration
Standard 8mm RootFits standard CN and precision folding prop spinners
Optimized AirfoilMaximizes thrust efficiency for electric RC glider setups
Matched Pair SetShips as a factory-balanced set of two blades
Smooth Folding ActionEliminates gap between blades and fuselage during gliding
Frequently Asked QuestionsEverything you need to know
What is the maximum permitted speed for the AeroNaut CAM Carbon Z Folding Propeller Blades 14.0x9.0"?
The AeroNaut CAM Carbon Z Folding Propeller Blades 14.0x9.0" have a strict maximum permissible speed limit of 11,000 RPM. Always configure your speed controller with a soft-start feature to avoid sudden torque stress.
Will the AeroNaut CAM Carbon Z Folding Propeller Blades 14.0x9.0" fit my existing 8mm blade root spinner?
Yes, the AeroNaut CAM Carbon Z Folding Propeller Blades 14.0x9.0" feature standard 8mm blade roots, making them compatible with all standard 8mm folding propeller hubs and AeroNaut CN spinners.
How many blades come included with the AeroNaut CAM Carbon Z Folding Propeller Blades 14.0x9.0"?
Every package of the AeroNaut CAM Carbon Z Folding Propeller Blades 14.0x9.0" comes with a matched set of two identical, factory-paired propeller blades.
