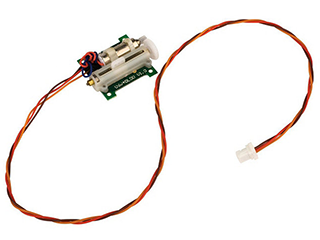

2.3-Gram Linear Long Throw Offset Servo

Key Features:
• Long throw offset servo is perfect for controlling ailerons on ultra micro models
• Offset provides for built-in differential

The 2.3-gram Linear Long Throw Offset Servo is a special use servo designed for modelers without computer transmitters who would like to add aileron differential to their ultra micro aircraft. It comes programmed with a 70/30 offset from center and can be used with any Spektrum AR6400-series receiver.

Application: Ultra micro aircraft
Servo Type: Analog
Size Category: Specialty
Servo Voltage: 3.2 - 4.2V
Speed (at 4.8V): .10 - .14 sec
Speed: 0.10 sec end-to-end
Torque: 3.5 oz (100 g)
Torque (at 4.8V): Less than 20 oz-in
Length: 0.87 in (22.0mm)
Width: 0.66 in (16.9mm)
Gear Type: Plastic
Height: 0.33 in (8.2mm)
Weight: 0.1 oz (2.3 g)
Bushing Or Bearing: Bearing
Bearing: Single
Connector Type: JST-SHR
