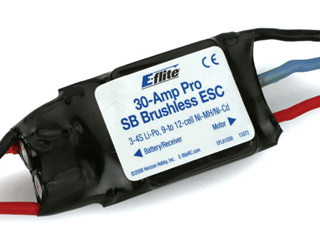

30Amp Pro SwitchMode BEC Brushless ESC (V2)
$49.99
Skip to product information
30Amp Pro SwitchMode BEC Brushless ESC (V2)
$49.99
30A Continuous Current
Handles 35A peak power bursts
3S-4S LiPo Ready
Supports 9-12 cell NiMH packs
Switch-Mode BEC
Powers up to five servos
Precision Brushless PowerReliable Motor Control For Aircraft
The E-flite 30-Amp Pro Switch-Mode BEC Brushless ESC delivers exceptional power and throttle control for high-performance RC planes and helicopters. Designed to handle up to 30A continuous current and 35A peak loads with adequate airflow, this brushless motor speed controller keeps your aircraft running smoothly. Equipped with a built-in switch-mode BEC, it easily powers up to 5 analog or 4 digital sub-micro servos across compatible input voltages.
Advanced Flight Safety TechFully Programmable Speed Controller Functionality
Engineered for maximum reliability, the E-flite 30-Amp Pro Switch-Mode BEC Brushless ESC features extensive user-programmable settings, including motor braking, custom timing, soft start options, and adjustable low-voltage cutoffs. Safety is prioritized with an integrated safe power-arm mode to prevent accidental propeller rotation upon connecting your battery pack, as well as automatic motor shutdown during radio interference or signal loss. Factory pre-wired with E-flite EC3 connectors on the battery leads and 3.5mm female gold bullet connectors on the motor side, this RC ESC simplifies installation for any electric flight setup.
ESC Technical SpecificationsPhysical Dimensions And Electronic Ratings
Part Type
Brushless ESC (speed controller)
Compatible Vehicles
RC Aircraft & Helicopters
Continuous Maximum Current
30A
Momentary Peak Current
35A
Input Voltage
3S-4S LiPo or 9-12 cell NiMH/NiCd
BEC Voltage
5V / 700mA Continuous
Input Connector
16 AWG with E-flite EC3 Connector
Output Connector
16 AWG with 3.5mm Female Gold Bullet Connectors
Dimensions
28mm x 51mm x 8.7mm (1.1 in x 2.0 in x 0.35 in) (ruler)
Weight
31g (1.1 oz) (scale)
Key Controller CapabilitiesEngineered For Optimum RC Performance
Continuous Power30A continuous rating with proper airflow
Peak Current35A momentary peak current capability
Servo Drive CapacityPowers up to 5 analog or 4 digital sub-micro servos
Programmable CutoffSettings for 3S/4S LiPo or 74% starting voltage
Safety ShutdownAutomatic motor cutoff during signal loss or interference
Safe Power ArmingPrevents accidental motor spin-up on battery connection
Heli Soft StartSpecialized heli mode for low-speed ratio motor startup
Pre-Wired SetupFitted with EC3 battery plug and 3.5mm motor bullets
Frequently Asked QuestionsEverything you need to know
What battery configurations work with the E-flite 30-Amp Pro Switch-Mode BEC Brushless ESC?
The E-flite 30-Amp Pro Switch-Mode BEC Brushless ESC supports 3S to 4S LiPo battery packs as well as 9- to 12-cell NiMH/NiCd battery packs.
How many servos can the E-flite 30-Amp Pro Switch-Mode BEC Brushless ESC power?
The integrated switch-mode BEC on the E-flite 30-Amp Pro Switch-Mode BEC Brushless ESC can power up to 5 analog or 4 digital sub-micro servos.
Does the E-flite 30-Amp Pro Switch-Mode BEC Brushless ESC come pre-wired with connectors?
Yes, the E-flite 30-Amp Pro Switch-Mode BEC Brushless ESC comes pre-wired with an E-flite EC3 connector on the battery input and 3.5mm female gold bullet connectors on the motor output leads.
