6.0Gram DS60 Digital Super SubMicro Servo

6.0Gram DS60 Digital Super SubMicro Servo
Regular price
$18.99
Sale price
$18.99
Regular price
$0.00
Sold out
Unit price
per
Shipping calculated at checkout.
info icon $0.00 Tax Collected Outside GA

Availability: Sorry we are out of stock but have more on the way.
SKU: 100011538
Part #: EFLRDS60
UPC: 605482037515
MFG: E-flite
rewards icon
You will earn 18 Electron Reward Points on this product!
Click to find out more about our points program and save big!

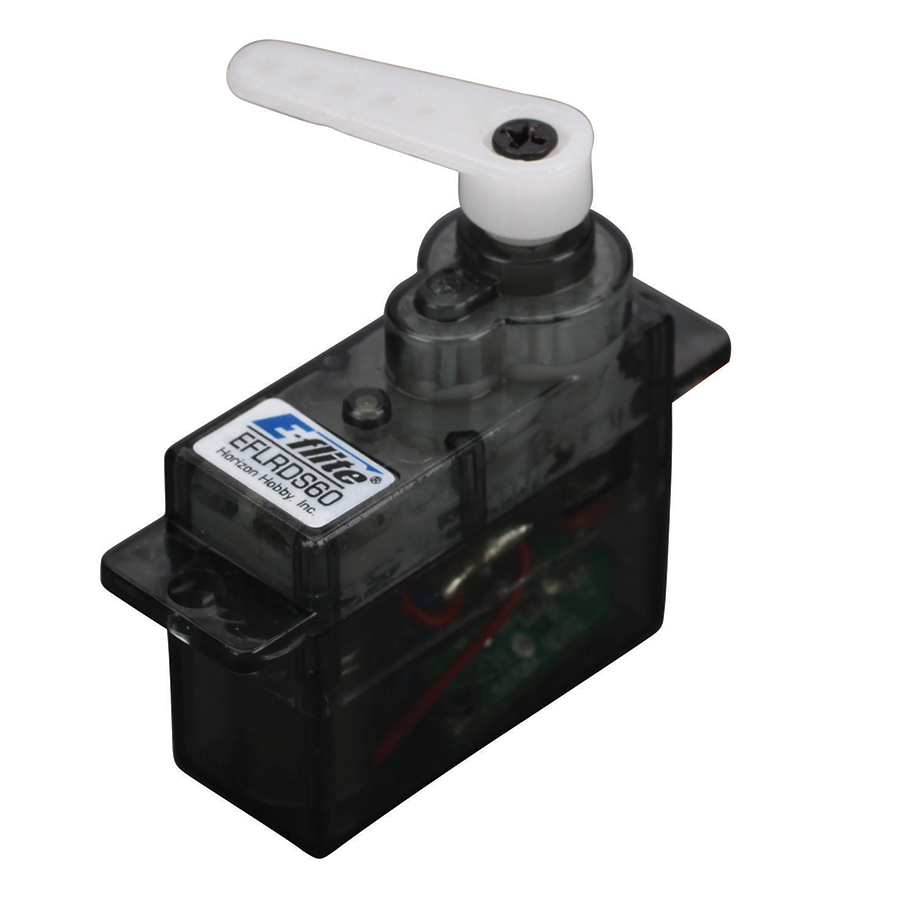

6.0-Gram DS60 Digital Super Sub-Micro Servo

Key Features:
  • Digital amplifier for superior accuracy, response and holding torque
  • High speed .09 sec @ 60° @ 4.8V for quick control response
  • High torque, 13.1 oz-in (0.94 kg-cm) @ 4.8V
  • Precise centering - less than 1°
  • Lightweight, just 6.0 grams
  • Universal connector compatible with major brand receivers

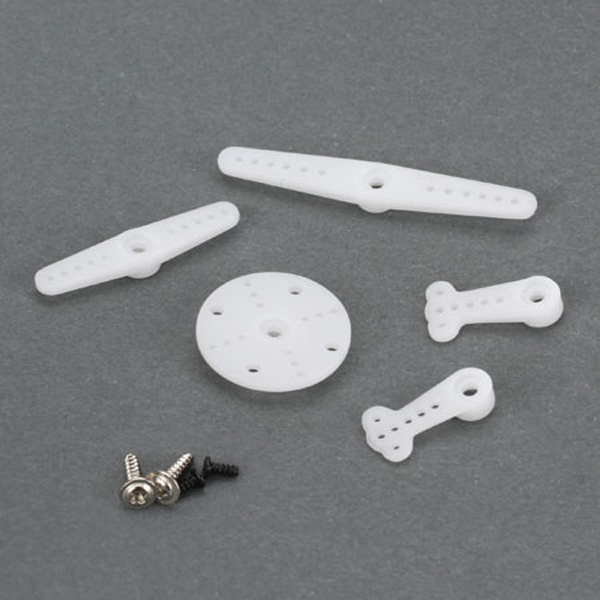

  • Includes complete mounting hardware
  • Includes multiple servo arms including an extra-long 3D servo arm for extreme throws

Overview:
Digital high speed, high torque, precise centering servo is perfect for electric indoor micro flyer, slow flyer and high-performance 3D models, small park flyers, micro electric helicopters, hand launch gliders.

Size Category: Minis and Micros
Type: Digital
Application: Sub-micro and Micro-sized airplanes and helis
Torque: 13.1 oz-in (0.94kg-cm) @4.8V; 16.1 oz-in (1.15kg-cm) @ 6.0V
Speed: 0.09 sec/60° @ 4.8V; 0.08 sec/60° @ 6.0V
Length: 0.92 in (23.5mm)
Width: 0.40 in (10.0mm)
Height: 0.96 in (24.0mm)
Weight: 0.21 oz (6.0g)
Motor Type: Coreless
Connector Type: Universal
Gear Type: Nylon
Current Draw Idle: 25mA @ 4.8V
Current Draw Stall: 560mA @ 4.8V
Voltage: 4.8V-6.0V DC
Deadband: <1μs
