80Amp Pro SwitchMode BEC Brushless ESC, EC5 (V2)
$99.99
Skip to product information
80Amp Pro SwitchMode BEC Brushless ESC, EC5 (V2)
$99.99
80A Continuous
100A peak current capability
3S-6S LiPo
Broad input voltage range
Switch-Mode BEC
Powers servos without extra battery
Pro Level Electronic Speed ControlEfficient brushless power for high demand setups

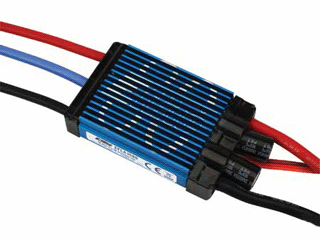

The E-flite 80-Amp Pro Switch-Mode BEC Brushless ESC delivers exceptional power and efficiency for demanding RC airplane and electric brushless motor applications. Featuring an integrated 5.5V Switch-Mode BEC, this high-performance electronic speed control eliminates the need for a separate receiver battery while reliably driving up to 6 digital standard servos.
Thermal Management and ProgrammabilityBuilt for durable thermal heat dissipation
Engineered for high-current electric RC aircraft, the E-flite 80-Amp Pro Switch-Mode BEC Brushless ESC incorporates an exposed finned aluminum heat sink case for maximum airflow and cooling during operation. Capable of pushing 80A continuous current and handling 100A peaks, this brushless ESC easily handles 3S to 6S LiPo power systems. Advanced programmable features include customizable throttle range, timing, braking, and automatic low voltage cutoff, while factory-fitted EC5 connectors and 4mm gold bullet motor leads ensure a clean plug-and-play installation.
Technical Performance RatingsFull electronic and physical specifications
Part Type
Electronic Speed Control (ESC) (gear)
Continuous Maximum Current
80A
Momentary Peak Current
100A
Input Voltage Range
3S–6S LiPo / 9–18 cells NiMH
BEC Voltage
5.5V Switch-mode
Input Connector Type
EC5 (10AWG) (plug)
Output Connector Type
4mm Gold Bullet (12AWG) (plug)
Length
3.0 in (77mm) (ruler)
Width
1.6 in (41mm) (ruler)
Height
0.62 in (15.5mm) (ruler)
Weight
3.75 oz (106g) (scale)
Forward/Brake
Yes
Key System CharacteristicsHigh current handling and robust construction
High Current OutputDelivers up to 80-amps continuous and 100-amps peak
Switch-Mode BECIntegrated 5.5V BEC supplies efficient receiver power
Servo CapacityDrives up to 7 analog or 6 digital standard servos
Aluminum Heat SinkFinned aluminum case with endcaps maximizes cooling
Pre-Wired ConnectorsIncludes EC5 battery plug and 4mm gold bullet connectors
Programmable SettingsAdjust timing, braking, throttle range, and cutoff
Frequently Asked QuestionsEverything you need to know
What battery configurations are compatible with the E-flite 80-Amp Pro Switch-Mode BEC Brushless ESC?
The E-flite 80-Amp Pro Switch-Mode BEC Brushless ESC supports 3S to 6S LiPo battery packs or 9- to 18-cell Ni-Cd/Ni-MH input voltages.
Do I need a separate receiver battery with the E-flite 80-Amp Pro Switch-Mode BEC Brushless ESC?
No, the built-in 5.5V Switch-Mode BEC powers your receiver and up to 7 analog or 6 digital standard servos directly from the main power pack.
What connectors come pre-installed on the E-flite 80-Amp Pro Switch-Mode BEC Brushless ESC?
It comes pre-wired with an EC5 connector on 10AWG wire for the battery input and 4mm gold bullet connectors on 12AWG wire for the motor output.
