9.0 x 7.0 CAM Carbon Z Folding Blades
$12.49
Skip to product information
Only 4 Left!

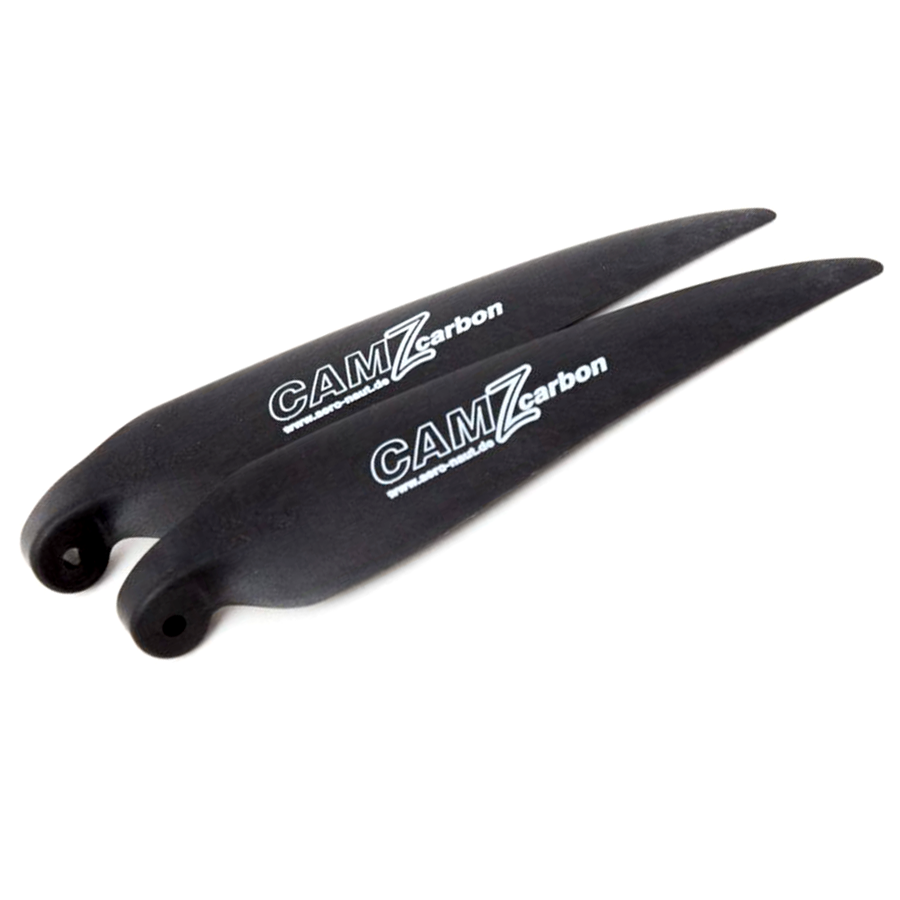

9.0 x 7.0 CAM Carbon Z Folding Blades
$12.49
Carbon Composite
Lightweight high strength material construct
Aerodynamic Profile
Folds tighter against glider fuselage
High Speed Limit
Rated for high RPM operation
In Stock
Precision Glider BladesStreamlined Performance for Electric Flight
The Aeronaut 9.0 x 7.0 CAM Carbon Z Folding Blades are designed to deliver optimal thrust and minimal drag for electric RC gliders. Featuring an optimized blade profile, these folding carbon propellers fold closer to the fuselage to maximize aerodynamic efficiency.
Optimized Aerodynamic DesignReduced Drag for Peak Efficiency
Engineered for high-efficiency soaring, the Aeronaut 9.0 x 7.0 CAM Carbon Z Folding Blades feature an updated root geometry that allows the blades to rest flush against narrow glider hulls. Manufactured from carbon fiber reinforced composite material, these RC airplane folding blades maintain excellent structural rigidity under high motor loads while keeping weight to a minimum. Designed for standard 8mm blade root yokes, they offer optimal performance when combined with Aeronaut Z-spinners and require an ESC equipped with soft-start capability.
Product SpecificationsDimensions and Technical Requirements
Compatible Vehicles
RC Electric Sailplanes & Gliders
Part Type
Folding Propeller Blades
Material
Carbon Fiber Reinforced Plastic
Blade Root Width
8mm
Diameter
9.0 in (22.8 cm) (ruler)
Pitch
7.0 in (17.8 cm) (compass)
Base Middle Piece
42mm
Max RPM
16,000 RPM
Motor Setting Requirement
Soft Start Required
Key FeaturesDesigned for Maximum Aerodynamic Efficiency
Z-Profile FoldingBlades collapse closer to narrow fuselages to drastically reduce aerodynamic drag
Carbon Reinforced MaterialHigh-rigidity composite construction prevents flex under heavy motor power
Standard 8mm RootFits standard folding propeller yokes designed for 8mm blade roots
Matched Pair IncludedSupplied as a pre-balanced set of two folding propeller blades
Optimized PerformanceMaximum efficiency achieved when combined with Aeronaut Z-spinners
High Speed RatedEngineered to withstand up to 16,000 RPM for high-power electric setups
Frequently Asked QuestionsEverything you need to know
What size blade root do the Aeronaut 9.0 x 7.0 CAM Carbon Z Folding Blades use?
The Aeronaut 9.0 x 7.0 CAM Carbon Z Folding Blades are designed to fit standard folding propeller yokes and spinners with an 8mm blade root.
What is the maximum speed limit for the Aeronaut 9.0 x 7.0 CAM Carbon Z Folding Blades?
The maximum permissible operating speed for these 9-inch Aeronaut 9.0 x 7.0 CAM Carbon Z Folding Blades is 16,000 RPM, and they require a soft-start motor ESC configuration.
Are Aeronaut 9.0 x 7.0 CAM Carbon Z Folding Blades sold in pairs?
Yes, every package of Aeronaut 9.0 x 7.0 CAM Carbon Z Folding Blades includes a balanced matched pair of two blades.
