Celestron 9.25" Edge HD W Advanced VX Package (12033)
$4,079.00
Skip to product information
Celestron 9.25" Edge HD W Advanced VX Package (12033)
$4,079.00
Aplanatic Optics
Flat field aberration free views
9.25 Inch Aperture
Massive light gathering performance
AVX Mount
Precision computerized tracking stability
30 lb Capacity
Supports heavy imaging gear
StarBright XLT
Maximum optical light transmission
Fastar Compatible
Ultra fast focal ratio imaging
Stargazing RedefinedAstrograph performance for deep space imaging
The Celestron Advanced VX 9.25" EdgeHD Telescope delivers astrograph-quality imaging and exceptional visual clarity in a portable setup. Featuring an aplanatic flat-field Schmidt optical design paired with the sturdy Advanced VX computerized equatorial mount, this setup offers unparalleled planetary and deep-sky observation capabilities.
Precision Optical EngineeringUnmatched clarity across the focal plane
Engineered for serious astrophotographers and visual observers, the Celestron Advanced VX 9.25" EdgeHD Telescope features premium StarBright XLT optical coatings and mirror clutches to eliminate image shift during long exposures. The integrated rear cell cooling vents maintain thermal equilibrium, while the dual saddle plate accommodates both CG-5 and CGE dovetails. With full Fastar compatibility and advanced control software like CPWI control and Starry Night Special Edition, this computerized telescope system sets a high standard in amateur astronomical performance.
Technical DataComplete hardware and optical parameters
Optical Design
EdgeHD Aplanatic Schmidt-Cassegrain
Aperture
235mm (9.25 in) (circle)
Focal Length
2350mm (93 in) (ruler)
Focal Ratio
f/10
Optical Coatings
StarBright XLT
Highest Useful Magnification
555x
Optical Tube Weight
21 lbs / 9.53 kg
Mount Type
Computerized Equatorial
Instrument Load Capacity
30 lbs / 13.6 kg

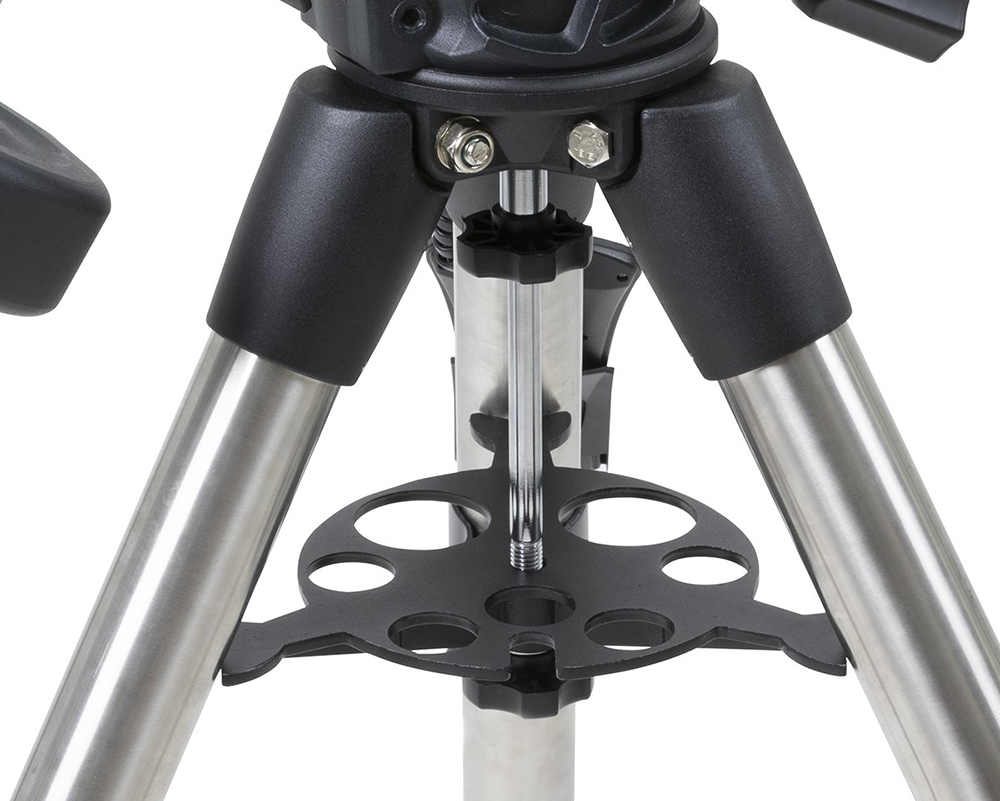

Tripod Leg Diameter
2 in Stainless Steel
Tracking Rates
Sidereal, Solar, and Lunar
Database
40,000+ Objects
Power Requirements
12V DC 3.5A
Total Kit Weight
47 lbs / 21.31 kg
Observatory StandardsAdvanced mechanics for stellar imaging
Flat Field OpticsAberration-free images across wide photographic fields
Flexible Mirror ClutchesEliminates mirror shift during long exposure imaging
Integrated Tube Vents95-micron mesh filters allow rapid mirror cooling
Computerized TrackingGoTo mount with All-Star Polar Alignment and PPEC

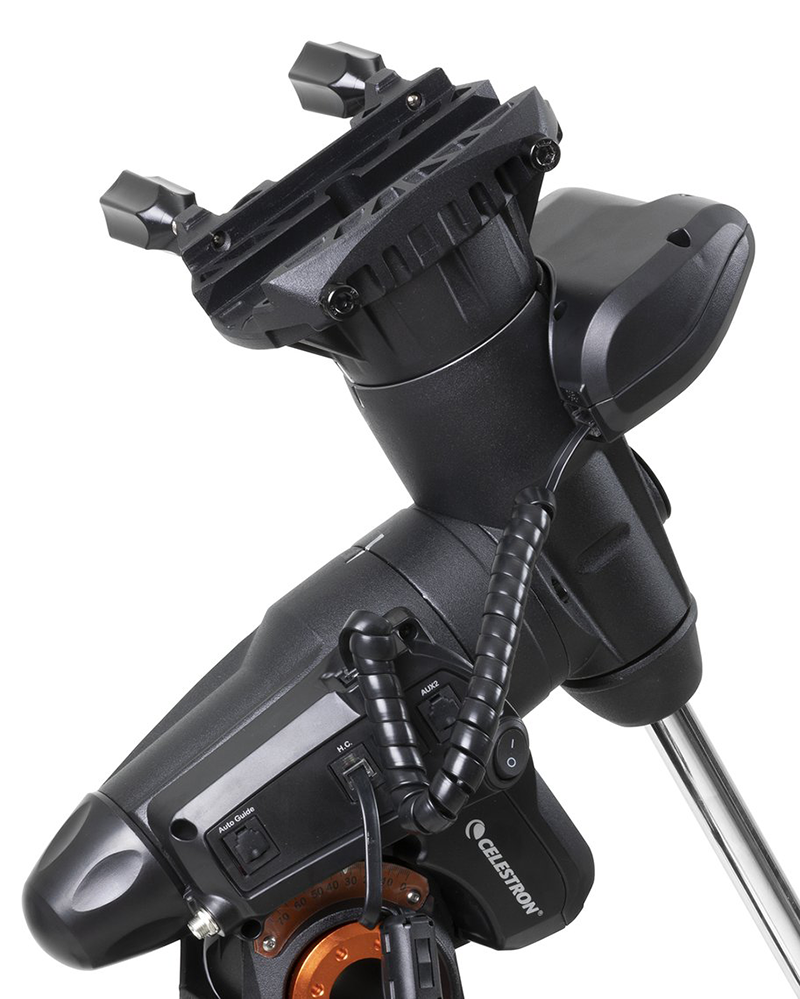

Dual Saddle PlateAccepts both CG-5 Vixen and CGE dovetail bars
CPWI Software SuiteObservatory-grade telescope control software included
Celestron PWI Telescope ControlYour Ultimate Astronomy Software - All current Celestron computerized telescopes include Celestron PWI, CPWI, the most advanced astronomy software provided with any consumer-grade telescope. Celestron’s experts co-developed CPWI with the engineers at PlaneWave Instruments.
Graphical planetarium interfaceGraphical planetarium interface with PointXP advanced mount modelling allows you to add 100+ points to your alignment model for the most accurate pointing and tracking possible
Ideal for remote observatory setupssave and re-load your alignment and park your scope
Provides a complete ASCOM telescopeProvides a complete ASCOM telescope interface to allow control of the telescope from third party software applications
Starry Night SoftwareAlso included with your purchase is a free download of Celestron’s Starry Night Special Edition Software. This advanced software by Simulation Curriculum offers detailed information about celestial objects and helps you plan your next observing or imaging session.
9.25”, 235mm f/10 EdgeHD optical9.25”, 235mm f/10 EdgeHD optical tube fully corrects for coma and field curvature, delivering a truly flat field
Native f/10 focal ratio canNative f/10 focal ratio can achieve the image scale necessary to capture the smallest of deep sky objects—or image at f/7 with optional focal reducer and f/2 with third-party lens assembly
Premium patented StarBright XLT opticalPremium patented StarBright XLT optical coatings provide maximum light transmission
Compact and portable Advanced VXCompact and portable Advanced VX mount offers a maximum instrument capacity of 30 lb with the same rigidity as our larger mounts and minimal flexure
Every feature an astroimager wantsPEC, an autoguider port, the ability to image across the meridian, and more.
Dual saddle plateDual saddle plate is compatible with narrow CG-5 dovetails and wider CGE dovetail.
Accessories included25mm eyepiece, 1.25” Star Diagonal, and a 6x30 finderscope
In additionIn addition to EdgeHD’s optimized optical design, the optical tube has been enhanced to make sure you get the most from your optics night after night.
Mirror clutchesFlexible tension clutches hold the mirror in place and reduce image shift when taking long exposure astroimages.
Tube ventsCooling vents located on the rear cell allow hot air to be released from behind the primary mirror. Each vent has an integrated 95-micron micromesh filter guaranteed to let warm air out without letting dust in.
Focal versatilityEdgeHD is the most versatile imaging telescope available today. At its native f/10, you can achieve the image scale necessary to capture the smallest of deep sky objects.
More FeaturesTwo-year warranty
Frequently Asked QuestionsEverything you need to know
What power source is required for the Celestron Advanced VX 9.25" EdgeHD Telescope?
The Celestron Advanced VX 9.25" EdgeHD Telescope requires a 12V DC power supply providing at least 3.5 amps (tip positive) to operate the computerized mount motors.
Is the Celestron Advanced VX 9.25" EdgeHD Telescope suitable for astrophotography?
Yes, the Celestron Advanced VX 9.25" EdgeHD Telescope is engineered specifically for astrograph-quality imaging, featuring a flat focal plane, mirror clutches, and PPEC tracking on its computerized equatorial mount.
What accessories are included with the Celestron Advanced VX 9.25" EdgeHD Telescope?
The Celestron Advanced VX 9.25" EdgeHD Telescope comes with an equatorial head, tripod, accessory tray, two 12 lb counterweights, NexStar+ hand control, 25mm eyepiece, 1.25" star diagonal, 6x30 finderscope, and control software.
Can I use fast f/2 imaging with the Celestron Advanced VX 9.25" EdgeHD Telescope?
Yes, the optical tube on the Celestron Advanced VX 9.25" EdgeHD Telescope is Fastar-compatible, allowing you to remove the secondary mirror and attach third-party lens assemblies for ultra-fast f/2 wide-field imaging.
