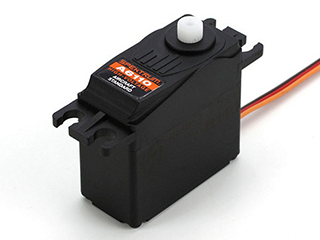

A6110 Mid Torque Mid Speed Digi Plastic HV Servo

A6110 Mid Torque Mid Speed Digi Plastic HV Servo
Regular price
Sale price
Regular price
Sold out
Unit price
Shipping calculated at checkout.
info icon $0.00 Tax Collected Outside GA

Availability: Sorry we are out of stock but have more on the way.
SKU: 100010355
Part #: SPMSA6110
UPC: 605482047033
MFG: Spektrum
Live Help Chat
rewards icon
You will earn 14 Electron Reward Points on this product!
Click to find out more about our points program and save big!

A6110 HV Standard Servo

Key Features:
• High Voltage
• 0.14 transit time
• Up to 76 oz-in of Torque

The A6110's digital precision, low deadband sensitivity and class leading 0.14 transit time is ideal for any 40-60 size sport aircraft. The cored motor delivers reliable power to the tight plastic gear train.

Ball bearing support helps assure that accuracy continues throughout the long life of the servo. Its ability to accept the higher voltage from a 2S LiPo battery makes setup simpler and operation more efficient.

Size Category: Standard
Servo Type: Digital
Application: 40-60 Size Aircraft
Servo Voltage: 6.0 - 7.4V (High Voltage)
Speed: 0.20 sec/60º @ 6.0V;
0.14 sec/60º @ 7.4V
Torque: 57 oz-in (4.1 kg-cm) @ 6.0V;
76 oz-in (5.5 kg-cm) @ 7.4V
Bushing Or Bearing: Bearing
Bearing: Single
Gear Type: Plastic
Height: 1.44 in (36.6mm)
Length: 1.5 in (38.3mm)
Width: 0.72 in (18.4mm)
Weight: 1.28 oz (36.5g)
