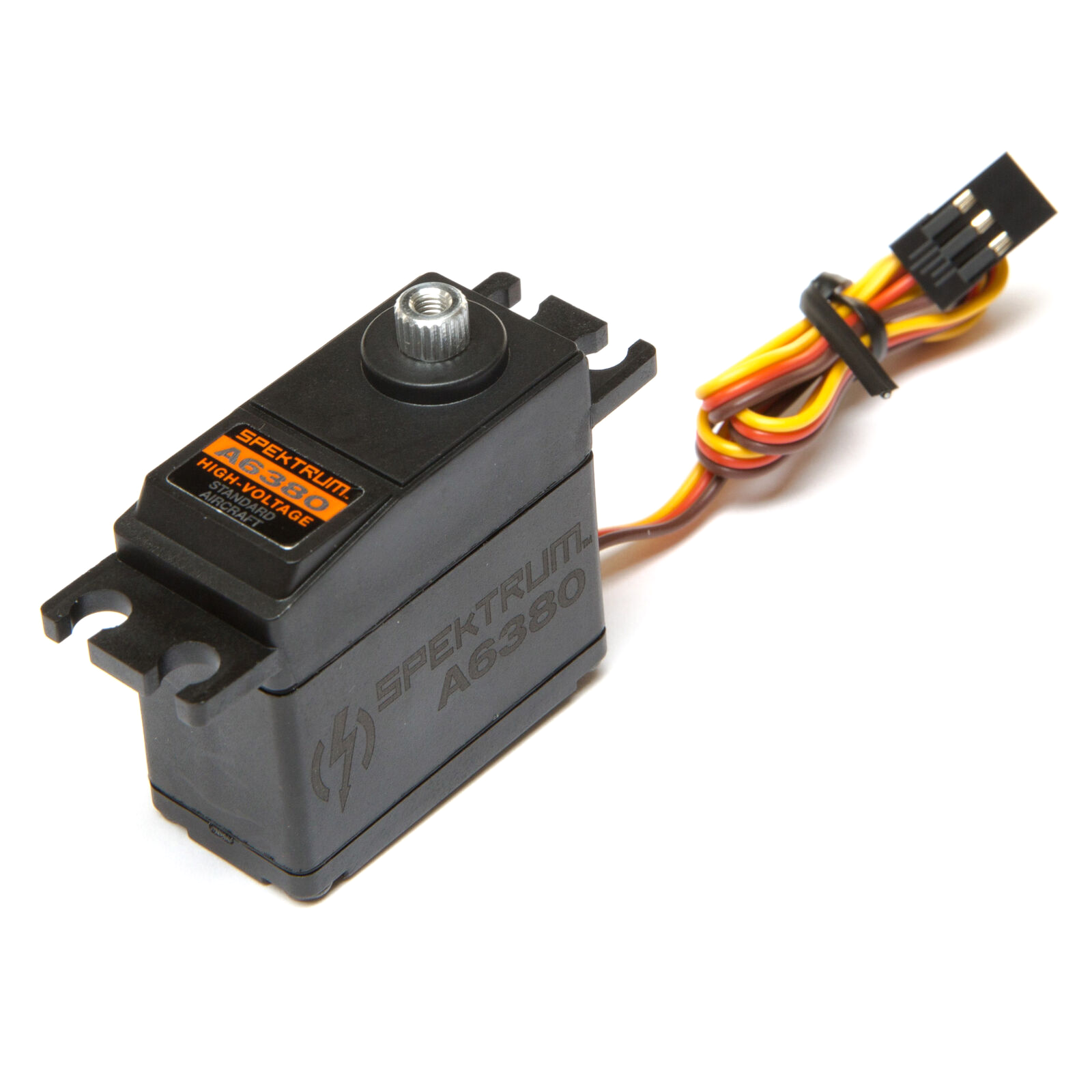

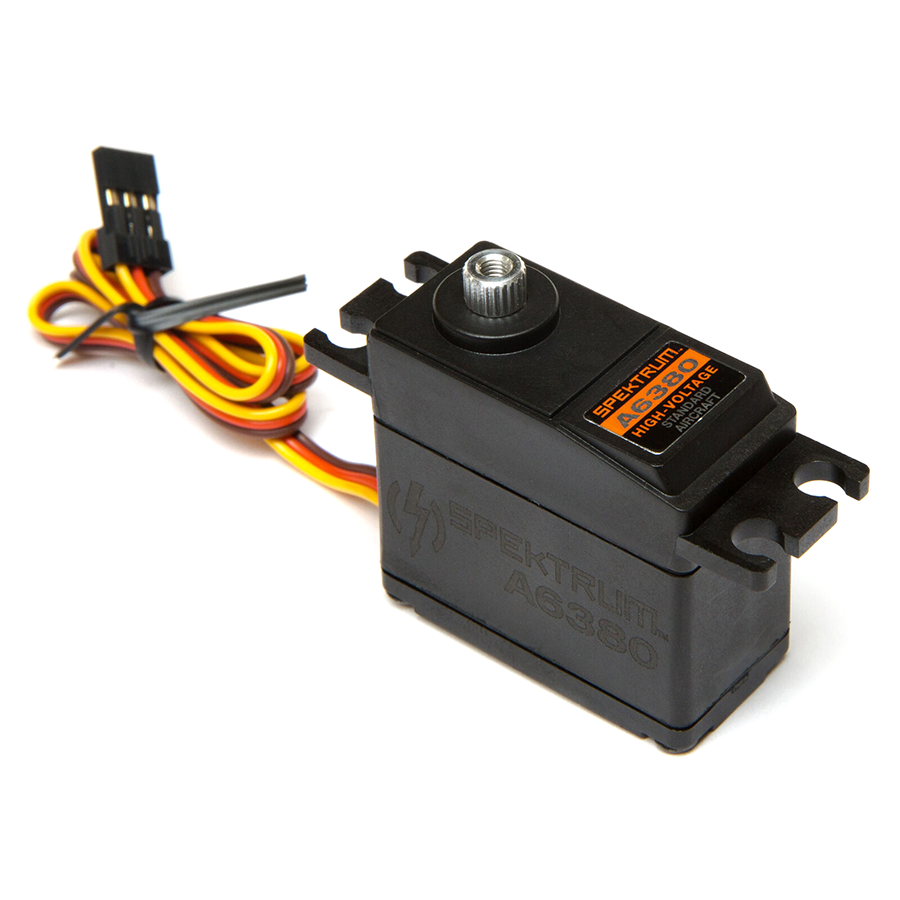

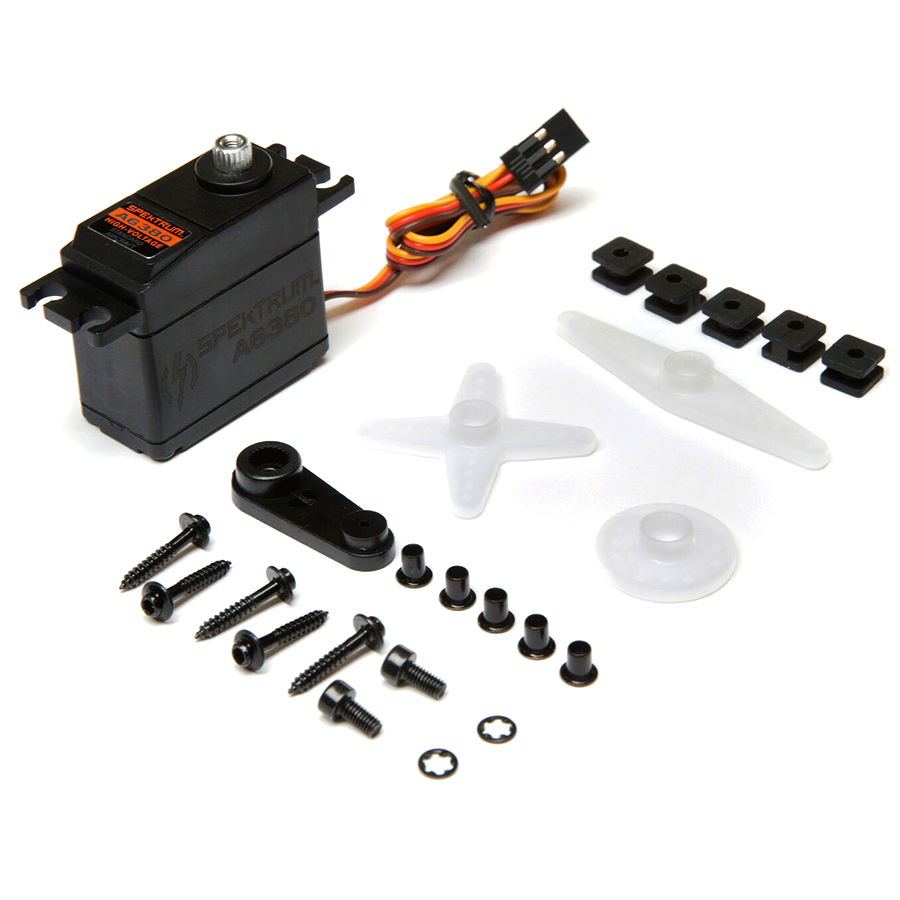

A6380 High Torque High Speed HV Standard Servo

A6380 High Torque High Speed HV Standard Servo
A6380 High Torque High Speed HV Standard Servo
A6380 High Torque High Speed HV Standard Servo
  • Load image into Gallery viewer, A6380 High Torque High Speed HV Standard Servo
  • Load image into Gallery viewer, A6380 High Torque High Speed HV Standard Servo
  • Load image into Gallery viewer, A6380 High Torque High Speed HV Standard Servo
Regular price
$29.99
Sale price
$29.99
Regular price
$0.00
Sold out
Unit price
per
Shipping calculated at checkout.
info icon $0.00 Tax Collected Outside GA

Availability: In stock available to ship within 24 hours.
SKU: 100021307
Part #: SPMSA6380
UPC: 605482127711
MFG: Spektrum
rewards icon
You will earn 14 Electron Reward Points on this product!
Click to find out more about our points program and save big!

A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo

Overview:
The Spektrum™ A6380 high-voltage, digital servo is the perfect budget-solution for your sport plane. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 160 oz-in torque rating at 8.4 volts, the A6380 servo boast specifications that easily beat other standard-size competitors in its class.

Application:

Aircraft

Bearing: Dual
Bushing Or Bearing: Bearing
Connector Type: Universal
Connector Wire Length: 11.8 in (299.7mm)
Gear Type: Metal
Servo Speed: 0.17 sec/60 deg @ 6.0V, 0.13 sec/60 deg @ 8.4V
Maximum Servo Torque: 100-199 oz-in
Product Height: 1.47 in (37mm)
Product Length: 1.52 in (39mm)
Product Weight: 1.5 oz (42.5 g)
Product Width: 0.74 in (19mm)
Programmable: No
Servo Operating Voltage: 6.0 - 8.4V (HV)
Servo Size Category: Standard
Servo Type: Digital
Spline Count: 23 - Tooth
Torque: 102 oz-in (7.3 kg-cm) @ 6.0V, 160 oz-in (11.5 kg-cm) @ 8.4V
Wire Gauge: 22 AWG
