Spektrum AS6410NBL DSMX 6Ch AS3X Receiver with BL ESC (SPMAS6410NBL)
$69.99
Skip to product information

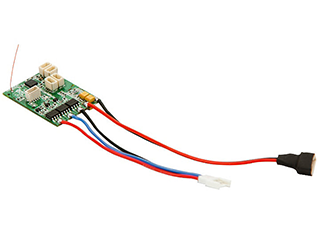

Spektrum AS6410NBL DSMX 6Ch AS3X Receiver with BL ESC (SPMAS6410NBL)
$69.99
6-Channel DSMX
Advanced 2.4GHz Spread Spectrum Control
AS3X Stabilization
Enhanced Flight Stability And Agility
Integrated 5A ESC
Built In Brushless Speed Controller
Next-Gen Micro ReceiverUnmatched Precision For Micro Airplanes
Elevate your micro aircraft performance with the Spektrum AS6410NBL DSMX 6Ch AS3X Receiver with BL ESC. Featuring revolutionary AS3X stabilization technology, this all-in-one unit delivers exceptional flight control and stability even in breezy conditions. Built for performance, it integrates a 5A brushless motor ESC and 6-channel DSMX control into a single ultra-lightweight board for micro RC planes.
Integrated Micro Flight ControllerCompact Design Loaded With Advanced Electronics
The Spektrum AS6410NBL DSMX 6Ch AS3X Receiver with BL ESC combines advanced 3-axis stabilization with a reliable 2.4GHz micro flight system on a single compact board. Engineered specifically for micro RC airplanes, the internal AS3X system actively counters wind gusts and light turbulence without sacrificing agility. Pilots can customize response profiles by downloading settings matching specific airframes and uploading them to the Spektrum AS6410NBL using an optional USB interface. Featuring four ultra micro servo connectors and an integrated 2S-compatible brushless speed control, this unit delivers high efficiency and precision for custom micro flight projects.
Technical SpecificationsDetailed Engineering Standards And Dimensions
Part Type
Receiver with Integrated ESC
Channels
6 Channels
Modulation
DSM2/DSMX
Band
2.4GHz
Integrated ESC
5A Brushless Speed Control
Voltage Range
6.4V - 8.4V (2-cell LiPo) (battery)
Weight
0.2 oz (6.4 g) (weight)
Length
1.38 in (35mm) (ruler)
Width
1.00 in (25mm) (ruler)
Height
0.32 in (8mm) (ruler)
Antenna Length
31mm
Resolution
1024
Range
Park Flyer
Model Type
Ultra Micro Airplane
Key System FeaturesAdvanced Electronics Built For Ultra Micros
AS3X StabilizationEnhanced flight stability and smooth control response
Integrated ESCBuilt-in 5A brushless speed controller for 2S LiPo power
DSMX ProtocolInterference-free 2.4GHz signal connection
Micro ConnectorsFeatures 4 ultra-micro servo plug ports
Programmable SystemSupports custom profile uploads via USB interface
Ultra-Lightweight BoardTotal system weight of only 6.4 grams
Frequently Asked QuestionsEverything you need to know
Is the Spektrum AS6410NBL DSMX 6Ch AS3X Receiver with BL ESC compatible with 2S LiPo batteries?
Yes, the Spektrum AS6410NBL DSMX 6Ch AS3X Receiver with BL ESC operates on a voltage range of 6.4V to 8.4V, making it designed specifically for 2-cell (2S) LiPo power setups.
Can I program custom flight settings on the Spektrum AS6410NBL DSMX 6Ch AS3X Receiver with BL ESC?
Yes, you can download pre-configured aircraft profiles or create custom settings and upload them to the Spektrum AS6410NBL DSMX 6Ch AS3X Receiver with BL ESC using the Spektrum SPMA3060 USB interface (sold separately).
Is the Spektrum AS6410NBL DSMX 6Ch AS3X Receiver with BL ESC compatible with all Spektrum transmitters?
The Spektrum AS6410NBL DSMX 6Ch AS3X Receiver with BL ESC works with DSM2 and DSMX transmitters, but it is explicitly not compatible with the original Spektrum DX6 park flyer transmitter.
