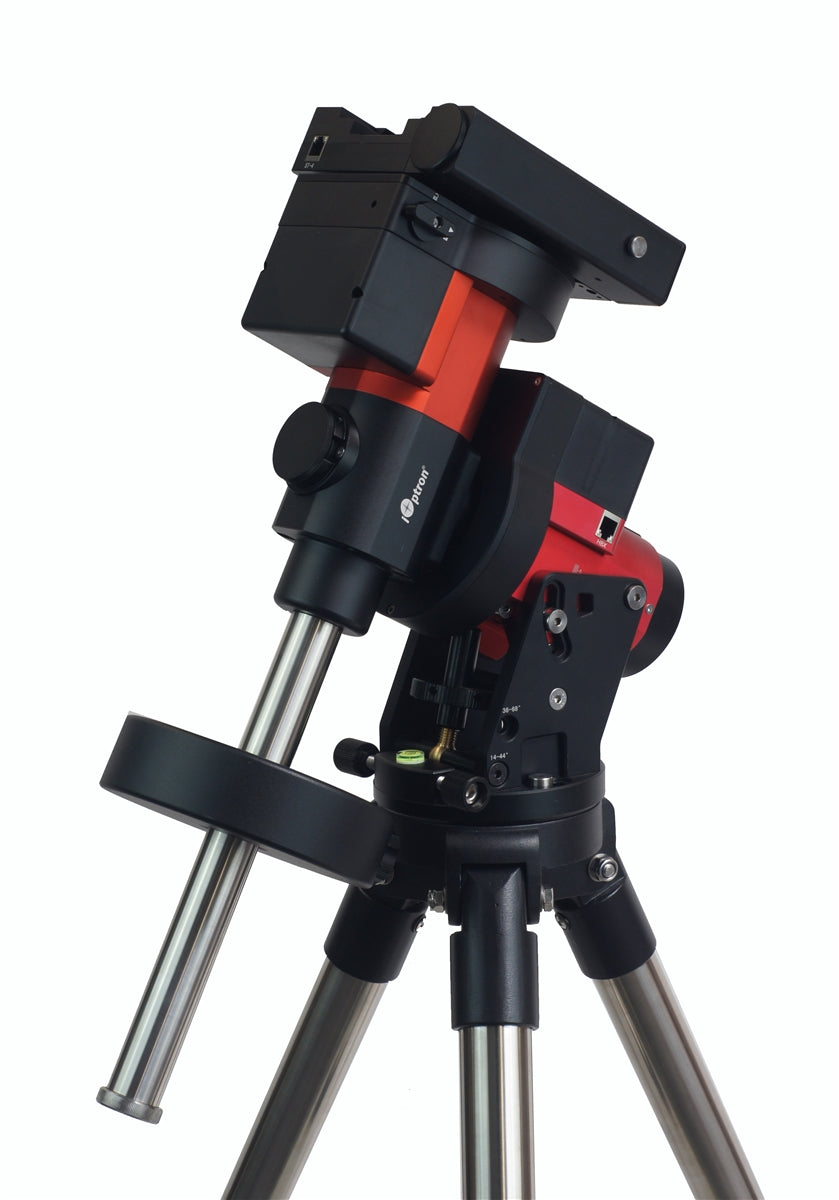

GEM45 Equatorial Mount with LiteRoc Tripod and Hard Case

Innovative ideas applied to a time tested design, the iOptron® GEM45 next generation German equatorial mounts. A sharp looking CNC body is the first indicator the GEM45 is a top quality mount in both form and function.

Utilizing experiences gained during development of our CEM series, we were able to remove unnecessary bulk giving the GEM45 an incredible 2.5 payload to mount weight ratio. This compact 17.5 lbs mount can precisely GOTO an object and track with up to 45 lbs of gear onboard.

With its integrated electronic polar scope (iPolarTM), polar alignment is a snap, even when the pole star is obscured. Large levers on the quick-lock drive engagement system make it easy to snap its drive gears into place even when wearing gloves. There is little chance of your cables getting snagged with the GEM45's internal advanced cable management system.

A 6" dual dovetail saddle accommodates Losmandy and Vixen style dovetail plates. GEM45 mounts utilize reliable stepper motor drive systems with our low power consumption technology. Our new LiteRoc 1.75" tripod delivers rock solid stability in a lighter, more compact package. A 212,000+ object library with star identification, GPS, Wi-Fi (requires optional iStarFi adapter) are a few of the desirable features standard on a GEM45 mount.


  • German equatorial mount with innovative features
  • Idea for both visual observation and astrophotography
  • Maximum payload of 45 lbs (20 kg) with the mount weight of only 17.5 lbs (7.9 kg)
  • Easy to use quick-lock gear clutches
  • Integrated iPolarTM electronic polar finder
  • Low periodic error (< ±7.5 arc seconds)
  • Permanent periodic error correction (PPEC)
  • Precision stepper motor for precise GOTO and accurate tracking
  • Go2Nova® hand controller with Advanced GOTONOVA® GOTO Technology and built-in heater
  • Integrated ST-4 autoguiding port
  • 32-channel Global Positioning System (GPS)
  • USB communication port
  • Cable management system
  • 6" Losmandy-D & Vixen dual dovetail saddle
  • All metal, CNC machined with red/black anodized
  • Optional WiFi for mount control via SmartPhone/Tablet/Computer
  • All new LiteRoc 1.75" tripod with improved stability and leg locks
  • NEW iOptron subsidized TheSky Imaging Edition

What's Included:
(1) iOptron® GEM45 mount (#7620A, with black gear switches)
(1) Go2Nova® Hand Controller
(1) 11 lbs (5 kg) counterweight
(1) Stainless steel counterweight shaft
(1) Internal iPolar electronic polar scope
(1) GEM45 GPS module
(1) AC adapter (100V-240V)
(2) Coiled control Cables (6P6C RJ11 to RJ11, straight wired)
(1) USB cable
(1) LiteRoc 1.75" tripod with improved stability and leg locks
(1) Hard case
(1) Quick Start Guide

Mount: German Equatorial Mount
Max payload*: 45 lbs (20 kg), exclude counterweight
Mount weight: 17.5 lbs (7.9 kg)
Payload/Mount weight: 2.53
Structure Material: All metal, CNC machined
Exterior Finish: Anodized red/black
Latitude adjustment range: 14º ~ 68º
Azimuth adjustment range: ± 6º
Tracking accuracy (PE)**: Less than ±7.5 arcsec
Period: 400 sec
Worm diameter: Φ17mm, Brass
Right Ascension worm wheel: Φ110mm, 216 teeth, zero backlash
Declination worm wheel: Φ110mm, 216 teeth, zero backlash
Right Ascension axis shaft: Φ45mm steel
Declination axis shaft: Φ45mm steel
Right Ascension bearings: Φ68mm
Declination bearings: Φ68mm
Counterweight shaft: Φ28X280 mm, Stainless Steel (1.2 kg)
Counterweight: 11lbs (5kg) X1
Motor: Precision stepper motor, 1.8º/128X micro-step
Motor resolution: 0.08 arcsec (200 PPS)
Transmission: Synchronous belt
Hand Controller: Go2Nova® HC, 8 line 21 character LCD
Star Database: 212,000+, star identification
Power: DC 12V, 5A (5.5mm/2.5mm plug)
AC adapter: 100V ~ 240V (included)
Power consumption: 0.6A(Tracking), 0.9A(GOTO)
Power-down memory: Yes
Polar scope: Internal iPolar TM electronic polar scope
Meridian treatment: Stop (0-20° pass), flip
Zero position: Automatic zero search
Dovetail saddle: 6" Losmandy-D & Vixe dual saddle
Max slew speed: 4.5°/sec (1080X)
Guiding port: ST-4
Communication port: USB
GPS: Yes
WiFi: External (optional)
Cable Management: DC12V (3A), ST4, USB
Tripod: 1.75" Stainless Steel(~8kg), or optional Tri-pier
Hard case: Included
Operation temperature: -10ºC ~ 40ºC
Warranty: Two year limited

* OTA size and length dependent
** Measured with encoder on the bench, 400 seconds
