Blade Fusion 700 Kit with Motor and Blades (Needs Battery & Charger) (BLH13075)
$849.99
Skip to product information
Blade Fusion 700 Kit with Motor and Blades (Needs Battery & Charger) (BLH13075)
$849.99
700-Class Size
Pinnacle 3D Flight Performance
Brushless Power
Includes Spektrum Brushless Motor
Carbon Blades
Includes Main Tail Blades
Belt Drive
Quiet Smooth Tail Authority
Carbon Airframe
Rugged Carbon Aluminum Construction
Kit Format
Customize With Your Electronics
Pinnacle RC AerobaticsExperience Master Class Helicopter Performance

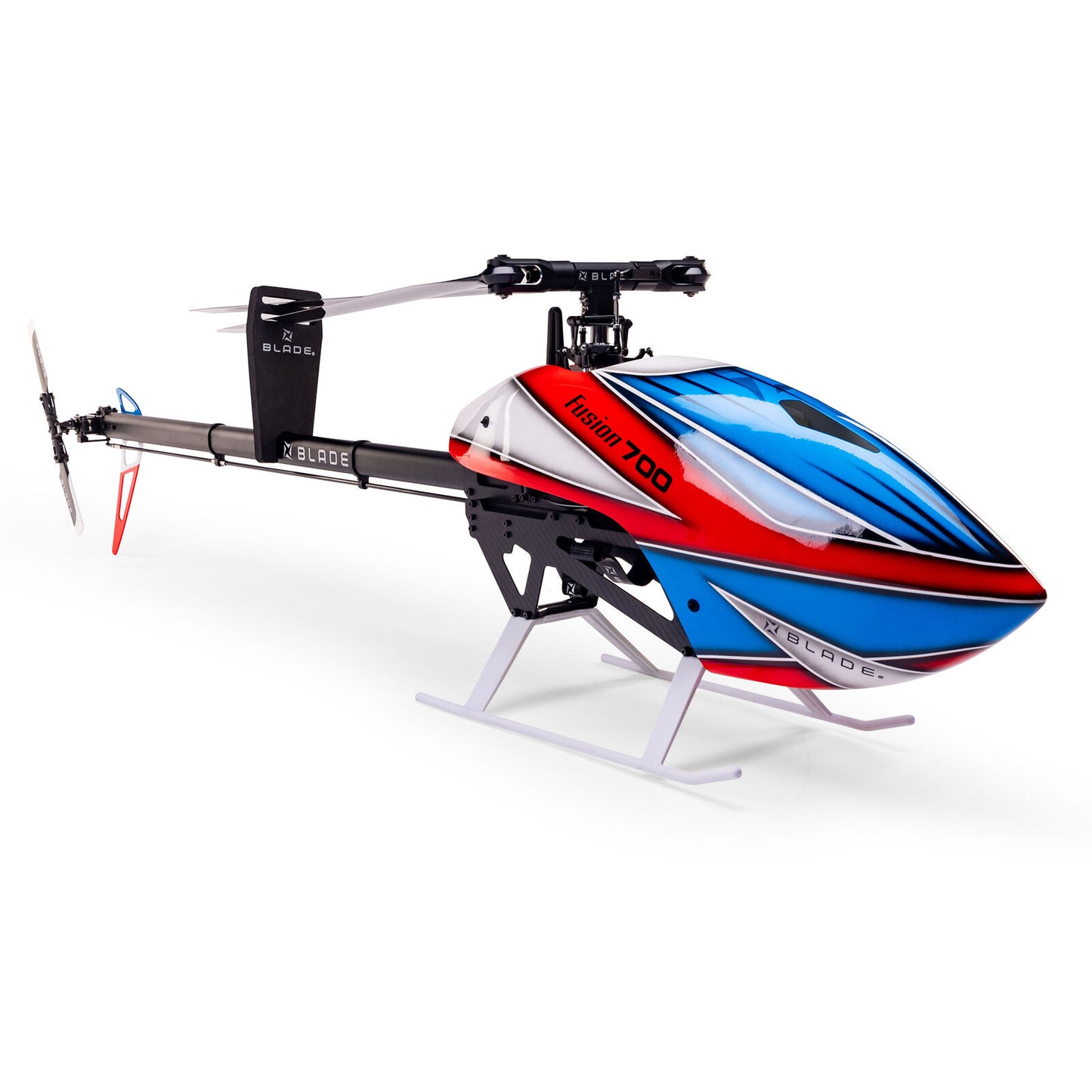

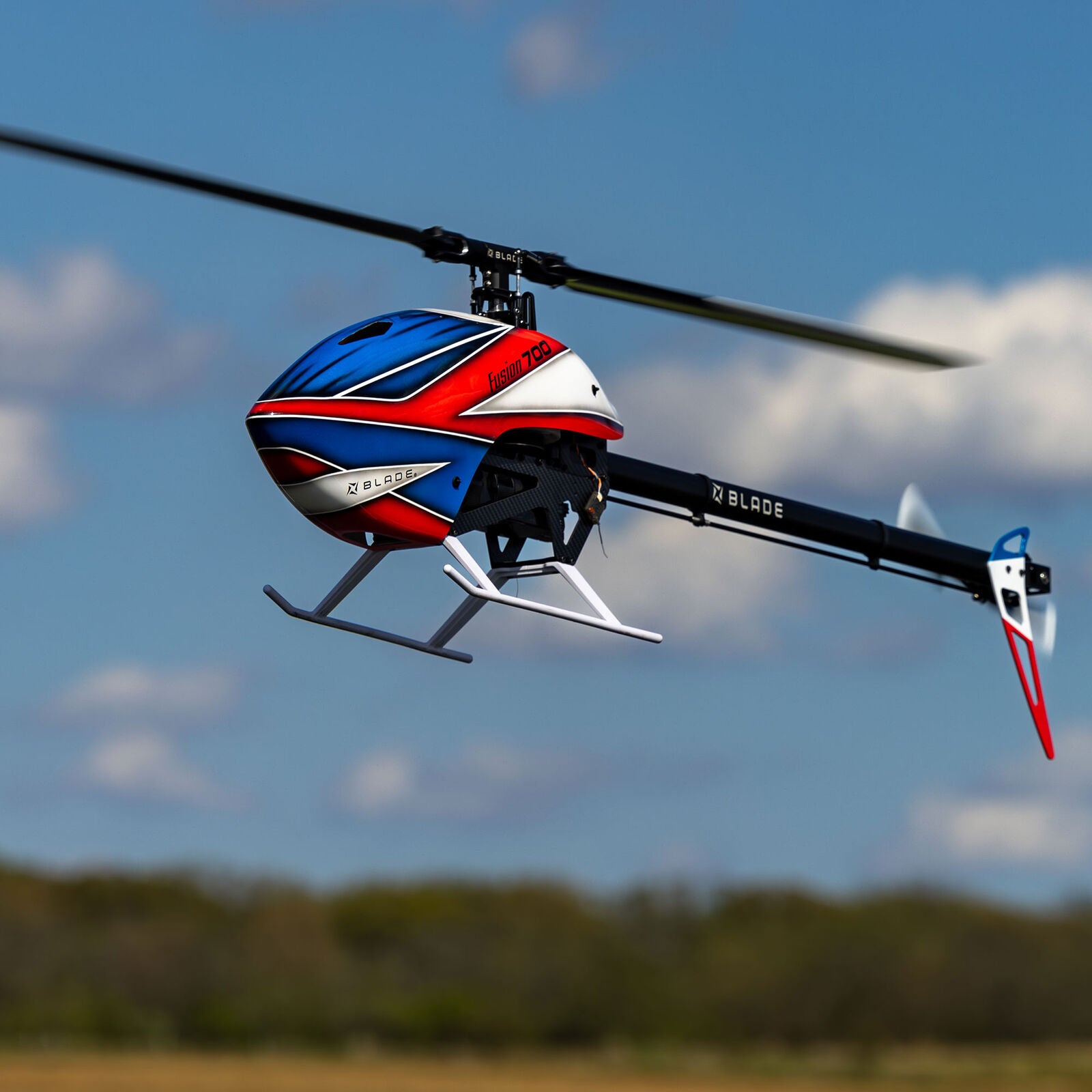

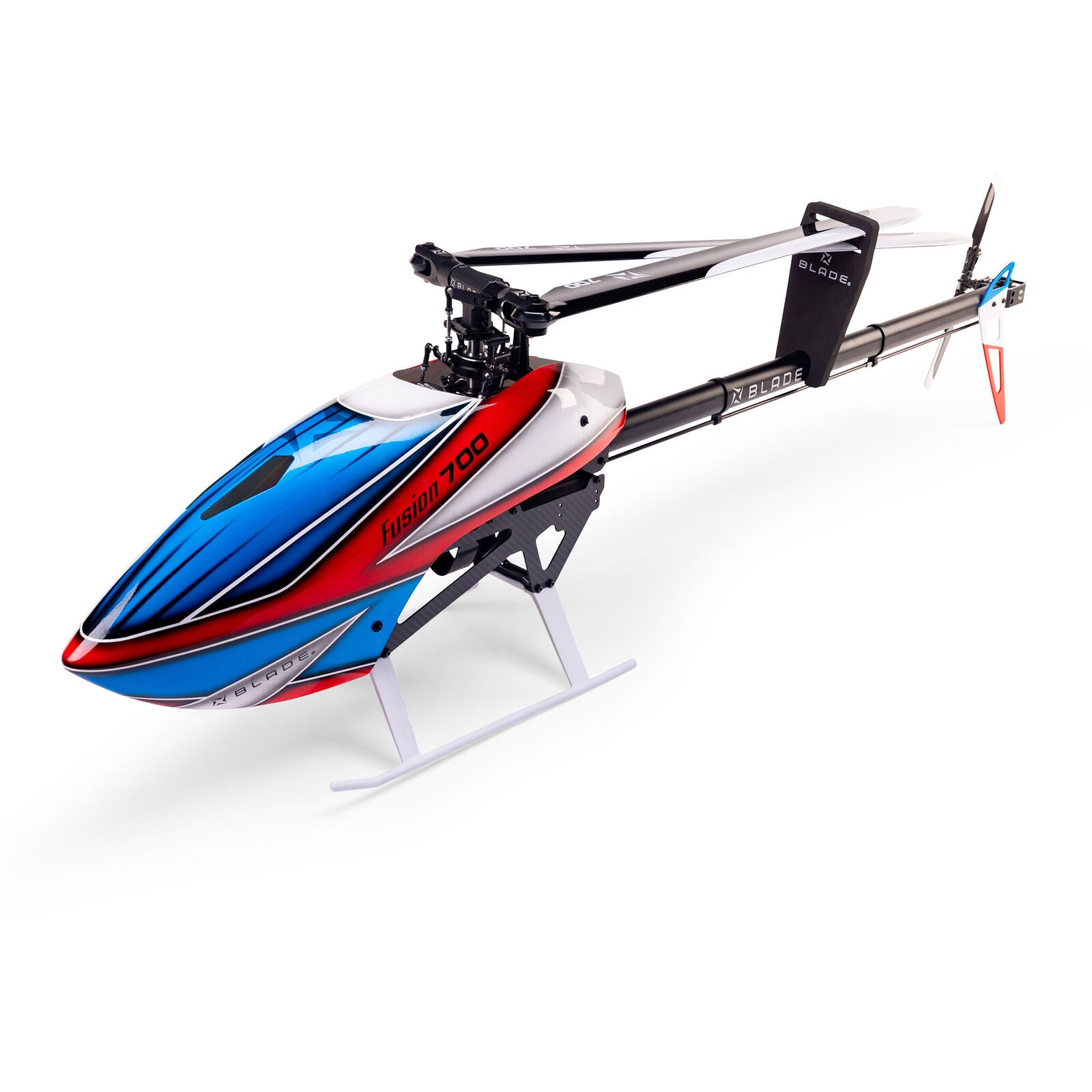

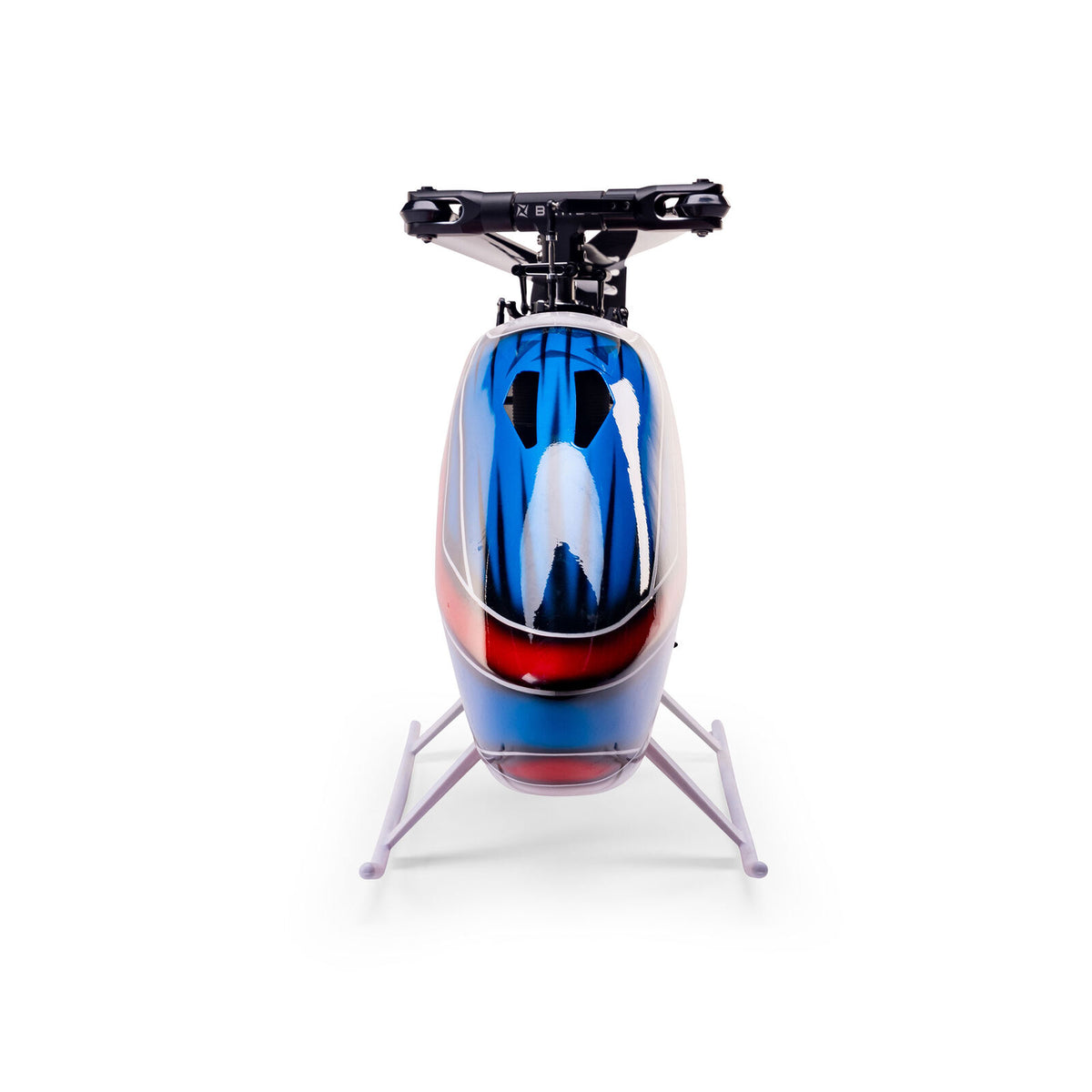

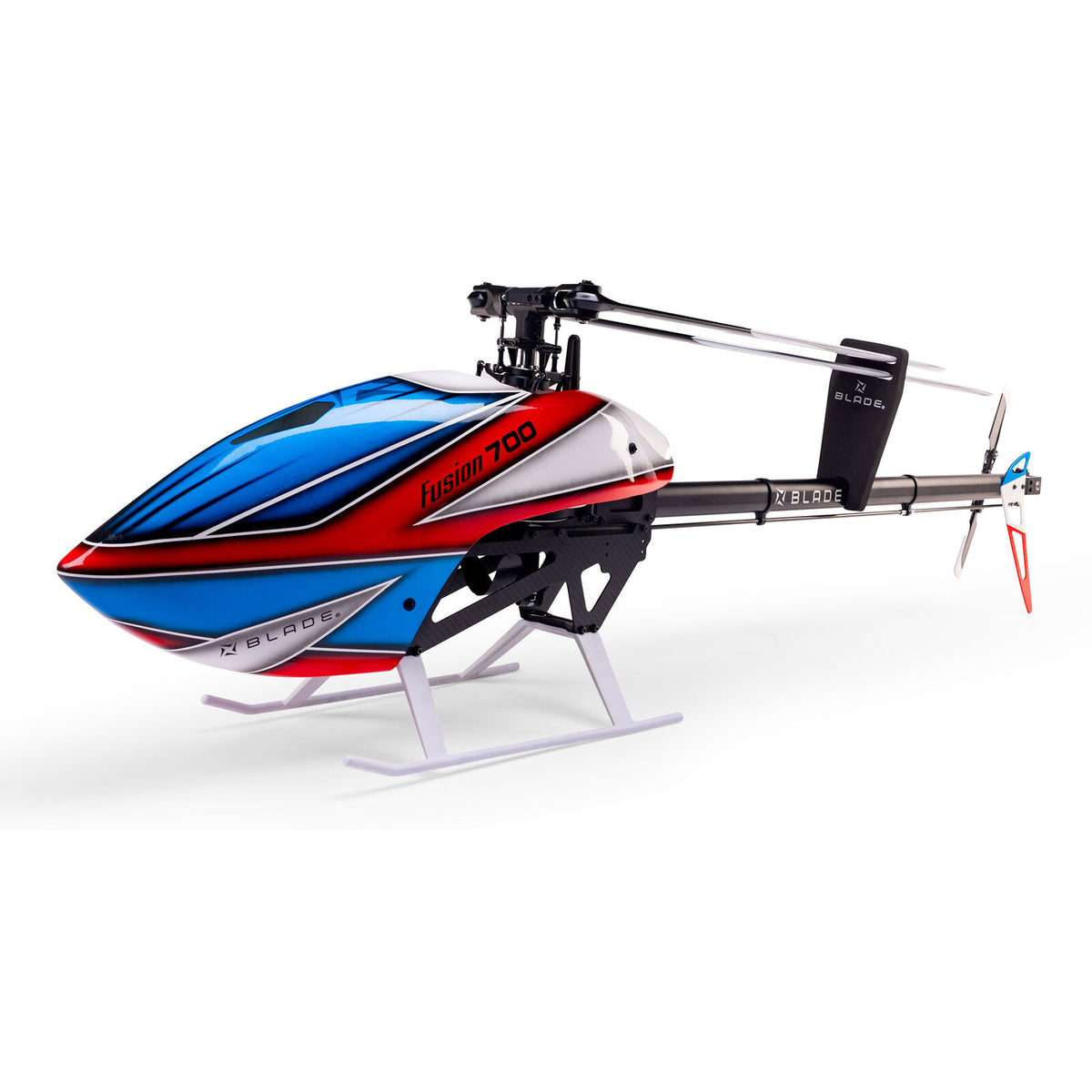

The Blade Fusion 700 Helicopter Kit with Motor and Blades blends modern engineering with extreme capabilities, delivering unmatched flight performance for sport, precision, and aggressive 3D pilots. Built around an ultra-durable carbon fiber and aluminum airframe, this high-performance RC helicopter is ready to pair with your choice of 12S LiPo battery setups and flybarless electronics. Experience the ultimate in 700-size stability, durability, and response with this top-tier electric model.
Uncompromising Quality EngineeringBuilt For Aggressive 3D Flying

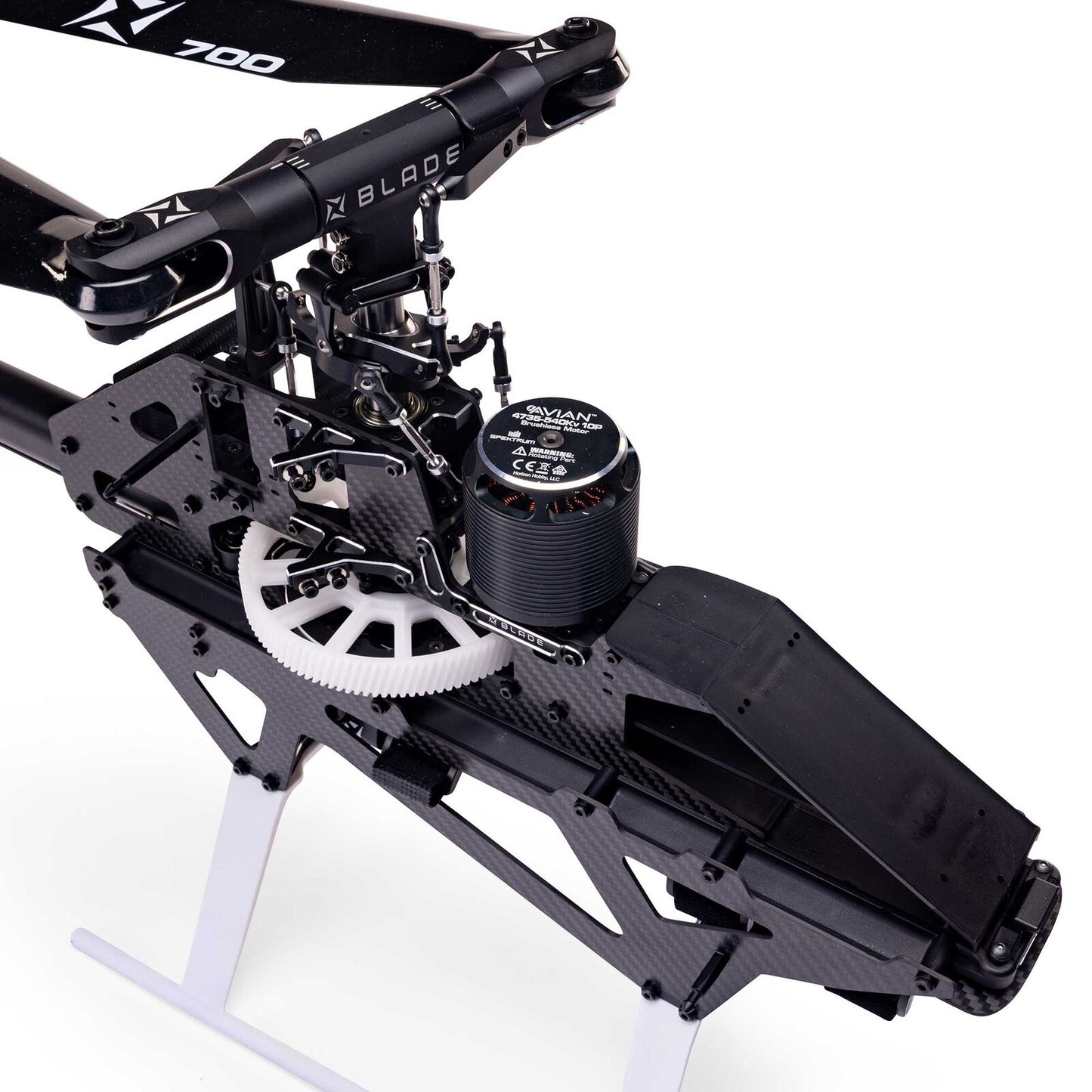

Designed with nearly two decades of engineering expertise, the Blade Fusion 700 Helicopter Kit with Motor and Blades sets a new standard in big-block RC helicopter performance. At its core is a high-strength 15mm main shaft, 10mm spindle, and robust Delrin® helical main gear driven by the included Spektrum Avian 4735-540Kv brushless outrunner motor. The ovalized aluminum tail boom eliminates the need for external supports, while the 8mm wide belt drive with an aluminum tail case delivers locked-in, whisper-quiet tail authority during intense 3D maneuvers.
This kit comes equipped with top-tier Blade 700mm carbon fiber main rotor blades and 105mm carbon fiber tail blades, giving you a world-class foundation to complete with your choice of ESC, flybarless control system, and high-torque servos. Whether you are stepping up to your first massive 700-size electric heli or searching for an ultra-reliable platform for aggressive aerobatics, the Blade Fusion 700 delivers unmatched quality, long-term spare parts support, and extraordinary flight dynamics.
Complete Machine SpecsTechnical Parameters and Build Requirements
Completion Level
Kit
Power Type
Electric
Scale / Size Class
700 Series
Main Motor Type
Brushless 4735-540Kv 10-Pole
Main Rotor Blade Length
27.56" (700 mm) (wind)
Main Rotor Diameter
62" (1575 mm) (compass)
Tail Rotor Blade Length
4.13" (105 mm) (wind)
Tail Rotor Diameter
11.5" (292 mm) (compass)
Tail Drive
Belt Drive
Main Rotor Head Type
Collective Pitch Flybarless

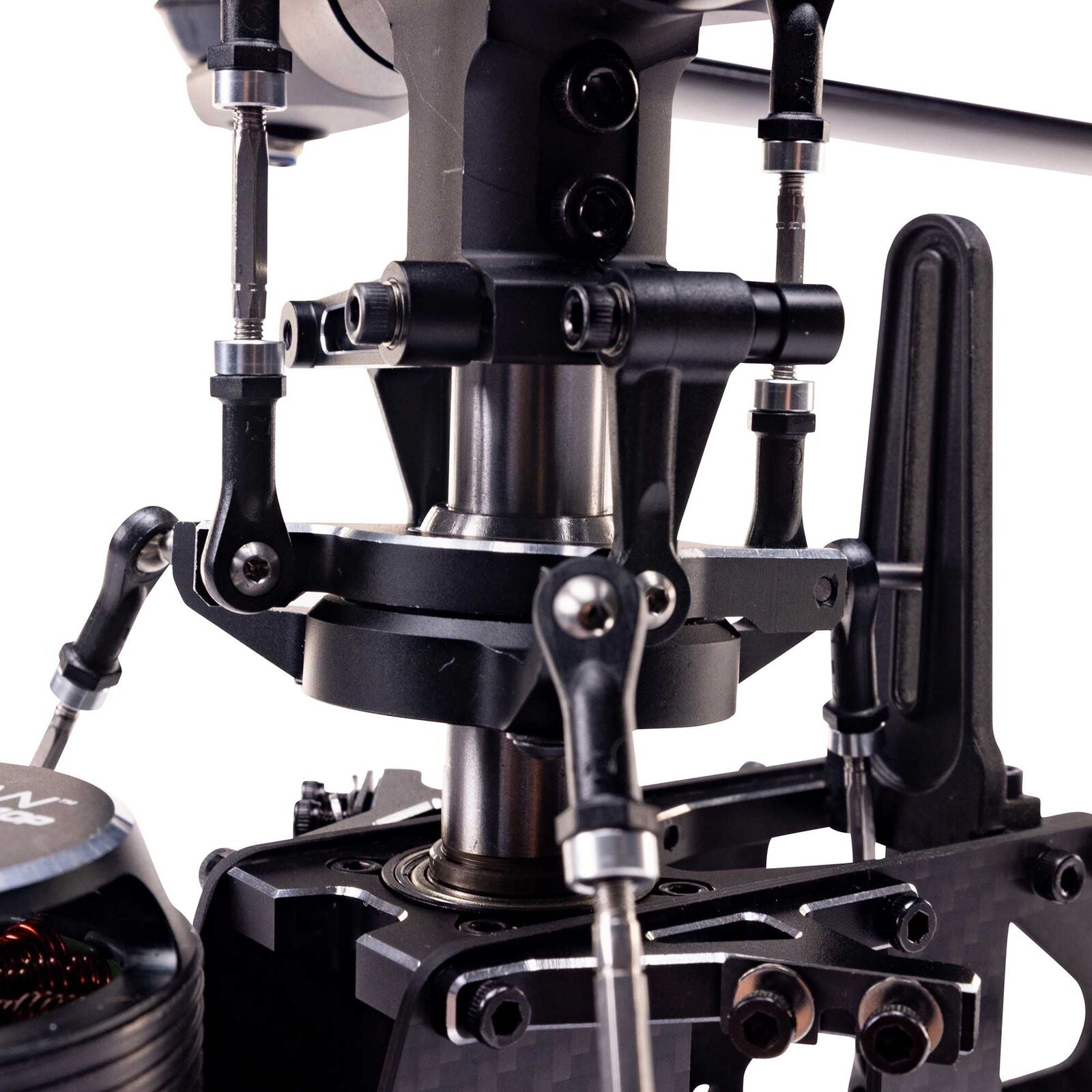

Swashplate Type
120 Degree CCPM
Main Frame Material
Carbon Fiber
Canopy/Body Material
Fiberglass

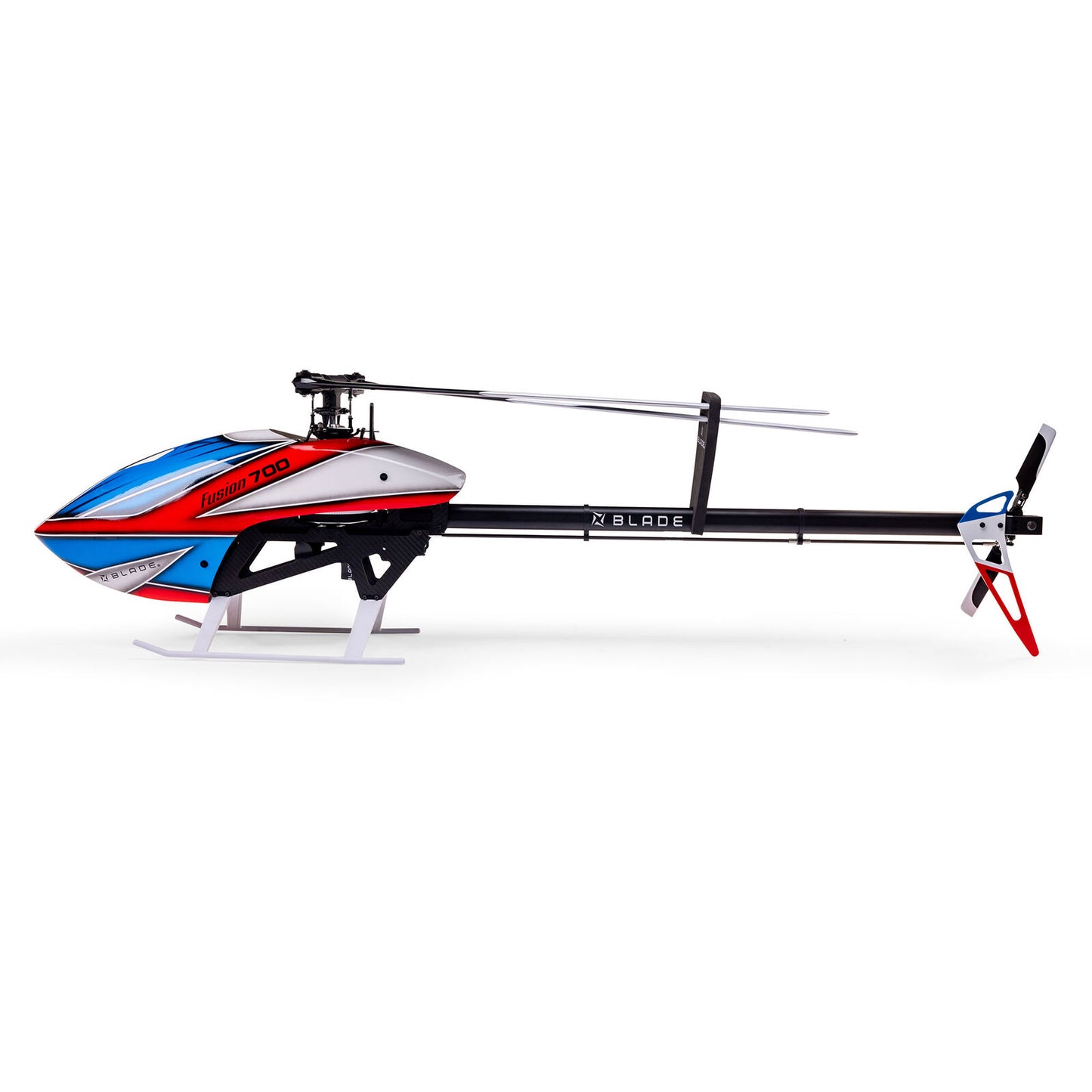

Overall Length
54.5" (1384 mm) (ruler)
Product Width
8.5" (216 mm) (ruler)
Product Height
14.88" (378 mm) (ruler)
Product Weight
12.5 lb (5670g) with recommended battery (weight)
Assembly Time
5-7 Hours
Recommended Battery
12S 44.4V 4000mAh to 5000mAh LiPo
Gear Ratio
9.33 - 10.18
Speed Control
Sold Separately
Servos
Sold Separately
Receiver & Radio
Sold Separately
Pro Level CapabilitiesEngineered For Extreme Aerobatic Rigor

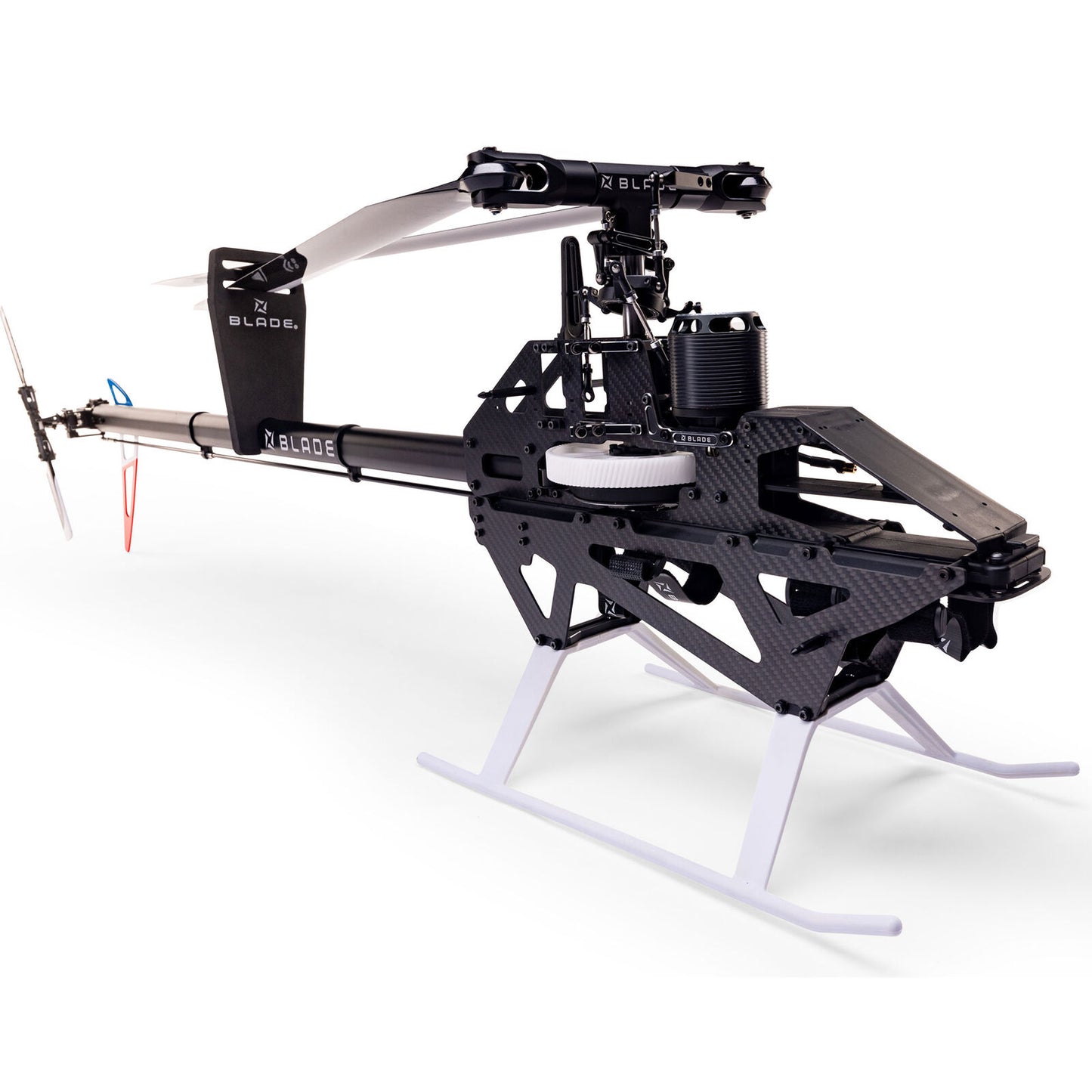

AirframeHigh-strength carbon fiber and aluminum construction
Main ShaftHeavy-duty 15mm main shaft with 10mm spindle

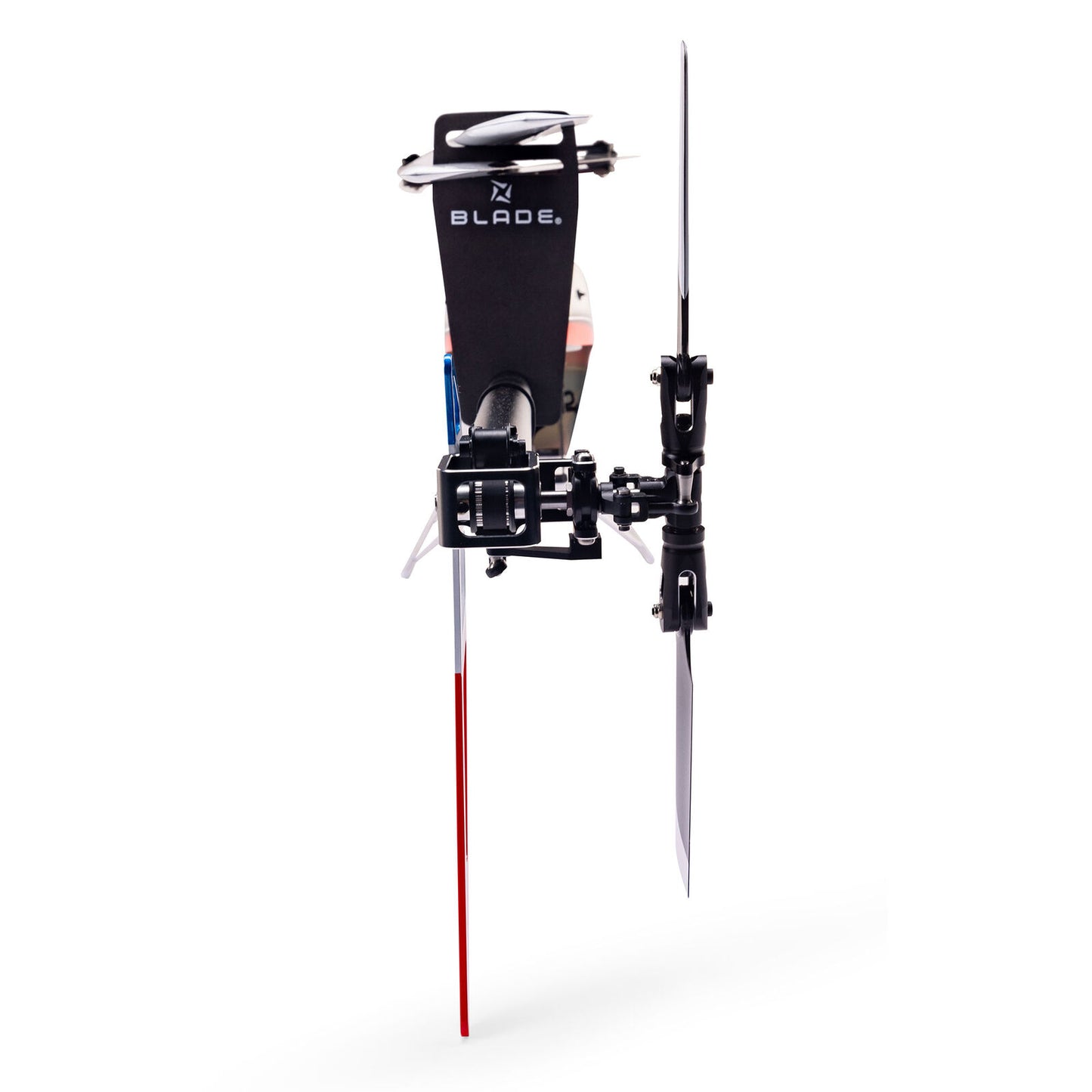

Tail BoomOvalized aluminum tail boom eliminates boom supports
Tail Drive8mm wide belt drive with adjustable tensioning system

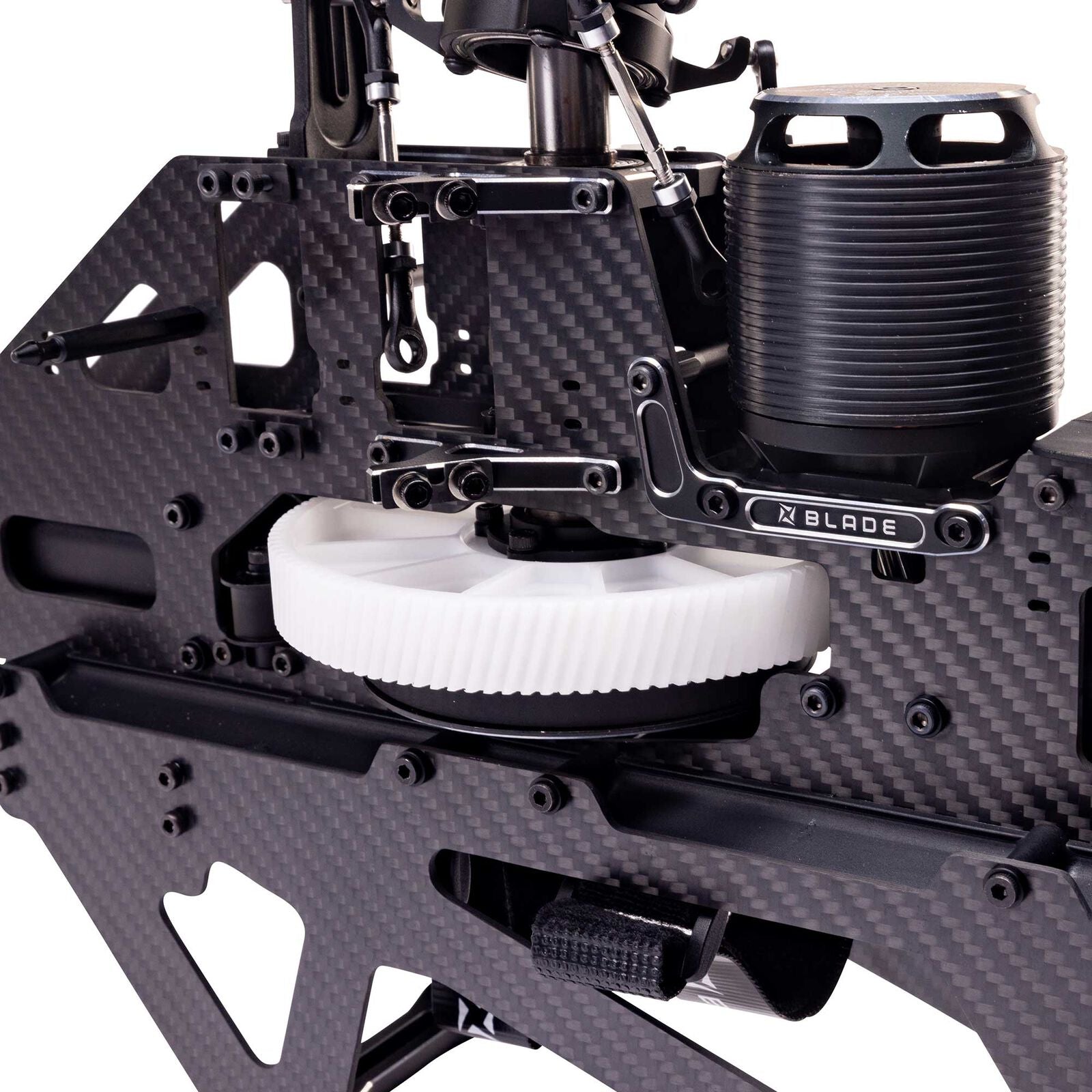

Main GearDelrin® helical main gear paired with a steel pinion

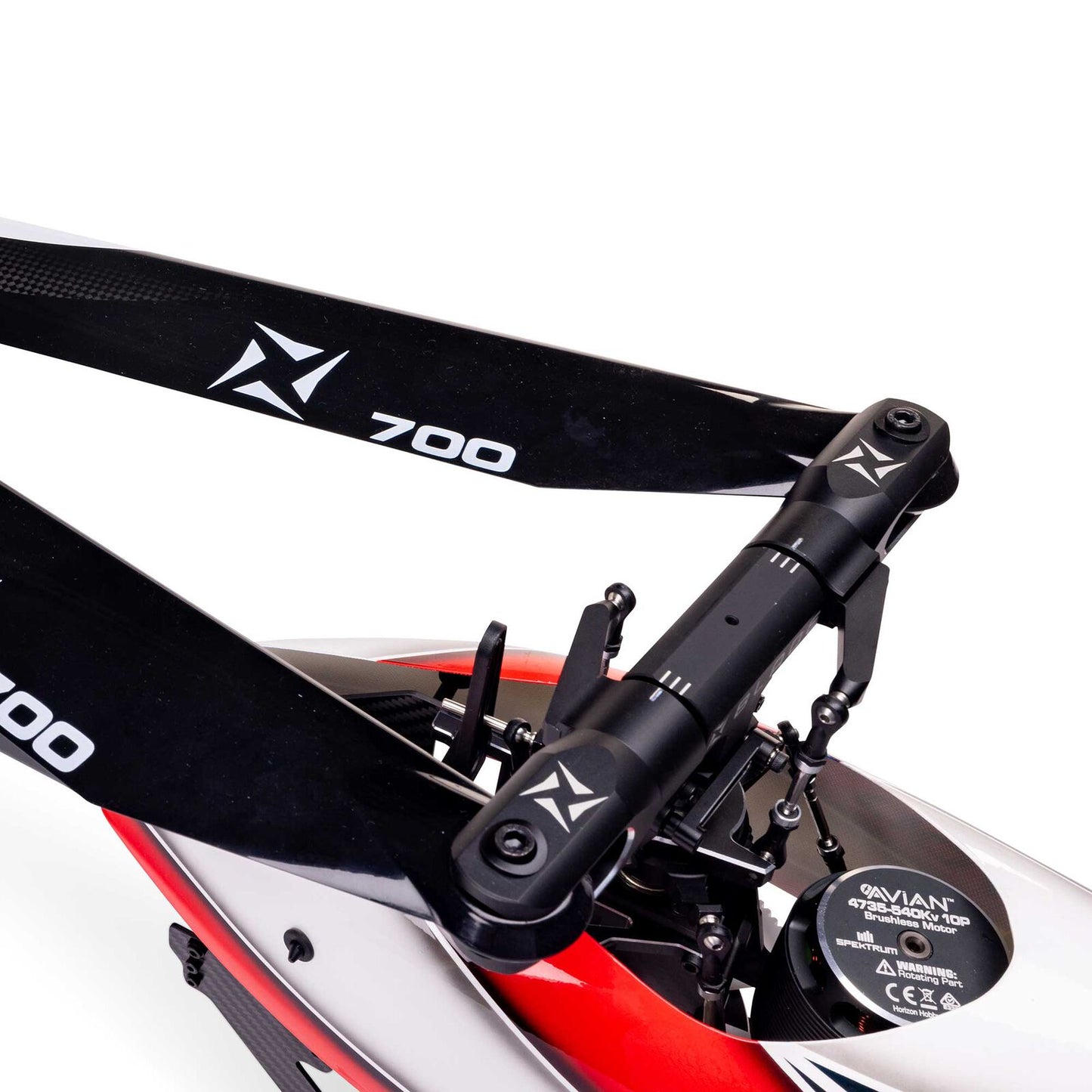

Included BladesPremium 700mm main and 105mm tail carbon fiber rotor blades

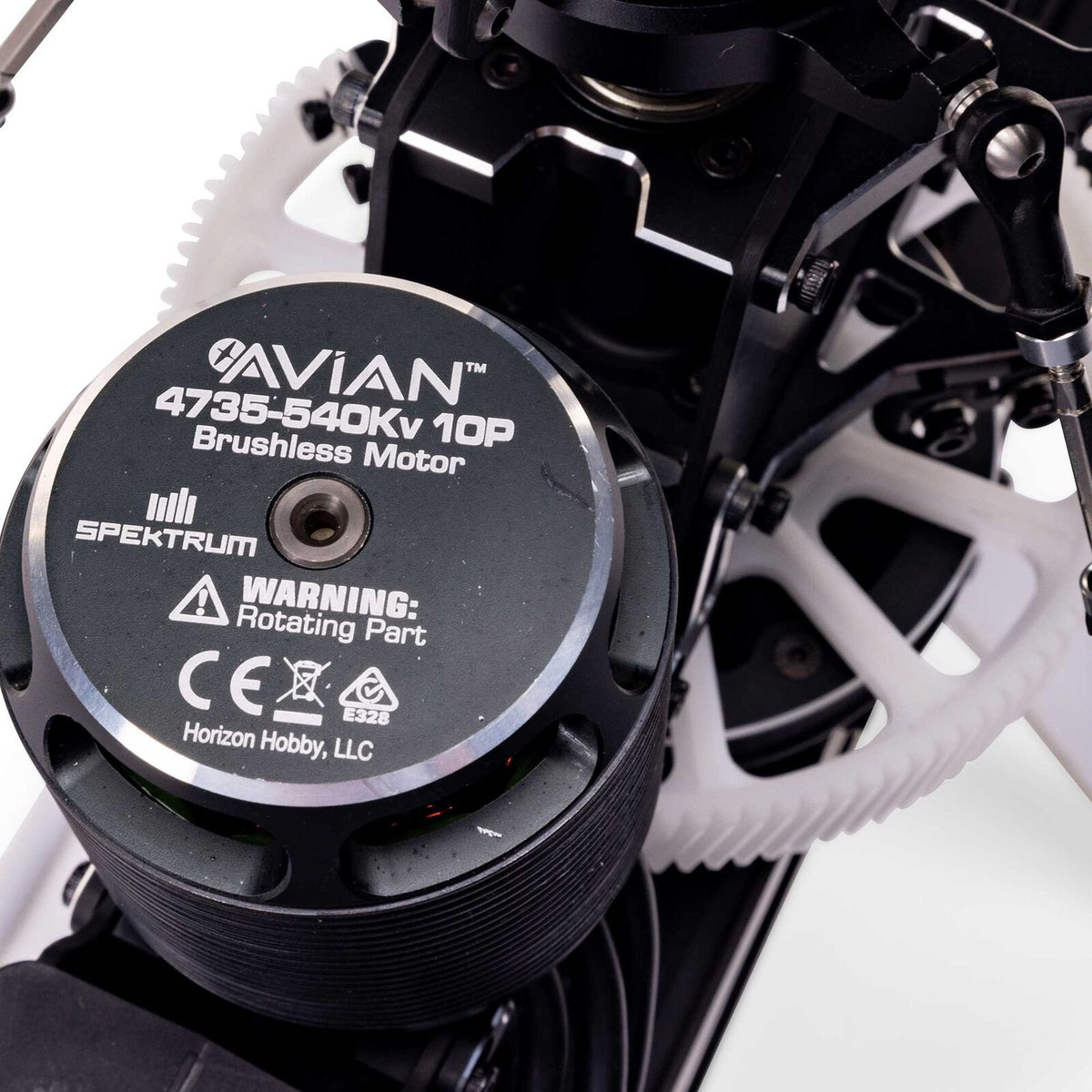

Power SystemIncludes Spektrum Avian 4735-540Kv brushless outrunner motor
Battery CompatibilityDesigned for 12S 4000–5000mAh LiPo battery configurations
Frequently Asked QuestionsEverything you need to know
What electronics are required to complete the Blade Fusion 700 Helicopter Kit?
To complete the Blade Fusion 700 Helicopter Kit, you will need a 6+ channel transmitter and receiver, a flybarless control system, a 120A+ 12S brushless ESC, 3 standard high-torque cyclic servos, 1 high-speed tail servo, and a compatible 12S (or two 6S) 4000-5000mAh LiPo battery setup with charger.
Is the motor included with the Blade Fusion 700 Helicopter Kit?
Yes, the Blade Fusion 700 Helicopter Kit includes a high-torque Spektrum Avian 4735-540Kv 10-pole brushless outrunner motor along with carbon fiber main and tail rotor blades.
What skill level is recommended for the Blade Fusion 700 Helicopter Kit?
The Blade Fusion 700 Helicopter Kit is rated at Skill Level 4, making it ideal for experienced intermediate to advanced RC pilots who are familiar with building and setting up collective pitch flybarless helicopters.
What batteries are recommended for the Blade Fusion 700 Helicopter Kit?
The Blade Fusion 700 Helicopter Kit is designed for 12S power configurations using either two 6S 22.2V or one 12S 44.4V 4000–5000mAh LiPo battery equipped with IC5 or EC5 connectors.
