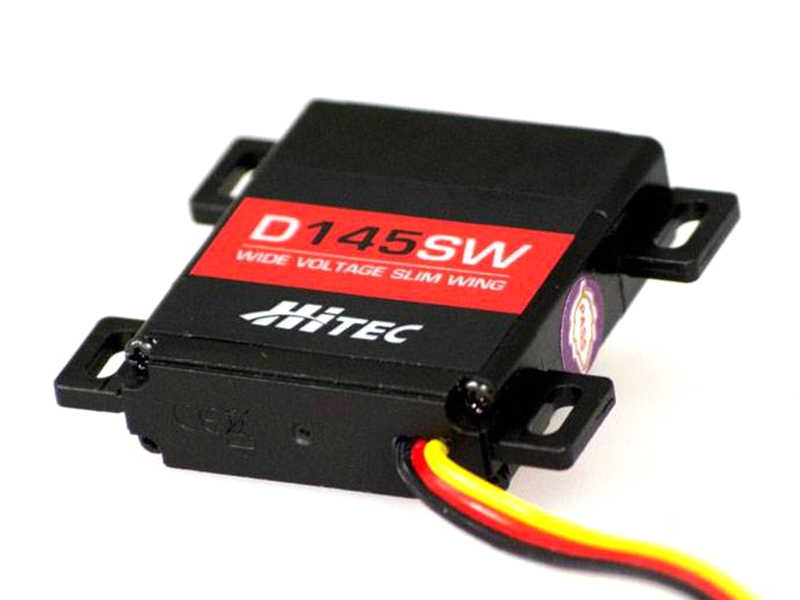

Hitec D145SW 32-Bit Wide Voltage Steel Servo (HRC36145)
$65.99
Skip to product information
Hitec D145SW 32-Bit Wide Voltage Steel Servo (HRC36145)
$65.99
In Stock
32-Bit Digital
Ultra Response Signal Processing
Steel Gears
Heavy Duty Metal Train
Slim Profile
Designed for Aircraft Wings
Wide Voltage
Operates 4.8V to 7.4V
Dual Bearings
Smooth and Precise Operation
High Torque
Up to 83 oz-in
Precision Control PowerNext Generation Slim Wing Servo
Engineered specifically for sleek gliders and high-performance aircraft, the D145SW Thin Digital Wide Voltage Steel Gear Slim Wing Servo delivers unmatched holding power and fast reaction speeds. Utilizing high-resolution 32-bit digital technology, this ultra-slim RC plane servo ensures pinpoint accuracy for flush wing installations. Elevate your flight experience with robust steel gearing and versatile wide-voltage capability.
Engineering Precision Glider ActuationAdvanced Actuation for Slim Wings
The D145SW Thin Digital Wide Voltage Steel Gear Slim Wing Servo sets a high standard for wing-mounted actuation in sailplanes, gliders, and compact RC aircraft. Powered by an advanced 32-bit programmable digital circuit and a 3-pole carbon brush motor, this thin wing servo provides exceptional centering and instantaneous torque up to 83 oz-in at 7.4V. Its ultra-slim 10mm casing profile fits cleanly into narrow airfoils without compromising aerodynamics or strength. Dual ball bearings support a rugged gear train featuring heavy-duty steel gears designed to absorb severe flight forces. Whether running on standard 4.8V or 2S LiPo high-voltage setups, this high-performance RC digital servo offers maximum flight accuracy and reliability.
Technical SpecificationsDetailed Parameters and Electrical Specs
Compatible Vehicles
RC Gliders, Sailplanes, and Performance Aircraft
Part Type
Thin Wing Servo
Material
Plastic Case with Steel/Metal Gears
Placement/Position
Aircraft Wing Bay
Dimensions
1.18 x 0.39 x 1.45 in / 30.0 x 10.0 x 37.0 mm
Weight
0.84 oz / 24.0 g
Operating Voltage Range
4.8V ~ 7.4V DC
Speed (Second @ 60°)
0.21 sec (4.8V) ~ 0.14 sec (7.4V) (timer)
Maximum Torque Range
54 ~ 83 oz-in / 3.9 ~ 6.0 kg-cm
Circuit Type
32-Bit Programmable Digital
Motor Type
3 Pole Cored Carbon Brush
Gear Material
MP 1st Gear & 4 Metal Gears
Bearing Type
Dual Ball Bearing
Output Shaft
23 Spline / 6mm Diameter
Current Draw
30 mA Idle / 180 mA No Load / 2500 mA Stall
Engineered Wing PerformanceKey Highlights and Servo Features
32-Bit ProcessingHigh-resolution signal response and control accuracy
Steel Gear TrainHeavy-duty metal gearing engineered to resist wear
Slim Wing Casing10mm width perfectly fits inside low-profile wing bays
Wide Voltage SupportCompatible with 4.8V through 7.4V power setups
Dual Ball BearingsEnsures smooth power transfer and output stability
High Torque OutputGenerates up to 83 oz-in of maximum holding force
Programmable CircuitCustomizable resolution and control parameters
Frequently Asked QuestionsEverything you need to know
What operating voltage does the D145SW Thin Digital Steel Gear Slim Wing Servo support?
The D145SW Thin Digital Steel Gear Slim Wing Servo features wide voltage operation, supporting direct input voltages ranging from 4.8V to 7.4V DC.
Is the D145SW Thin Digital Steel Gear Slim Wing Servo suitable for glider wings?
Yes, the D145SW Thin Digital Steel Gear Slim Wing Servo is specifically engineered with an ultra-slim 10mm profile designed to fit easily inside thin glider and sailplane wing bays.
What type of gear train does the D145SW Thin Digital Steel Gear Slim Wing Servo use?
The D145SW Thin Digital Steel Gear Slim Wing Servo utilizes a durable hybrid gear train consisting of an MP first gear and four heavy-duty metal steel gears supported by dual ball bearings.
