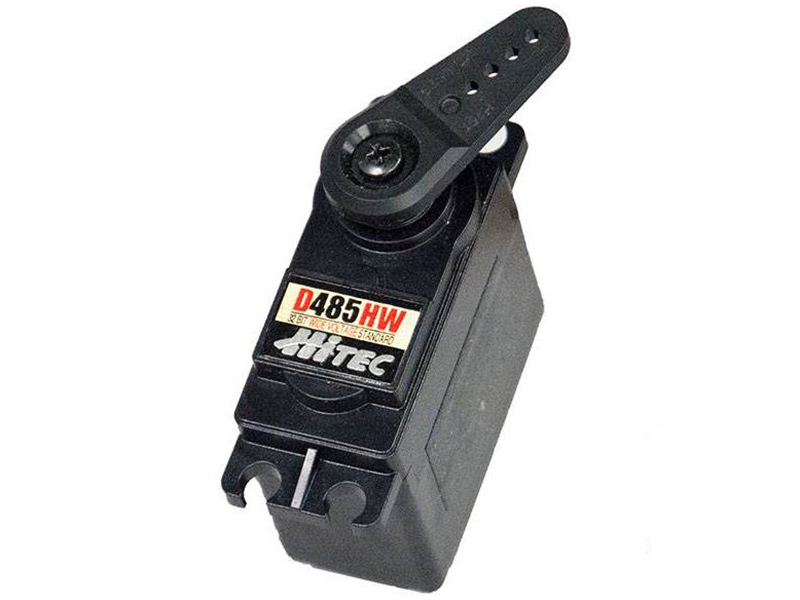

Hitec D485HW Carbonite Servo, Wide Voltage (HRC36485)
$28.99
Skip to product information
Hitec D485HW Carbonite Servo, Wide Voltage (HRC36485)
$28.99
Wide Voltage
Flexible 4.8V To 7.4V
32-Bit Digital
Ultra Fast Smooth Response
Karbonite Gears
Durable High Precision Gearing
Top Ball Bearing
Smooth Operation Long Life
Strong Torque
Up To 104 Oz-In
High Resolution
Precision Control For RC
Precision Steering & ControlUpgraded High Resolution Digital Performance
The Hitec D485HW Carbonite Wide Voltage Servo delivers exceptional response and precision for your sport-class radio control applications. Powered by D-series high-resolution 32-bit digital technology, this versatile RC servo motor provides ultra-fast response and reliable wide-voltage operation from 4.8V to 7.4V. Ideal for upgrading standard servos in RC airplanes, sailplanes, and scale models, the Hitec D485HW ensures dependable control and performance.
Next-Gen Sport Servo PowerAdvanced Technology For RC Enthusiasts
Engineered as the direct upgrade to the legendary HS-5485HB and HS-5495BH models, the Hitec D485HW Carbonite Wide Voltage Servo brings cutting-edge 32-bit programmable digital technology to budget-friendly sport class RC models. Featuring a durable hybrid gear train with a metal first gear and three Karbonite resin gears, this digital standard servo resists wear while maintaining tight precision. Operating directly on 2S LiPo battery power without a BEC, it delivers up to 104 oz-in of torque and rapid 0.15-second transit speeds. Whether installed in sport planes, sailplanes, or power boats, the Hitec D485HW servo provides the reliability, resolution, and holding power serious RC modelers demand.
Technical SpecificationsDetailed Performance & Physical Data
Part Type
Standard Digital Servo
Circuit Type
32-Bit Programmable Digital
Operating Voltage
4.8V - 7.4V DC
Speed (60°)
0.20 sec @ 4.8V / 0.15 sec @ 7.4V
Maximum Torque
72 oz-in @ 4.8V / 104 oz-in @ 7.4V
Gear Material
Metal 1st Gear & 3 Karbonite Resin Gears
Motor Type
3-Pole Cored Carbon Brush
Bearing Type
Top Ball Bearing
Output Shaft
25-Tooth / 6mm
Dimensions
1.57 x 0.78 x 1.49 in / 39.8 x 19.8 x 38.0 mm
Weight
1.59 oz / 45.0 g
Case Material
Plastic
Compatible Applications
Sport Planes, Sailplanes, Scale Aircraft, Power Boats
Core Performance FeaturesEngineered For Speed And Accuracy
High-Resolution MCU32-bit programmable digital circuit for crisp response
Wide Voltage OperationDirect 2S LiPo compatibility from 4.8V to 7.4V
Karbonite Gear TrainFour times stronger than standard nylon gears with minimal slop
Top Ball BearingSmooth output shaft support and reduced mechanical friction
High Torque OutputUp to 104 oz-in of dynamic holding power
Cored Carbon MotorReliable 3-pole motor design for efficient power draw
Direct Drop-In UpgradeReplaces standard HS-5485HB and HS-5495BH servos seamlessly
Frequently Asked QuestionsEverything you need to know
What operating voltage does the Hitec D485HW Carbonite Wide Voltage Servo support?
The Hitec D485HW Carbonite Wide Voltage Servo supports an operating voltage range of 4.8V to 7.4V DC, allowing direct operation with 2S LiPo receiver battery packs without requiring a voltage regulator.
Is the Hitec D485HW Carbonite Wide Voltage Servo a direct replacement for older Hitec servos?
Yes, the Hitec D485HW Carbonite Wide Voltage Servo directly replaces the standard-size Hitec HS-5485HB and HS-5495BH servos, offering enhanced 32-bit digital resolution and wide voltage flexibility in the same physical size.
What type of gear material is used in the Hitec D485HW Carbonite Wide Voltage Servo?
The Hitec D485HW Carbonite Wide Voltage Servo features a metal first gear combined with three high-strength Karbonite resin gears for superior durability and minimal gear backlash.
What applications is the Hitec D485HW Carbonite Wide Voltage Servo best suited for?
The Hitec D485HW Carbonite Wide Voltage Servo is ideal for sport planes, sailplanes, scale aircraft, and 1/10th scale power boats requiring reliable holding torque and high-resolution control.
