Hitec D646WP Waterproof Servo (HRC36646)
$54.99
Skip to product information

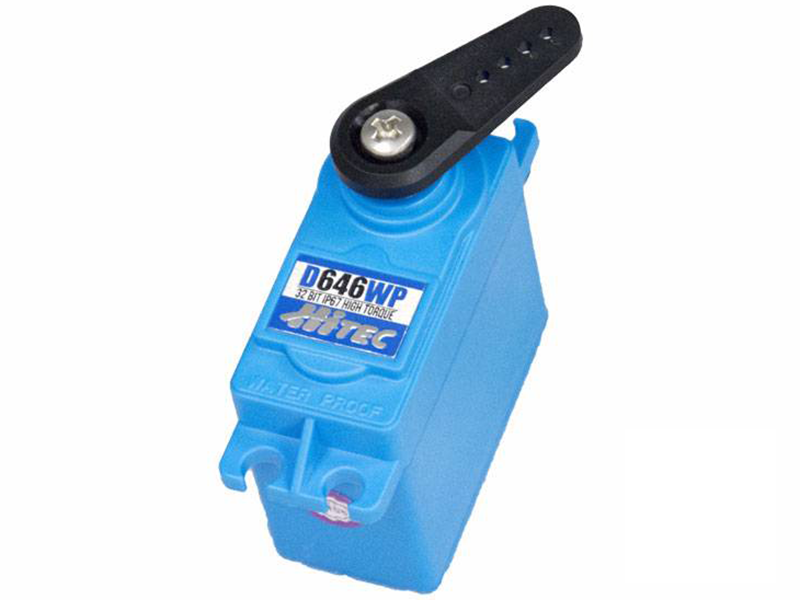

Hitec D646WP Waterproof Servo (HRC36646)
$54.99
IP67 Waterproof
Submersible In Wet Conditions
High Torque
Up To 179 oz-in Torque
Metal Gears
Durable Metal Gear Train
2S LiPo Ready
Operates Up To 7.4V Directly
32-Bit Programmable
Customizable Digital Circuit Performance
Dual Ball Bearings
Smooth Output Shaft Support
All-Weather PowerUnmatched Reliability in Wet Conditions
The Hitec D646WP High Torque Waterproof Servo delivers ultimate durability and waterproof protection for your favorite RC car, boat, or aircraft. Featuring an industry-first IP67 rating, this 32-bit digital servo ensures total peace of mind when bashing through mud, steering powerboats, or landing on water.
Precision Steering PowerEngineered For Heavy Duty Applications
Engineered with a powerful three-pole ferrite motor and ultra-durable metal gear train, the Hitec D646WP Servo provides exceptional steering torque and precision control. Designed to run directly on 2S LiPo power (7.4V), it features standard programmable digital circuitry allowing you to fine-tune end points, dead band, directional rotation, and fail-safe settings. Dual ball bearings support the output shaft to reduce slop and maintain smooth operation under heavy load. Upgrade your RC vehicle with the Hitec D646WP to experience rock-solid performance in any demanding environment.
Technical SpecsDetailed Specifications and Performance Data
Compatible Vehicles
Universal RC Cars, Boats, Airplanes, and Robotics
Part Type
High-Torque Digital Servo
Material
Plastic Case / Metal Gear Train
Placement/Position
Steering / Throttle / Rudder
Dimensions
1.65 x 0.83 x 1.57 in / 41.8 x 21.0 x 40.0 mm
Weight
2.15 oz / 61.0 g
Operating Voltage Range
6.0V ~ 7.4V
Speed (60°)
0.20 sec (6.0V) / 0.18 sec (7.4V) (timer)
Maximum Torque
157 oz-in (6.0V) / 179 oz-in (7.4V) (speedometer)
Circuit Type
G1 Programmable Digital 32-Bit
Motor Type
3-Pole Metal Brush Ferrite
Gear Material
Metal with MP First Gear
Bearing Type
Dual Ball Bearing
Output Shaft Spline
Standard 24 Tooth
Dust/Water Resistance
IP67 Rated
Performance FeaturesAdvanced Engineering For Superior Durability
IP67 RatingIndustry's first dust and waterproof case rating
32-Bit ProcessingHigh-resolution digital circuitry for fast response
Metal Gear TrainHigh-strength metal gears with MP first gear
LiPo CompatibilityNative 7.4V 2-cell LiPo battery support
Dual Ball BearingsSupports output shaft for maximum stability
Programmable Digital CircuitAdjust endpoints, direction, fail-safe, and speed
Ferrite MotorReliable three-pole metal brush ferrite motor
Frequently Asked QuestionsEverything you need to know
Is the Hitec D646WP Servo fully waterproof?
Yes, the Hitec D646WP Servo features an industry-first IP67 waterproof and dustproof rating, making it completely submersible and ideal for wet weather, RC powerboats, and off-road mud bashing.
Can I run the Hitec D646WP Servo directly on a 2S LiPo battery?
Absolutely. The Hitec D646WP Servo is designed to operate on a voltage range of 6.0V to 7.4V, allowing direct operation from a 2-cell 7.4V LiPo receiver battery pack.
Is the Hitec D646WP Servo programmable?
Yes, the Hitec D646WP Servo contains G1 programmable digital circuitry, enabling you to adjust settings such as fail-safe, direction, dead band width, speed, and end point adjustments using a compatible Hitec servo programmer.
What output shaft spline size does the Hitec D646WP Servo use?
The Hitec D646WP Servo features a standard Hitec 24-tooth output shaft spline supported by dual ball bearings.
