D_RTK High Precision GNSS Mobile Station for Matrice Series (NA)


Overview:
D-RTK 2 Mobile Station is DJI's upgraded high-precision GNSS receiver that supports all major global satellite navigation systems, providing real-time differential corrections that generate centimeter-level positioning data for improved relative accuracy.


Features:
  • Centimeter-Level Positioning

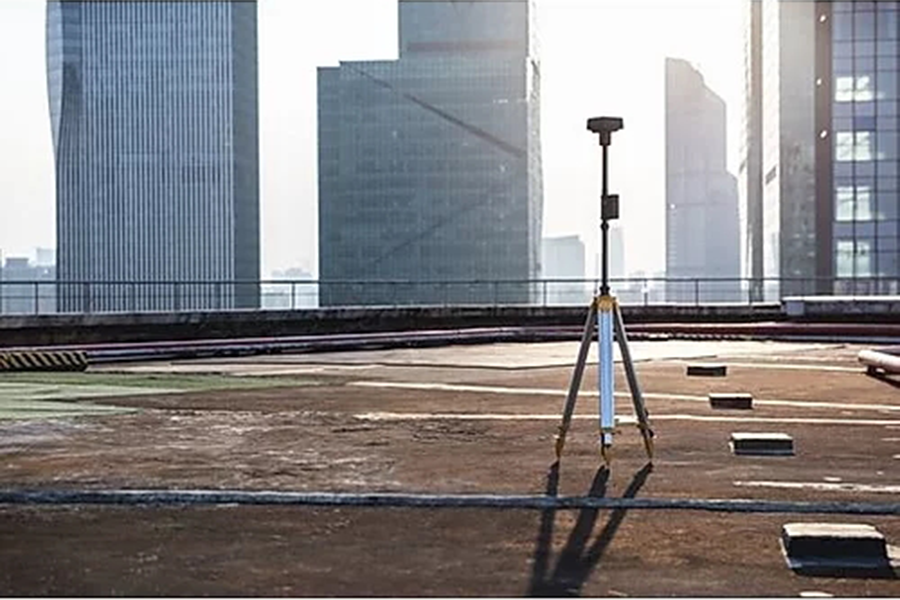

    D-RTK 2 Mobile Station fully supports GPS, GLONASS, Beidou, and GALILEO signals. Easy and quick to set up, the D-RTK 2 Mobile Station provides real-time differential data for drones to achieve centimeter-level positioning accuracy. The built-in high-gain antenna offers better signal reception from more satellites even when obstructions are present.

  • Stay Connected for Any Mission
    D-RTK 2 Mobile Station supports communication via 4G, OcuSync, WiFi, and LAN, ensuring uninterrupted, stable data transmission under any application scenario. Up to 5 remote controllers* can be connected to the D-RTK 2 Mobile Station simultaneously when used with DJI Agras drones, the Phantom 4 RTK, or the P4 Multispectral. When used with the Matrice 300 RTK, it can be connected to multiple aircraft, making coordinated operations involving multiple drones a possibility and significantly improving efficiency.

    * When used with Matrice 210 RTK V2, the D-RTK 2 Mobile Station can only be connected to one aircraft.

  • Durability You Can Trust
    Featuring IP65 level ingress protection and a lightweight carbon fiber body, the D-RTK 2 Mobile Station is ultra-portable and up for any task, no matter how tough. The built-in IMUs monitor movements and calibrate the tilt sensors to alert the operator of any abnormalities during the mission, minimizing risks.

  • A Comprehensive Solution
    The D-RTK 2 Mobile Station is compatible with Phantom 4 RTK, P4 Multispectral, MG-1P RTK, Agras T16, Agras T20, Matrice 210 RTK V2 and Matrice 300 RTK*. It also supports DPS (DJI Positioning Service), which provides high precision positioning data within the cover range of the base station, making it the ideal tool for surveying, aerial inspections, agriculture, and other industrial applications.

    * Once updated to v03.00.0013 or above using DJI Assistant 2, the D-RTK 2 Mobile Station For Matrice Series is compatible with Phantom 4 RTK, P4 Multispectral, MG-1P RTK, Agras T16, Agras T20, Matrice 210 RTK V2, and Matrice 300 RTK by switching to the corresponding modes.
GNSS Recevier
GNSS Frequency: Simultaneously receive:
GPS: L1 C/A, L2, L5
BEIDOU: B1, B2, B3
GLONASS: F1, F2
Galileo: E1, E5A, E5B
Positioning Accuracy: Single Point
Horizontal:1.5 m(RMS)
Vertical:3.0 m(RMS)
RTK
Horizontal:1 cm+ 1 ppm(RMS)
Vertical:2 cm+ 1 ppm(RMS)
1 ppm: For every 1 km increase in distance, the accuracy will be 1 mm less. For example, the horizontal accuracy is 1.1 cm when the receiving end is 1 km away from the base station.
Positioning Update Rate: 1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz
Cold Start: <45 s
Hot Start: <10 s
Recapture Time: <1 s
Initialization Reliability: >99.9%
Differential Data Format: RTCM 2.X/3.X

IMU
Features: Built-in high-precision 6-axis accelerometer
D-RTK 2 movement monitoring
Sloping measurements
Electronic bubble level

Physical Characteristics
Dimensions (D-RTK 2 body with extension rod): 168 mm×168 mm×1708 mm
IP Rating: IP65

Communication and Data Storage
Data Link: OcuSync, Wi-Fi, LAN, 4G
Operating Frequency: 2.400 GHz to 2.483 GHz (China, United States, Australia, Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (China, United States, Australia)
EIRP: OcuSync
2.4 GHz
SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
FCC (United States, Australia) / NCC (Taiwan, China): < 26 dBm
5.8 GHz
FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 26 dBm
Wi-Fi
2.4 GHz
SRRC (Mainland China) / CE (Europe) / MIC (Japan) / KCC (Korea): < 20 dBm
FCC (United States, Australia) / NCC (Taiwan, China): < 22 dBm
5.8 GHz
FCC (United States, Australia) / SRRC (Mainland China) / NCC (Taiwan, China): < 22 dBm
Communication Distance: Operating Mode 1/3:
?SRRC/NCC/FCC/MIC/KCC/CE: 2 km
?(Unobstructed and free of interference, when the D-RTK 2 Mobile Station is used as a base station and the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, when the difference in height between the remote controller and D-RTK 2 is less than 2 m, and when the remote controller is 1.2 m from ground level)

Operating Mode 4
?Between the aircraft and mobile station:
?NCC/FCC: 7 km; SRRC/MIC/KCC/CE: 5 km
?Between the remote controller and mobile station: 200 m (Unobstructed and free of interference at a flying altitude of about 120 m, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m, and when the remote controller is 1.2 m from ground level)

Operating Mode 5
?NCC/FCC: 12 km; SRRC/MIC/KCC/CE: 6 km
(Unobstructed and free of interference, when the distance from the D-RTK 2 antenna to the bottom of the tripod is 1.8 m)
Memory Capacity: 16 GB

Electrical Characteristics
Power Consumption: 12 W
Power Supply: 16.5 to 58.8VDC
Battery: Type: Lithium-ion battery
Capacity: 4920 mAh
Energy: 37.3 WH
Run Time: WB37 battery: >2 h
MG-12000P battery: >50 h

Operating Temperature
Operating Temperature: 4° to 131°F (-20° to 55°C)
