Autel EVO II Dual 640T Enterprise (Thermal) Enterprise Bundle

Overview:

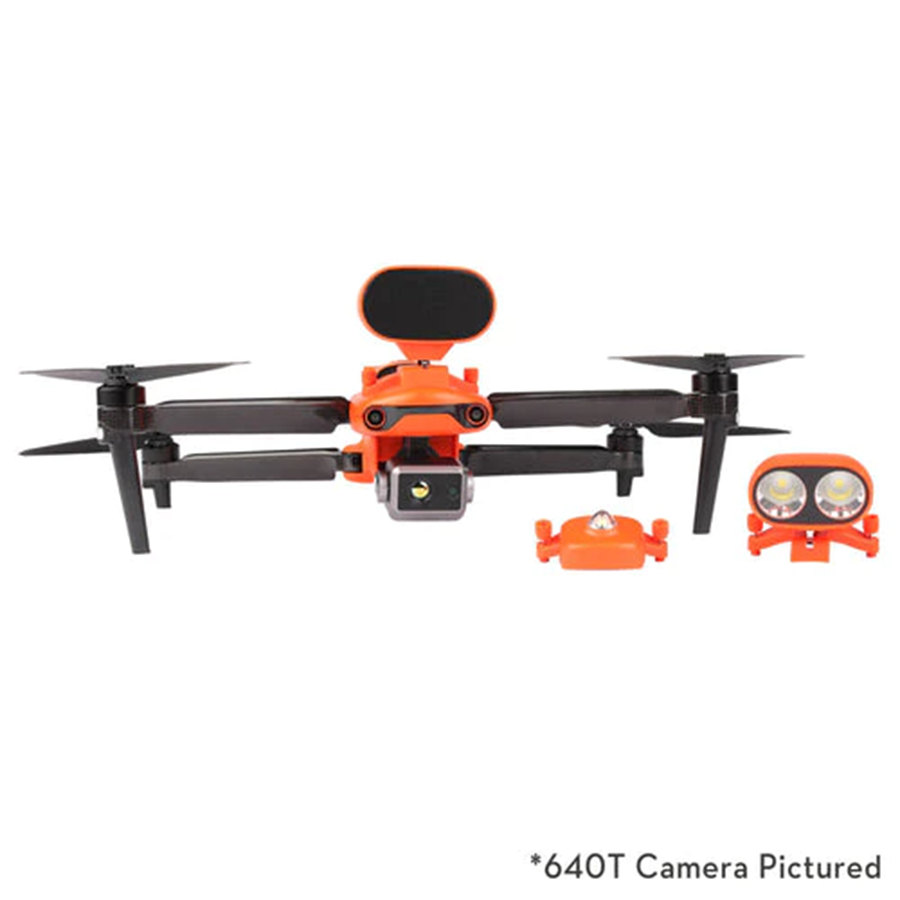

The Autel EVO II Dual 640T Enterprise Bundle is Autel Robotics' newest model to join the EVO II family. The EVO II Enterprise boasts a maximum flight time of 42 minutes and allows for the installation of add-on modules onto the hood of the aircraft. These add-on modules include the speaker, spotlight, and beacon, there is also and RTK add-on module for separate purchase. The EVO II 640T Enterprise comes with the Autel Smart Controller, three flight batteries, battery charging hub, car charger and wheeled carrying case (see "In the Box" for full kit contents).

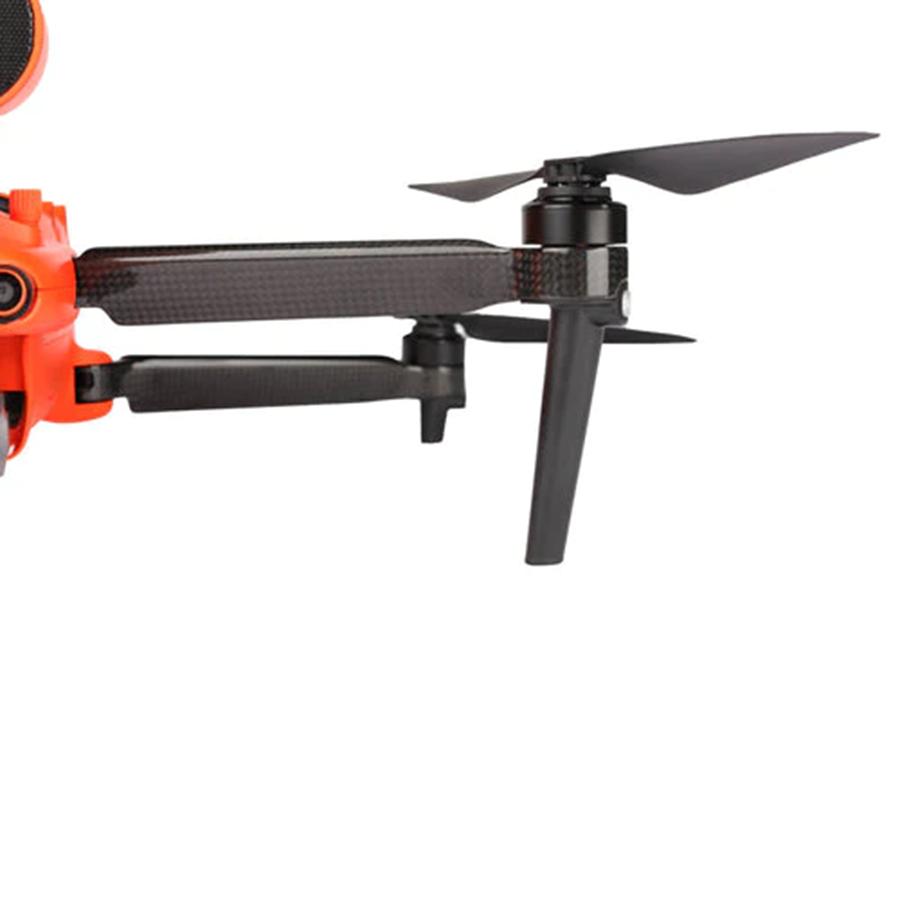

The EVO II Enterprise is a slightly different airframe from the regular EVO II models. The Enterprise model features carbon fiber arms, larger motors and larger propellers. These three characteristics yield an additional 5-7 minutes of flight time for the Enterprise model. The EVO II Enterprise also has a built-in ADS-B receiver so that you can ensure you are operating safely with knowledge of manned aircraft in your operational environment. In addition, the EVO II Enterprise features AES-256 encryption, called "Autel DataSecure Encryption".

The 640T InfiRay radiometric thermal camera is a 640x512 thermal imager with a 13mm focal length also equipped with an 8X digital zoom. The thermal sensor is paired with an 8K/48MP 1/2" CMOS visual camera with 4X lossless zoom and up to 16x total zoom.

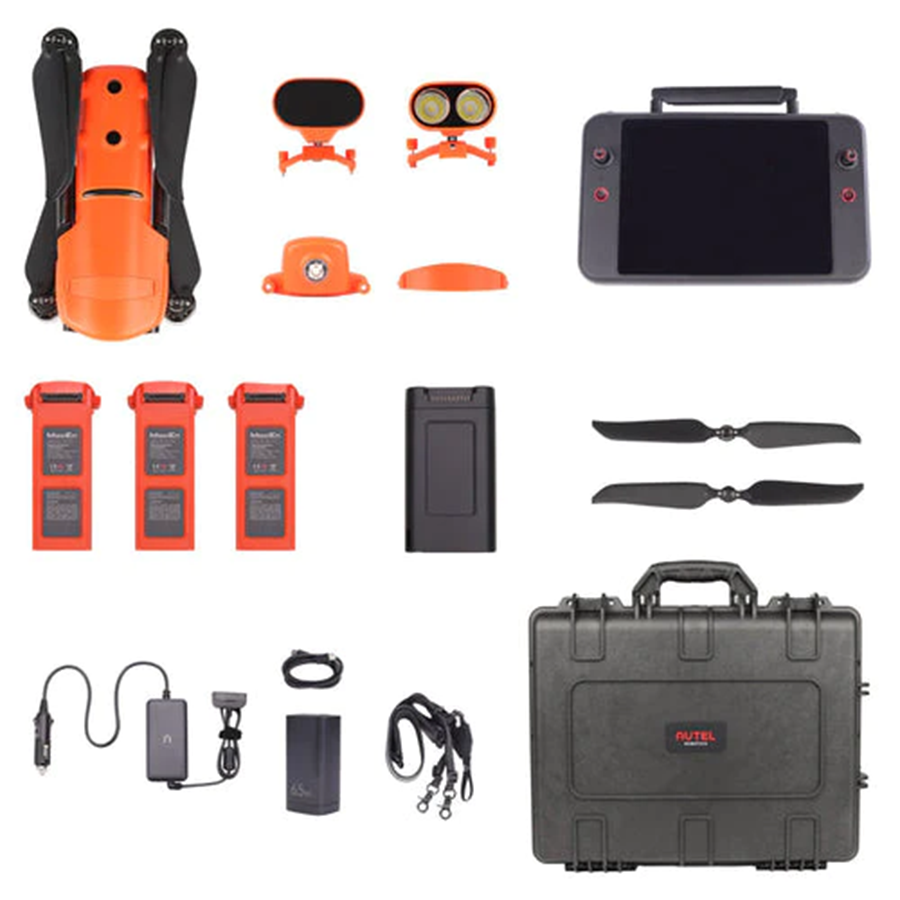

What's Included:
(1) Aircraft w/ InfiRay 640T Radiometric Thermal Camera
(3) Flight Batteries
(1) 7.9” Smart Controller
(1) 110V Wall Charger
(1) 12V Car Charger
(1) Battery Charging Hub
(1) Smart Controller Charger
(1) Smart Controller Charging Cable
(1) Speaker
(1) Search Light
(1) Strobe
(1) Chest Strap
(1) Attachment Port Cover
(4) Propeller Pairs

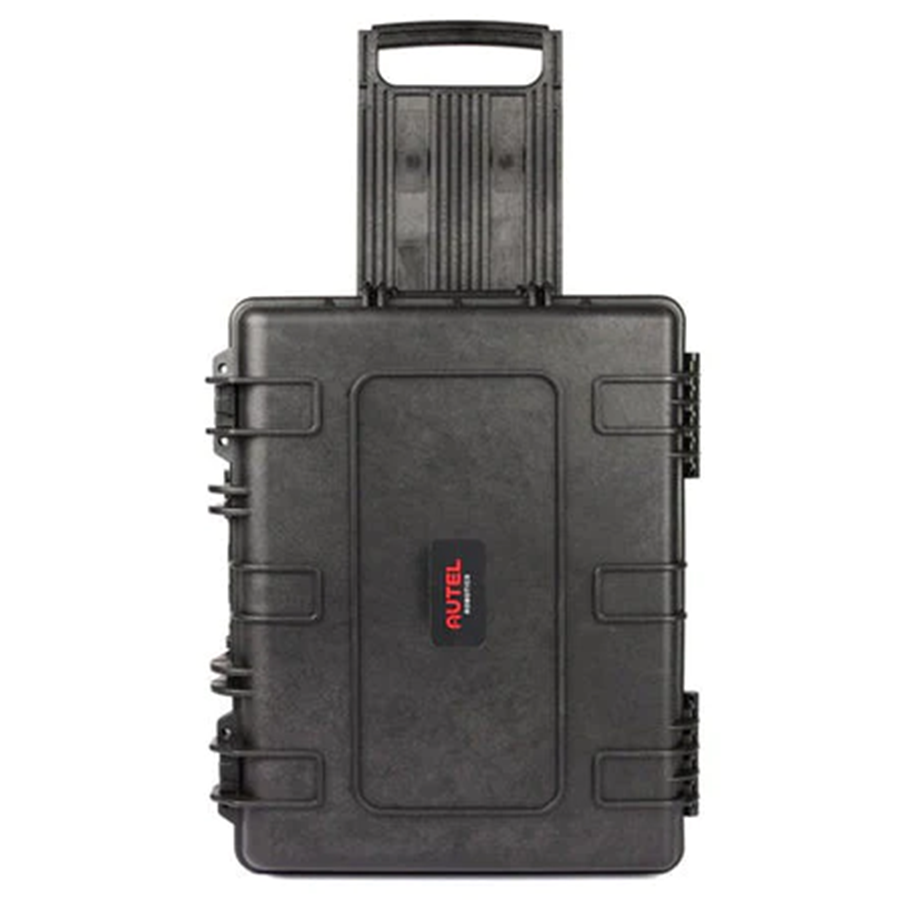

(1) Hard Rugged Case

Aircraft
Takeoff Weight 2.51 lbs (1,136.5 grams) (without Accessories)
Diagonal Length 16.8 in (427 mm)
Max Flight Time (no wind) 42 minutes (without accessories)
Max Hovering Time (no wind) 38 minutes (with strobe)
29 minutes (with spotlight)
34 minutes (with loudspeaker)
36 minutes (with RTK module)
Max Level Flight Speed 45 mph (20 m/s) (Ludicrous)
Max Ascent Speed 18 mph (8 m/s (Ludicrous)
Max Service Ceiling Altitude 4.3 miles (7000 m) MSL
Operating Temperature Range 14°F to 104 °F (-10°C to 40°C)
Max Wind Speed Resistance 39-46 mph (17-20 m/s)
Operating Frequency 2.400 GHz - 2.4835 GHz
5.725GHz - 5.850 GHz
Hovering Accuracy Range Vertical:
± 0.1 m (with RTK)
± 0.1 m (with Vision Positioning)
± 0.5 m (with GPS Positioning)
Horizontal:
± 0.1 m (with RTK)
± 0.3 m (with Vision Positioning)
± 1.5 m (with GPS Positioning)

Gimbal
Operation Range Pitch: -135° to +45°
Yaw: -100° to +100°
Stability 3 Axis Stabilization
Max Controller Speed (Tilt) 300°/s
Angular Vibration Range ±0.005°

Sensing System
Sensing System Type Omnidirectional Binocular Sensing System
Forward Accurate Measuring Range: 0.5 - 20m
Detection Range: 0.5 - 40m
Effective Sensing Speed: < 15 m/s
FOV: Horizontal: 60°, Vertical: 80°
Backward Accurate Measuring Range: 0.5 - 16m
Detection Range: 0.5 - 32m
Effective Sensing Speed: < 12 m/s
FOV: Horizontal: 60°, Vertical: 80°
Upward Accurate Measuring Range: 0.5 - 12m
Detection Range: 0.5 - 24m
Effective Sensing Speed: < 6 m/s
FOV: Horizontal: 65°, Vertical: 50°
Downward Accurate Measuring Range: 0.5 - 11m
Detection Range: 0.5 - 22m
Effective Sensing Speed: < 6 m/s
FOV: Horizontal: 100°, Vertical: 80°
Sides Accurate Measuring Range: 0.5 - 12m
Detection Range: 0.5 - 24m
Effective Sensing Speed: < 10 m/s
FOV: Horizontal: 65°, Vertical: 50°
Service Environment Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15)
Upward:
Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)
Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)

EVO II 640T Thermal Camera
Camera EVO II 640T
Sensor Vanadium oxide uncooled infrared focal plane detector
Viewing Angle H33°, V26°
Sensor Resolution 640x512
Pixel Pitch 12μm
Focal Length 13mm
Wavelength Range 8 ~ 14μm
Accurate Temperature Measurement Distance 2-20 meters
Temperature Measurement Accuracy ±3℃ or ±3% of reading (whichever is greater) @ambient temperature -20℃~60℃
Temperature Range High gain mode: -20° to +150°C
Low gain mode: 0° to +550°C
Zoom 1-8x
Photo Shooting Mode Single shooting, continuous shooting, time-lapse shooting
Camera Resolution Infrared mode: 640×512
Picture in Picture: 1920×1080, 1280×720
Video Resolution 640×512 30fps
Video Format MOV / MP4 (support H.264/H.265)

Remote Controller
Operating Frequency 902-928 MHz; 2.400-2.4835 GHz; 5.725-5.850 GHz
Max Transmission Distance FCC: 13km; CE: 7km (unobstructed, free of interference)
Transmitter Power (EIRP) 902-928 MHz
FCC:≤30dBm
2.400-2.4835 GHz
FCC:≤30dBm
CE:≤20dBm
5.725-5.850 GHz
CE:≤14dBm
Internal Storage 128GB
Video Output Port HDMI
Built-in Battery Name: Intelligent Li-ion battery
Capacity:5800mAh
Voltage:11.55V
Battery Type:Li-ion
Battery Energy:67 Wh
Charging time:120 min
Battery Life ~ 3hr (Max. intensity)
~ 4.5hr (50% intensity)
Operating Temperature -20℃ to 40℃
RC Size 303 × 190 × 87 mm (Ant. folded)
303 × 273 × 87 mm (Ant. unfolded)
Weight 1150g (Without protective case)
1250g (With protective case)
Satellite Positioning Module GPS + GLONASS + Galileo

Accessories
Strobe Dimensions:39×72×34 mm
Weight:19.5 g
Connections:Floating Connectors
Power:Avg. 1.6W
Controllable Range:5000 m
Light intensity:Min 50cd;Max 486cd;Avg. 290cd
Loudspeaker Dimensions:46×80×77 mm
Weight:98.5 g
Connections:Floating Connectors
Power:Max 18W
Decibel:120dB @ 1m;88dB @ 60m;70dB @ 110m
Max Bitrate:36kbps
Adjustable Angle Range:0°~45°
Spotlight Dimensions:48.5×72×63 mm
Weight:77 g
Connections:Floating Connectors
Power:Max 35W
Controllable Range:30 m
Adjustable Angle Range:0°~90°
Illuminance:FOV14°, Max:11lux @ 30m Straight
RTK Module (Optional) Dimensions:55.5×72.5×57 mm
Weight:59.5 g
Connections:Floating Connectors
Power:~ 3W
RTK Positioning Precision:1.5 cm + 1 ppm (Vertical); 1 cm + 1 ppm (Horizontal)

Battery
Capacity 7100 mAh
Voltage 11.55 V
Battery Type LiPo 3S
Energy 82Wh
Net Weight 365g
Charging Temperature 5~45℃
Storage Temperature & Humidity -10~30℃,65±20% RH
Recommended Storage Temperature 22~28℃
Max Charging Power 93 W
Charging Time 90 minutes

Charger
Input 100-240 V, 50/60 Hz, 1.5A
Output 13.2 V @ 5 A
5V@3A, 9V@2A, 12V@1.5A
Voltage 13.2 ± 0.1 V
Rated Power 66 W
