Himax HC3516-840 Outrunner Brushless Motor, 350 Watt

Himax HC3516-840 Outrunner Brushless Motor, 350 Watt

Skip to product information
1 of 1
Regular price $80.96
Regular price $0.00 Sale price $80.96
Sale Sold out
Shipping calculated at checkout.
$0.00 Tax Collected Outside GA
Availability: Sorry we are out of stock but have more on the way.
SKU: 100003343
Part #: HC3516-840
UPC: 123456
MFG: Himax
Live Help Chat
rewards icon
You will earn 40 Electron Reward Points on this product! Click to find out more about our points program and save big!
View full details

The HC3516-840 motor is made for medium sized models weighinf 35-45 oz for 3D flight and up to 56 oz for aerobatic flight and up to 70oz for leisurley flight. New Larger Himax Out runners. Nine models available to fit aircraft 24oz to over 100oz. Each motor includes mounting hardware, connectors and prop adapter. Three mounting options included to suit a variety of applications.

Himax Brushless motors are manfactured to high standards for the discerning modeler. designed for lightweight, high efficiency, high torque and durability. Himax motors are sure to make your radio controlled models perform.

Click here to see more detailed specifications and prop options in a new window
Click here to see a detailed motor comparison of all of the large Himax motors

Included Accessories
Prop adapter
3.5mm gold connectors
Motor mounting screws
Motr mounting kit
Hex keys

Specifications
Weight: 134g (4.7oz)
Max Power: 350 Watts
Max RPM: 20,000
Diameter: 35.2,, (1.39")
Length:mm 42.2mm (1.27")
Shaft Diameter: 5mm. (.1575")
Mount Screw Thread: 4-40, Max Case depth 5mm
Max Case Temperatre: 65degrees C (149 Degreec F)

Electrical Specifications
KV=840, RM=.051, LO=1.5 Efficent Current = 10-26 amps, 37Amps max 15 sec

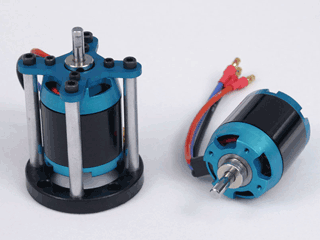

All of the new larger Himax motors include easy to use mounts
<
