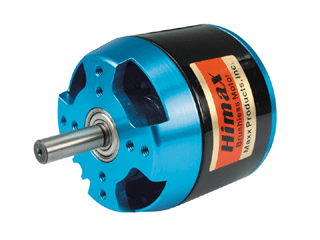

Himax Brushless Outrunner Motor, HC6332-230
Overview:
Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for lightweight, high efficiency, high torque, and durability Himax Outrunner motors are sure to make today’s radio controlled models perform.
The HC6332-230 motor is made for large models weighing up to 12 Lb for 3D flight, up to 22 Lb for aerobatic flight and up to 30 Lb for leisurely flight.
Features:
• High Efficiency - High Power - High Torque - Lightweight
• Replacement for 1.80 cubic inch glow or gas engines
Accessories (included):
2 - Prop Adapters
3 - Female 4mm connectors
1 - Motor Mount Kit
2 - Hex Keys
Recommended Accessories:
110 Amp Brushless Speed Control
9-12S LiPo battery capable of 80-100 Amps
| Weight: | 690g, (24.3oz), Motor only |
| Max Current: | 100A Max 15 seconds |
| Efficient Operating Current: | 30-80A Continuous |
| Max Power: | 2200W |
| Max RPM: | 10,000 RPM |
| Diameter: | 63mm, (2.48”) |
| Length: | 63mm (2.48”) |
| Shaft Diameter: | 8.0mm (.315”) |
| Maximum Case Temperature: | 65°C, (149°F) |
| Kv: | 230 rpm per volt |
| Rm: | .025 ohms |
| Io: | 1.9 amps at 20V |
