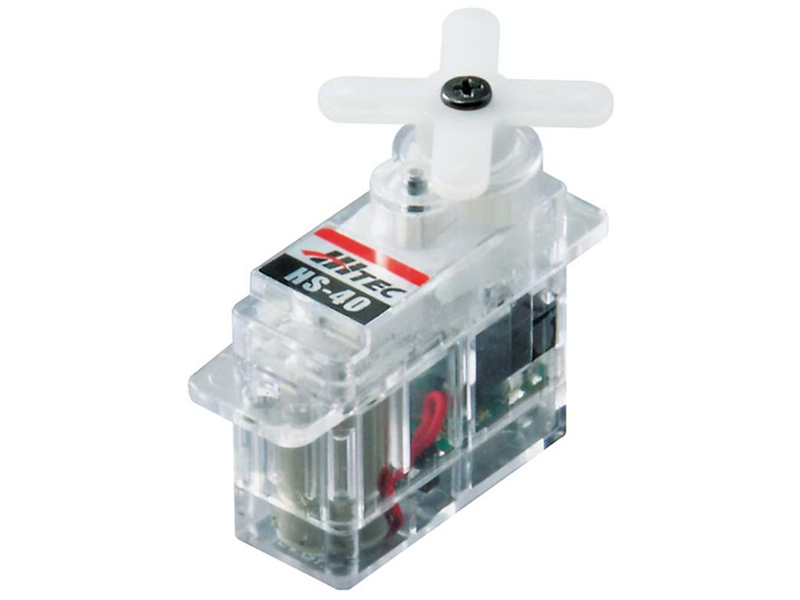

Hitec HS 40 Economy Nano Servo (HRC31040S)
$13.49
Ultra Micro Size
Featherlight weight of 4.8 grams
Cored Motor
Reliable three pole power
Flexible Voltage
Operates from 4.8V to 6.0V
Compact Servo PowerNext Generation Micro Aircraft Performance
The Hitec HS-40 Nano Analog Aircraft Servo delivers outstanding performance and economy for micro RC aircraft enthusiasts. Powered by a three-pole cored motor and durable nylon gearing, this nano servo provides affordable reliability for park flyers and micro helicopters.
Precision In Small PackagesEngineered For Micro Aircraft Excellence
Engineered by Hitec, the Hitec HS-40 Nano Analog Aircraft Servo sets a new baseline for budget-friendly micro aircraft servos. Operating smoothly across a 4.8V to 6.0V range, the HS-40 combines lightweight construction with solid control authority. Featuring resilient nylon gears, a 15-tooth output spline, and a tight 5 µs deadband, it is the perfect analog RC servo choice for 20oz sport planes, foamies, sailplanes, and 125mm electric helicopters without adding unnecessary weight.
Technical SpecificationsDetailed Measurements and Operating Parameters
Part Type
Nano Analog Servo
Compatible Vehicles
20oz sport planes, mini park flyers, foamies, 125mm electric helis
Servo Size Category
Nano and Ultra-Micro
Motor Type
Three pole cored
Gear Type
Nylon
Bushing or Bearing
Bushing
Operating Voltage
4.8V - 6.0V
Torque
8.4 oz-in @ 4.8V / 10.4 oz-in @ 6.0V (force)
Speed
0.12 sec/60° @ 4.8V / 0.10 sec/60° @ 6.0V
Dimensions
1.12 x 0.46 x 0.95 in (28.6 x 11.6 x 24.1mm) (ruler)
Weight
0.17 oz (4.8g) (scale)
Spline Count
15 Teeth
Deadband Width
5 µs
Idle / Stall Current
8 mA / 460 mA
Key CapabilitiesBuilt For Lightweight Aircraft Precision
Featherlight Weight0.17 oz (4.8g) ultra-micro design (scale)
Efficient MotorThree-pole cored motor construction
Resilient TransmissionDurable nylon gear train
Dual Voltage SupportSmooth operation from 4.8V to 6.0V
Fast Transit SpeedUp to 0.10 sec/60 degrees at 6.0V
Micro ApplicationPerfect for park flyers, foamies, and mini helis
Frequently Asked QuestionsEverything you need to know
What operating voltage does the Hitec HS-40 Nano Analog Aircraft Servo support?
The Hitec HS-40 Nano Analog Aircraft Servo operates reliably within a voltage range of 4.8V to 6.0V.
What RC models are suitable for the Hitec HS-40 Nano Analog Aircraft Servo?
The Hitec HS-40 Nano Analog Aircraft Servo is designed for micro applications, including 20oz sport planes, mini park flyers, foamies, sailplanes, and 125mm electric helicopters.
Does the Hitec HS-40 Nano Analog Aircraft Servo use metal gears?
No, the Hitec HS-40 Nano Analog Aircraft Servo features resilient, lightweight nylon gears paired with a bushing output shaft.
