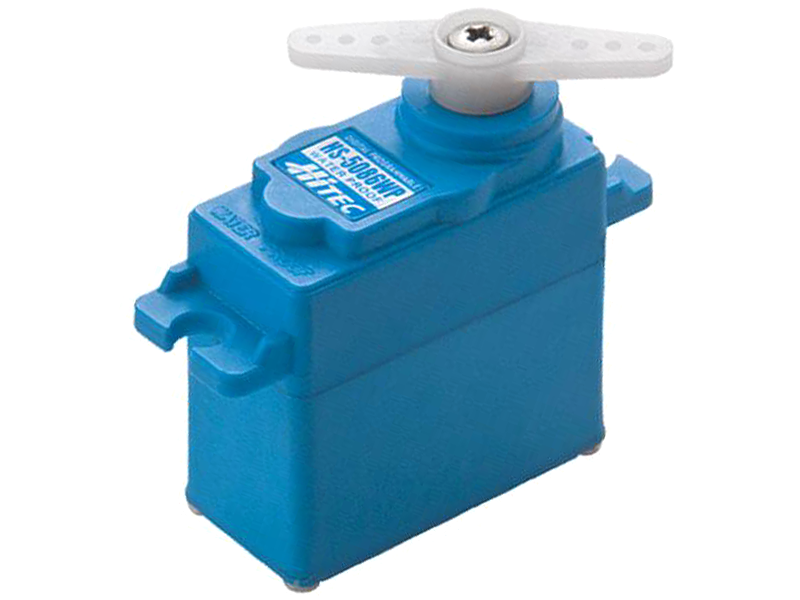

Hitec HS-5086WP Metal Gear, Micro Digital Waterproof Servo

The HS-5086WP is the smallest in Hitec's class of waterproof servos. With heavy-duty metal gears and a ball bearing supported output shaft, the HS-5086WP is among the most durable and reliable micro servo for wet conditions. Possessing the same size as our popular HS-85MG and the industry's first IP67*rating, this spunky mini will keep your RC vehicle, boat, aircraft or robot watertight, no matter what the weather or surroundings.

• Metal Gear with MP First Gear
• Top Ball Bearings
• 3-Pole Cored Ferrite Motor
• Industry's First IP67-Rated Waterproof Case
• * IP = International Protection Code | 6 = Dust Tight | 7 = Immersion up to 1M
• Programmable Circuit

Programmable Functions:
• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Data Save / Load
• Program Reset

• Metal Gear Set | Must be serviced by Hitec Service Dept
• Plastic Case Set | Must be serviced by Hitec Service Dept
• Applicable Horns

Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
Speed (Second @ 60°): 0.18 ~ 0.15
Maximum Torque Range oz. / in.: 42 ~ 50
Maximum Torque Range kg. / cm.: 3.0 ~ 3.6
Current Draw at Idle: 3 mA
No Load Operating Current Draw: 280 mA
Stall Current Draw: 1,800 mA
Dead Band Width: 2 µs
Dimensions (Inches): 1.22 x 0.60 x 1.22
Dimensions (Metric): 31.0 x 15.2 x 31.0
Weight (Ounces): 1.00
Weight (Gram): 28.5
Circuit Type: G1 Programable Digital
Motor Type: 3 Pole Metal Brush Ferrite
Gear Material: Metal
Bearing Type: Top Ball Bearing
Output Shaft (type / Ømm): Standard 24
Case Material: Plastic
Dust / Water Resistance: IP 67
Connector Gauge (AWG) / Strand Count: 25 / 40
