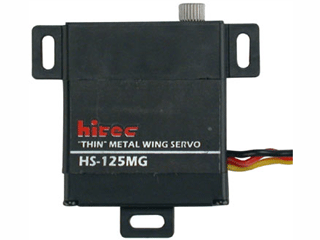

HS-125MG Thin Standard Analog Metal Gear Wing Servo

The HS-125 is a very durable servo because of its dual ball bearings and full metal geartrain.

The HS-125 has a smaller output spline than the other Hitec servos and servo horns from other Hitec servos will not fit on the HS-125.

Hitec Servo Specification Chart.

Dimensions:	1.14" x 0.51"x 1.18" (30 x 10 x 34mm)
Weight:	0.84oz (24g)
Operating Speed (4.8V):	0.17sec/60 degrees at no load
Operating Speed (6.0V):	0.13sec/60 degrees at no load
Stall Torque (4.8V):	41.66 oz/in. (3kg.cm)
Stall Torque (6.0V):	48.6 oz/in. (3.5kg.cm)
Current Drain (4.8V):	7.4mA/idle and 180mA no load operating
Current Drain (6.0V):	7.7mA/idle and 230mA no load operating
Operating Voltage:	4.8-6.0 Volts
Bearing Type:	Dual Ball Bearing
Gear Type:	4 Metal Gears, 1 Resin Gear
Motor Type:	3 Pole Ferrite Motor
Potentiometer Drive:	Direct Drive
Control System:	+Pulse Width Control 1500usec Neutral
Required Pulse:	3-5 Volt Peak to Peak Square Wave
Operating Temperature Range:	-20 to +60 Degree C
Operating Angle:	40 Deg. one side pulse traveling 400usec
360 Modifiable:	Yes
Direction:	Clockwise/Pulse Traveling 1500 to 1900usec
Dead Band Width:	5usec
Connector Wire Length:	11.81" (300mm)
