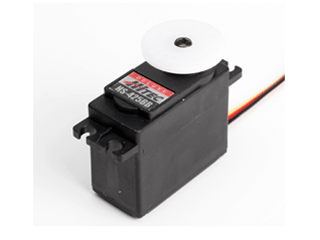

HS425 BB Standard Deluxe

HS425 BB Standard Deluxe

Skip to product information
1 of 1
Regular price $17.49
Regular price $0.00 Sale price $17.49
Sale Sold out
Shipping calculated at checkout.
$0.00 Tax Collected Outside GA
Availability: Sorry we are out of stock but have more on the way.
SKU: 100001113
Part #: HRC31425S
UPC: 669962310451
MFG: Hitec
Live Help Chat
rewards icon
You will earn 8 Electron Reward Points on this product! Click to find out more about our points program and save big!
View full details

HS-425BB is offered with dual ball bearings, impact resin gear’s and high performance circuitry. As one of our longest running production servos, it has proven to be a durable and dependable product year after year.

Hitec Servo Specification Chart.

Dimensions (LxWxH): 1.6 x 0.8 x 1.4"
Weight: 1.6oz (45.5g)
Operating Speed (4.8V): 0.21sec/60° at no load
Operating Speed (6.0V): 0.16sec/60° at no load
Stall Torque (4.8V): 45.82 oz/in. (3.3kg.cm)
Stall Torque (6.0V): 56.93 oz/in. (4.1kg.cm)
Operating Voltage: 4.8-6.0 Volts
Current Drain (4.8V): 8mA/idle and 150mA no load operating
Current Drain (6.0V): 8.8mA/idle and 180mA no load operating
Bearing Type: Dual Ball Bearing
Gear Type: Nylon
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Indirect Drive
Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Temperature Range: -20 to +60 Degree C
Operating Angle: 45 Deg. one side pulse traveling 400usec
360 Modifiable: Yes
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Dead Band Width: 8usec
Connector Wire Length: 11.81" (300mm)
