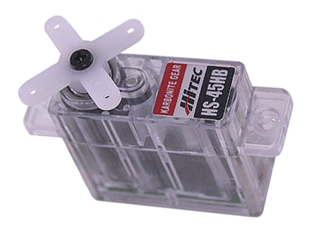

HS-45HB Sub-Micro Analog Premium Feather Karbonite Gear
HS-45HB Sub-Micro Analog Premium Feather Karbonite Gear
The HS-45HB is the perfect choice for any micro application from indoor R/C and hand launch gliders, to ultra small electric Park and Yard flyers, Speed 400 and 1/2A powered aircraft.
Hitec redesigned their micro servos to create the Hitec Premium Feather servo. The redesign changed the way the gears are mounted in the clear case so that the potentiometer could be mounted directly to the circuit board. Using full Karbonite gears supported by ball bearings, the HS-45HB is light, durable, and has the centering accuracy that is so important for aileron servos.
One of the accessory output arms is a full 2 inches from end to end for those of you 3D flyers who need super high control surface deflection.
Hitec redesigned their micro servos to create the Hitec Premium Feather servo. The redesign changed the way the gears are mounted in the clear case so that the potentiometer could be mounted directly to the circuit board. Using full Karbonite gears supported by ball bearings, the HS-45HB is light, durable, and has the centering accuracy that is so important for aileron servos.
One of the accessory output arms is a full 2 inches from end to end for those of you 3D flyers who need super high control surface deflection.
Hitec Servo Specification Chart.
Dimensions: | 0.92" x 0.38"x 0.88" (23.6 x 9.8 x 22.4mm) |
Weight: | 0.28oz (8g) |
Operating Speed: | 0.14 sec/60° at no load |
Stall Torque: | 13.883 oz/in. (1.0kg.cm) |
Bearing Type: | Ball Bearing |
Gear Type: | All Karbonite |
Connector Wire Length: | 6.29" (160mm) |
Control System: | +Pulse Width Control 1500usec Neutral |
Required Pulse: | 3-5 Volt Peak to Peak Square Wave |
Operating Voltage: | 4.8 Volts |
Operating Temperature Range: | -20 to 60 Degree C |
Test Voltage: | 4.8 Volts |
Operating Angle: | 40 Deg. one side pulse traveling 400usec |
360 Modifiable: | No |
Direction: | Clockwise/Pulse Traveling 1500 to 1900usec |
Current Drain: | 8mA/idle and 100mA no load operating |
Dead Band Width: | 8usec |
Motor Type: | 3 Pole Ferrite |
Potentiometer Drive: | Direct Drive |
