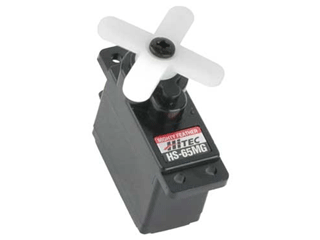

HS65MG Metal Gear Micro Servo: Universal

HS65MG Metal Gear Micro Servo: Universal
Regular price
Sale price
Regular price
Sold out
Unit price
Shipping calculated at checkout.
info icon $0.00 Tax Collected Outside GA

Availability: In stock available to ship within 24 hours.
SKU: 100004287
Part #: HRC32065S
UPC: 669962320474
MFG: Hitec
Live Help Chat
rewards icon
You will earn 16 Electron Reward Points on this product!
Click to find out more about our points program and save big!

The HS-65MG is one of Hitec’s most powerful servos in the micro class, with over 31oz/in of power at 6 volts. Created for higher performance micro helicopters, electric park flyers, & 1/18 scale cars, this servo feature a top ball-bearing for long life and positive centering.

Hitec Servo Specification Chart.

Dimensions: 0.92" x 0.45"x 0.94" (23.6 x 11.6 x 24mm)
Weight: .39oz. (11.2g)
Operating Speed (4.8V): 0.14sec/60° at no load
Operating Speed (6.0V): 0.11sec/60° at no load
Stall Torque (4.8V): 25 oz/in. (1.8kg.cm)
Stall Torque (6.0V): 31 oz/in. (2.2kg.cm)
Gear Type: Karbonite Gears
Bearing Type: Top Ball Bearing
Motor Type: 3-Pole Neodynium Magnet
Potentiometer Drive: Indirect Drive
Operating Voltage: 4.8-6.0 Volts
Current Drain (4.8V): 5.3mA/idle and 400mA no load operating
Current Drain (6.0V): 6.6mA/idle and 500mA no load operating
Operating Temperature Range: -20 to +60 Degree C
Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Angle: 45 Deg. one side pulse traveling 400usec
360 Modifiable: No
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Dead Band Width: 4usec
Connector Wire Length: 11.81" (300mm)
