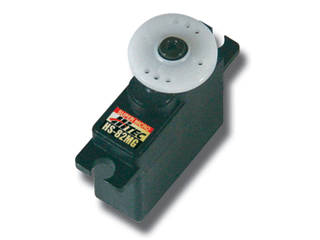

HS-82MG Micro Analog Metal Gear

Based on the ultra popular HS-81MG, the HS-82MG gets a new stronger motor and updated electronics for more precise centering. The HS-82MG is perfect for smaller aircraft and helicopters where a durable geartrain is required.

The HS-82MG is the new replacement for the HS-81MG, and are designed to be both economical and reliable. Because of their size, speed, and torque, they are perfect for small electric aircraft as well as a throttle servo on glow aircraft. Any horn or arm that fits on a standard Hitec servo will fit on the HS-82MG because the HS-82MG servo is built with a standard size Hitec spline.

Hitec Servo Specification Chart.

Specifications:

Motor Type:	3 Pole Ferrite
Potentiometer Drive:	Direct Drive
Bearing Type:	None, outer case serves as bearing
Gear Type:	4 Metal and 1 Nylon
Connector Wire Length:	6.29" (160mm)
Dimensions:	1.17" x 0.47"x 1.16" (29.8 x 12 x 29.6mm)
Weight:	0.66oz (19g)
Control System:	+Pulse Width Control 1500usec Neutral
Required Pulse:	3-5 Volt Peak to Peak Square Wave
Operating Voltage:	4.8-6.0 Volts
Operating Temperature Range:	-4 to +140 Degrees F
Operating Speed:	(4.8V): 0.12sec/60° at no load (6.0V): 0.10sec/60° at no load
Stall Torque:	(4.8V): 38.8 oz/in. (2.8kg.cm) (6.0V): 47.2 oz/in. (3.4kg.cm)
Operating Angle:	40 Deg. one side pulse traveling 400usec
360 Modifiable:	No
Direction:	Clockwise/Pulse Traveling 1500 to 1900usec
Current Drain:	(4.8V): 8.8mA/idle and 220mA no load operating (6.0V): 9.1mA/idle and 280mA no load operating
Dead Band Width:	8usec
