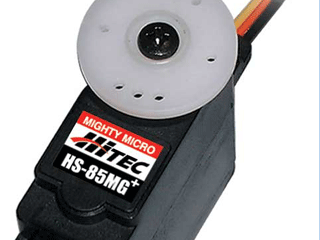

HS85MG Mighty Micro Servo: Universal
- Regular price
- $33.99
- Sale price
- $33.99
- Regular price
-
$0.00 - Unit price
- per
Sold out
Shipping calculated at checkout.
$0.00 Tax Collected Outside GA
Availability:
In stock available to ship within 24 hours.
You will earn 16 Electron Reward Points on this product!
Click to find out more about our points program and save big!
Click to find out more about our points program and save big!
Low Price Promise!
Click to find out more about our low price promise
Click to find out more about our low price promise
The HS-85MG BB features a high power motor for greater speed and torque. Available in both resin and metal gear versions, the HS-85BB is the choice of modelers looking for a high performance servo without breaking the bank. The ball bearing supported output shaft and sturdy gear trains are great for unlimited sailplane flaps and ailerons.
Hitec Servo Specification Chart.
| Dimensions: | 1.14" x 0.51"x 1.18" (29 x 13 x 30mm) |
| Weight: | 0.80oz (22.1g) |
| Operating Speed (4.8V): | 0.16sec/60 degrees at no load |
| Operating Speed (6.0V): | 0.14sec/60 degrees at no load |
| Stall Torque (4.8V): | 41.66 oz/in. (3kg.cm) |
| Stall Torque (6.0V): | 48.6 oz/in. (3.5kg.cm) |
| Operating Voltage: | 4.8-6.0 Volts |
| Current Drain (4.8V): | 8mA/idle and 240mA no load operating |
| Current Drain (6.0V): | 8.6mA/idle and 260mA no load operating |
| Motor Type: | 3 Pole Ferrite |
| Bearing Type: | Single Ball Bearing |
| Gear Type: | 4 Metal and 1 Nylon |
| Potentiometer Drive: | Direct Drive |
| Control System: | +Pulse Width Control 1500usec Neutral |
| Required Pulse: | 3-5 Volt Peak to Peak Square Wave |
| Operating Temperature Range: | -20 to +60 Degree C |
| Operating Angle: | 40 Deg. one side pulse traveling 400usec |
| 360 Modifiable: | Yes |
| Direction: | Clockwise/Pulse Traveling 1500 to 1900usec |
| Dead Band Width: | 8usec |
| Connector Wire Length: | 6.29" (160mm) |
