OSMW Sky Ranger 40 Kit

OSMW Sky Ranger 40 Kit

1 3
$189.95
$0.00 $189.95
Sale Sold out
Shipping calculated at checkout.
ⓘ $0.00 Tax Collected Outside GA
Availability: In stock available to ship within 24 hours.
SKU: 100020732
Part #: SR40KIT
UPC: 750440782010
MFG: Old School
Live Help Chat
rewards icon
You will earn 94 Electron Reward Points on this product! Click to find out more about our points program and save big!
low price promise icon
Low Price Promise! Click to find out more about our low price promise
View full details

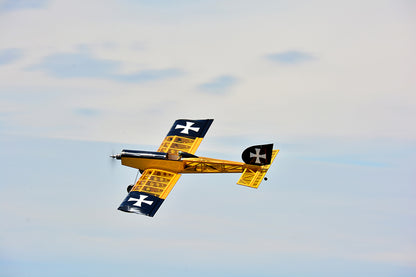

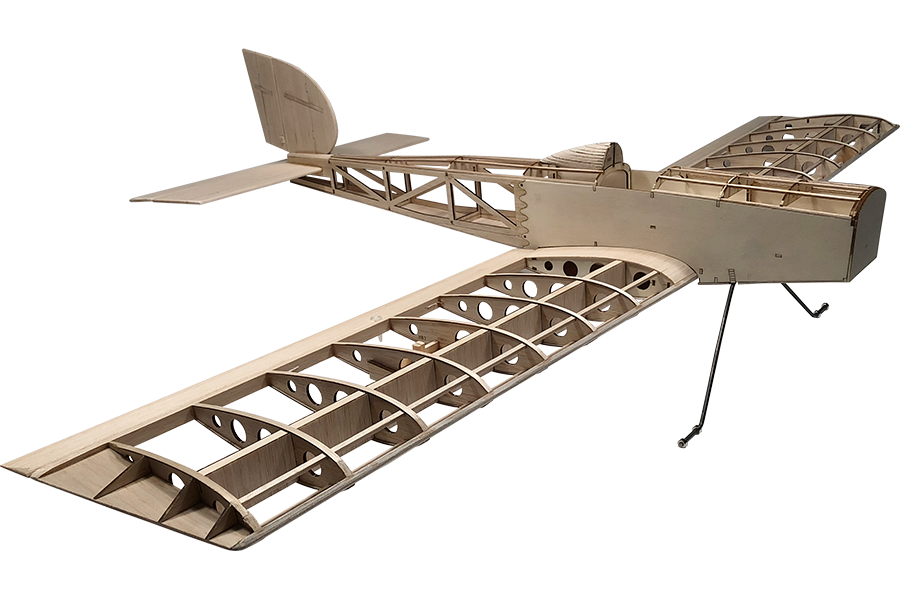

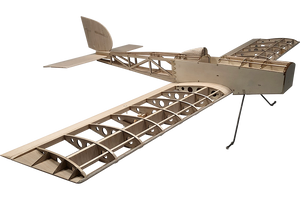

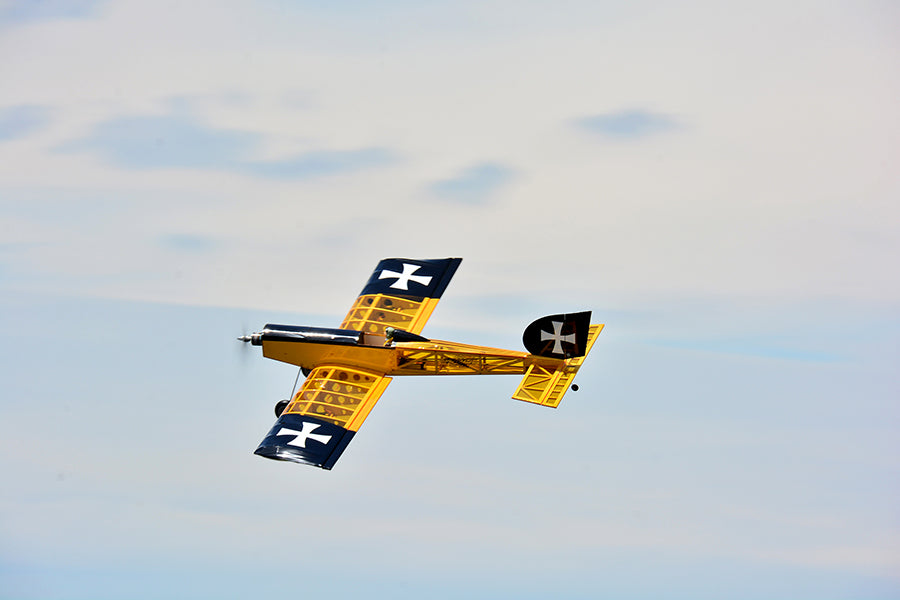

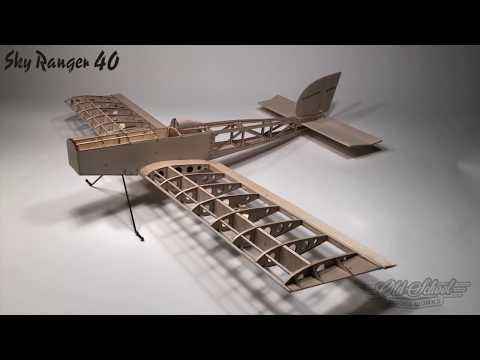

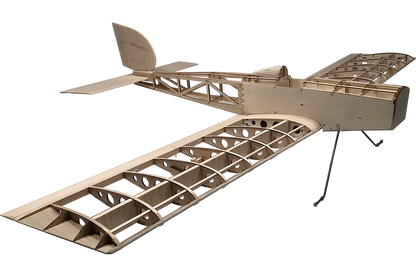

Sky Ranger 40 Laser-Cut R/C Kit

Overview:
The Sky Ranger 40 is as much fun to build as it is to fly. Using updated design techniques and laser-cut precision, we’ve designed this kit so most any modeler can successfully assemble it in a short amount of time.

This all-around sport model’s retro design looks great in the air and makes you look like an ace pilot. Loop it, roll it, spin it, snap it, and just have a great time flying it. Power the Sky Ranger 40 with either an electric or glow powerplant.

We’ve designed the fuselage with a built-in hatch so you have quick access to either your LiPo batteries or fuel tank.


Features:

    • A Great Sportster
      Whether you like gentle cruising, or prefer to tear up the sky, the Sky Ranger 40's wide flight envelope makes it a blast to fly!
    • WEB-LOCK Construction
      There's nothing else like it. Build our wings, straight and true - with a minimum amount of fuss.
    • Premium USA Hardware
      Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality.
    • Rugged 3/16" Main Gear
      We include sturdy, pre-bent main gear and wheel collars. The 3/16" diameter wire can absorb quite a bit of abuse for those no-so-good landings.
    • Front hatch
      Held in place with magnets, this hatch gives you easy access to batteries or fuel.
  • Windscreen
    Also included is a clear, pre-formed plastic windscreen.

Required Radio:
4 channel system(2) 40-70 in./oz. servos for elevator and rudder;(2) 40-70 in./oz. servos for ailerons;(1) 40-70 in./oz. servo for throttle (if using a glow engine)

Required Power:
Electric (minimum 800 watt motor, 80 amp ESC, 4-5S LiPo)
Glow (.40-.45 engine, 6 ounce tank, fuel tubing)

Additional items needed to complete the Sky Ranger 40 kit:
   • 4 channel radio and servos
   • Propeller
   • Engine/Motor mount & mounting hardware
   • "Y” servo harness (for ailerons)
   • Pushrods (two 5” for ailerons, two 24” for elevator & rudder, one 12” for throttle if glow powered)
   • Clevises for the pushrods (8 if electric, 10 if glow)
   • Two 3” diameter main wheels
   • 1 - tailwheel
   • Covering
