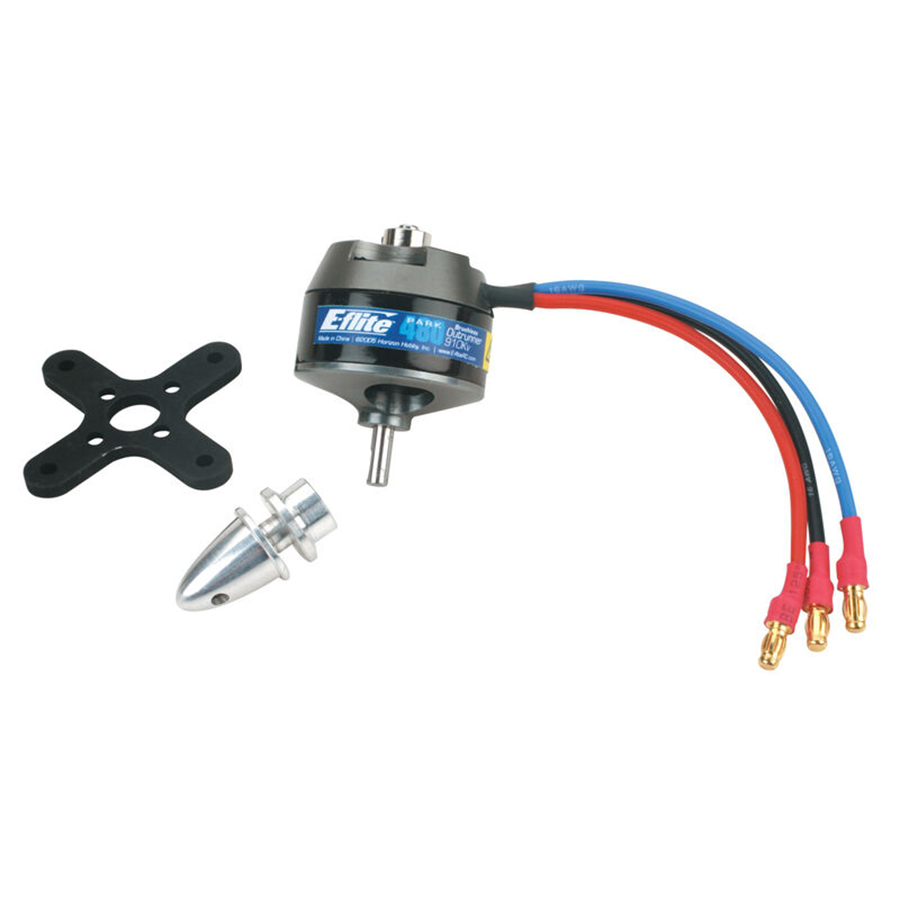

Park 480 Brushless Outrunner Motor, 910Kv

Key Features:
• Perfect match for 3D park flyers weighing 20–30 oz (565–850 g)
• Ideal for scale park flyers 25–35 oz (710–990 g)
• Ideal for models requiring up to 250 watts of power
• High-torque, direct-drive alternative to inrunner brushless motors
• Includes mount, prop adapters and mounting hardware
• External rotor design, 4mm shaft can easily be reversed for alternative motor installations
• Slotted 12-pole outrunner design
• Quiet, lightweight operation
• High-quality construction with ball bearings and hardened steel shaft

Overview:
The Park 480 Brushless Outrunner motor is designed to deliver clean and quiet power for 3D park flyers weighing 20 to 30 ounces (565 to 850 grams), scale park flyers weighing 25 to 35 ounces (710 to 990 grams), or models requiring up to 250 watts of power. It’s an especially good match for E-flite's Mini Edge 3D ARF (EFL2225) and Mini Funtana 3D ARF (EFL2075), and would provide extreme power for sport park flyers such as the Mini Ultra Stick ARF (EFL2250).

Needed to Complete:
- 20A–35A brushless ESC
- 2S–3S Li-Po or 6- to 10-cell Ni-MH/Ni-CD
- 10x6–12x6 propeller

Comparison of all E-flite Park Motors using a typical application
Motor
Poles
Kv
Weight
(oz.)
Max
Amps
Peak
Watts
Shaft
Diameter
LiPo
Cells
Prop
12
2200
0.3
3.2
30
1.5mm
2
6x3SF
12
2200
0.5
8
55
2mm
2
7x4SF
12
1380
0.8
9
85
3.2mm
3
8x3.8SF
12
1080
1.6
11
110
3.2mm
3
9x4.7SF
12
1360
1.6
15
150
3.2mm
3
8x3.8SF
12
1200
1.6
12
120
4mm
3
8x3.8SF
12
740
2.0
10
100
3.2mm
3
10x7SF
12
920
2.0
13
140
3.2mm
3
9x7SF
12
890
2.5
18
175
4mm
3
10x5SF
12
910
3.1
25
250
4mm
3
12x6E
12
1020
3.1
28
275
4mm
3
12x6E
Type: Brushless outrunner
Size: Park flyer
Bearings or Bushings: Ball bearings
Wire Gauge: 16
Recommended Prop Range: 10x7 to 12x6
Voltage: 7.2 to 12
RPM/Volt (Kv): 910
Resistance (Ri): .08 ohms
Idle Current (Io): .85A @8V
Continuous Current: 20A
Maximum Burst Current: 25A (15 sec)
Cells: 6–10 Ni-Cd/Ni-MH or 2–3S Li-Po
Speed Control: 20–35A brushless
Weight: 87 g (3.1 oz)
Overall Diameter: 35mm (1.40 in)
Shaft Diameter: 4mm (.16 in)
Overall Length: 33mm (1.30 in)
