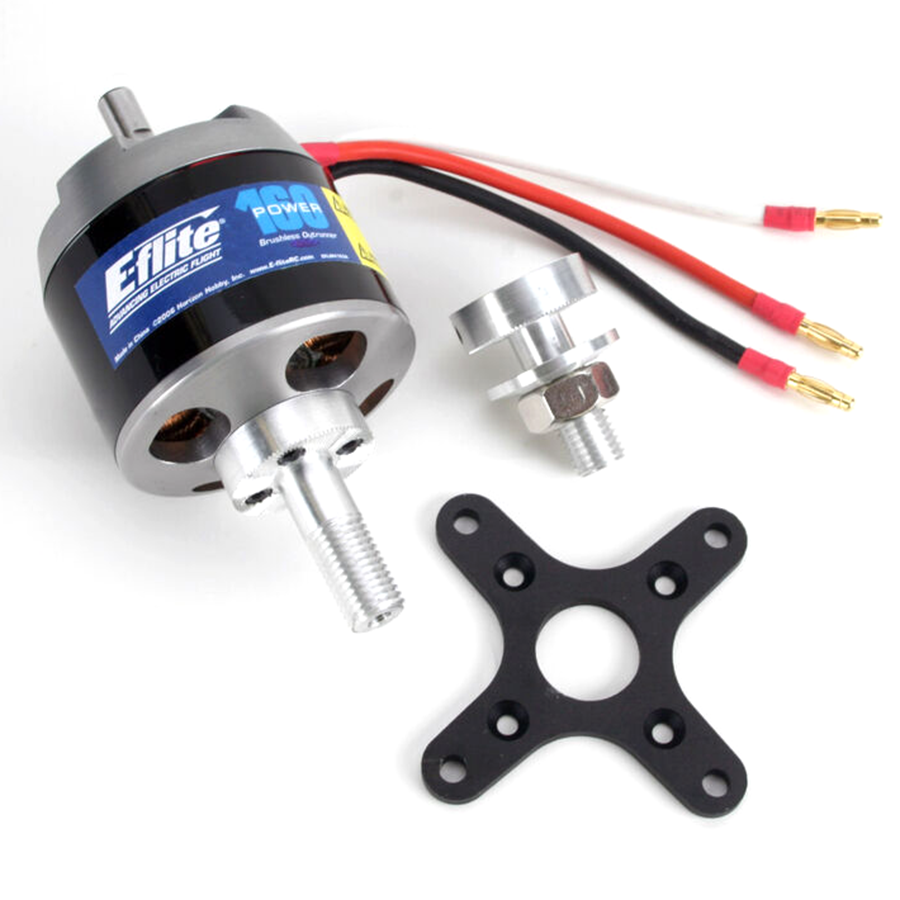

Power 160 Brushless Outrunner Motor, 245Kv

Key Features:
• Equivalent to or surpassing the power of a 160-size, 2-stroke, glow engine for 12–20 lb (5.4–9 kg) airplanes
• Ideal for 3D airplanes up to 15 lb (6.8 kg)
• High-torque alternative to inrunner brushless motors

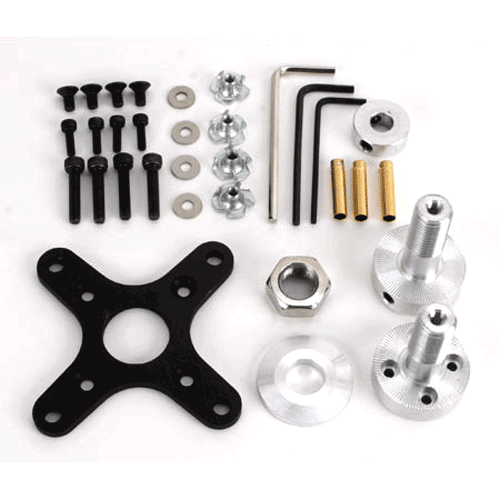

• Includes mount and mounting hardware
• External rotor design for better cooling
• High-quality construction with ball bearings and hardened 8mm steel shaft
• Includes two 12mm prop shaft adapters tapped out for 10–32 threads
• Ideal for models requiring up to 2700 watts of power

Overview:
The Power 160 is designed to deliver clean and quiet power equivalent to or surpassing the power of a 160-size 2-stroke glow engine for sport and scale airplanes weighing 12 to 20 pounds (5.4 to 9 kg), 3D airplanes up to 15 pounds (6.8 kg), or models requiring up to 2700 watts of power.

It provides excellent power for the popular 27% scale aerobatic models such as the Hangar 9 Extra 260, scale performance for the Hangar 9 P-47D Thunderbolt 150 ARF, and extreme performance for models like the famous Ultra Stick Lite.

Needed to Complete:
• 85A-110A HV brushless ESC
• 9S–10S Li-Po or 2- to 32-cell Ni-MH/Ni-Cd
• 18x8 to 20x10 prop

Comparison of all E-flite Power Motors using a typical application
Motor
Poles
Kv
Weight
(oz.)
Max
Amps
Peak
Watts
Shaft
Diameter
LiPo
Cells
Prop
12
1100
4.3
42
450
5mm
3
12x6E
12
950
5.4
42
425
5mm
3
11x7E
12
870
6.7
44
600
5mm
3
12x8E
12
1250
6.4
58
850
5mm
3
10x10E
14
770
7.0
60
800
5mm
4
13x6.5E
12
670
10.0
55
800
6mm
4
13x8E
14
590
12.2
75
1650
6mm
5
14x7E
12
400
13.0
60
1200
6mm
6
15x10E
12
325
15.8
65
1800
6mm
8
16x8E
12
295
17.5
65
2000
8mm
8
19x8E
12
245
23.0
78
2700
8mm
10
20x10E
Type: Brushless outrunner
Size: Equivalent to or surpassing the power of a 160-size 2-stroke glow engine
Bearings or Bushings: One 8 x 19 x 6mm Bearing, and Two 8 x 16 x 5 Bearings
Wire Gauge: 13
Recommended Prop Range: 18x8 to 20x10
Voltage: 33.3–38.4
RPM/Volt (Kv): 245
Resistance (Ri): .03 ohms
Idle Current (Io): 1.45A @ 10V
Continuous Current: 60A
Maximum Burst Current: 78A (15 sec)
Cells: 28–32 Ni-MH/Ni-Cd or 9S–10S Li-Po
Speed Control: 85–110A High Voltage Brushless
Weight: 650 g (23.0 oz)
Overall Diameter: 63mm (2.50 in)
Shaft Diameter: 8mm (.30 in) (Includes two 12mm threaded prop shaft adapters with 1.5 pitch)
Overall Length: 64mm (2.50 in)
Needed to Complete: • 85A-110A HV brushless ESC
• 9S–10S Li-Po
• 18x8 to 20x10 prop

Tech Notes:
   • Maximum operating temperature: 220 degrees Fahrenheit.
   • Adequate cooling is required for all motor operation at maximum current levels.
   • Maximum burst current duration is 15 seconds. Adequate time between maximum burst intervals is required.
