Power 32 Outrunner
770 Kv


Click to find out more about our points program and save big!

Click to find out more about our price match guarantee!
Key Features
• Equivalent to a 30- to 36-size glow engine for sport and scale airplanes weighing 3.5- to 6-pound (1.6- to 2.7-kilograms)
• Ideal for 25- to 36-size 3D airplanes up to 4.5 pounds (2 kilograms)
• Ideal for models requiring up to 700 watts of power
• High torque, direct drive alternative to inrunner brushless motors

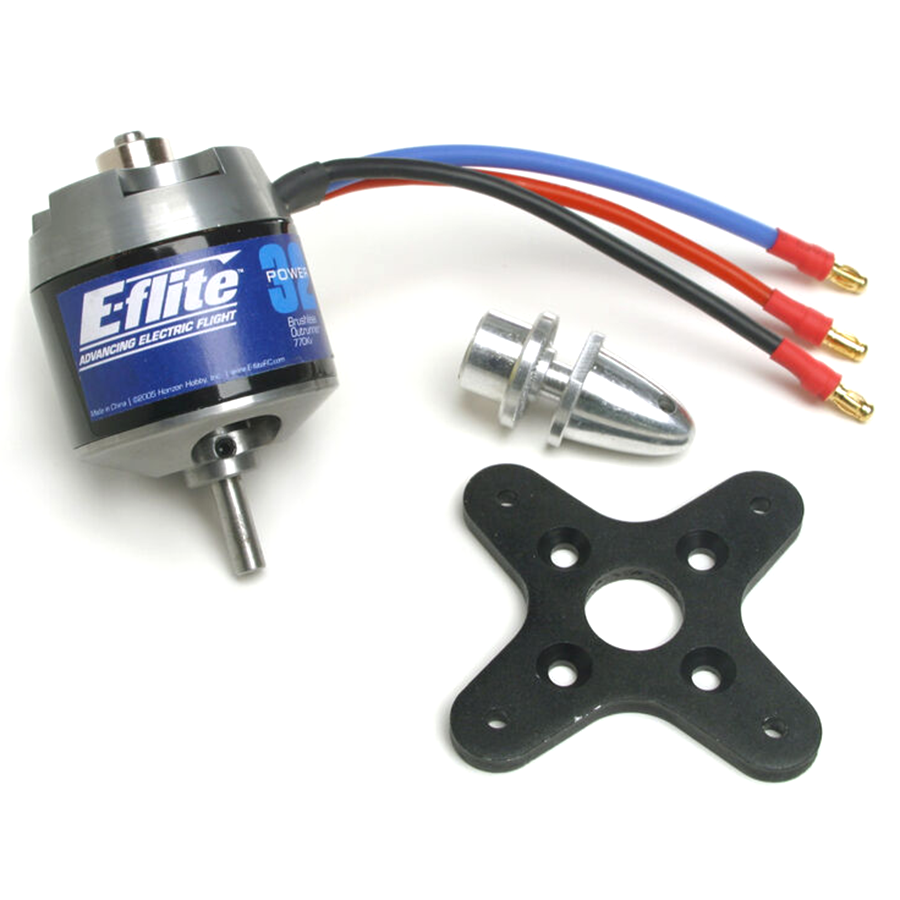

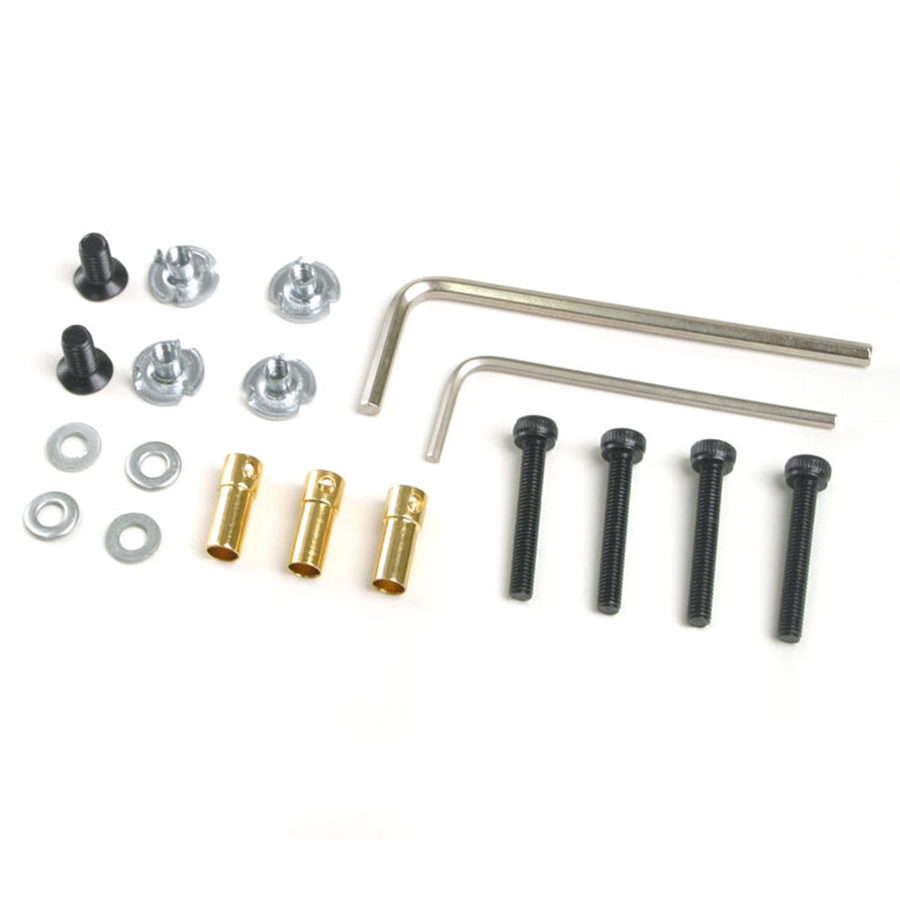

• Includes mount, prop adapter, and mounting hardware
• Quiet, lightweight operation
• External radial rotor design: 5mm shaft can easily be reversed for alternative motor installations
• High quality construction with ball bearings and hardened steel shaft
• Slotted 12-pole outrunner design
Overview
The Power 32 is designed to deliver clean and quiet power for 30- to 36-size sport and scale airplanes weighing 3.5- to 6-pounds (1.6- to 2.7-kilograms) 25- to 36-size 3D airplanes up to 4.5-pounds (2-kilograms), or models requiring up to 700 watts of power. Its especially a good match for the Gee Bee Tiger Moth, TopFlite DC-3, Phoenix Sonic 25 and 3D airplanes such as the E3D.
Needed to Complete
60A Brushless ESC
3S - 4S Li-Po or 10 - 14 Cell Ni-MH/Ni-Cd
Electric prop: 11x7 to 14x10
Motor | Poles | Kv | Weight (oz.) | Max Amps | Peak Watts | Shaft Diameter | LiPo Cells | Prop |
12 | 1100 | 4.3 | 42 | 450 | 5mm | 3 | 12x6E | |
12 | 950 | 5.4 | 42 | 425 | 5mm | 3 | 11x7E | |
12 | 870 | 6.7 | 44 | 600 | 5mm | 3 | 12x8E | |
12 | 1250 | 6.4 | 58 | 850 | 5mm | 3 | 10x10E | |
14 | 770 | 7.0 | 60 | 800 | 5mm | 4 | 13x6.5E | |
12 | 670 | 10.0 | 55 | 800 | 6mm | 4 | 13x8E | |
14 | 590 | 12.2 | 75 | 1650 | 6mm | 5 | 14x7E | |
12 | 400 | 13.0 | 60 | 1200 | 6mm | 6 | 15x10E | |
12 | 325 | 15.8 | 65 | 1800 | 6mm | 8 | 16x8E | |
12 | 295 | 17.5 | 65 | 2000 | 8mm | 8 | 19x8E | |
12 | 245 | 23.0 | 78 | 2700 | 8mm | 10 | 20x10E |
Type: | Brushless Outrunner |
Size: | Replacement for a 30- to 32 size glow engine |
Bearings or Bushings: | Ball Bearings |
Wire Gauge: | 14 |
Recommended Prop Range: | 11x7 to 14x10 |
Voltage: | 12 - 16.8 |
RPM/Volt (Kv): | 770 |
Resistance (Ri): | .02 ohms |
Idle Current (Io): | 2.40A @ 10V |
Continuous Current: | 42A |
Maximum Burst Current: | 60A (15 sec) |
Cells: | 10-14 Ni-MH/Ni-Cd or 3-4S Li-Po |
Speed Control: | 60A Brushless |
Weight: | 200g (7.0 oz) |
Overall Diameter: | 42mm (1.7 in) |
Shaft Diameter: | 5mm (.20 in) |
Overall Length: | 50mm (1.9 in) |
