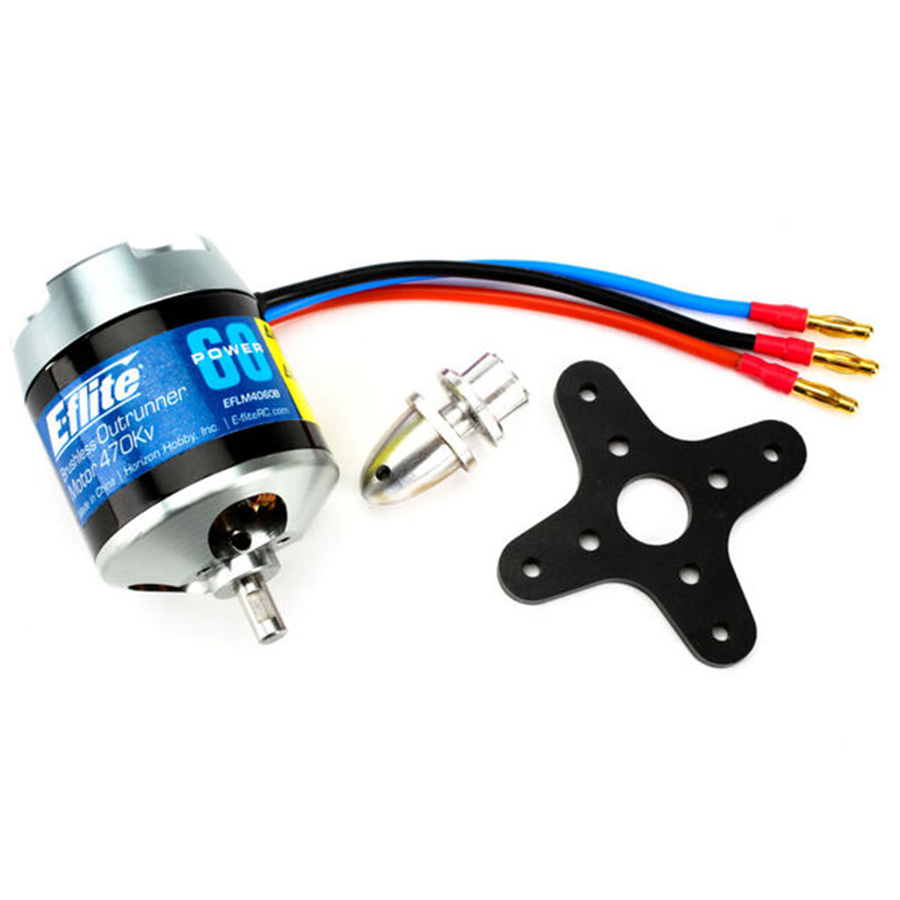

Power 60 Outrunner
470 Kv
- Regular price
- $109.99
- Sale price
- $109.99
- Regular price
-
$0.00 - Unit price
- per
$0.00 Tax Collected Outside GA
Click to find out more about our points program and save big!
Click to find out more about our price match guarantee!
Features
• Equivalent to a 60-size glow engine for 6- to 10-pound (2.7 - 4.5Kg) airplanes
• Perfect for 6- to 12-pound (2.7- to 5.4-kilogram) airplanes
• Ideal for models requiring up to 1200 watts of power
• High torque, direct drive alternative to inrunner brushless motors
• Includes mount, prop adapters, and mounting hardware
• Quiet, lightweight operation
• External rotor design, 6mm shaft can easily be reversed for alternative motor installations
• High quality construction with ball bearings and hardened steel shaft
• Slotted 12-pole outrunner design
Designed for high power applications, this 6S motor is ideal for 60-sized planes, or models that require up to 1800 watts of power.
Adequate cooling is required for all motor operation at maximum current levels.Maximum burst current duration is 30 seconds. Adequate time between maximum burst intervals is required.
Motor | Poles | Kv | Weight (oz.) | Max Amps | Peak Watts | Shaft Diameter | LiPo Cells | Prop |
12 | 1100 | 4.3 | 42 | 450 | 5mm | 3 | 12x6E | |
12 | 950 | 5.4 | 42 | 425 | 5mm | 3 | 11x7E | |
12 | 870 | 6.7 | 44 | 600 | 5mm | 3 | 12x8E | |
12 | 1250 | 6.4 | 58 | 850 | 5mm | 3 | 10x10E | |
14 | 770 | 7.0 | 60 | 800 | 5mm | 4 | 13x6.5E | |
12 | 670 | 10.0 | 55 | 800 | 6mm | 4 | 13x8E | |
14 | 590 | 12.2 | 75 | 1650 | 6mm | 5 | 14x7E | |
12 | 400 | 13.0 | 60 | 1200 | 6mm | 6 | 15x10E | |
Power 60b | 12 | 470 | 13.0 | 80 | 1200 | 6mm | 6 | 15x8E |
12 | 325 | 15.8 | 65 | 1800 | 6mm | 8 | 16x8E | |
12 | 295 | 17.5 | 65 | 2000 | 8mm | 8 | 19x8E | |
12 | 245 | 23.0 | 78 | 2700 | 8mm | 10 | 20x10E |
| Type: | Brushless outrunner |
| Size: | Replacement for 60-size glow engines |
| Sensored: | No |
| Bearings or Bushings: | One 6 x 15 x 5mm bearing and two 6 x 12 x 4mm bearings |
| Wire Gauge: | 14 AWG |
| Connector Type: | 4mm bullet |
| Recommended Prop Range: | 15 x 8 - 17 x 7 electric propeller |
| Voltage: | 22.2V (6S LiPo, 4400-5000mAh) |
| RPM/Volt (Kv): | 470Kv |
| Resistance (Ri): | 0.02 ohm |
| Idle Current (Io): | 2.1A @ 20V |
| Maximum Burst Current: | 80A for 15 seconds |
| Recommended Speed Control: | 80A brushless |
| Weight: | 13.0 oz (380 g) |
| Overall Diameter: | 2.00 in (50mm) |
| Shaft Diameter: | 0.24 in (6.0mm) |
| Overall Length: | 2.40 in (62mm) |
| Power Plant Size: | 60-110 Electric |
| Motor Application: | Airplane |
| Motor Design: | Outrunner |
| Continuous Current: | 51A + |
Power 60, 470Kv Brushless Outrunner Manual.
