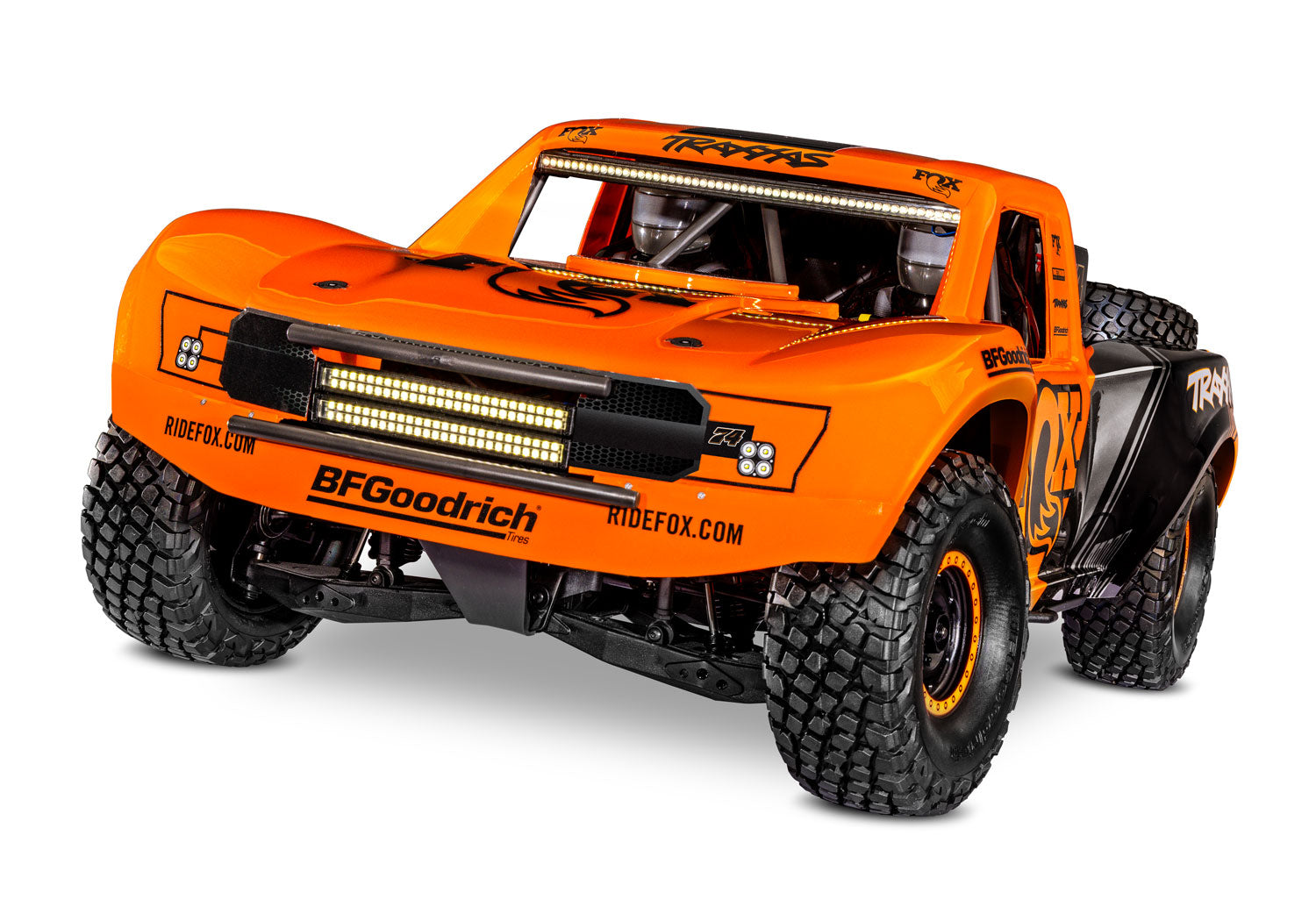

1/8 Unlimited Desert Racer w/Lights, 4WD, RTD (Requires battery & charger): TRX

1/8 Unlimited Desert Racer w/Lights, 4WD, RTD (Requires battery & charger): TRX

Skip to product information
1 of 35
Regular price $749.95
Regular price $0.00 Sale price $749.95
Sale Sold out
Shipping calculated at checkout.
$0.00 Tax Collected Outside GA
Availability: Sorry we are out of stock but have more on the way.
SKU: 100020711
Part #: 85086-4-TRX
UPC: 020334851116
MFG: Traxxas
Live Help Chat
rewards icon
You will earn 374 Electron Reward Points on this product! Click to find out more about our points program and save big!
View full details

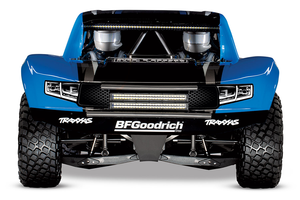

Traxxas 1/10 4WD Unlimited Desert Racer with Lights: TRX

Overview:

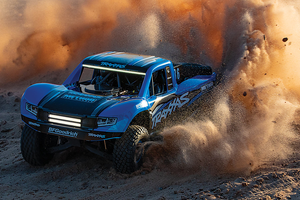

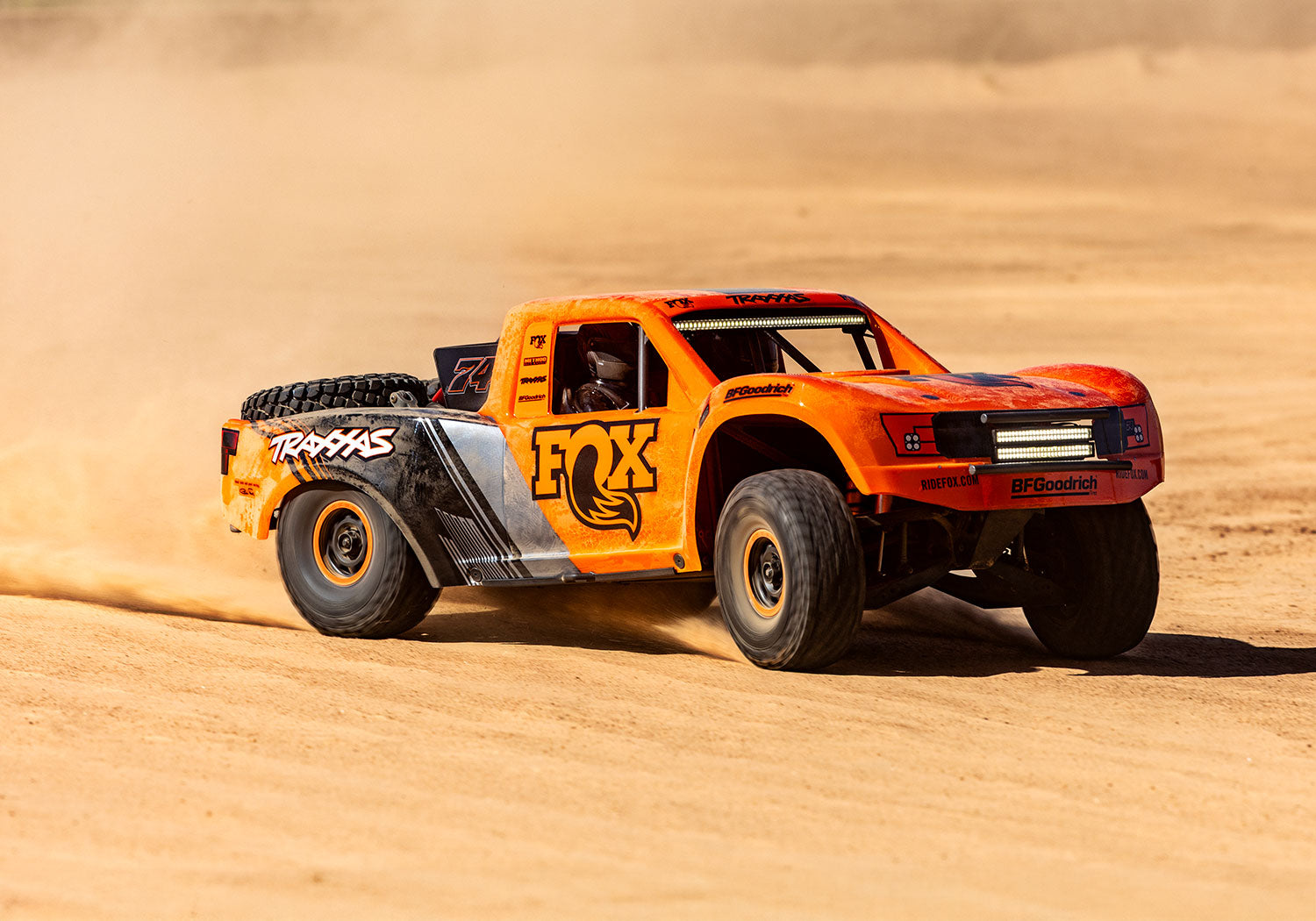

The Unlimited Desert Racer combines Pro-Scale™ performance with extreme 6S power for the most thrilling RC driving experience possible. It drives like a real desert truck because it’s engineered like a real desert truck. A 4-link solid rear axle provides huge suspension travel with authentic driving dynamics. From the cantilever sway bars to the GTR shocks, Traxxas accurately reproduced a true desert racer in both form and function. Now includes factory installed LED lighting.

Features:

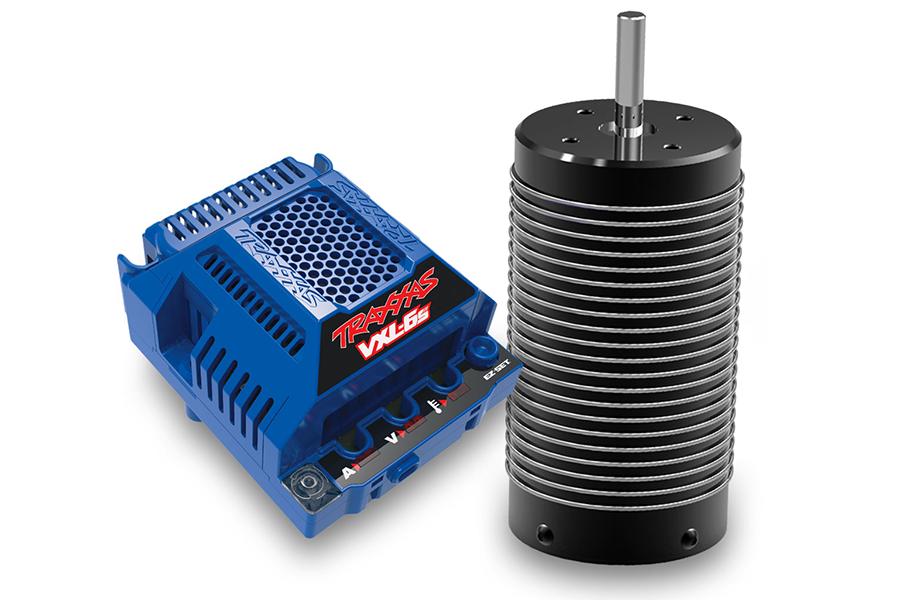

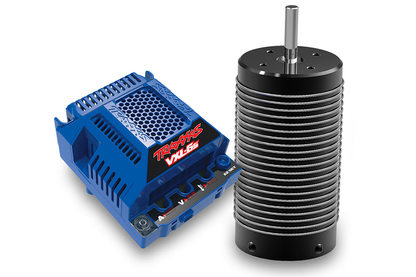

  • VXL-6s™ Waterproof Electronic Speed Control
    • 6S LiPo compatible

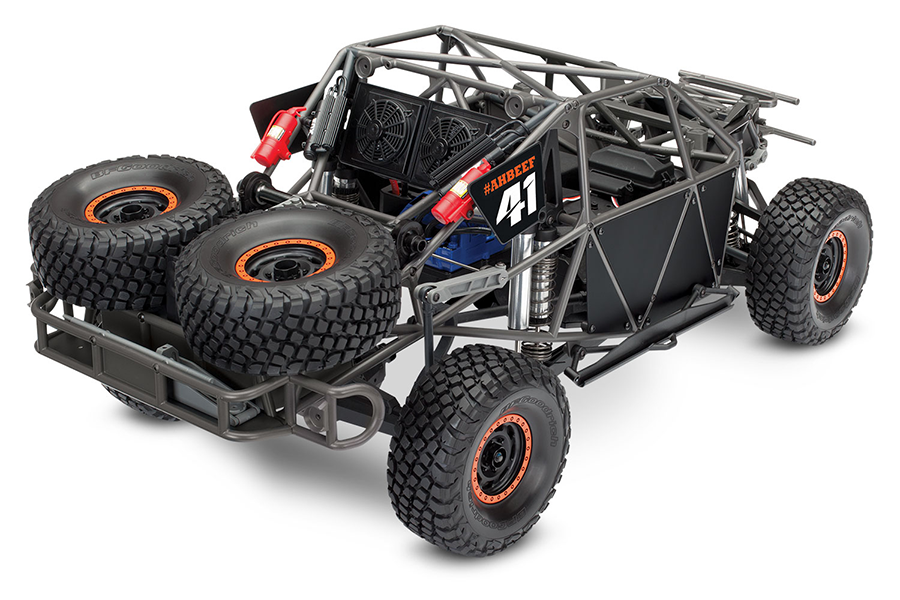

    • Integrated cooling fan
    • Real-time telemetry via Traxxas Link
    • Machined heat sink
    • 3-LED status indicators
    • Powered accessory ports
    • 10-gauge silicone wire

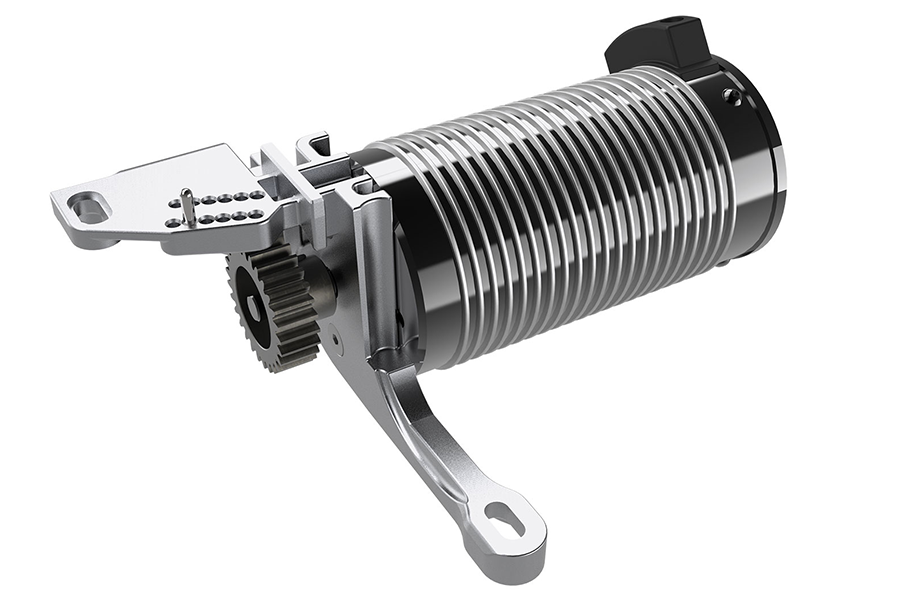

  • Velineon® 2200kV Brushless Motor
    • 4-pole 2200kV brushless motor
    • 5mm output shaft
    • Finned can for better heat dissipation
  • Up to 50+ mph with Two 3s LiPo Batteries
  • Traxxas Stability Management® (TSM)
    • Improves straight line acceleration and braking on low-traction surfaces
    • Maintains steering composure to allow throttle-on powerslides
    • Never dulls throttle or slows the truck
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4GHz High Output Radio System
    • TQi 2-channel transmitter
    • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
    • Programmable multi-function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points
    • High 13ms frame rate and near-zero latency for responsive control
    • 5-channel micro receiver (#6533) with fail-safe security

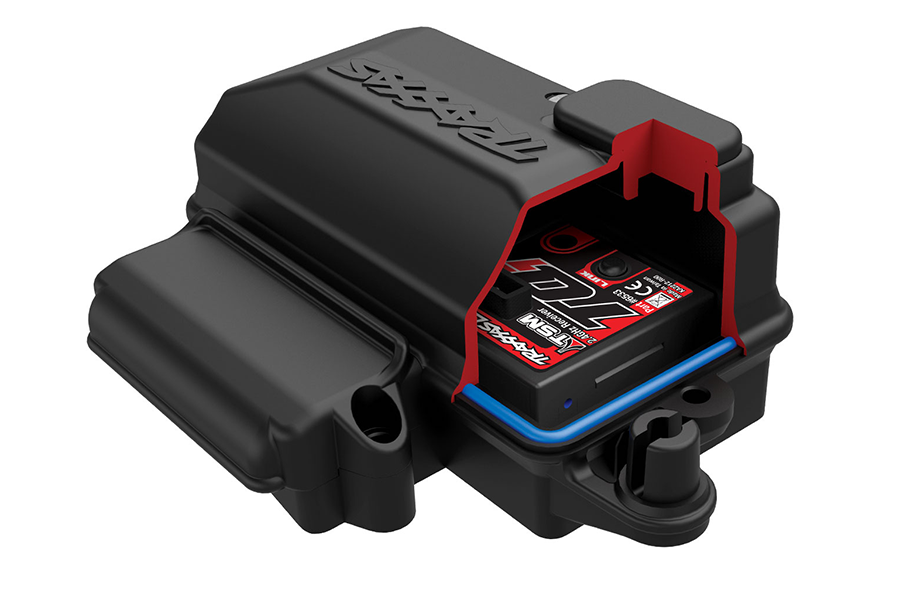

    • Patented waterproof receiver box with easy-access plug

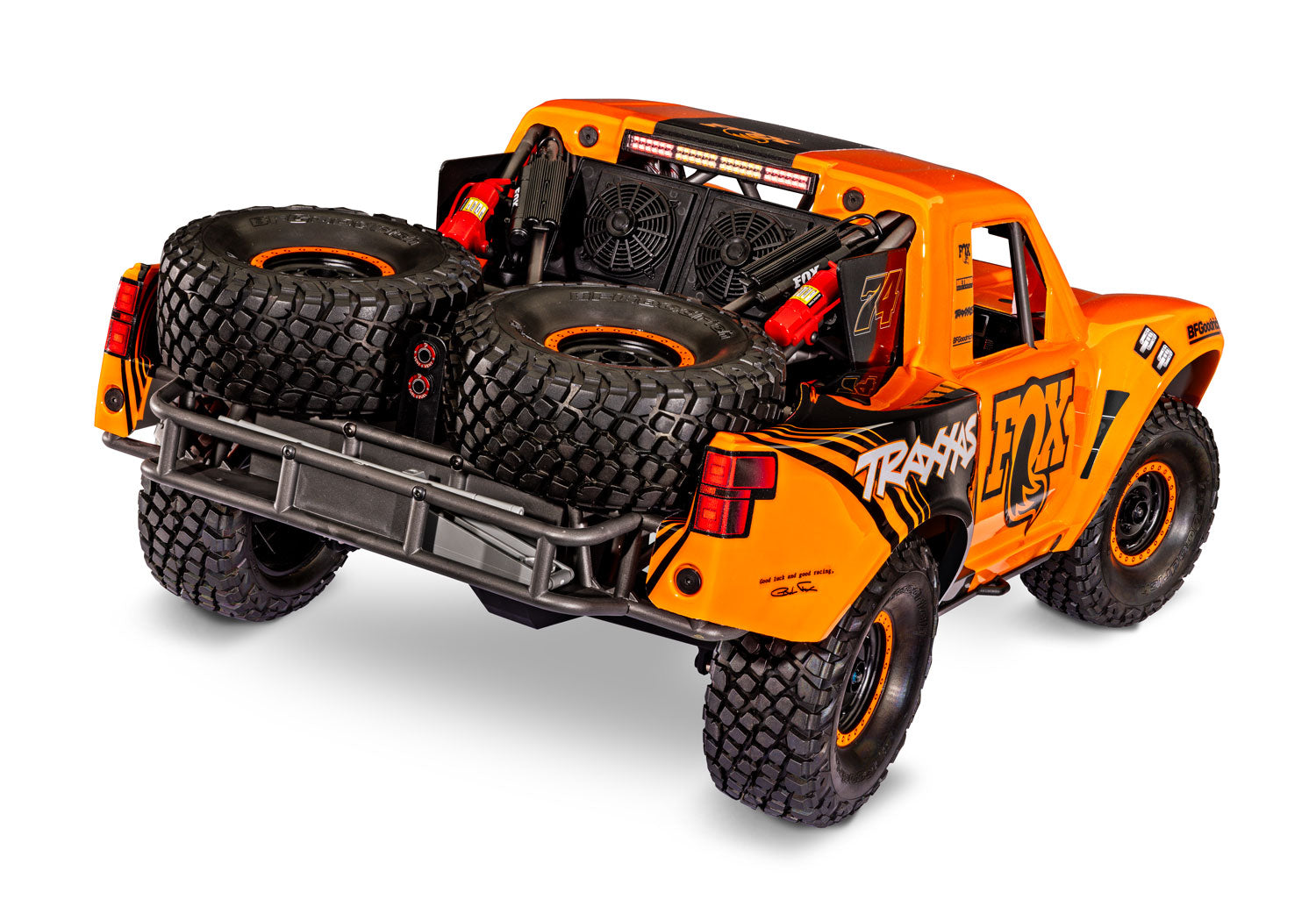

  • Large Pro-Scale™ Body with Highly Detailed Replica Parts
    • Heavy-duty truck body mounts to chassis in multiple locations

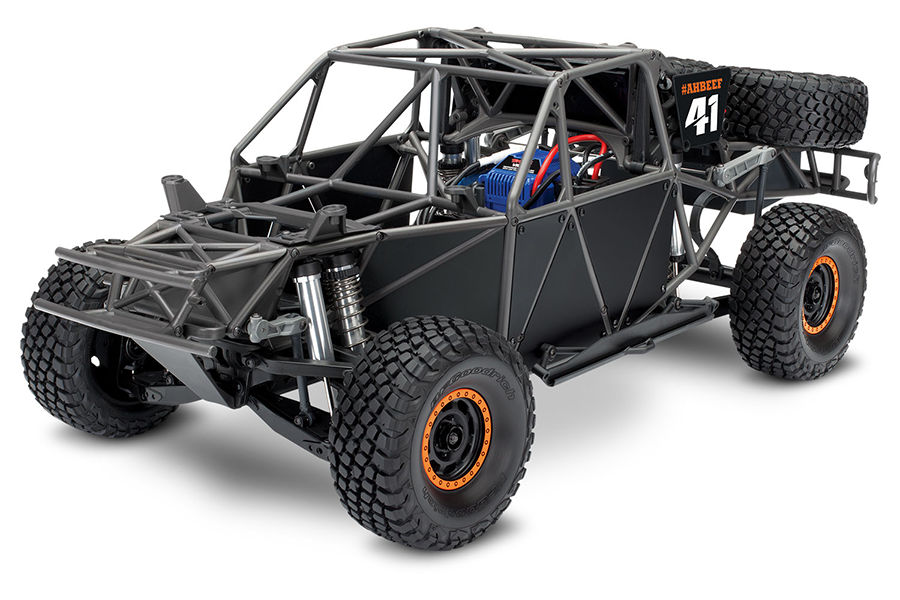

    • Strong and functional tube frame mimics full-size off-road racers

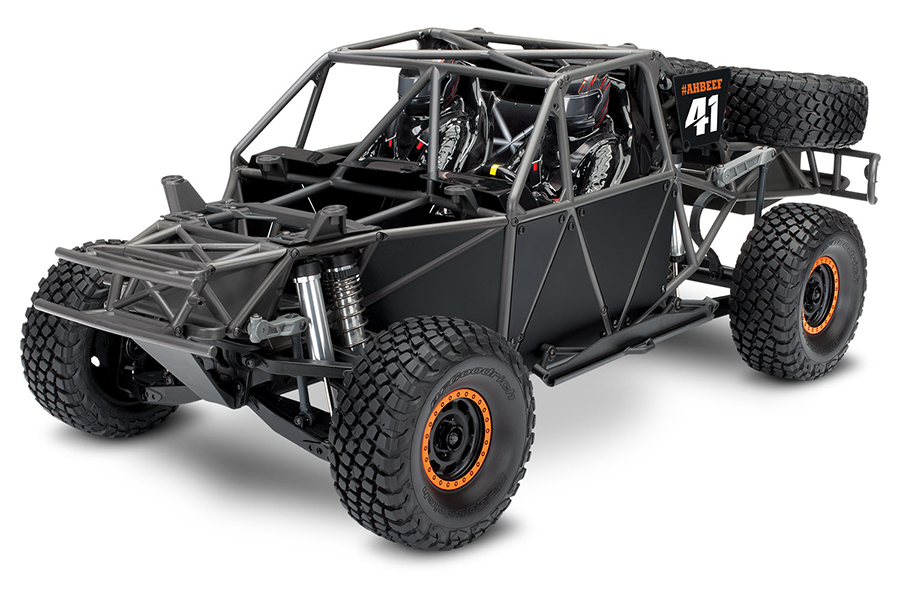

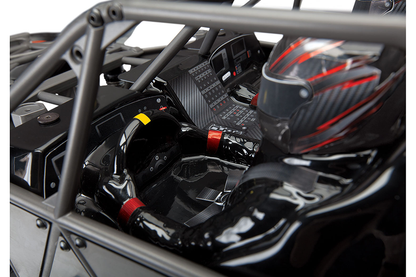

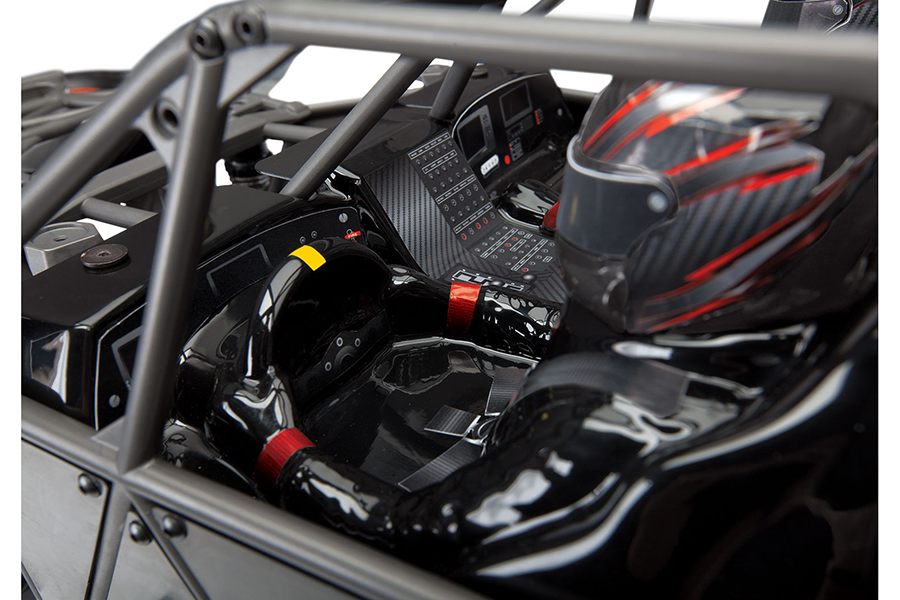

    • Detailed interior cabin with driver figures

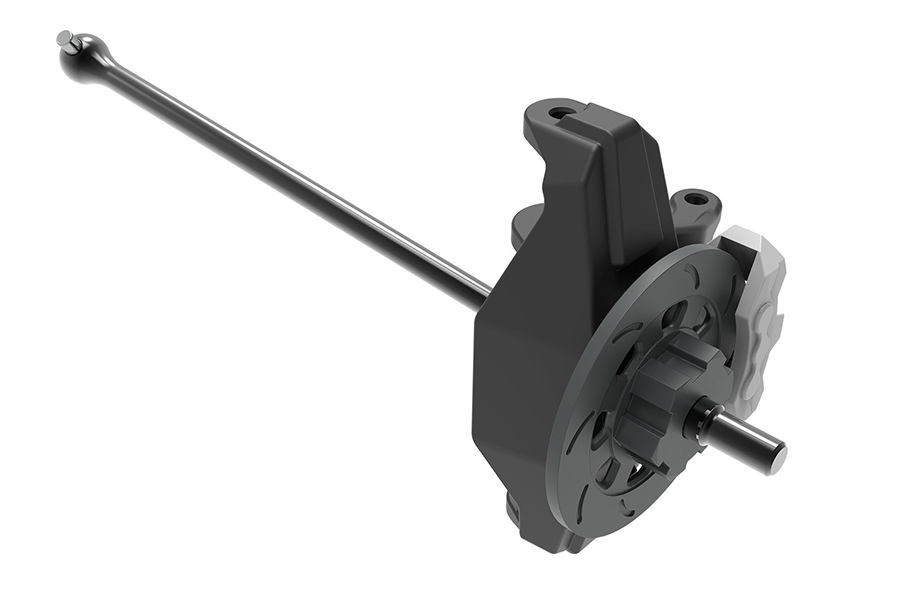

    • Replica brake calipers and discs with integrated 17mm wheel hubs
    • Two fully-functional spare tires and functional spare driveshaft
    • Highly detailed replica parts: fire extinguishers, shock reservoirs, jack, and tools
    • Realistic side plates mount to tube frame

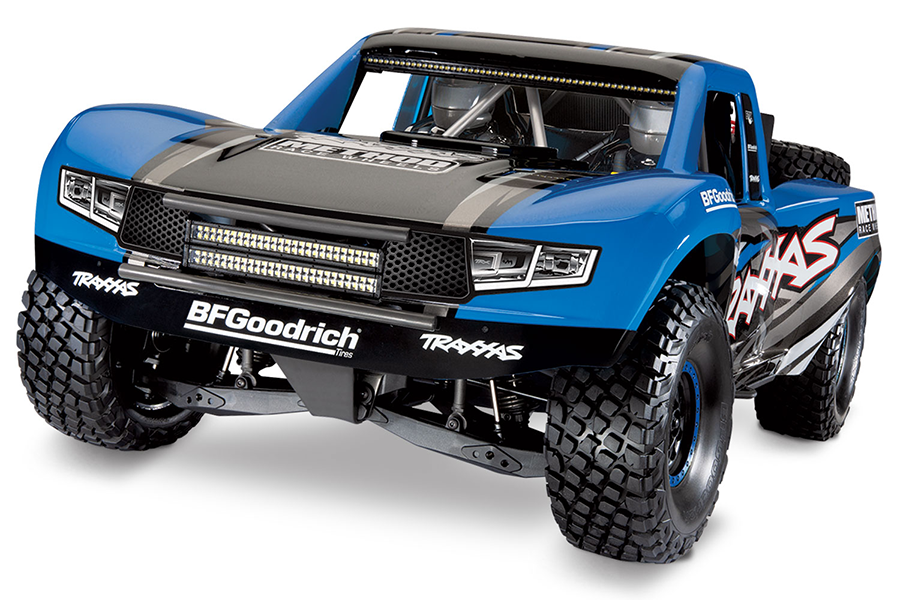

    • Factory-installed LED lighting
  • Light Kit Features
    • Fully waterproof for all-season fun and adventure
    • Brake lights work in both forward and reverse direction
    • Three default lighting modes controlled from the power amplifier
    • Low and high beam brightness settings
    • Regulated output for stable lighting performance (no flickering or dimming as the battery voltage changes)
    • Customize lighting modes and operate lights remotely with Traxxas Link app

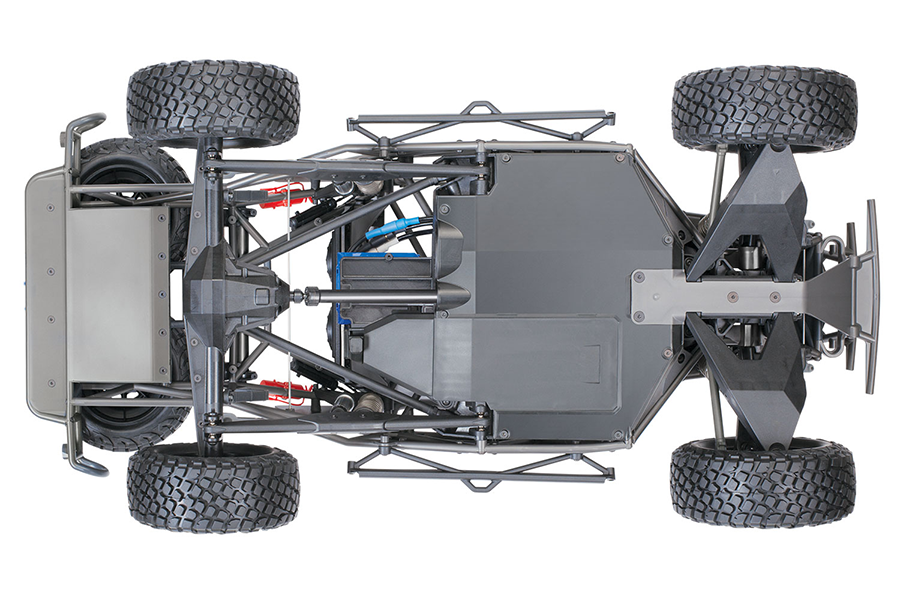

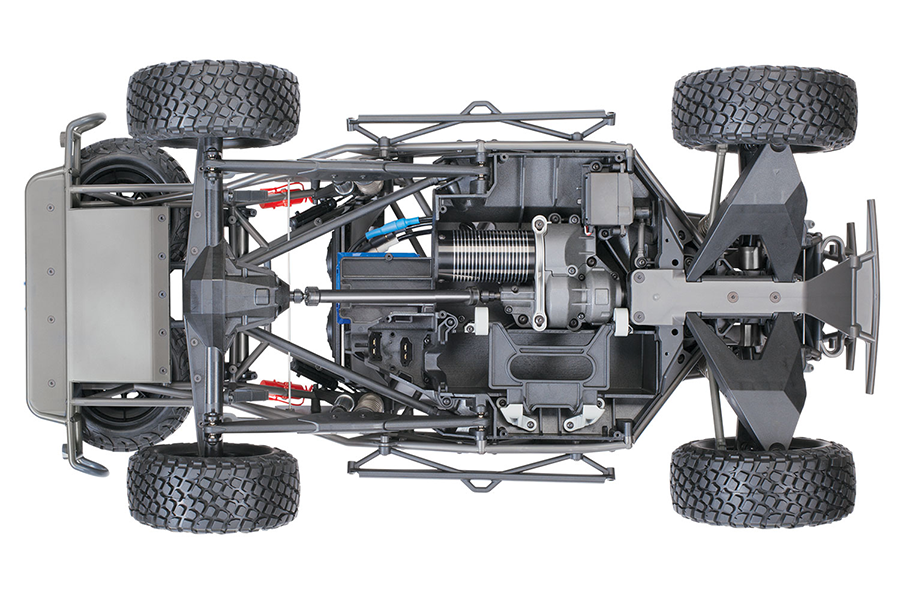

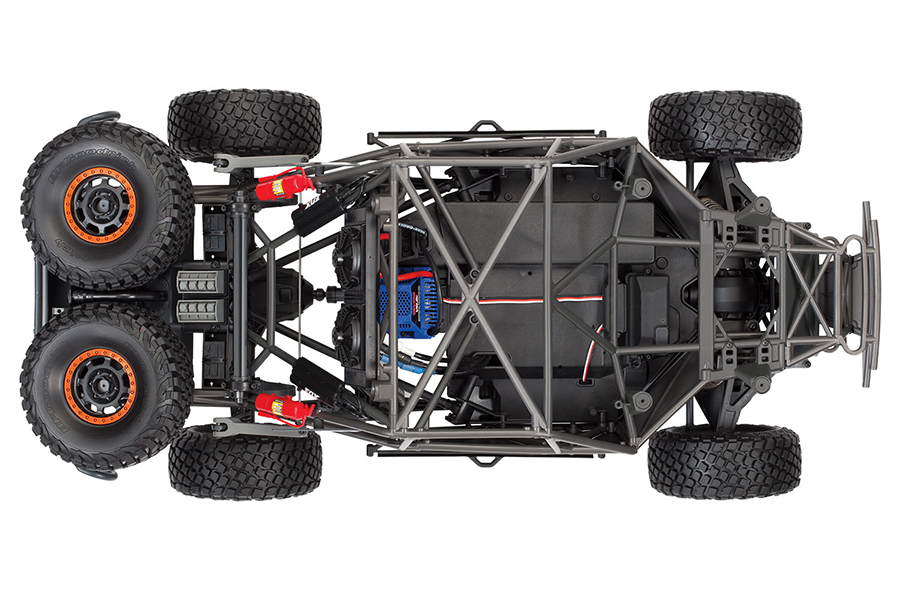

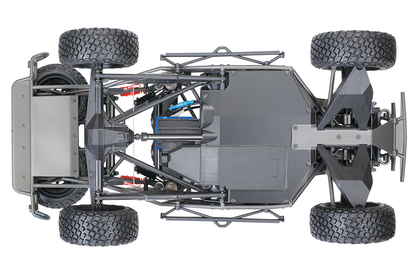

  • Chassis
    • Composite inverted tub design
      • Makes maintenance easier
      • Lowers center of gravity (CG) for improved handling
      • Allows easy access to components
    • Tough skid plates protect critical components

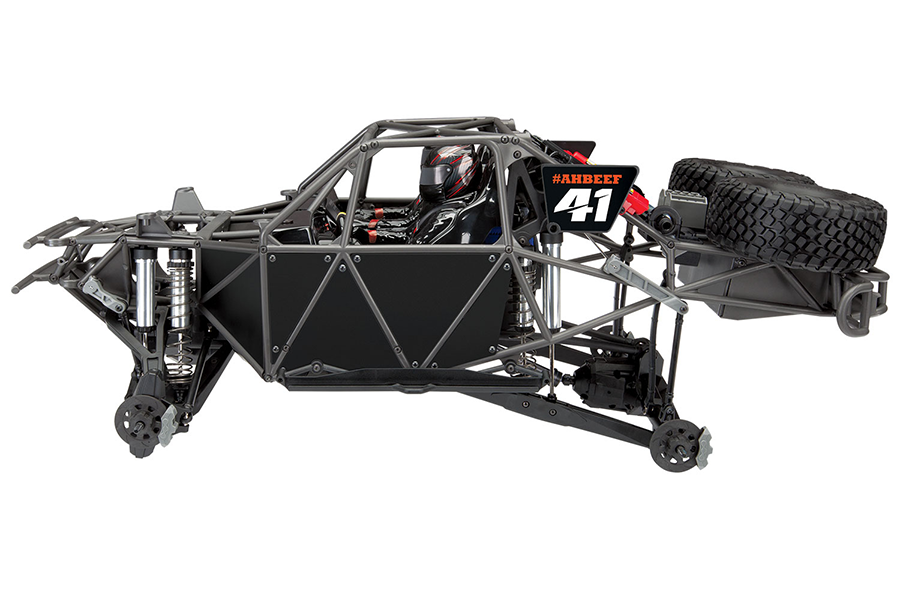

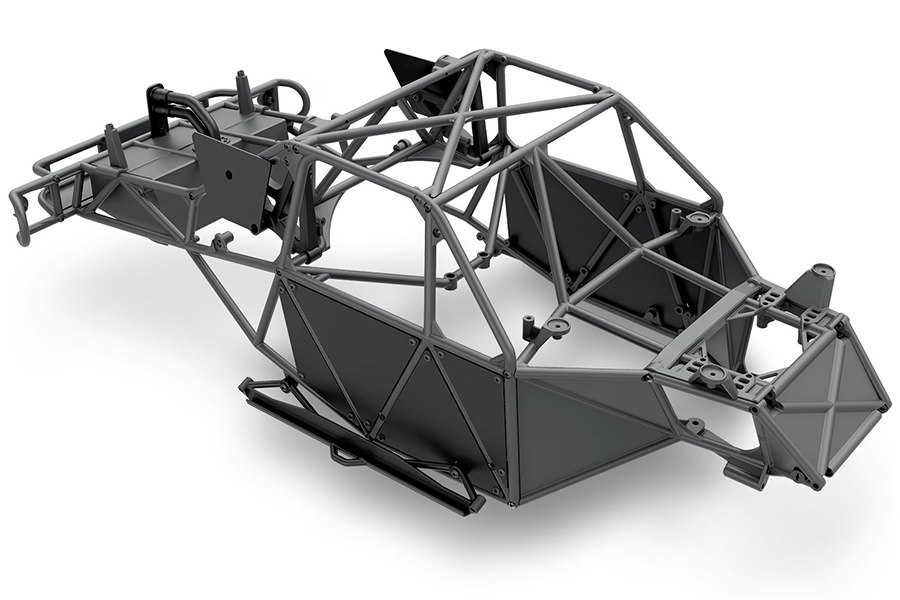

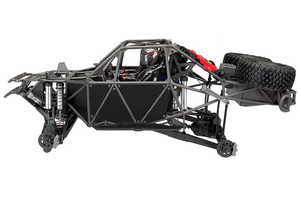

    • Fully integrated tube frame for scale appearance and added rigidity
    • Reinforced bumpers to absorb impacts
    • ESC battery plugs hard mounted to chassis
  • Innovative Battery Compartment
    • Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
    • Opens from underneath without removing body
    • Fixed oversized battery strap locks batteries securely into place
    • Separate skid plate to protect batteries
  • Suspension
    • Provides scale looks and authentic off-road driving dynamics

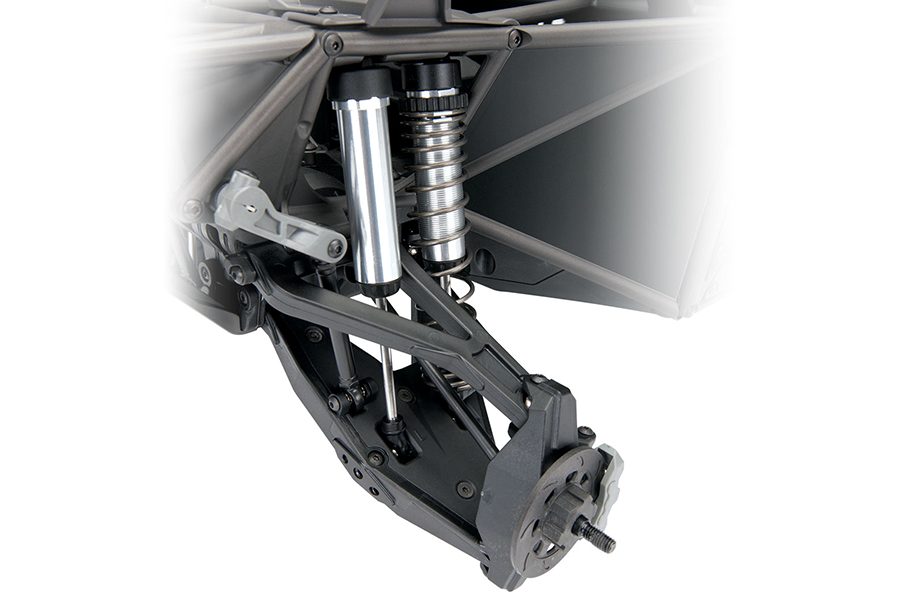

    • Tough independent double-wishbone front suspension with captured rod ends

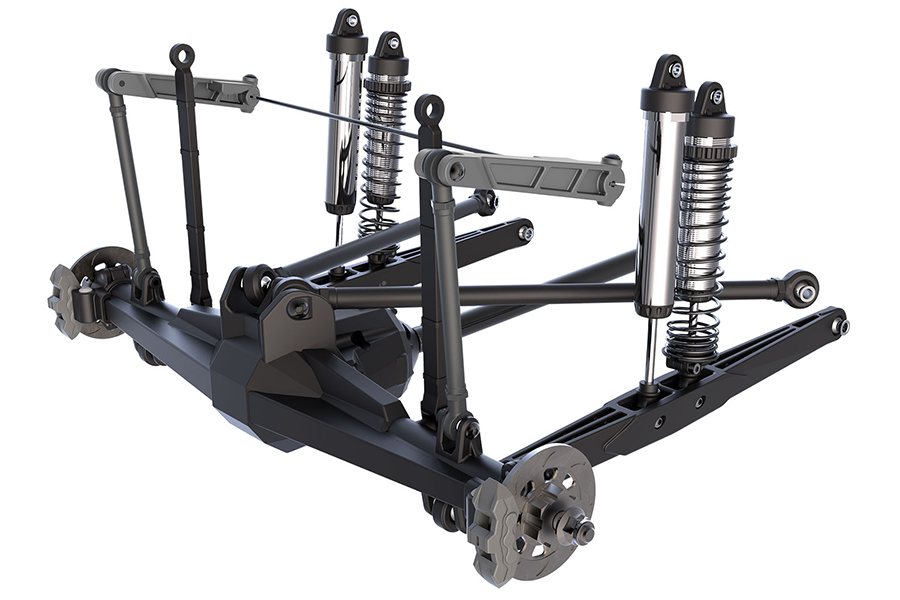

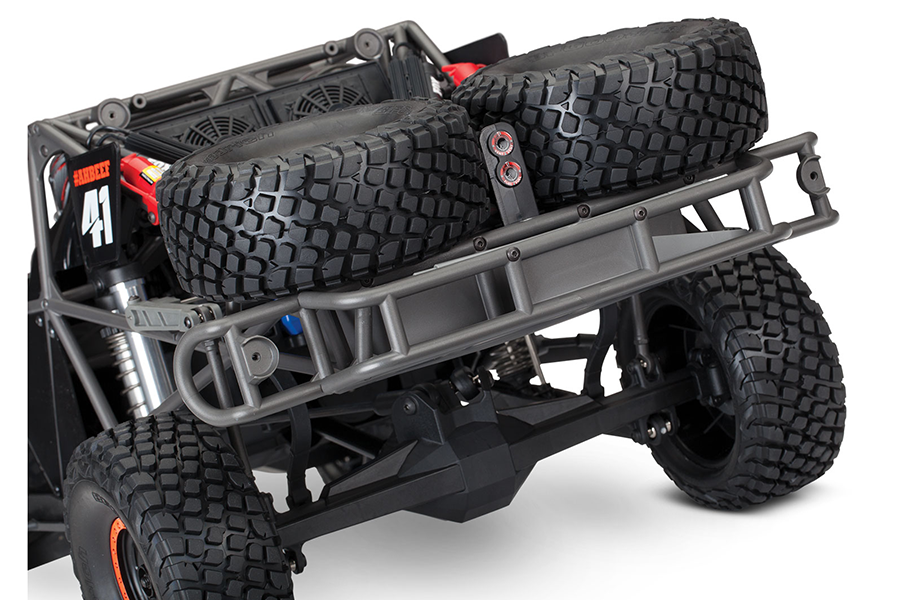

    • Triangulated 4-link rear suspension with solid rear axle (patent pending)
    • Tough composite trailing arms
    • Steel upper links with 3 optional positions for suspension tuning

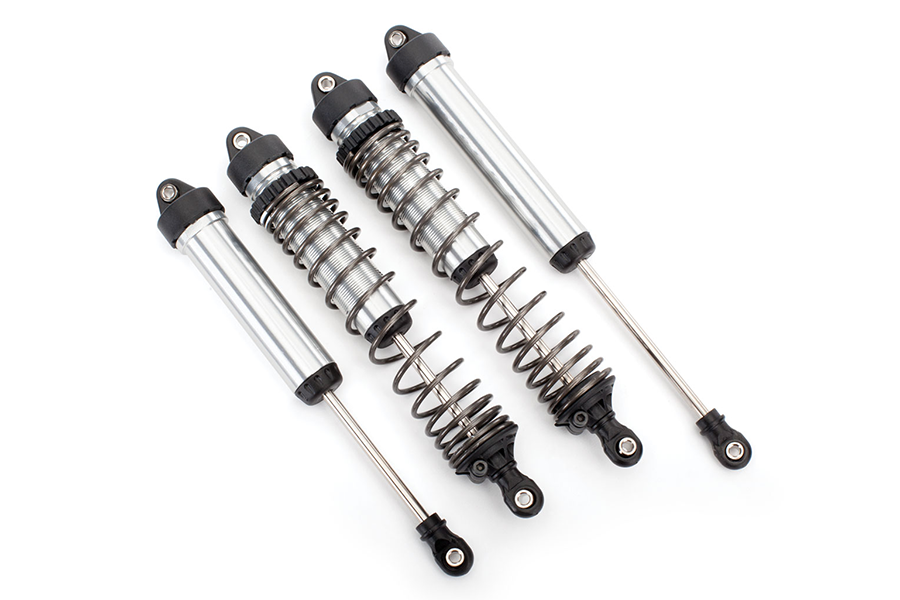

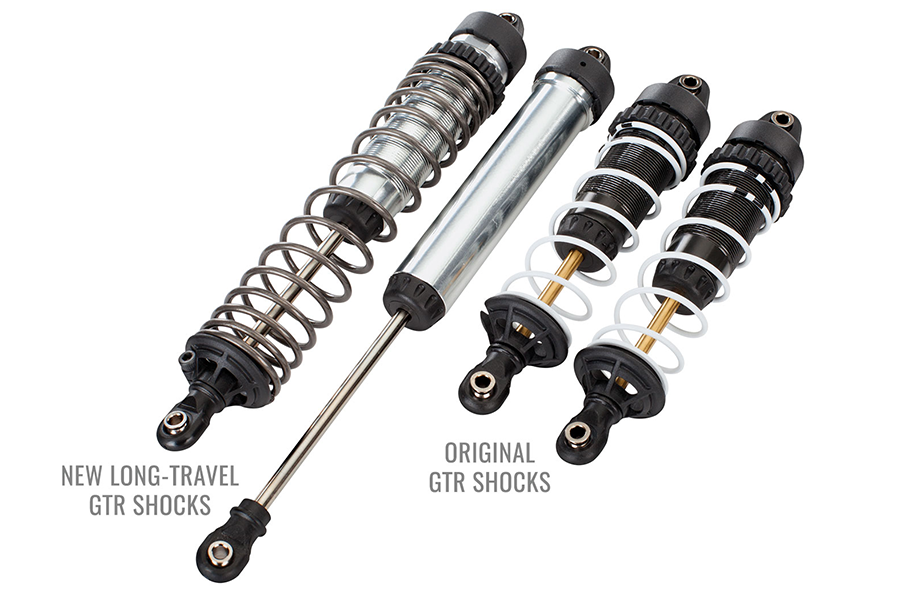

    • Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars

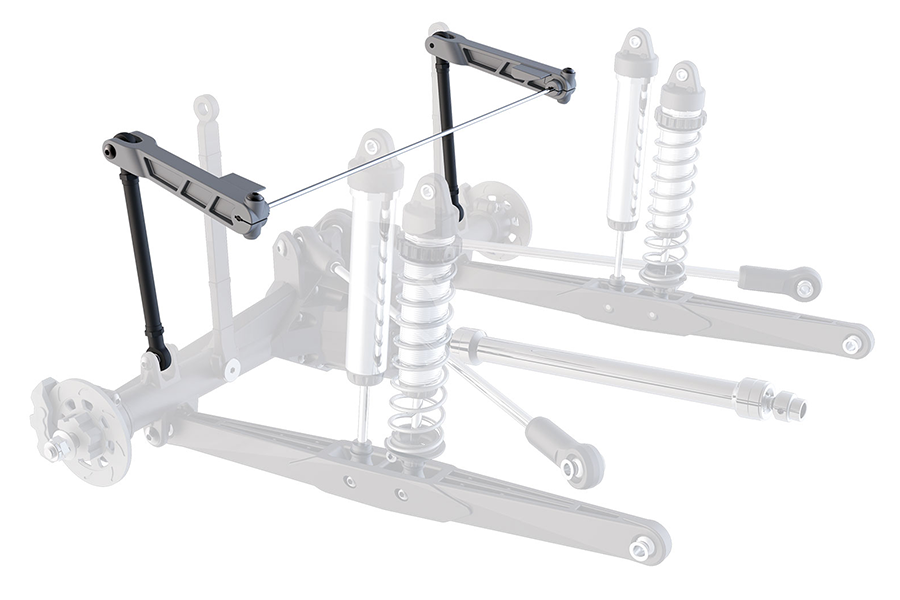

    • Realistic and functional front and rear sway bars

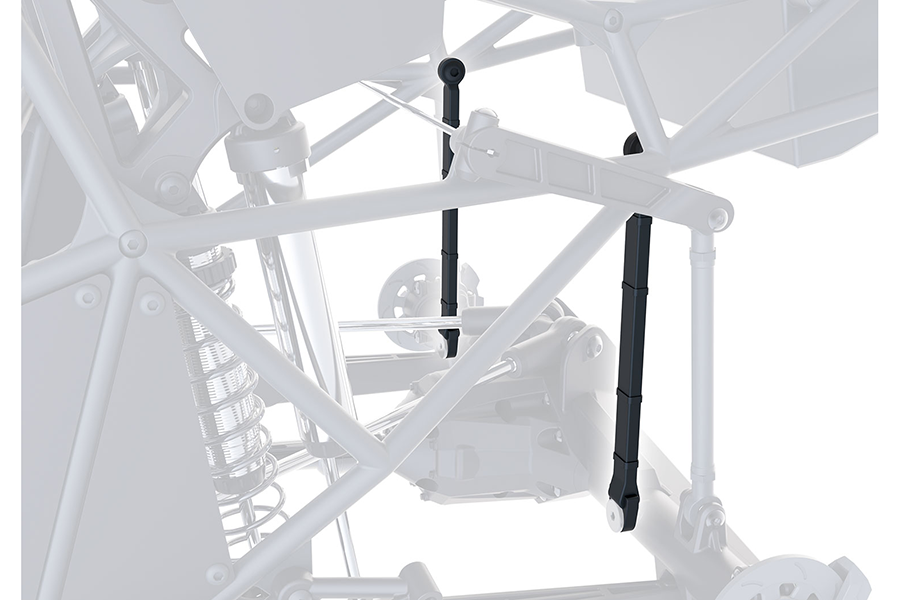

    • Detailed functional limit straps on rear axle
  • Steering

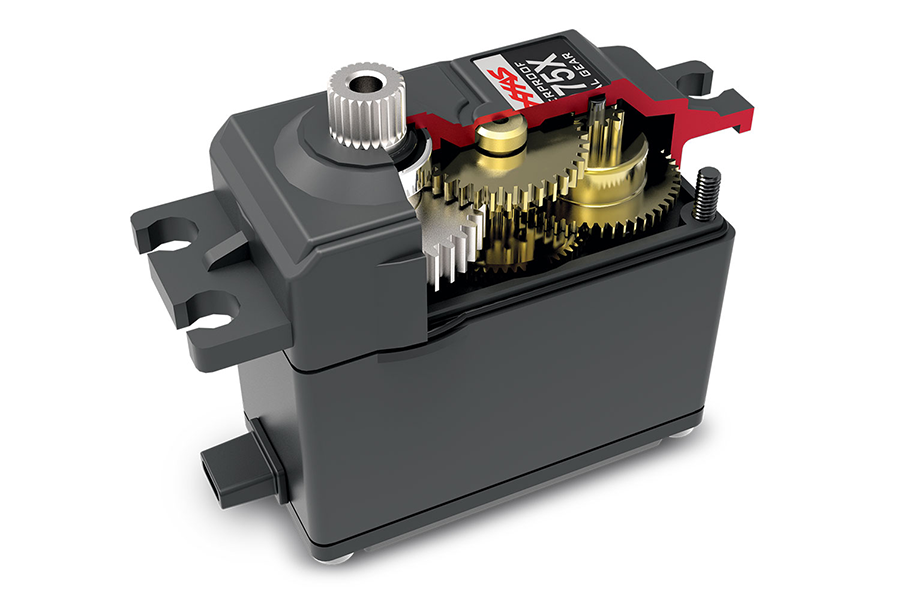

    • Chassis mounted #2075X metal-gear servo

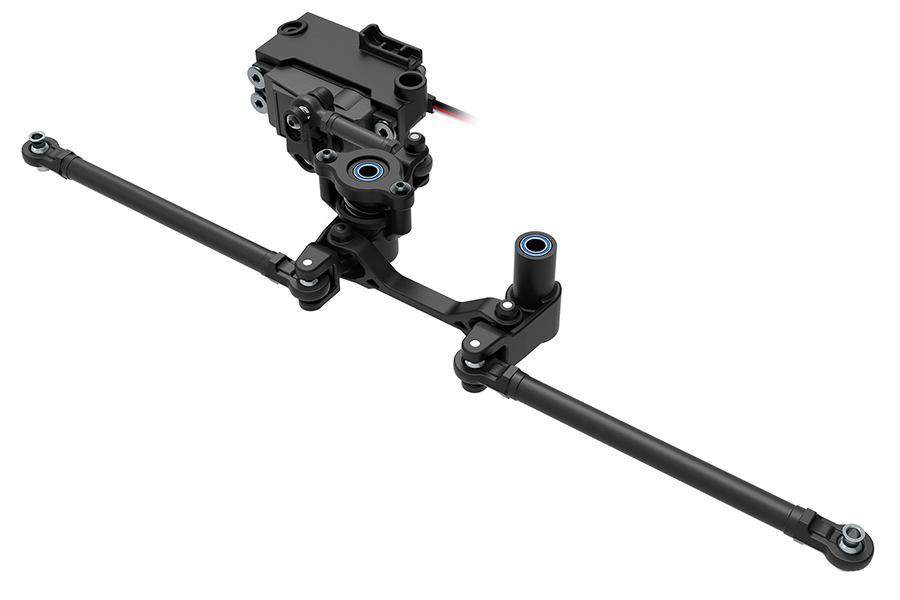

    • Dual bellcrank design with bearings and integrated servo saver
    • Solid non-adjustable steering links for rugged durability
  • Drivetrain

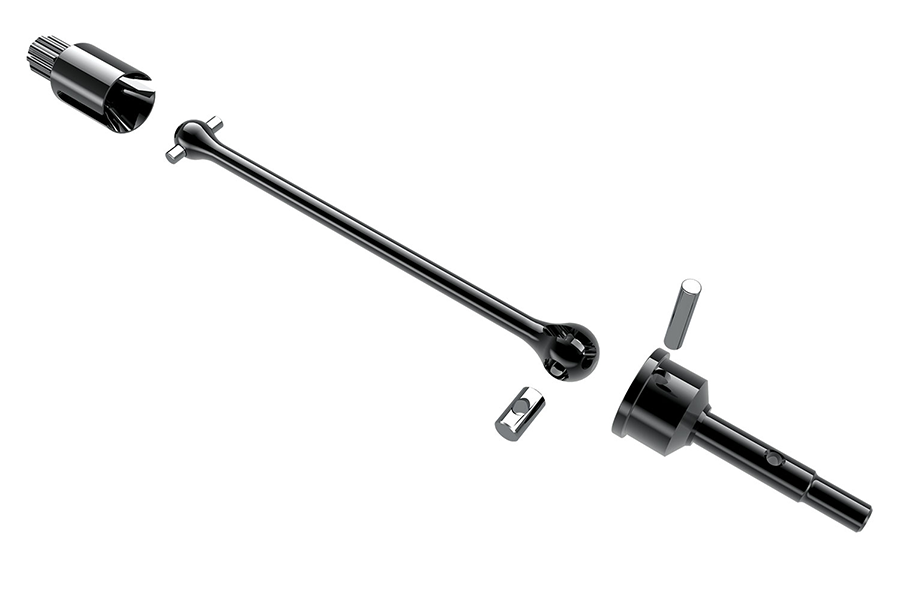

    • Steel CV driveshafts (front) with 6mm stub axles

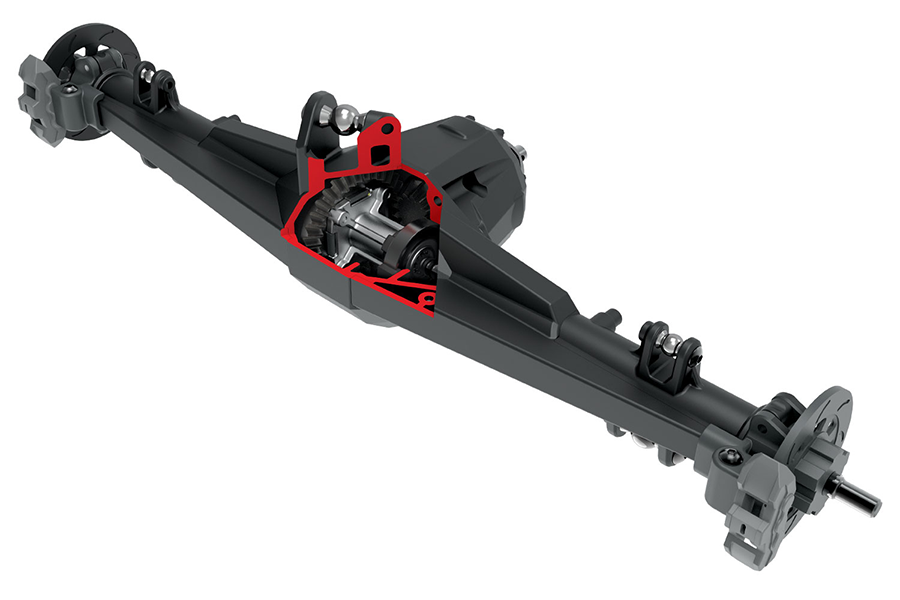

    • Steel straight axle (rear)

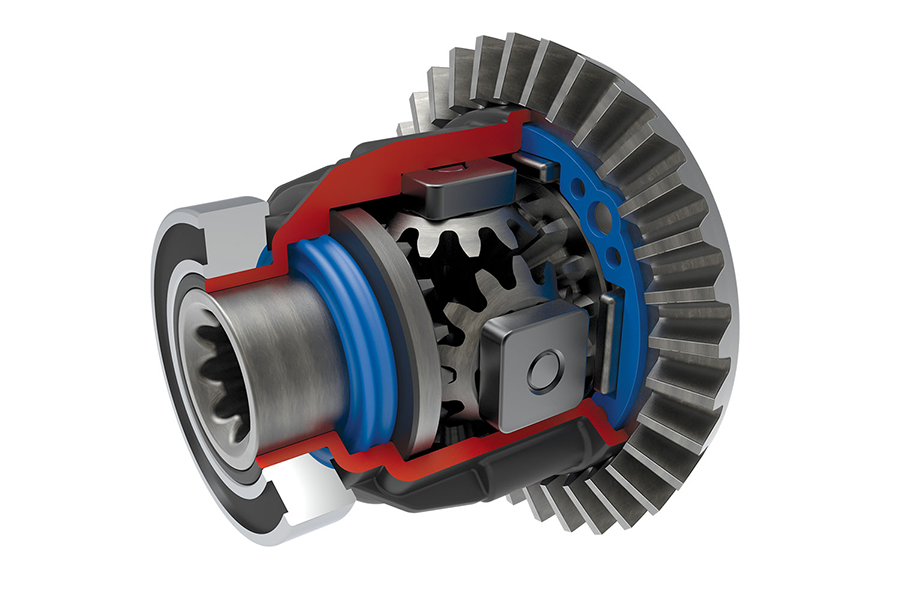

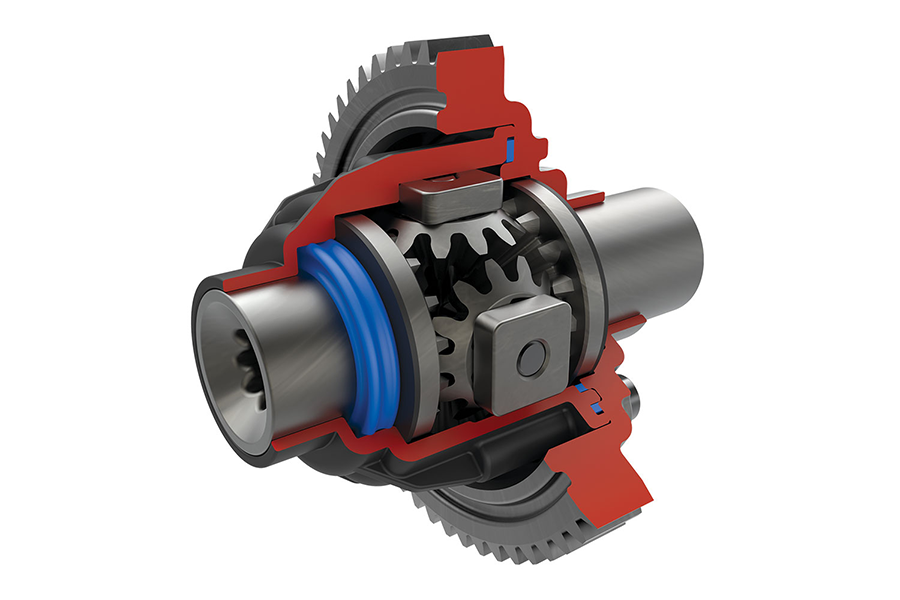

    • Oil-filled limited slip front differential
    • Locked steel spool (rear)

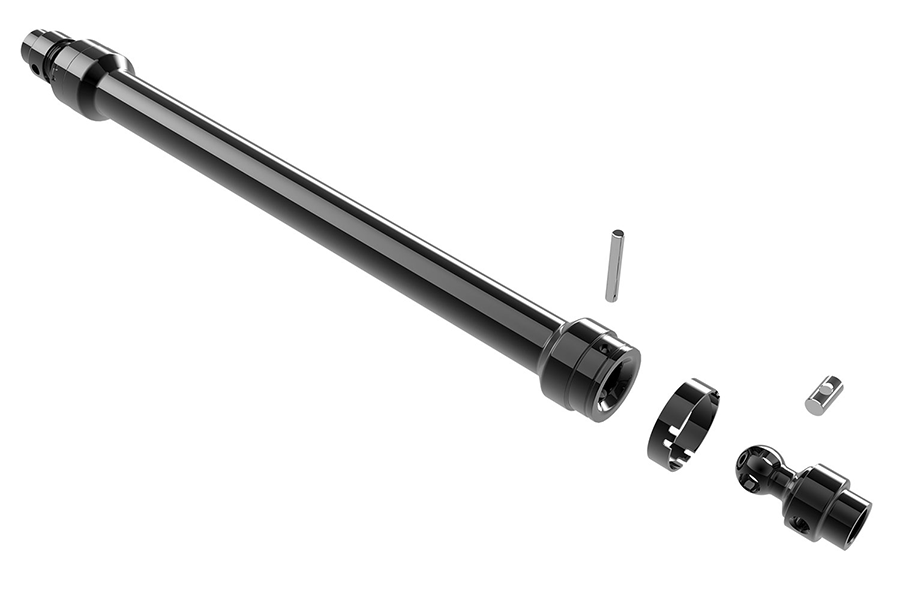

    • Heavy-duty splined front driveshaft
    • Fixed-length steel rear driveshaft

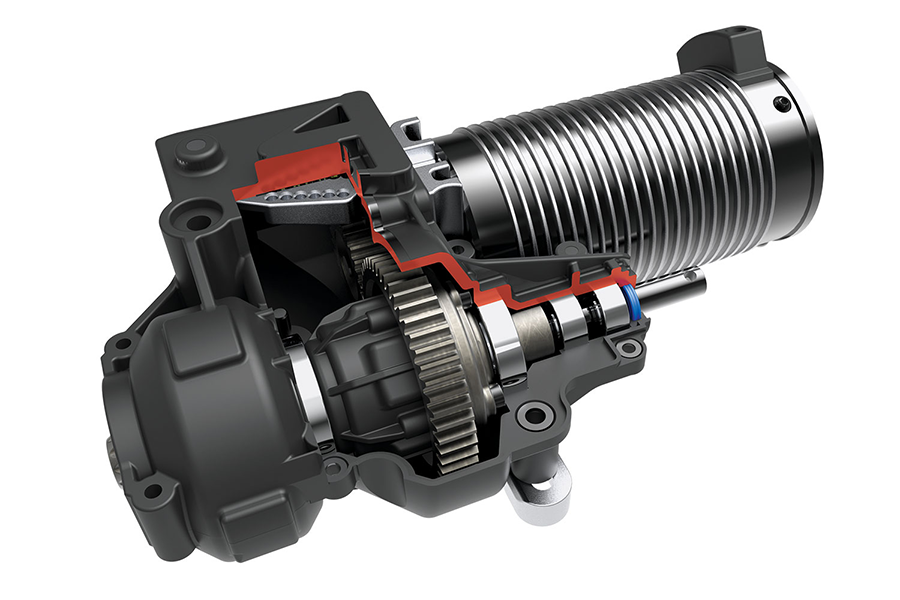

  • Transmission
    • All-steel gear direct drive transmission
    • Torque-Biasing Center Drive™
    • Removes as a single piece for easy maintenance
    • Fixed-pin gear mesh system

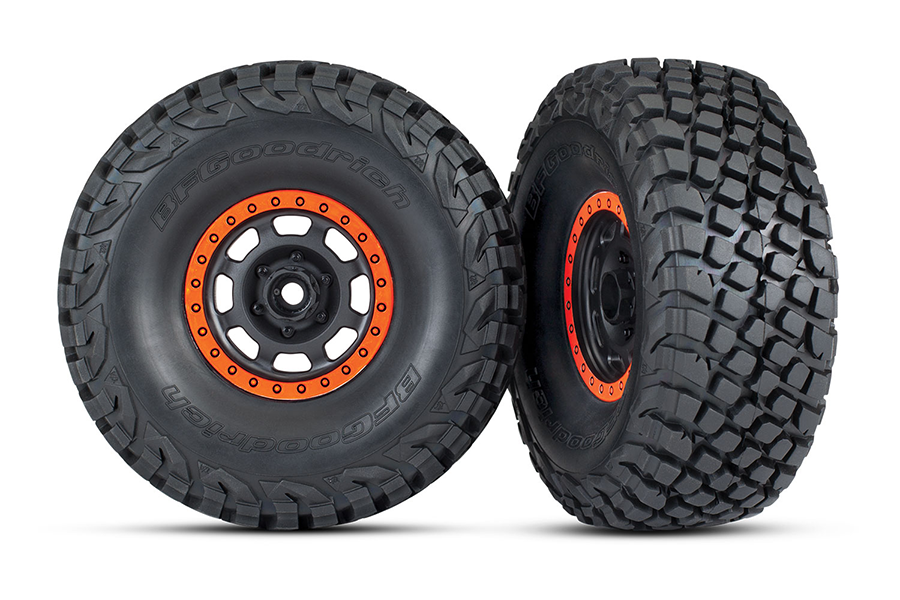

  • Wheels and Tires
    • Replica BFGoodrich® KR3 off-road tires
    • Beadlock-style 17mm dual-diameter wheels
  • Sealed Ball Bearings
  • Hex Hardware with Rust-Resistant Black Oxide Coating
Length: 27.32 inches (694mm)
Front Track: 13.57 inches (345mm)
Rear Track: 13.57 inches (345mm)
Ground Clearance: 2.27 inches (58mm)
Weight: 13.4lb (6.1kg)
Height: 10.29 inches (261mm)
Wheelbase: 16.53 inches (420mm)
Front Shock Length: 5.28 inches (134mm)
Front Threaded Shock Length: 5.28 inches (134mm)
Rear Shock Length: 6.3 inches (160mm)
Rear Threaded Shock Length: 5.55 inches (139mm)
Tires (pre-glued): 134mm x 57mm BFGoodrich® KR3 replicas
Wheels: Dual diameter 40mm x 56/81mm
Speed Control: Velineon® VXL-6s
Motor (electric): 2200kV
Transmission: Direct-drive with Torque-Biasing Center Drive
Overall Drive Ratio: 17.89:1
Front Differential Type: Sealed, 4-gear
Rear Differential Type: Locked spool
Center Differential Type: Sealed, 4-gear (1M weight oil)
Chassis Structure / Material: Inverted composite tub
Brake Type: Electronic
Drive System: Shaft driven 4WD
Steering: Dual bellcranks with ball bearings
Radio System: TQi™ 2-channel transmitter with 6533 TSM receiver
Servo: 2075X Metal Gear
Top Speed (stock gearing): 4S LiPo – 30+ mph, 6S LiPo – 50+ mph
Skill Level: 5
Battery Compartment: 181mm x 46mm x 56mm
