RAW 500 Servo Programable
RAW 500 Servo Programable
Regular price
$139.99
Regular price
$0.00
Sale price
$139.99
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Availability:
Sorry we are out of stock but have more on the way.
You will earn 69 Electron Reward Points on this product!
Click to find out more about our points program and save big!
Low Price Promise!
Click to find out more about our low price promise
RAW 500HD Servo, Programable
Features:
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Fully Programmable w/ REEFS Software
In The Box:
(1) RAW 500HD Servo, Programable
Needed to Complete:
(1) REEFS LINK required for Programming

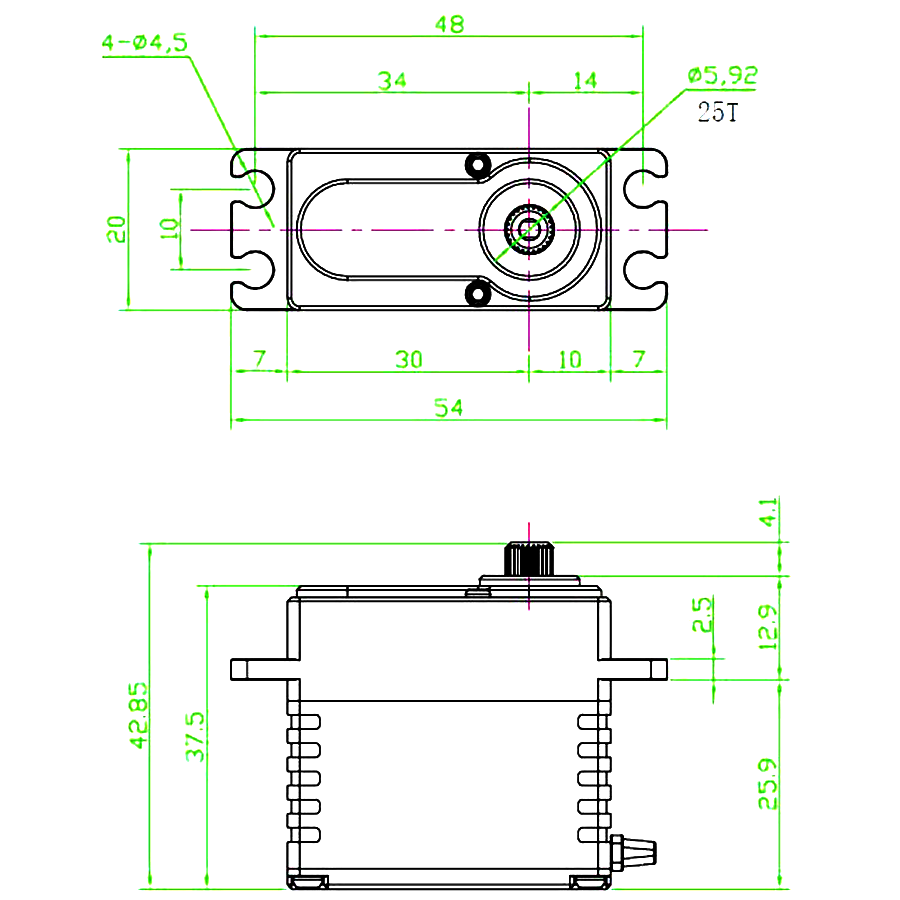

| Maximum Servo Torque: | 450oz @ 6v/ 500oz @7.4v/ 565oz @8.4v |
| Max Servo Torque: | 500+ oz-in |
| Product Weight: | 2.75oz |
| Spline Count: | 25 - Tooth |
| Product Length: | 1.57" (40 mm) |
| Bearing: | 2 Ball Bearings |
| Bushing or Bearing: | Bearing |
| Maximum Servo Speed: | 0.050-0.099 sec |
| Product Width: | 0.79" (20 mm) |
| Deadband: | Dead Band Width: 2¦Ìs |
| Input Voltage: | 4.8V - 8.4V |
| Product Height: | 1.5" (38 mm) |
