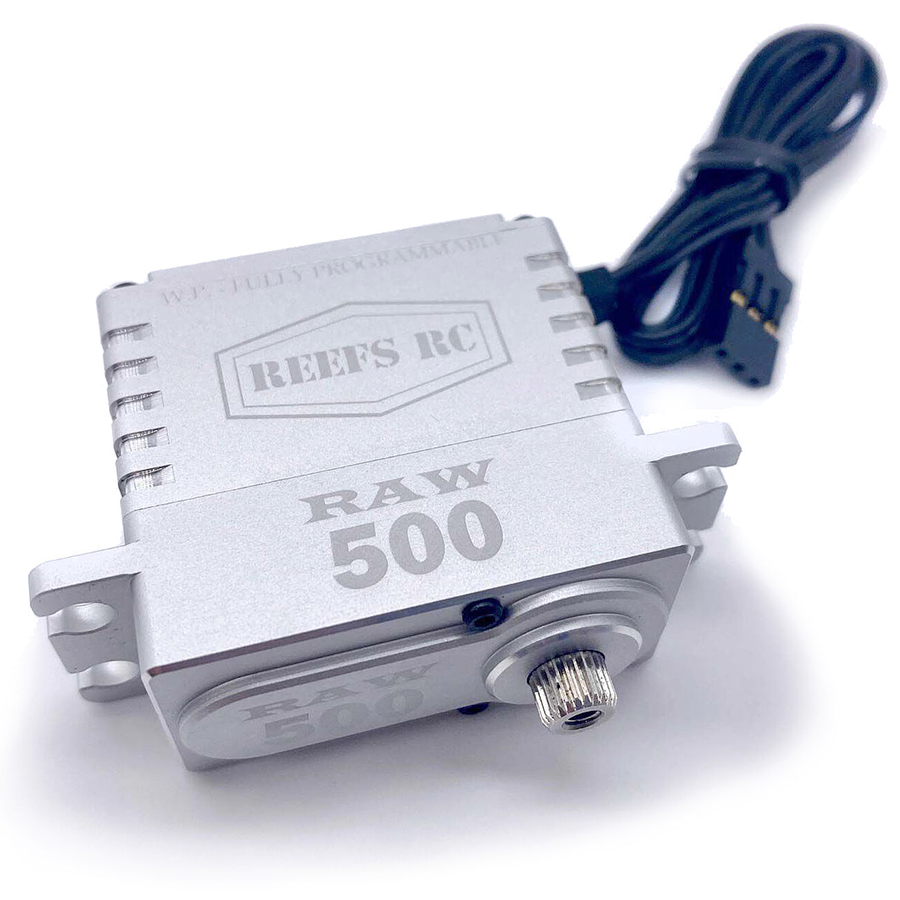

RAW 500 Servo Programable
$139.99
Submarine Waterproof
7 Point Seal Protection
Extreme Torque
Over 500 oz in Power
Fully Programmable
Custom REEFS Software Control
Magnetic Sensor
Angle Sensor Precision Tracking
Lightning Fast
Rapid Response Speed Metrics
Standard Fit
25 Tooth Output Spline
High-Torque Steering PowerUnmatched Precision for RC Vehicles
The REEFS RAW 500HD Programmable Servo delivers extreme power and control for high-demand RC car and crawler applications. Featuring advanced submarine waterproofing with a 7-point seal design, this heavy-duty servo produces over 500 oz-in of torque to handle tough off-road terrain. With built-in Pulse Width Modulation control and magnetic angle sensing, it sets a new standard for precision high-voltage steering performance.
Advanced Servo PerformanceBuilt for Extreme Off-Road Rigor
Engineered for maximum endurance and accuracy, the REEFS RAW 500HD Programmable Servo is an essential upgrade for competitive RC rock crawling and bashing. Equipped with a state-of-the-art magnetic angle sensor and custom tuning capabilities via the optional REEFS LINK software, drivers can adjust servo parameters to perfectly match their driving style. Dual ball bearings and a robust 25-tooth spline design ensure smooth power delivery and immense structural integrity, making this waterproof high-torque servo reliable in wet, muddy, or dusty environments.
Detailed Technical SpecsComplete Dimensions and Power Metrics
Compatible Vehicles
1/10 and 1/8 Scale RC Rock Crawlers, Buggies, and Trucks
Part Type
Steering / Throttle Servo
Material
Metal Gear / Aluminum Case
Placement/Position
Front / Steering Mounting
Dimensions
1.57 x 0.79 x 1.5 in / 40 x 20 x 38 mm
Weight
2.75 oz
Input Voltage
4.8V - 8.4V
Maximum Servo Torque
450oz @ 6V / 500oz @ 7.4V / 565oz @ 8.4V
Maximum Servo Speed
0.050 - 0.099 sec
Spline Count
25-Tooth
Bearing Type
2 Ball Bearings
Deadband
2 µs
Performance Driven FeaturesEngineered for Extreme RC Applications
Submarine Waterproofing7-Point Seal System
Position SensingMagnetic Angle Sensor
Signal ControlPulse Width Modulation Control
Custom ProgrammabilityFully Programmable via REEFS Software
Output ShaftIndustry Standard 25T Spline
High Voltage Range4.8V to 8.4V Input Compatibility
Frequently Asked QuestionsEverything you need to know
Is the REEFS RAW 500HD Programmable Servo completely waterproof?
Yes, the REEFS RAW 500HD Programmable Servo features submarine waterproofing equipped with 7-point seals to reliably protect internal electronics from water, mud, and debris.
What equipment is needed to program the REEFS RAW 500HD Programmable Servo?
To adjust settings on the REEFS RAW 500HD Programmable Servo, you will need the optional REEFS LINK cable and the REEFS programming software.
What output spline horn does the REEFS RAW 500HD Programmable Servo use?
The REEFS RAW 500HD Programmable Servo uses a standard 25-tooth (25T) spline, compatible with a wide variety of aftermarket aluminum servo horns.
What operating voltage gives the maximum torque on the REEFS RAW 500HD Programmable Servo?
The REEFS RAW 500HD Programmable Servo reaches its maximum rating of 565 oz-in of torque when operated at an 8.4V high-voltage power input.
