Servo, Digital HighTorque 400 Brushless, Metak Gear (Ball Bearing) Waterproof: 2255

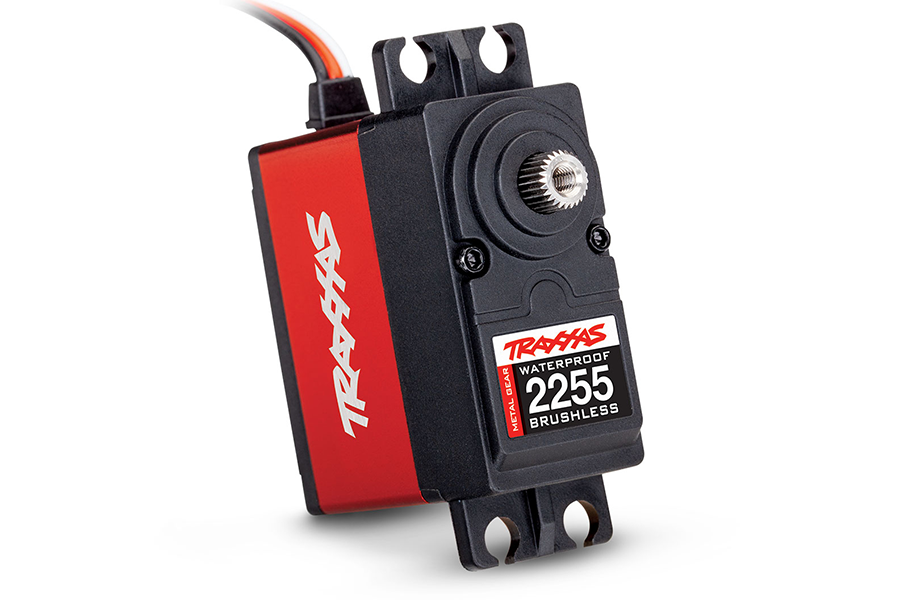

Digital High-Torque Brushless Servo

Overview:

The Traxxas High-Torque 400 Red servo combines maximum steering authority with a long list of high-performance features. The servo utilizes full metal gears, dual ball bearings, and an aluminum center section for added heat dissipation. A cutting edge brushless motor provides 400 ounce-inches of torque for extreme applications. The High-Torque 400 servo is fully waterproof, not just “water resistant” and drops into most 1/10 Traxxas vehicles for that perfect factory fit.

The Power to Perform
With over 3 times more torque than the standard #2075 servo, the High-Torque 400 provides noticeably faster turning speed and works great with TSM™ equipped vehicles. Traxxas High-Torque servos are the perfect upgrade for high-demand applications like Unlimited Desert Racer, Slash, Stampede, or almost any 1/10 Traxxas vehicle requiring extreme performance. Replace the E-Revo's dual servos with a single #2255 for lighter weight, more torque, and lightning-quick steering response. Elevate your steering performance to the next level with the High-Torque red 400 servo.

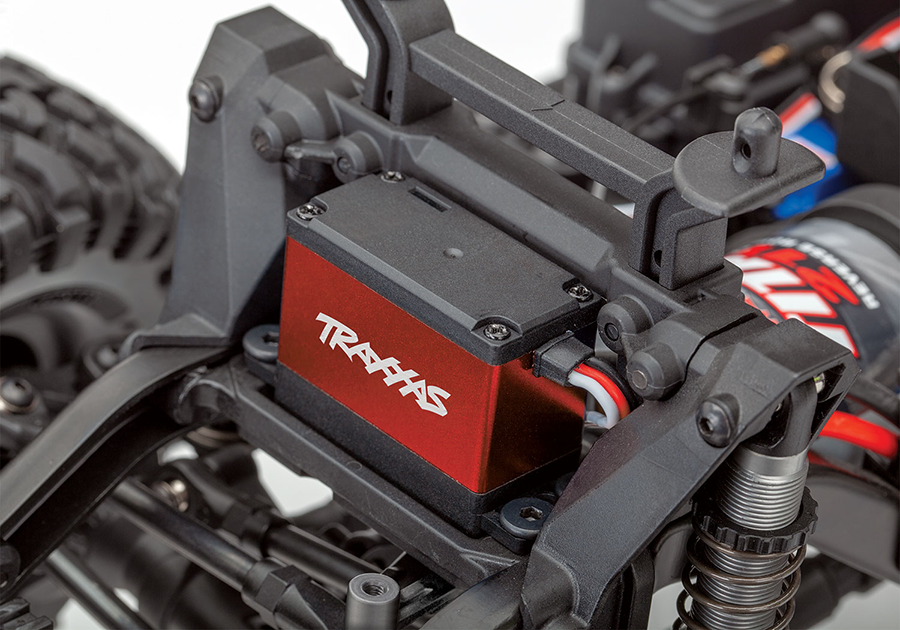

For TRX-4 Installation

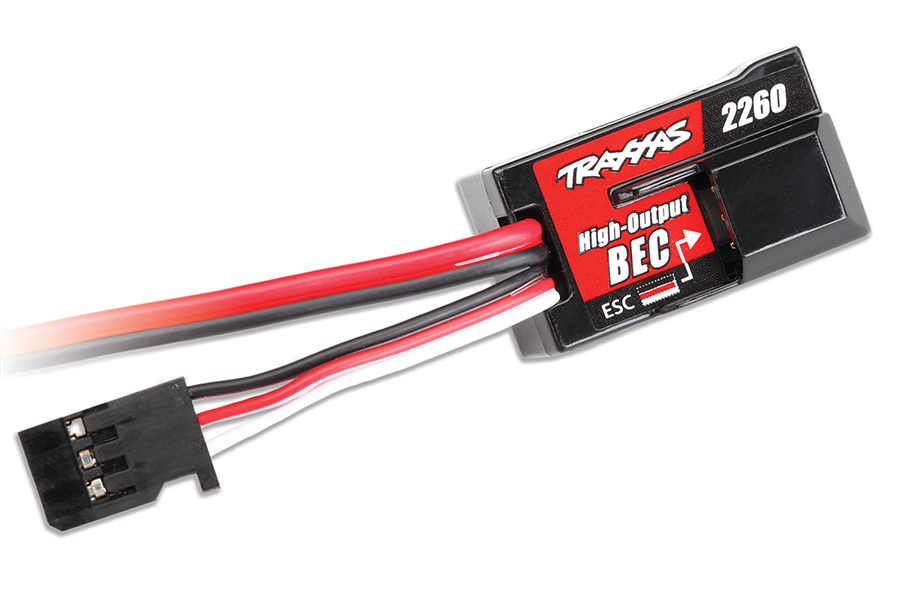

The Traxxas High-Torque 400 Red servo represents a huge power upgrade for the TRX-4. When installing this servo, it is required that you use the High-Voltage BEC kit #2262 and a steel servo horn #8247X is recommended. Installing the BEC is easy with plug and play simplicity. The kit includes a larger receiver box cover to maintain total waterproof integrity and a Y harness for vehicles with LED light kits.

Waterproof Not "Water Resistant"
Traxxas knows the difference between “water resistant” and waterproof. Traxxas High-Torque servos are completely waterproof to give you the freedom to run when you want, where you want. Power through streams and bogs without fear while trucks with “water resistant” servos are stuck on the sidelines.

Features:

• Factory fit for drop-in installation into Traxxas Models
• Fully waterproof, not “water resistant”
• Compatible with Traxxas Stability Management™ (TSM)
• 400 oz-in torque at 6.0V
• 0.15 sec/60° at 6.0V

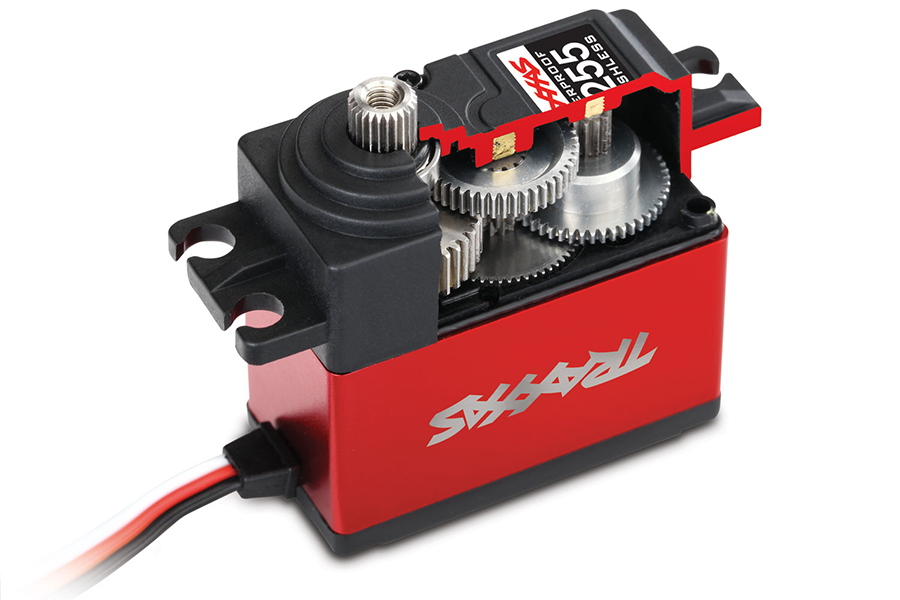

• Metal gears
• Dual ball bearings
• Brushless motor technology
• High-voltage BEC boosts receiver power for even the most demanding servos

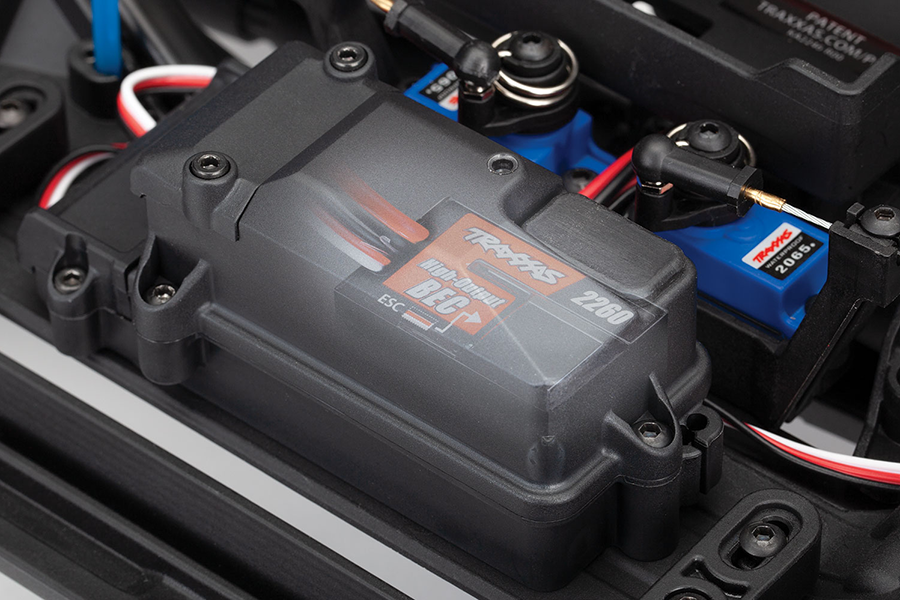

• BEC fits inside the extended receiver box for fully waterproof protection

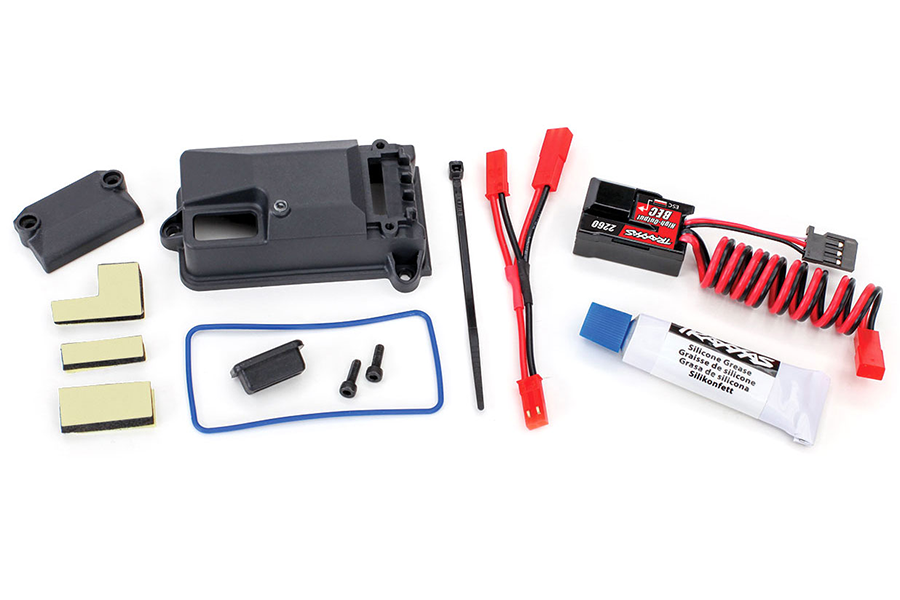

• Kit includes BEC, receiver box lid, Y-harness, and mounting hardware
• Aluminum center case

Application Guide:

• Compatible with most Traxxas 1/10 scale electric models*
• Compatible with TRX-4 models using High-Voltage BEC Kit #2262 and #8247X metal servo horn
• Compatible with Traxxas nitro models using rechargeable 5-cell battery packs
• Not recommended for X-Maxx

*Does not fit 4-Tec 2.0 models. Minor trimming may be required on 2WD Stampede vehicles.

This is a replacement part for the following Traxxas models:

• Bandit XL-5 with Battery (24254-8)
• BIGFOOT 4X4 BL-2s (67134-4)
• BIGFOOT 50th 4X4 BL-2s (67134-1)
• BIGFOOT No. 1 BL-2s (36334-4)
• Drag Slash Chevrolet C10 (94376-74)
• Drag Slash Ford Mustang (94346-74)
• Ford Fiesta ST Rally BL-2s (74154-4)
• Ford Fiesta ST Rally VXL (74276-4)
• Jato 4X4 BL-2s (90154-4)
• Jato 4X4 VXL-4s (90386-4)
• Mini Maxx BL-2s (107154-1)
• Mini Rally VXL Ford RS200 (108046-1)
• Mini Slash 4X4 (108164-1)
• Mini XRT VXL-3s (108076-1)
• Rustler 2WD BL-2s (37354-4)
• Rustler 2WD XL-5 w/Battery (37254-8)
• Rustler 4X4 BL-2s (67164-4)
• Rustler 4X4 VXL (67376-4)
• Rustler 4X4 VXL Ultimate (67097-4)
• Slash 2WD BL-2s (58334-4)
• Slash 2WD BL-2s Kit (58314-4)
• Slash 2WD XL-5 with Battery (58234-8)
• Slash 4X4 BL-2s (68154-4)
• Slash 4X4 VXL (68386-4)
• Slash 4X4 VXL Ultimate (68277-4)
• Slash Late Model BL-2s (104364-74)
• Slash Modified BL-2s (104354-74)
• Sledge (95096-4)
• Stampede 2WD BL-2s (36354-4)
• Stampede 2WD XL-5 w/Battery (36254-8)
• Stampede 4X4 BL-2s (67154-4)
• Stampede 4X4 VXL (90376-4)
• TRX-4 1979 Chevrolet Blazer (82276-4)
• TRX-4 1979 Ford Bronco (82246-4)
• TRX-4 Chevrolet Blazer High Trail Edition (92086-4)
• TRX-4 Chevrolet K10 High Trail Edition (92056-4)
• TRX-4 Crawler Kit (82216-4)
• TRX-4 Ford Bronco (92076-4)
• TRX-4 Ford F-150 High Trail Edition (92046-4)
• TRX-4 Land Rover Defender (82256-4)
• TRX-4 Nissan Pathfinder (110056-4)
• TRX-4 Sport (82224-4)
• TRX-4 Sport High Trail Edition (82044-4)
• TRX-6 Flatbed Hauler w/Winch (88086-84)
• TRX-6 Mercedes-Benz G 63 (88296-4)
