Spektrum 2S PH2.0 3-pin LiPo USB-C 500mAh Charger: SPMXC0020
$13.99
Skip to product information
New Arrival
Spektrum 2S PH2.0 3-pin LiPo USB-C 500mAh Charger: SPMXC0020
$13.99
In Stock
Arrives
Free shipping on orders $99+.
Pick up today in Cumming, usually ready in 2 hours.
2S LiPo Charging
100 to 5300mAh packs
PH2.0 3-Pin Output
One output port
USB-C Powered
DC 5.0V, 1.5A max input
0.5A Charge Current
Up to 8.4V output
LED Status Light
Orange charging, green done
Pocket Size
38.5 x 19 x 10 mm, 15 g
Mini USB-C 2S ChargerFor 2S LiPo packs with PH2.0 3-pin plugs
The Spektrum 2S PH2.0 3-pin LiPo USB-C 500mAh Charger (SPMXC0020) is a compact single-port USB-C charger for 2S LiPo batteries with PH2.0 3-pin connectors. It charges packs from 100 to 5300mAh at up to 0.5A, and it runs from a 5V USB power source that is sold separately.
Spektrum SPMXC0020 USB-C ChargerProduct Overview

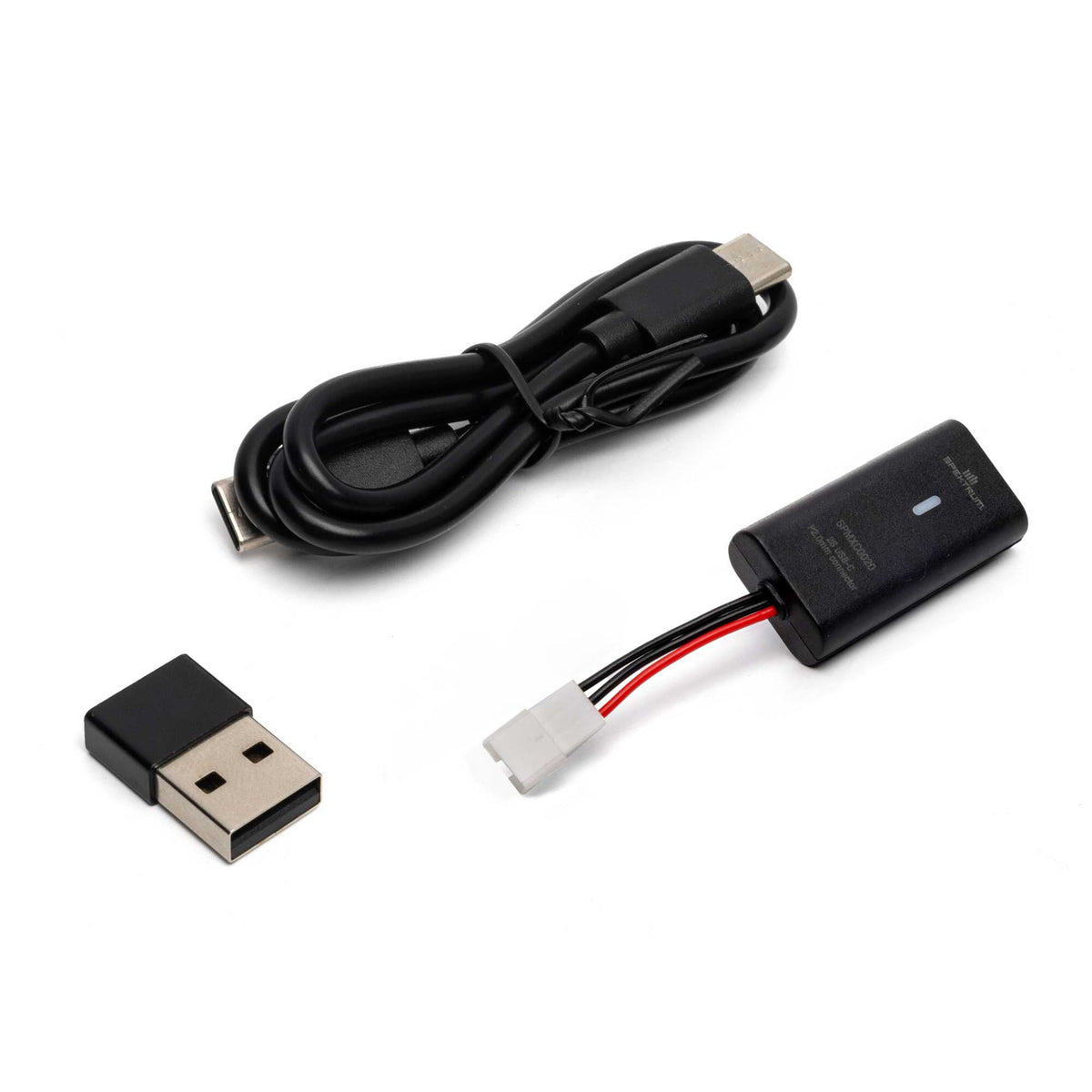

Spektrum's mini USB-C charger plugs straight into a DC 5.0V USB power supply rated for at least 1.5A and charges one 2S LiPo through its PH2.0 3-pin output lead. It comes with a USB-C cable and a USB-C to USB-A adapter, so it works with common wall adapters and power banks.
A single LED shows the charger status: flashing orange and green when it is ready, solid orange while charging, solid green when the pack is full and solid red for a charging error. At 38.5 x 19 x 10 mm and 15 g, it fits easily in a field box.
Technical SpecificationsInput, output and size
Part Number
SPMXC0020
Supported Battery Type
2S LiPo
Battery Capacity Range
100 to 5300mAh
Output Port Connector
PH2.0 3-pin
Number of Output Ports
1
Input Voltage
DC 5.0V, 1.5A max, USB-C
Power Supply
Not included
Charge Current
0.5A max
Output Voltage
1 to 8.4V
Display
LED
Operating Temperature
32 to 104 °F / 0 to 40 °C
Storage Temperature
-4 to 140 °F / -20 to 60 °C
Length
1.52 in / 38.5 mm
Width
0.75 in / 19 mm
Height
0.39 in / 10 mm
Weight
0.53 oz / 15 g
Key FeaturesSimple USB-C charging for small 2S packs
2S LiPo ChargingCharges 2S LiPo packs from 100 to 5300mAh at up to 0.5A.
PH2.0 3-Pin LeadThe single output lead ends in a PH2.0 3-pin connector for packs that use that plug.
USB-C Power InputRuns from a DC 5.0V USB power supply rated for 1.5A, sold separately.
Cable and Adapter IncludedA USB-C cable and a USB-C to USB-A adapter come in the package.
LED Status LightSolid orange means charging, solid green means charged, solid red means a charging error and flashing orange and green means ready.
Compact SizeThe charger measures 38.5 x 19 x 10 mm and weighs 15 g.
In The BoxEverything that comes in the box.
1X
2S PH2.0 3-pin LiPo USB-C 500mAh Charger
1X
USB-C Cable
1X
USB-C to USB-A Adapter
Frequently Asked QuestionsEverything you need to know
What batteries can the Spektrum SPMXC0020 charger charge?
The Spektrum SPMXC0020 charges 2S LiPo batteries from 100 to 5300mAh that have a PH2.0 3-pin connector. It does not charge 1S packs; Spektrum makes the SPMXC0010 for 1S PH1.25 batteries.
What power supply does the Spektrum SPMXC0020 need?
The SPMXC0020 needs a DC 5.0V USB power supply that can deliver 1.5A, which is not included. A USB-C cable and a USB-C to USB-A adapter come with the charger.
What do the lights on the Spektrum 2S PH2.0 USB-C charger mean?
On the SPMXC0020, flashing orange and green means the charger is ready, solid orange means it is charging and solid green means the battery is full. Solid red is a charging error, so check that the battery is healthy and properly connected.
How fast does the Spektrum SPMXC0020 charge?
The Spektrum SPMXC0020 charges at up to 0.5A, which is where the 500mAh in its name comes from. Charge time depends on the capacity and state of the pack.
