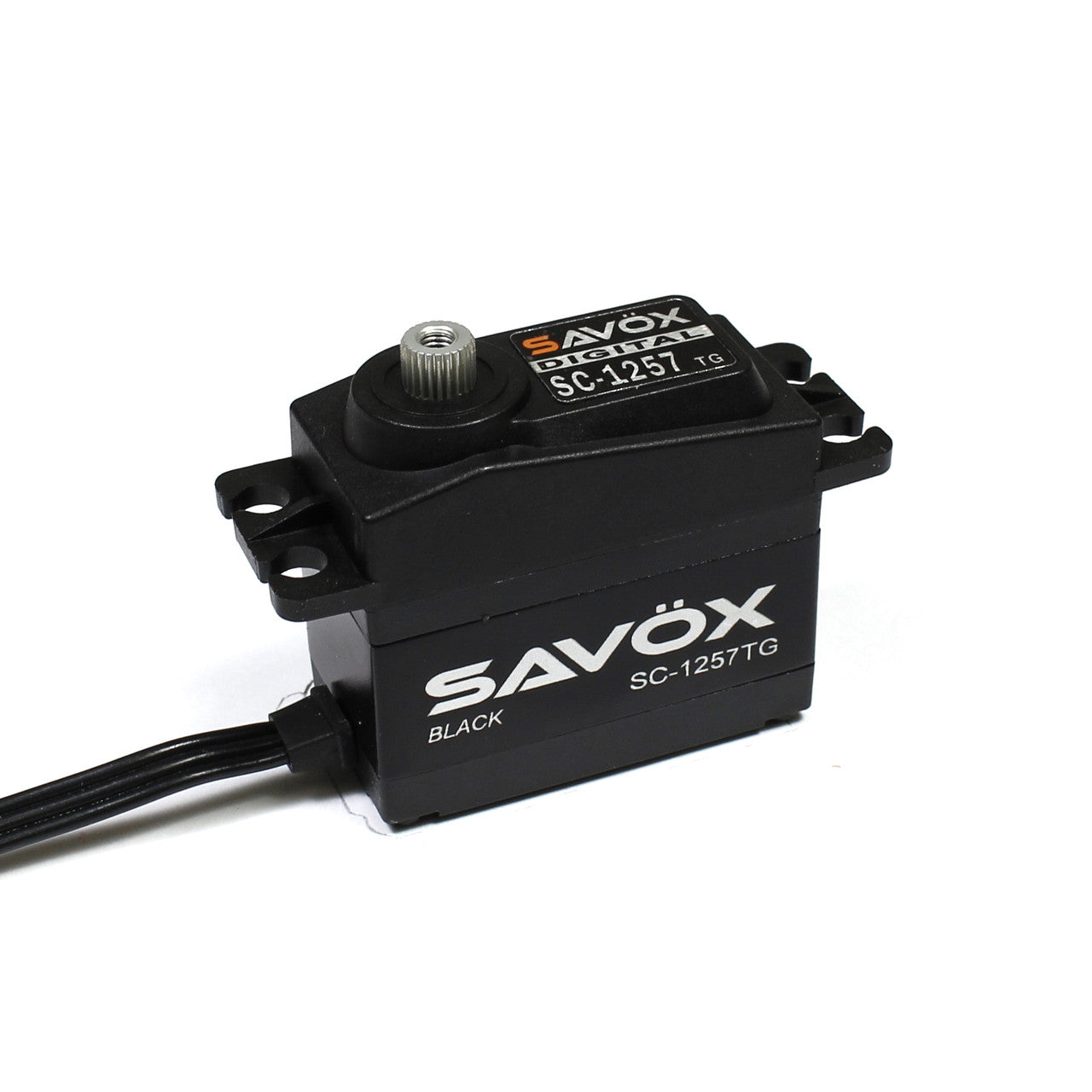

Savox SC-1257TG-BE (Black Edition) Super Speed Titanium Gear Digital Servo
Overview:
The SC-1257TG-BE is a high speed standard servo that provides a fast transit for those looking to get the ultimate in speed. With an all-black color design, the SC-1257TG-BE provides a stealth look in RC cars.
Features:
- Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears.
- Super light-weight.
- Coreless motor provides high speed, incredible efficiency, and low power consumption.
- Extremely strong titanium gears.
- Sleek black design with laser etching and a shorter 200mm black lead wire.
- Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies.

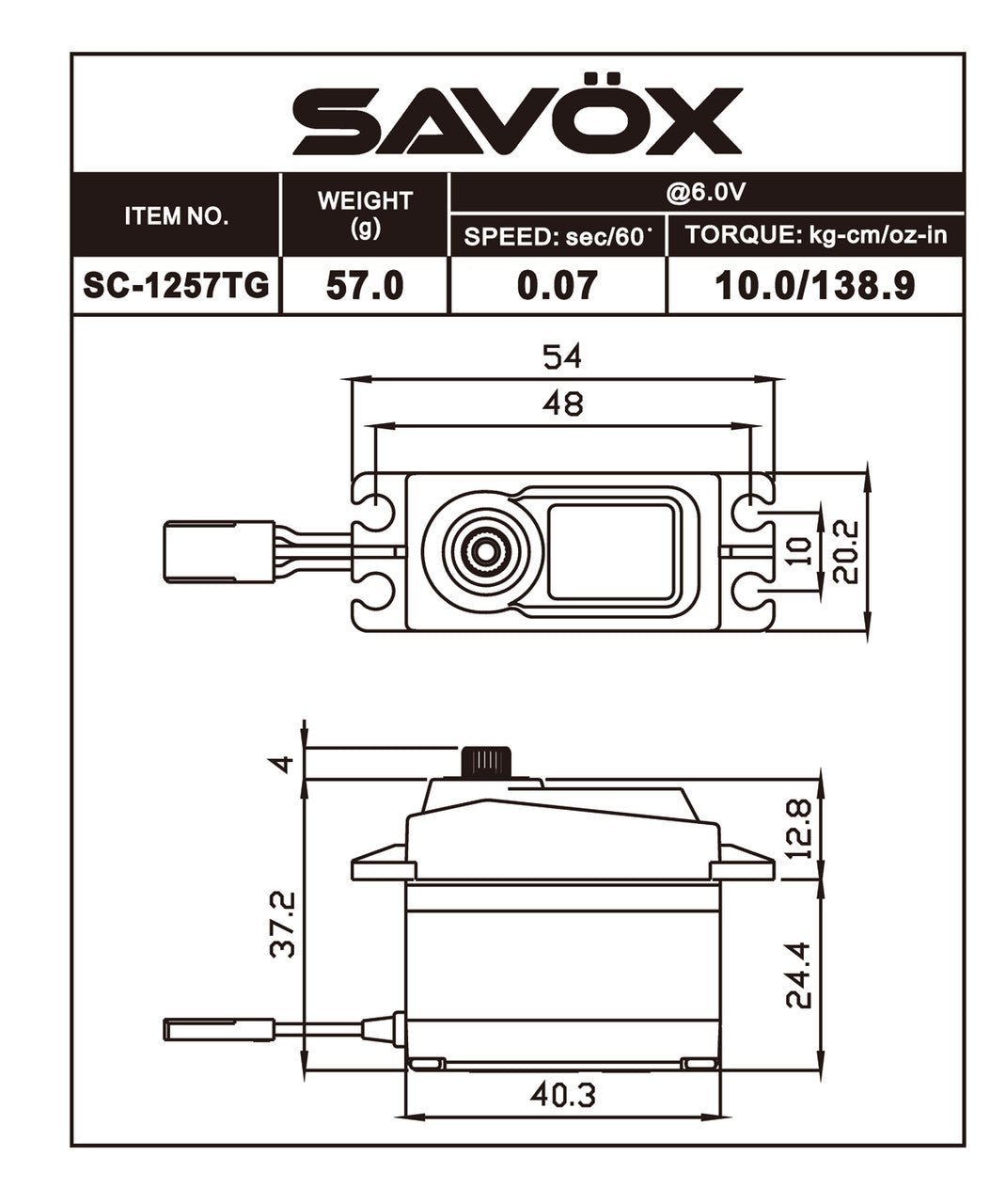

| Dimensions(mm): | 40.3x20.2x37.2 |
| Weight(g): | 52.4 |
| Speed(@4.8V sec/60): | .09 |
| Torque(@4.8V oz-in): | 111.1 |
| Speed(@6.0V sec/60): | .07 |
| Torque(@6.0V oz-in): | 138.9 |
| Gear: | Titanium |
| Bearing: | 2BB |
| Case: | Aluminum |
| Running current (at no load): | 100 mA @ 4.8V |
| Running current (at no load): | 120 mA @ 6.0V |
| Stall current (at locked): | 4000 mA @ 4.8V |
| Stall current (at locked): | 5000 mA @ 6.0V |
| Idle current (at stopped): | 5 mA @ 4.8V |
| Idle current (at stopped): | 5 mA @ 6.0V |
| Limit angle: | 200°±10° |
| Connector wire gauge: | #22 AWG |
| Connector wire length: | 250 ±5 mm |
| Horn gear spline: | 25T |
| Control system: | Pulse width modification |
| Amplifier type: | Digital Controller |
| Operating Travel: | 100° (when 1000?2000 µsec) |
| Neutral position: | 1500 µsec |
| Dead band width: | 3 µsec |
| Rotating direction: | Counterclockwise (when 1500?2000 µsec) |
| Pulse width range: | 800?2200 µsec |
| Maximum travel: | Approx 130° (when 900?2100 µsec) |
