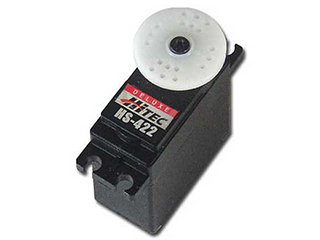

Standard Dlx Dual Oilite BB Servo HS422: Universal
Overview:
HS-422 is one of the most durable and reliable servos Hitec has ever offered. With its dual iron-oilite bushings, high impact resin gear train and high performance circuitry, the HS-422 features excellent centering and resolution.
Hitec Servo Specification Chart.
| Dimensions (LxWxH): | 1.59" x 0.77" x 1.44" |
| Weight: | 1.6oz (45.5g) |
| Operating Speed (4.8V): | 0.21sec/60° at no load |
| Operating Speed (6.0V): | 0.16sec/60° at no load |
| Stall Torque (4.8V): | 45.82 oz/in. (3.3kg.cm) |
| Stall Torque (6.0V): | 56.93 oz/in. (4.1kg.cm) |
| Operating Voltage: | 4.8-6.0 Volts |
| Current Drain (4.8V): | 8mA/idle and 150mA no load operating |
| Current Drain (6.0V): | 8.8mA/idle and 180mA no load operating |
| Bearing Type: | Dual Oilite Bushing |
| Gear Type: | Nylon |
| Potentiometer Drive: | Indirect Drive |
| Motor Type: | 3 Pole Ferrite |
| Control System: | +Pulse Width Control 1500usec Neutral |
| Required Pulse: | 3-5 Volt Peak to Peak Square Wave |
| Operating Temperature Range: | -20 to +60 Degree C |
| Operating Angle: | 45 Deg. one side pulse traveling 400usec |
| 360 Modifiable: | Yes |
| Direction: | Clockwise/Pulse Traveling 1500 to 1900usec |
| Dead Band Width: | 8usec |
| Connector Wire Length: | 11.81" (300mm) |
