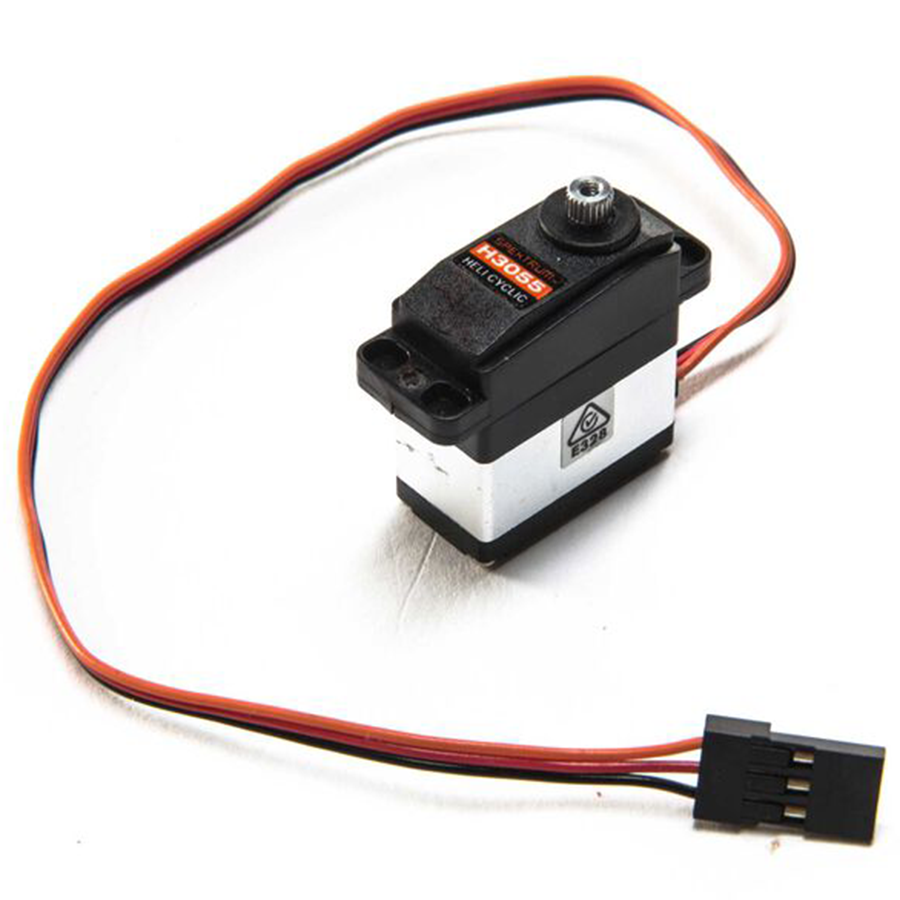

H3055 Sub-Micro Digital Mid-Torque Ultra-Speed Metal Gear Heli Cyclic Servo
Overview:
Upgrade your 250-450 size heli cyclic servos with the high speed and accurate H3055 Servo. Touting a blazing fast .053 transit speed, impressive 36 oz-in torque and industry leading position accuracy and holding power, these are a great sub-micro size servo to upgrade many Blade Bind and Fly models and a perfect pair for many 250-450 size kit models requiring a sub-micro size servo form factor. Frequency: 333Hz
| Application: | 250 - 450 size heli, cyclic |
| Bearing: | Single |
| Bushing Or Bearing: | Bearing |
| Connector Wire Length: | 7.87" (200mm) |
| Deadband: | 2 |
| Gear Type: | Metal |
| Maximum Servo Speed: | 0.050-0.099 sec |
| Maximum Servo Torque: | 20-39 oz-in |
| Product Height: | 1.17" (29.6mm) |
| Product Length: | 0.91" (23mm) |
| Product Weight: | 0.46 oz (12.9 g) |
| Product Width: | 0.47" (12mm) |
| Programmable: | No |
| Servo Operating Voltage: | 4.8 - 6.0V |
| Servo Size Category: | Mini and Micro |
| Servo Type: | Digital |
| Speed: | 4.8V 0.067 sec/60 deg, 6V 0.053 sec/60 deg |
| Torque: | 4.8V 29 oz-in (2.1kg-cm), 6V 36 oz-in (2.6kg-cm) |
| Wire Gauge: | 22 AWG |
