Thin Electric Prop: 10x6E

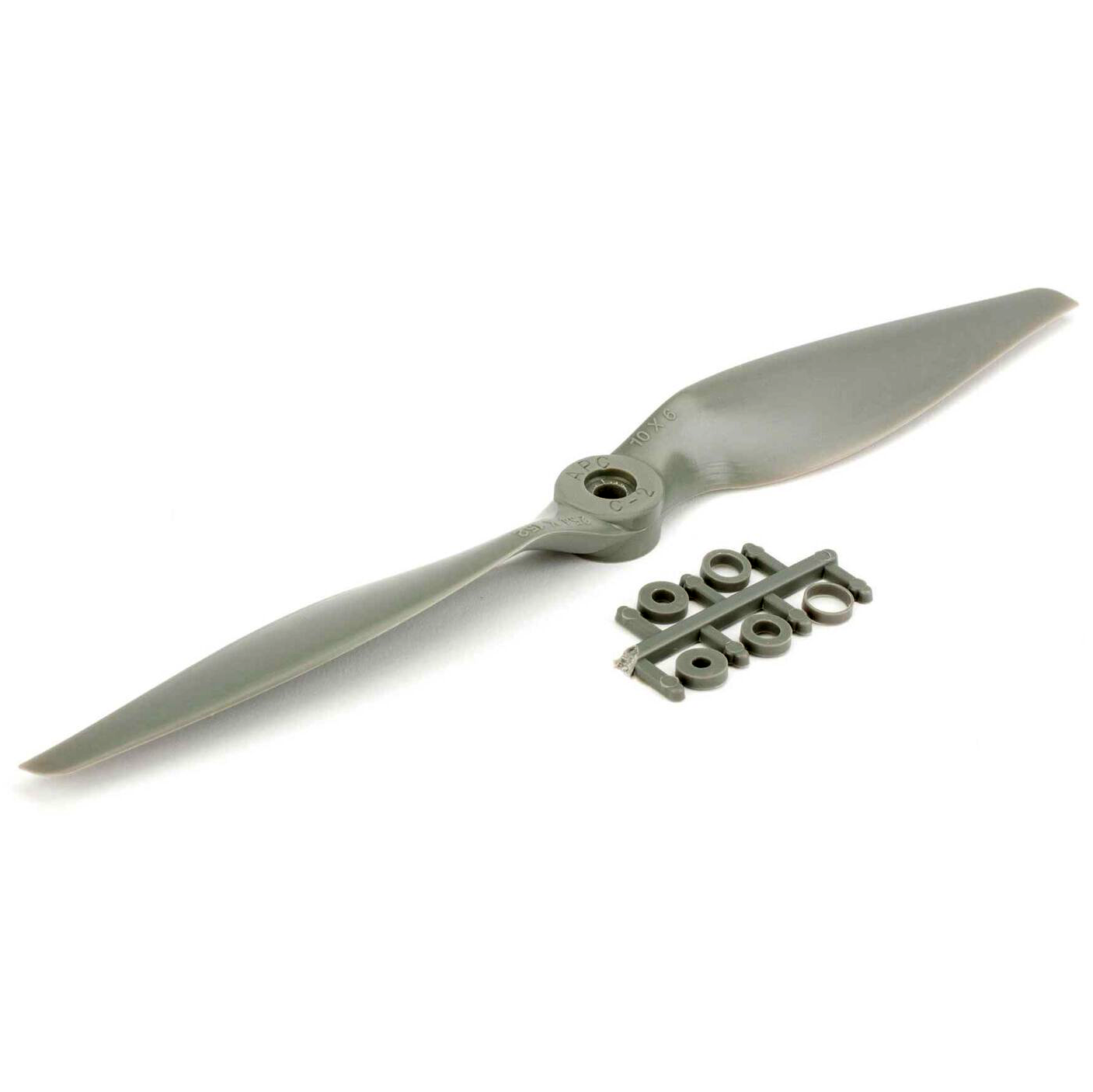

APC 10x6 Thin Electric Propeller

Overview:

APC propellers are manufactured using a pultrusion process which allows for a higher fiber (60%) to resin (nylon binder) density. This provides substantially higher strength and stiffness than glass-filled nylon. The additional stiffness is beneficial to control vibration resonance response. The higher strength allows the use of thinner cross-sections, beneficial to weight and aerodynamic efficiency.

Features:

• Computer-optimized design gives these props a thinner profile and more "bite" with less noise
• Lightweight molded nylon construction reduces rotating mass for higher output and longer life
• Reinforcing fibers help maintain true, constant pitch at any RPM

Technical Details:

• Propeller Diameter: 10in (254mm)
• Pitch: 6in (152.4mm)
• Hub Diameter: 0.8in (20.32mm)
• Hub Thickness: 0.39in (9.906mm)
• Shaft Diameter: 0.25in (6.35mm)
• Weight: 0.71oz (20.13g)
• Rotation: CCW (Standard/Tractor)

The APC Guide for Balancing and Mounting Tips.
