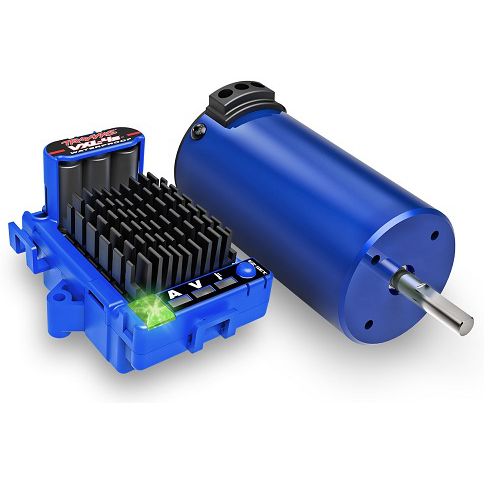

Velineon VXL-4s Brushless Power System
Overview:
The Velineon® 4s brushless power system takes your RC experience to the extreme with the monstrous torque of the Velineon 540XL brushless motor and innovative VXL-4s™ ESC. New High-Resolution Linear Braking provides the most intuitive and precise braking ever offered by Traxxas. Outfitted with built-in telemetry and a selectable 6.0 or 7.4-volt BEC, the VXL-4s transforms 14.8 volts of LiPo power into staggering performance. An extra large heat sink allows the ESC to run cooler for extended run times.
Fitment Guide:
- Direct Bolt-In Installation for These Models: Rustler 4X4
- Requires 9030 receiver box Jato 4X4 BL-2s Rally 4X4 Slash 4X4 with LCG chassis (does not fit standard chassis)
- Recommended Upgrades:
- Extreme Heavy-Duty Upgrade Kit 9080
- Center differential (6780 or 6780A)
- Battery expansion kit
- Spring and suspension tuning for additional weight
- New 5 mm pinion and spur gears to compensate for lower motor Kv rating
- Recommend 6-7 tooth increase on pinion gear
This is a replacement part for the following Traxxas models:
- Ford Fiesta ST Rally BL-2s (Model #74154-4)
- Ford Fiesta ST Rally VXL (Model #74276-4)
- Ford Raptor R 4X4 Ultimate (Model #101177-4)
- Jato 4X4 BL-2s (Model #90154-4)
- Jato 4X4 VXL-4s (Model #90386-4)
- Rustler 2WD BL-2s (Model #37354-4)
- Rustler 4X4 BL-2s (Model #67164-4)
- Rustler 4X4 VXL (Model #67376-4)
- Rustler 4X4 VXL Ultimate (Model #67097-4)
- Slash 4X4 VXL Ultimate (Model #68277-4)
- Stampede 4X4 VXL (Model #90376-4)
Features:
VXL-4s Electronic Speed Control
- 2s–4s LiPo compatible
- Real-time telemetry via Traxxas Link™
- Selectable 7.4-volt high-voltage BEC
- High-Resolution Linear Braking
- More precise than conventional systems
- Superior brake modulation on the track
- Large heat sink accepts accessory cooling fan (3340)
- Three programmable drive profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse
- Traxxas EZ-Set® one-button setup
- Integrated protection circuits
- LED status lights
Velineon 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 Kv
- 5 mm output shaft
- Low-maintenance design
| Motor Specs | |
| Motor Name: | Velineon 540XL |
| Motor Type: | 2400 Kv sensorless brushless |
| Motor Weight: | 11.18 ounces (317 g) |
| Motor Length: | 3.58 inches (91 mm) |
| Motor Diameter: | 1.41 inches (36 mm) |
| Motor Shaft Size: | 5 mm |
| Motor Connector Type: | 6.5 mm bullet connectors |
| ESC Specs | |
| ESC Name: | Velineon VXL-4s |
| ESC Type: | Sensorless Brushless |
| ESC Case Size: | 2.40" (61 mm) x 2.09" (53 mm) x 1.42" (36 mm) |
| ESC Weight: | 4.20 ounces (119 g) |
| Motor Connectors: | Traxxas 6.5 mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
