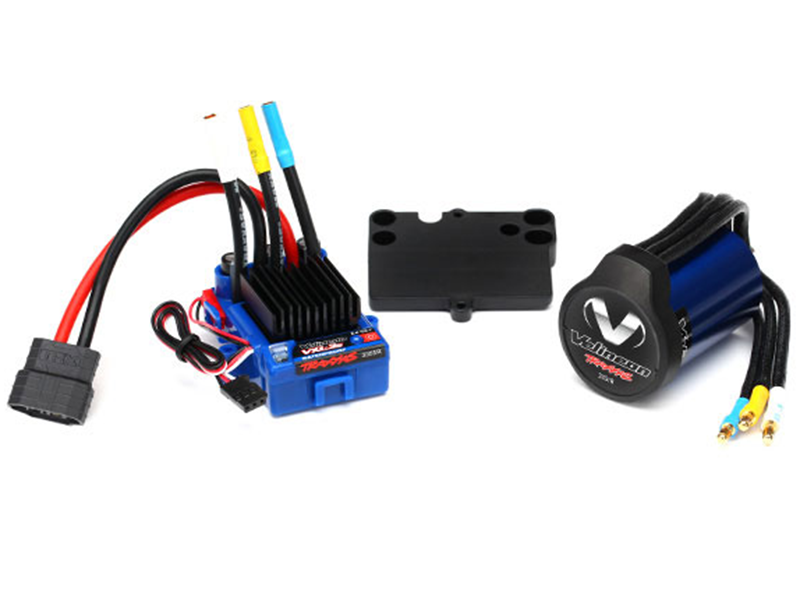

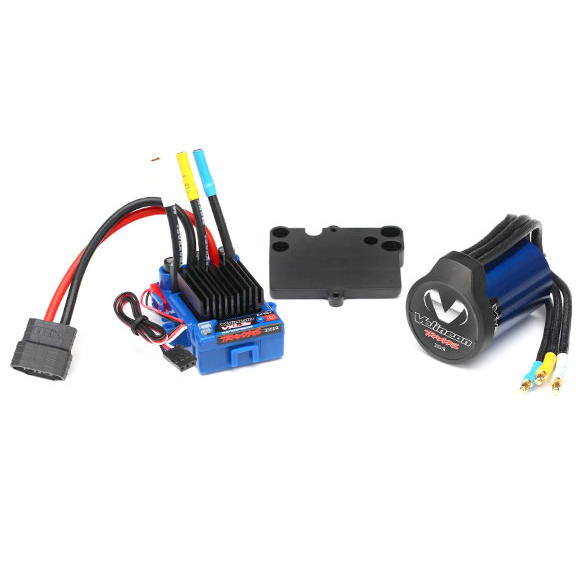

Velineon VXL-3s Brushless Power System
Overview:

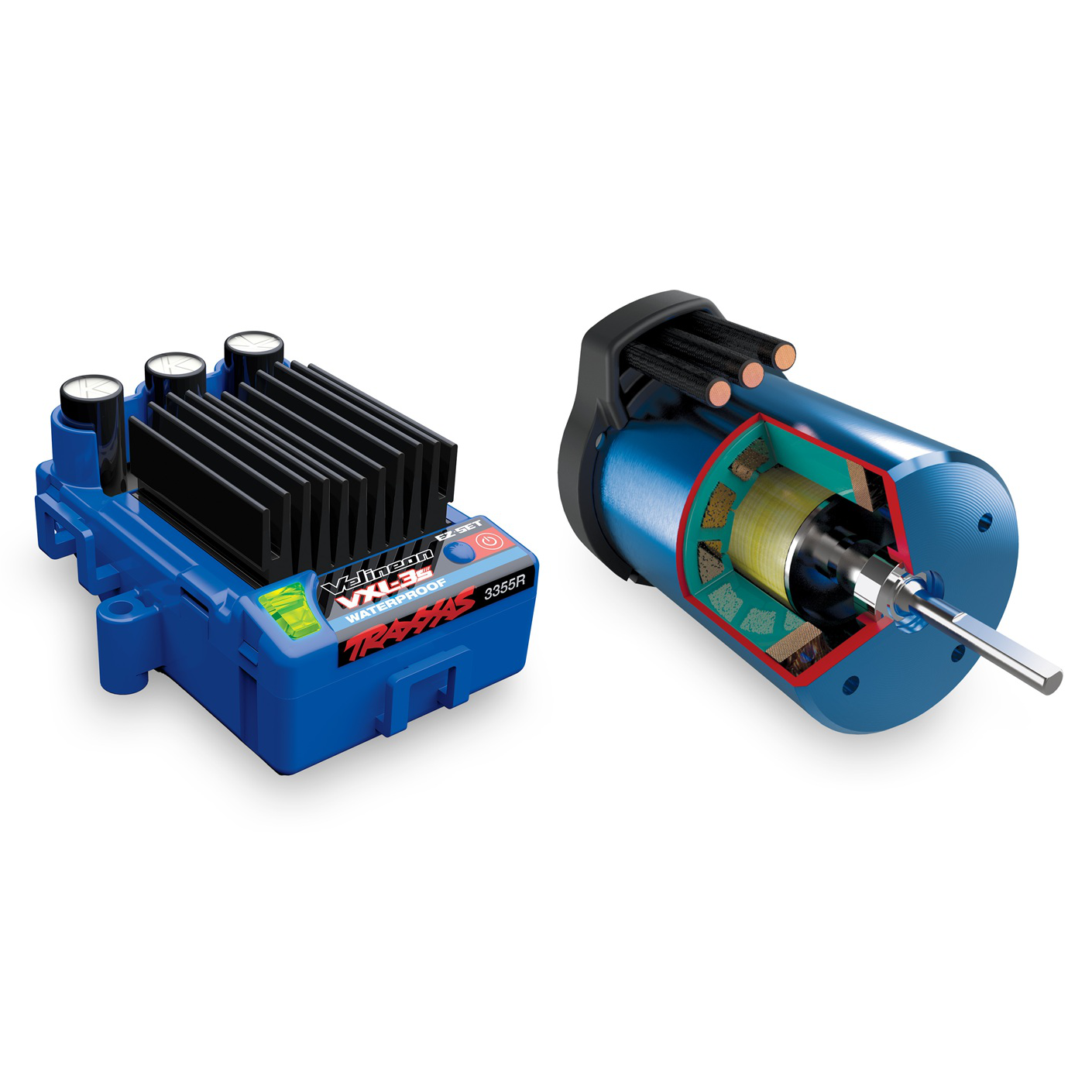

The key to the Velineon's® brushless power system's extreme power output is total system optimization. The Velineon VXL-3s electronic speed control and 3500 Kv brushless motor are carefully engineered to work seamlessly together for maximum power flow. High-frequency transistors and advanced circuit design delivers incredibly smooth and refined throttle control with Traxxas EZ-Set® one-button convenience.
This is a replacement part for the following Traxxas models:
- 4-Tec 2.0 BL-2s Chassis (83124-4)
- 4-Tec Drift Ford Mustang (105237-4)
- 4-Tec Drift Nissan 240SX (105247-4)
- Bandit XL-5 with Battery (24254-8)
- BIGFOOT 4X4 BL-2s (67134-4)
- BIGFOOT No. 1 BL-2s (36334-4)
- BIGFOOT No. 1 XL-5 w/Battery (36234-8)
- Ford Fiesta ST Rally BL-2s (74154-4)
- Jato 4X4 BL-2s (90154-4)
- Rustler 2WD BL-2s (37354-4)
- Rustler 2WD XL-5 w/Battery (37254-8)
- Rustler 4X4 BL-2s (67164-4)
- Slash 2WD BL-2s (58334-4)
- Slash 2WD Unassembled Kit (58214-4)
- Slash 2WD XL-5 with Battery (58234-8)
- Slash 4X4 BL-2s (68154-4)
- Slash Late Model BL-2s (104364-74)
- Slash Modified BL-2s (104354-74)
- Stampede 2WD BL-2s (36354-4)
- Stampede 2WD XL-5 w/Battery (36254-8)
- Stampede 4X4 BL-2s (67154-4)

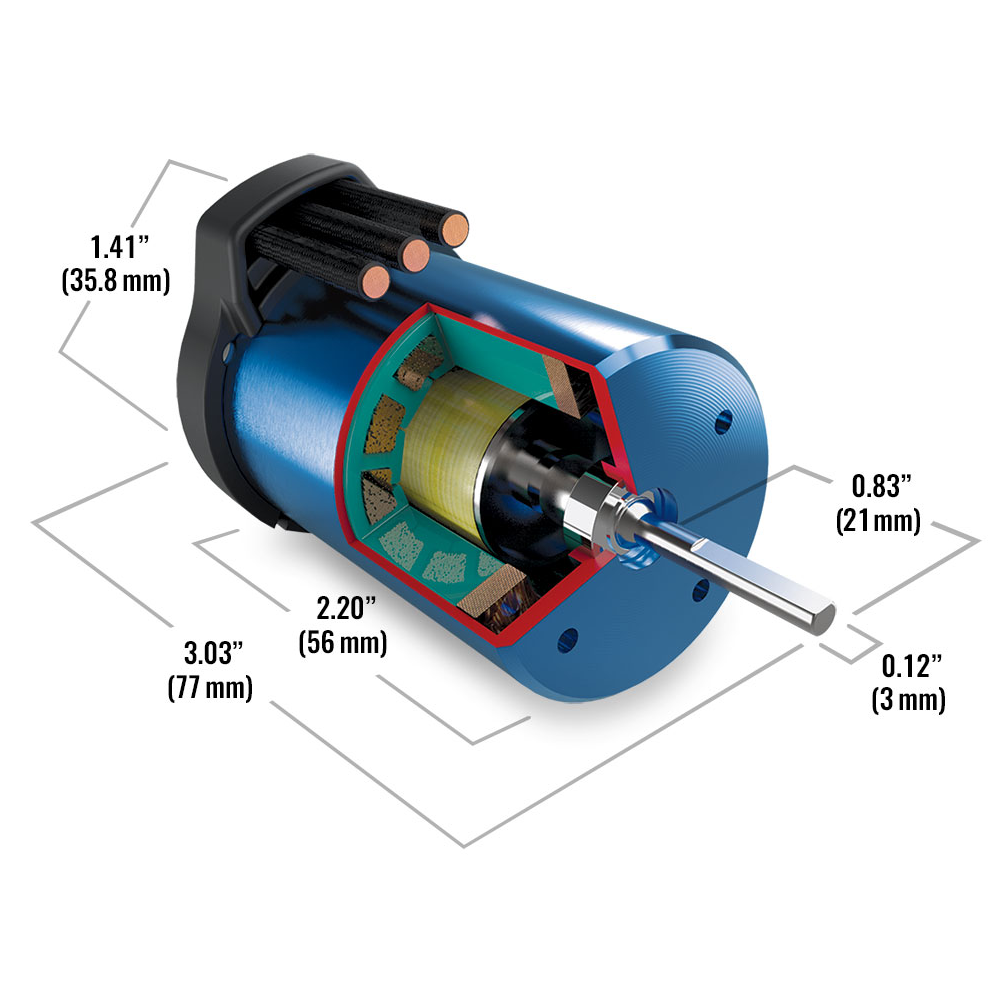

| MOTOR SPECS | |
| Name: | Velineon® 3500 |
| Type: | 3500 Kv sensorless brushless |
| Weight: | 9.24 ounces (262 g) |
| Length: | 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Motor Connector Type: | 3.5 mm bullet |

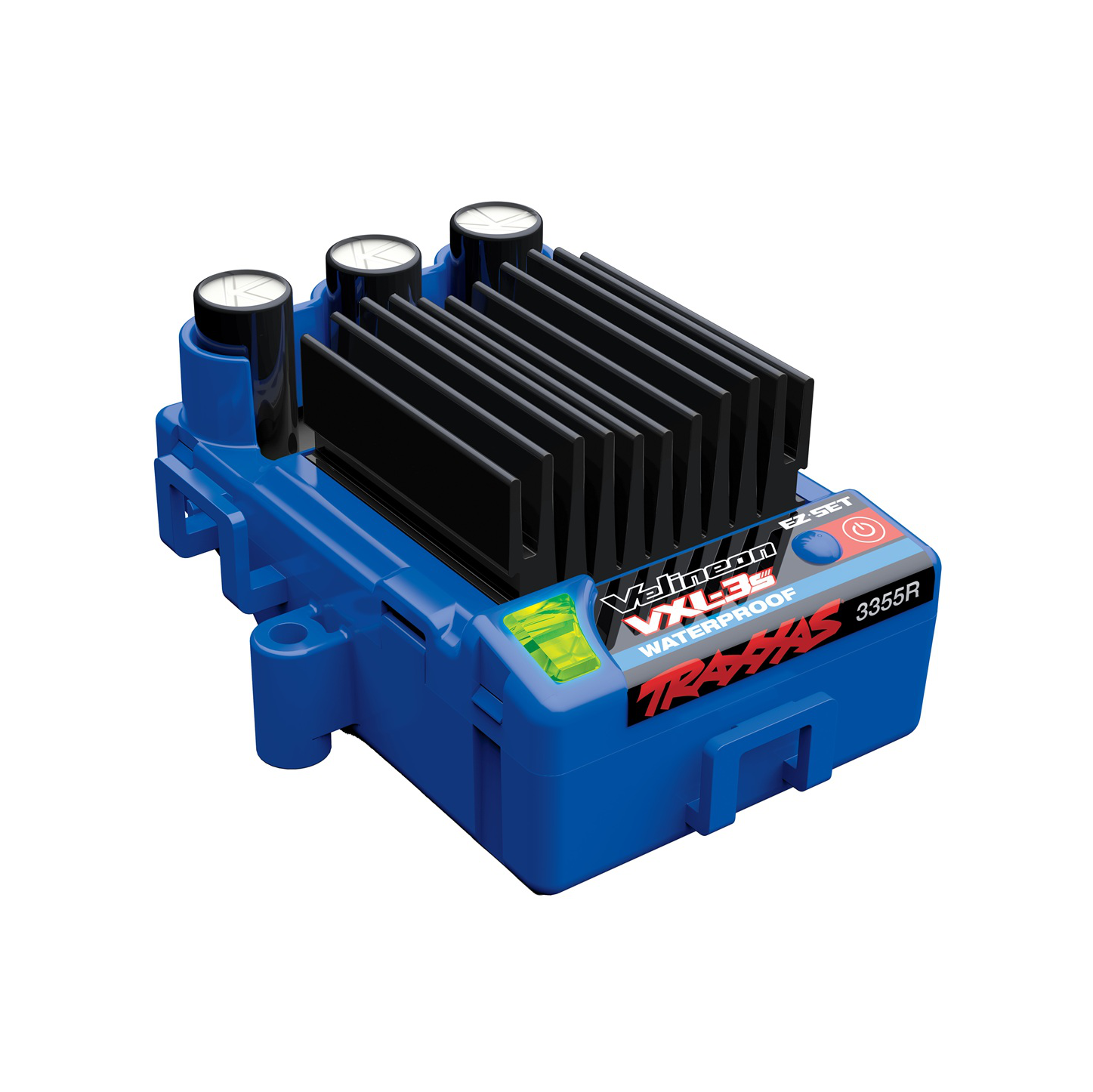

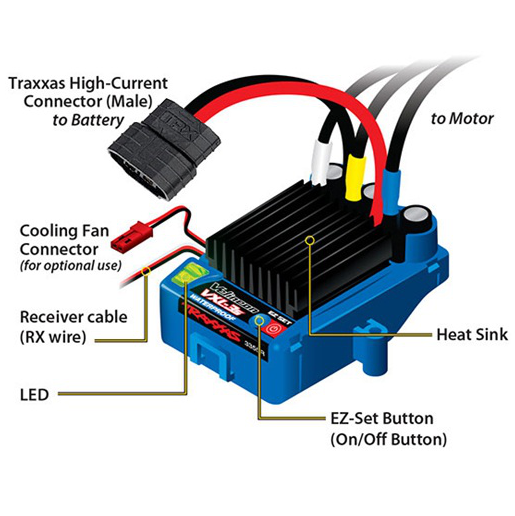

| ESC SPECS | |
| Name: | Velineon® VXL-3s™ |
| Type: | Brushless |

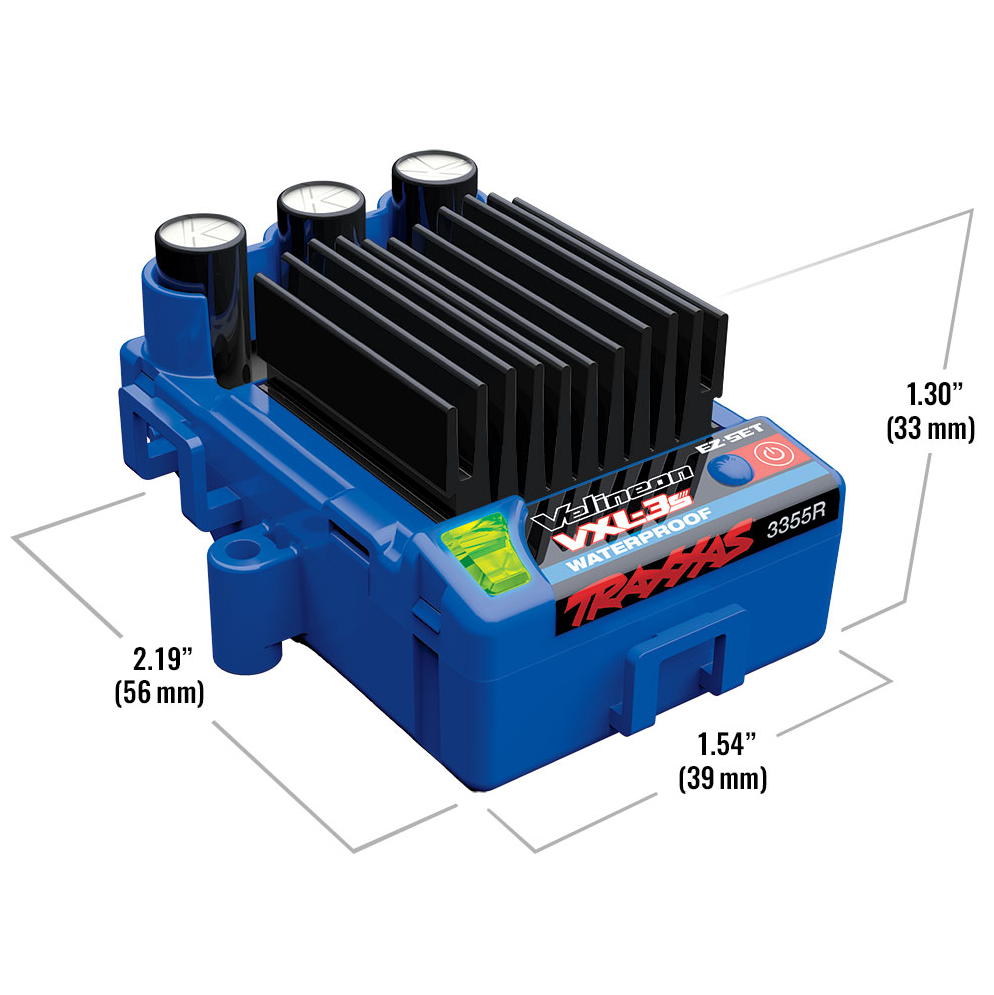

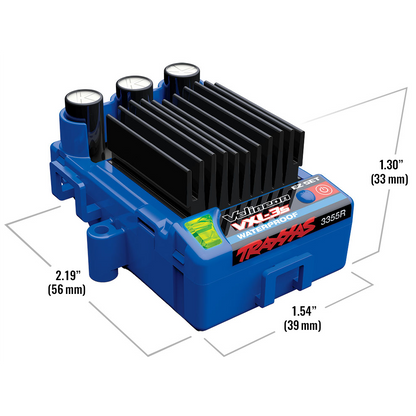

| Case Size: | 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm) |
| Weight: | 3.17 ounces (90 g) |
| Motor Connectors: | 3.5 mm bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 12 gauge Maxx® Cable |
