Wireless AV Transmitter
48 Ch, 5.8G
(Was $49.99)

Wireless AV Transmitter<br>48 Ch, 5.8G <br><B>(Was $49.99)</B>
$10.89
$10.89
$0.00
Sold out
Shipping calculated at checkout.
info icon $0.00 Tax Collected Outside GA
Availability: In stock available to ship within 24 hours.
SKU: 100018020
Part #: FT48X
MFG: SZXYTD
Live Help Chat
rewards icon
You will earn 5 Electron Reward Points on this product!
Click to find out more about our points program and save big!
low price promise icon
Low Price Promise!
Click to find out more about our low price promise

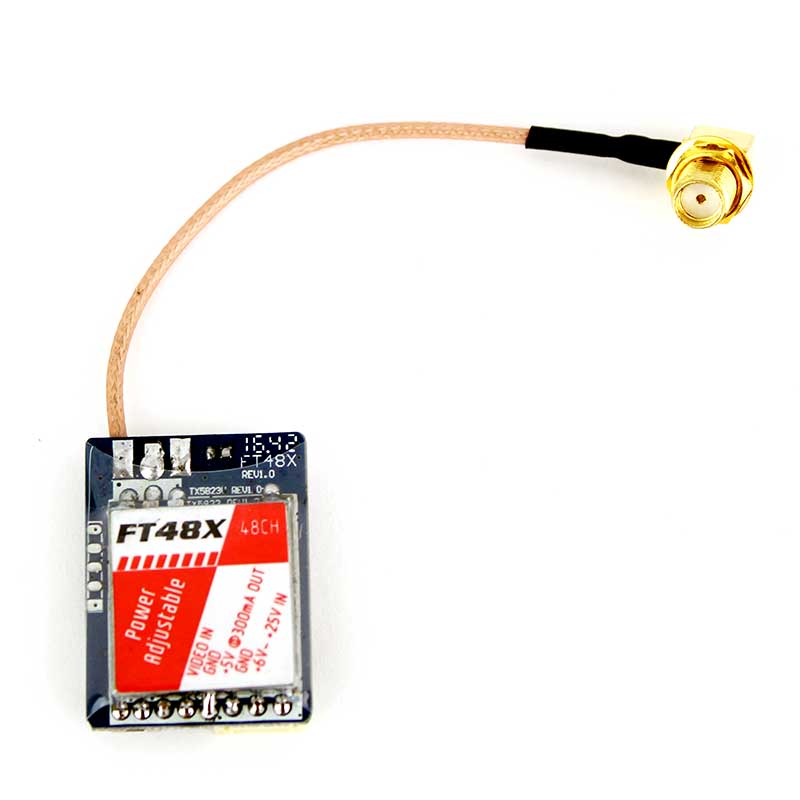

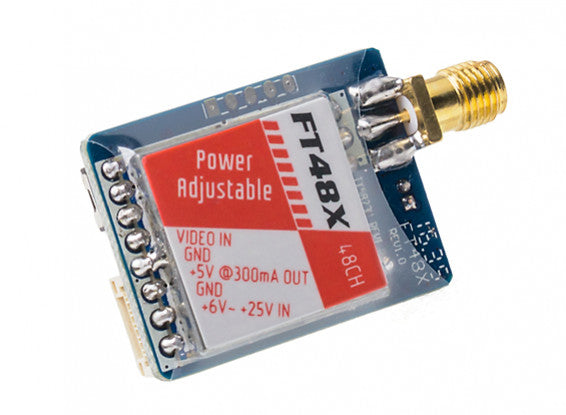

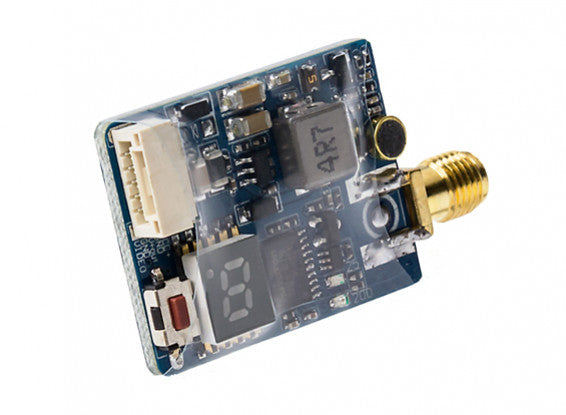

FT48X 5.8GHz, 48 Channel, 25/200/600mW Adjustable Video Transmitter

Overview:
With only a single push button, the FT48X allows you to select the transmitter's band and frequency, as well as the VTX power. The VTX power has four levels: 0.25mw, 25mw, 200mw, or 600mw.

Features:
• 48 Channels with Raceband
• Adjustable 0.25/25/200/600mw RF power output
• Built in microphone
• Not affected by 2.4GHz R/C radios
• Integrally molded case, mini size, power indicator, easy to carry
• LED channel display, LED RF power display
• Key mode control channel and group, easy to operate
• Mini size (L×W×H): 31×22×8mm (1.3"×0.9"×0.3")
• 5V output for camera with over current protection and LC filter

Transmitting Frequency: ISM 5.35GHz - 5.95GHz 48CH with Raceband
Operating Voltage: +6.5v ~ +25.0V
Supply current: 250mA ± 20mA @+12V @600mw
Video Iput Level: 1V±0.2Vp - p/75O
Audio Iput Level: 0.5 - 2.0Vp - p/10KO
RF Output Power: 0.25mw (-6dBm±0.5dBm)
25mw (14dBm±0.5dBm)
200mw (23dBm±0.5dBm)
600mw (28dBm±0.5dBm)

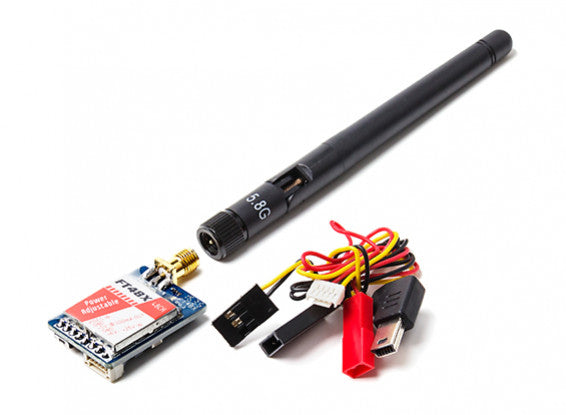

Antenna Connector: SMA Connector (straight, right angle or pigtail)
Weight: 9 grams
