Wireless AV Transmitter<br>48 Ch, 5.8G <br><B>(Was $49.99)</B>
$10.89
Skip to product information
Wireless AV Transmitter
Only 4 Left!
Wireless AV Transmitter
48 Ch, 5.8G
(Was $49.99)
$10.89
Power Output
Selectable 0.25 to 600mW
48 Channels
Includes FPV Raceband channels
Ultra Lightweight
Weighs only nine grams
Wide Voltage
Supports up to 25V input
5V Camera Output
Clean power with LC filter
Single Button
Easy channel and power switching
In Stock
FPV Video Signal MasterCrisp Transmission For Drone Racing

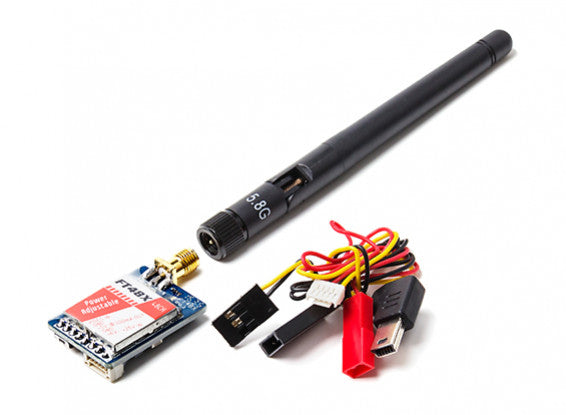

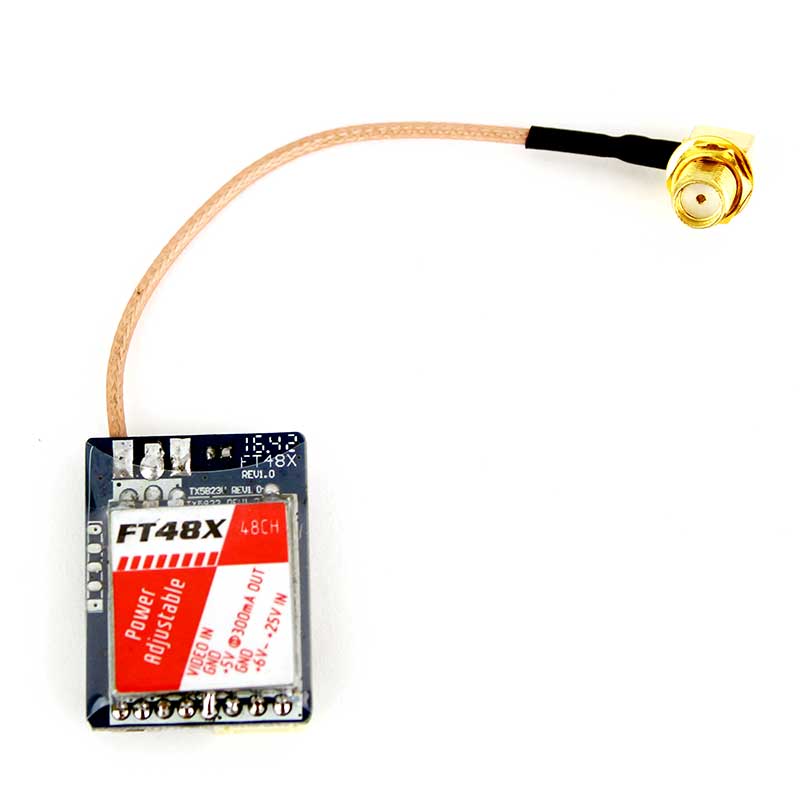

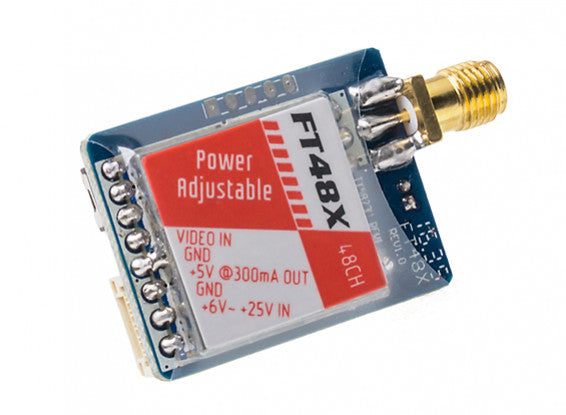

The FT48X 5.8GHz 48CH Video Transmitter is a compact and versatile FPV VTX designed for drone racing and custom RC aircraft builds. Featuring adjustable output power from 0.25mW to 600mW and a single-button interface, this high-performance FPV video transmitter delivers reliable long-range video performance with minimal setup hassle.
High Performance FPV VideoReliable Wireless Signal Transmission System
Engineered for high-performance FPV racing and freestyle pilots, the FT48X 5.8GHz Video Transmitter offers incredible video clarity across 48 channels, including the dedicated Raceband spectrum. Its integrally molded lightweight casing weighs just 9 grams while providing excellent durability and thermal management. Operating on a wide voltage range of +6.5V to +25V, the unit provides a filtered 5V output with overcurrent protection to keep your FPV camera powered with clean, noise-free video signals. With an integrated microphone and complete immunity to 2.4GHz control links, the FT48X VTX is an essential upgrade for any serious FPV setup.
Technical SpecificationsDetailed Specs For FT48X VTX
Compatible Vehicles
FPV Racing Drones & RC Aircraft
Part Type
FPV Video Transmitter (VTX) (signal)
Transmitting Frequency
5.35GHz - 5.95GHz (48CH with Raceband) (wifi)
RF Output Power
0.25mW / 25mW / 200mW / 600mW
Operating Voltage
+6.5V to +25.0V DC
Supply Current
250mA ± 20mA @ 12V (600mW) (lightning)
Camera Output
5V Filtered with Overcurrent Protection
Antenna Connector
SMA Connector
Dimensions
31x22x8mm (1.3x0.9x0.3 in) (ruler)
Weight
9 grams
Advanced VTX FeaturesEngineered For FPV Performance
Raceband Support48 channels with full Raceband coverage
Adjustable OutputSwitchable power levels from 0.25mW up to 600mW
Integrated AudioBuilt-in microphone delivers real-time onboard audio
Signal IsolationOperates on 5.8GHz without interfering with 2.4GHz RC links
Protected OutputClean 5V power output for FPV cameras with LC filter
User FriendlySingle-button operation for fast channel and power changes
Clear DisplayIntegrated LED display shows current channel and RF power level

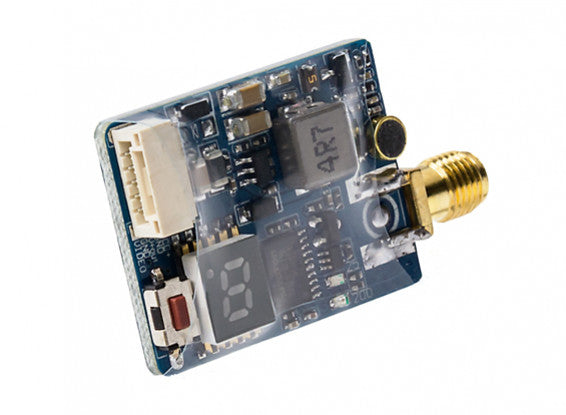

Compact BuildIntegrally molded mini chassis weighing only 9 grams
Frequently Asked QuestionsEverything you need to know
How do I change channels and output power on the FT48X 5.8GHz Video Transmitter?
Operating the FT48X 5.8GHz Video Transmitter is simple using its single push-button control. Pressing the button cycles through channels, bands, and power levels, which are clearly displayed via the built-in LED indicators.
What power supply voltage does the FT48X 5.8GHz Video Transmitter require?
The FT48X 5.8GHz Video Transmitter supports a wide operating voltage range from +6.5V to +25.0V DC (compatible with 2S to 6S LiPo batteries). It also supplies a regulated 5V filtered output for your FPV camera.
Is the FT48X 5.8GHz Video Transmitter suitable for FPV drone racing?
Yes, the FT48X 5.8GHz Video Transmitter features full 48-channel support including Raceband frequencies, allowing multiple pilot channels without crosstalk during drone races.
