Walk into any telescope aisle and you'll find three basic shapes. There are long, skinny tubes with a lens at the front. There are fat tubes with an eyepiece sticking out near the top. And there are stubby orange-and-black cylinders that look like a coffee can wearing a tripod. They're refractors, Newtonian reflectors and Schmidt-Cassegrains. Each one is the right answer for somebody, and the wrong one for somebody else.
The design matters less than marketing suggests and more than "just get the biggest one" implies. It decides how much the scope weighs, how often you'll fiddle with it, whether it fogs up on a muggy July night, and how much aperture your money buys. Here's how each design works and who it suits, with specs from Celestron's optical tube guide and manufacturer pages.
The Short Answer
Pick a Newtonian reflector (including Dobsonians) for the most aperture per dollar, a refractor for low-maintenance, high-contrast views and portability, and a Schmidt-Cassegrain for large aperture and long focal length in a compact tube, especially for planets and GoTo setups.
- Refractor: no collimation, quick to use; costs more per inch of aperture.
- Newtonian: cheapest aperture, wide fields; needs occasional collimation.
- SCT: compact and versatile, f/10 suits planets; corrector plate dews up.
- Aperture still rules: a 130 mm scope gathers about 1.6 times the light of a 102 mm.
1. How Each Design Works (and Why It Matters)
Every telescope does two jobs: collect light (aperture) and bring it to focus (focal length). The three designs do those jobs differently. Here's the quick comparison, using specs for scopes you can see in our showroom.
| Refractor | Newtonian reflector | Schmidt-Cassegrain (SCT) | |
|---|---|---|---|
| How it focuses light | Lenses at the front | Concave mirror at the bottom, flat mirror sends light out the side | Mirrors folded inside a closed tube with a front corrector plate |
| Typical focal ratio | f/5 to f/15 | f/4 to f/8 | f/10 |
| Example | StarSense Explorer DX 102AZ: 102 mm, 660 mm, f/6.5 | Heritage 130 / DX 130AZ: 130 mm, 650 mm, f/5 | NexStar 6SE: 150 mm, 1500 mm, f/10 |
| Light grasp vs the 102 mm | 1x | About 1.6x | About 2.2x |
| Collimation | Fixed at the factory | Check regularly, especially f/6 and faster | Occasional, simple, high-power star test |
| Dew | Objective can dew | Rarely a problem | Corrector dews readily |
| Strongest at | Moon, planets, wide fields, travel | Deep-sky value, aperture per dollar | Planets, double stars, big aperture in a small tube |
Refractors: lenses, sealed tube
A refractor bends light through a lens at the front, so there's nothing in the light path to block it. Celestron credits that with high-contrast images, and the lens is permanently aligned, so collimation is fixed. Basic achromatic (doublet) refractors show some purple color fringing on bright objects; ED and apochromatic designs correct it well but cost more. The StarSense Explorer DX 102AZ is a typical beginner refractor: 102 mm aperture, 660 mm focal length, f/6.5.
Newtonian reflectors: a mirror at the bottom
A Newtonian uses a concave primary mirror, and a small flat secondary sends the light out the side of the tube. Mirrors are cheaper to make than lenses, so Newtonians give the most aperture for the money and have no color fringing. The secondary mirror and its supports block some light and add diffraction spikes to bright stars. A Dobsonian is a Newtonian on a simple rocker mount. The Heritage 130 is 130 mm at 650 mm focal length, f/5, and collapses from 25 inches to 14.5.
Schmidt-Cassegrains: folded light
An SCT bounces light from a primary mirror to a secondary mirror mounted on a front corrector plate, then back through a hole in the primary. That folding packs a long focal length into a short tube. The NexStar 6SE has 150 mm of aperture and 1500 mm focal length at f/10. Celestron calls the SCT the best all-around, all-purpose design and notes that most are very compact and portable for their aperture. Maksutov-Cassegrains are a close cousin with a thicker corrector and even slower f/13 to f/15 optics.
2. Real-World Pros and Cons
Spec sheets don't tell you what it's like to own a scope for two years. Here's what each design is like to live with, with the trade-offs Celestron lists for each and what we see at the bench.
Maintenance and collimation
Refractors are the low-maintenance champions: no mirrors to align. Newtonians need collimation, and Celestron notes that fast designs, f/6 and below, need it regularly. It's a 10-minute skill, not a dealbreaker, but it is a skill. SCTs need occasional collimation, done with a high-power eyepiece on a star. Per Celestron's care guide, sealed SCT mirrors may never need cleaning if the covers stay on.
Dew, cool-down and Georgia summers
Any glass at the front of the tube can dew over: refractor objectives and especially SCT and Maksutov correctors. Celestron notes dew is rarely a problem for Newtonians except in very high humidity. On the other hand, large mirrors and thick correctors take time to reach outdoor temperature, and the image looks soft and boiling until they do. Celestron calls out Maksutovs for long cool-down. Set a bigger scope outside well before serious planetary viewing so it can cool.
Weight and portability
Refractors get long and heavy quickly as aperture grows, which limits practical size. Newtonians stay reasonable up to about 1000 mm focal length; Celestron notes 10-inch and larger models become bulky and heavy. SCTs pack the most aperture into a tube you can carry in one hand; the NexStar 6SE's 150 mm tube is shorter than a 102 mm refractor's.
Cost per inch of aperture
Celestron is blunt about it: refractors cost more per inch of aperture than Newtonians or catadioptrics, and SCTs cost more than a Newtonian of the same aperture but less than a refractor of the same aperture. If faint galaxies and nebulae are your goal on a budget, aperture wins, and a Newtonian or Dobsonian buys the most of it.
3. Which Type Fits the Way You Observe?
Forget the "best telescope" question. Instead, ask how you'll actually use it. Answer these honestly and the design picks itself.
Quick backyard sessions and kids
If you'll observe for 30 minutes after dinner, setup time is everything. A small refractor or a tabletop Dobsonian goes from closet to eyepiece in a couple of minutes, and neither needs a power supply. Refractors forgive bumps and need no collimation. Tabletop Dobs give more aperture for the money. App-guided scopes like the StarSense Explorer DX 130AZ, a 130 mm f/5 reflector, help beginners find targets without learning star-hopping first.
Planets, the Moon and double stars
Long focal lengths make high magnification easy with ordinary eyepieces. A 25 mm eyepiece gives 60x on the 1500 mm NexStar 6SE but only 26x on the 650 mm Heritage 130. SCTs and Maksutovs are natural planetary scopes, and good refractors deliver very crisp, high-contrast planetary views. Whatever the design, the steadiness of the air usually limits planetary detail before the optics do.
Deep sky and future astrophotography

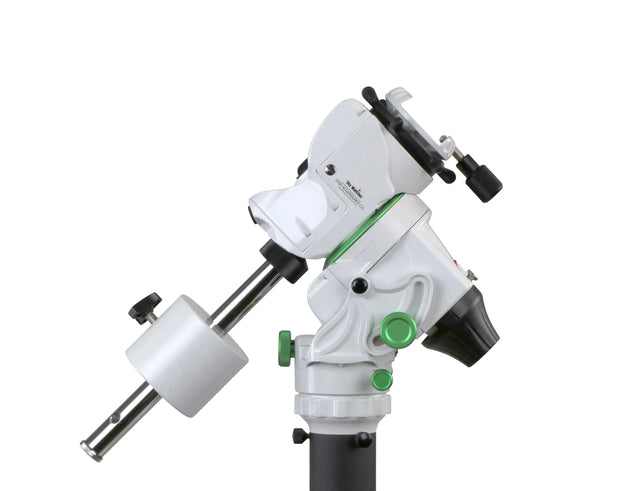

For galaxies and nebulae from a dark site, aperture is king: a big Dobsonian is hard to beat. For deep-sky photography, short, fast refractors (especially apochromats) are the usual starting point because of their wide, color-free fields. Celestron notes that traditional slow refractors (f/11 or slower) make deep-sky imaging harder, and that long-focal-length Maks are tough for it too. Budget for a good equatorial mount, which matters more than the tube for imaging.
Quick decision guide
- Tightest budget, most to see: Newtonian or Dobsonian.
- Least fuss, grab-and-go, travel: refractor.
- Big aperture, small car, GoTo: Schmidt-Cassegrain.
- Planets above all, small package: Maksutov-Cassegrain or SCT.
- Deep-sky imaging later: small apochromatic refractor plus an equatorial mount.
Conclusion
No telescope design is best at everything. Newtonians win on aperture per dollar, refractors win on low maintenance and contrast, and Schmidt-Cassegrains win on aperture and focal length per pound. Match the design to how often and how long you'll observe, where you'll store it and what you most want to see, and you'll end up with a scope that gets used instead of one that gathers dust.
The best way to choose is to look through all three. Visit our Cumming showroom and we'll put a refractor, a Dobsonian and an SCT side by side. You can also browse refractors, Dobsonians and Schmidt-Cassegrains, or contact us.
Gear Mentioned in This Guide
Celestron StarSense Explorer DX 102AZ Refractor
102 mm refractor: no collimation, quick to cool, crisp on the Moon and planets.
Shop now
Sky-Watcher Heritage 130 Tabletop Dobsonian
The most aperture per dollar in a grab-and-go package.
Shop now
Celestron StarSense Explorer DX 130AZ Reflector
130 mm parabolic Newtonian with app-guided pointing.
Shop now

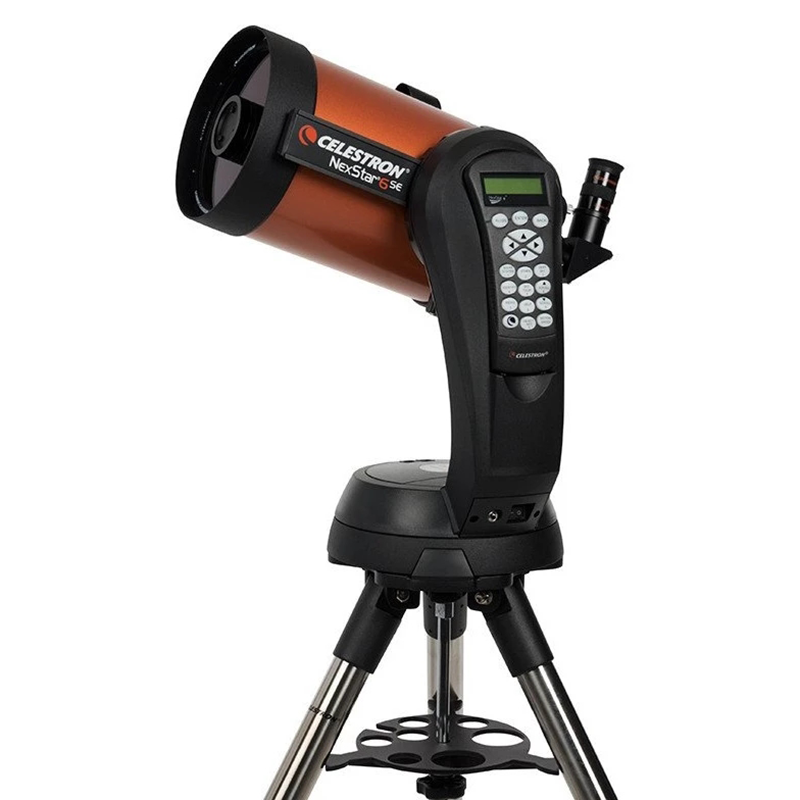

Celestron NexStar 6SE Computerized Telescope
150 mm Schmidt-Cassegrain with 1500 mm focal length in a compact tube, on a GoTo mount.
Shop now
Celestron NexStar 4SE Maksutov
Compact Maksutov-Cassegrain for sharp lunar and planetary views.
Shop now
Sky-Watcher Evostar 80 APO
Apochromatic refractor for color-free views and wide-field imaging.
Shop nowFrequently Asked Questions
Is a refractor or reflector better for beginners?
Both work well. A refractor needs no collimation and is quick to set up; a reflector, especially a tabletop Dobsonian, gives more aperture for the money. If you want the most to see on a budget, choose a reflector. If you want the least fuss, choose a refractor.
What is a Schmidt-Cassegrain telescope good for?
SCTs are versatile, compact telescopes with long focal lengths (typically f/10), which makes them strong on the Moon, planets and double stars. They pack large apertures into short tubes and are common on GoTo mounts.
Do reflector telescopes need maintenance?
Mainly collimation, which means aligning the mirrors. Celestron notes that fast Newtonians (f/6 and below) need it regularly. It takes a few minutes with a collimation tool once you've learned how.
Why do refractors cost more?
Large, high-quality lenses are more expensive to make than mirrors. Celestron says refractors cost more per inch of aperture than Newtonians or catadioptric designs like SCTs. Apochromatic refractors, with extra or special glass, cost more still.
Which telescope type is best for astrophotography?
For deep-sky imaging, small apochromatic refractors on an equatorial mount are the usual starting point. SCTs excel at planetary imaging. The mount matters as much as the telescope.
What is a Dobsonian?
A Dobsonian is a Newtonian reflector on a simple rocker-box alt-azimuth mount. It's designed to deliver the most aperture for the money, and it's easy to use.
