Here is a sad bench story we hear every summer. Somebody buys a shiny 6S monster truck, two big LiPo packs, and the cheapest charger on the shelf. Then they discover it takes most of an afternoon to fill one pack, and the truck empties it in about ten minutes of glorious skatepark violence. The truck was not the problem. The charger was a garden hose trying to fill a swimming pool.
Choosing a LiPo charger comes down to a little math (watts, amps and volts), one big gotcha (AC power is usually limited compared to DC), and one feature you never skip (balance charging). Get those right and you charge faster, your packs live longer, and nobody's garage catches fire. Let's break it down, Bash Brody style: real numbers, no fluff.
The Short Answer
Choose a LiPo charger with enough watts to charge your biggest pack at 1C (amps x full-charge voltage), check whether that rating applies on AC wall power or only with a DC power supply, and make sure it balance charges every cell.
- Watts = amps x volts. A 6S 5000mAh pack at 1C needs about 126 W; two at once need about 252 W.
- AC ratings are often lower. The Hitec RDX1 200 makes 100 W on AC but 200 W on DC; the RDX2 1000 makes 450 W on AC and 1000 W on DC.
- Balance charging keeps every cell at or below 4.20 V and is not optional for LiPo.
- Charge safely: LiPo-specific charger, fire-resistant bag or container, and never leave it unattended.
1. Watts, Amps and the 1C Rule: How Much Charger You Need
Every charger has a power ceiling in watts. Every pack has a charge current it is happy with. Your job is to make sure the first number is big enough to deliver the second.
Amps: the 1C starting point
Charge current is measured in C, where 1C means amps equal to the pack's capacity. A 5000mAh pack at 1C charges at 5 amps, which takes roughly an hour from empty, a little longer in practice because the charger tapers the current as the pack nears full. One C is the safe default unless the battery maker says otherwise. Never go past the label's maximum charge rate; Team Associated's LiPo safety sheet says never to charge above 2C.
Watts: amps times volts
Power is amps multiplied by volts, and a LiPo's voltage climbs to 4.20 V per cell at full charge. So a 3S pack ends at 12.6 V and a 6S pack at 25.2 V. Multiply the charge current by that full-charge voltage and you know how many watts your charger has to deliver. Here are common packs worked out:
| Pack | 1C current | Full-charge voltage | Watts needed (amps x volts) |
|---|---|---|---|
| 3S 2200mAh (park flyer) | 2.2 A | 12.6 V | about 28 W |
| 3S 5000mAh (1/10 basher) | 5.0 A | 12.6 V | about 63 W |
| 4S 5000mAh | 5.0 A | 16.8 V | about 84 W |
| 6S 3200mAh (70mm EDF jet) | 3.2 A | 25.2 V | about 81 W |
| 6S 5000mAh (1/8 monster truck) | 5.0 A | 25.2 V | about 126 W |
| Two 6S 5000mAh at once | 5.0 A each | 25.2 V | about 252 W |
What happens when you are short on watts
A charger that cannot supply enough power does not break; it just quietly lowers the current. Ask a 100 W charger to put 5 A into a 6S pack and it can only manage about 4 A, so your one-hour charge stretches out. That is fine for an occasional pack. It is miserable when you have four 6S packs and a three-hour bash window. Buy for your biggest pack, plus room to grow.
2. AC, DC and AC/DC: The Gotcha in the Spec Sheet
Most hobby chargers advertise one big watt number. Read the fine print, because that number often only applies when the charger runs from a DC power supply or a 12 V battery, not your wall outlet.
Why AC ratings are lower
An AC/DC charger has a power supply built in, and that internal supply is usually smaller than the charging circuit behind it. Hitec's RDX1 200 spec page lists 100 W on AC and 200 W on DC. The two-port RDX2 1000 is the same story at a bigger scale: Hitec rates it at 450 W on AC and 1000 W on DC. On a wall plug, you get the smaller number.
When a DC-only charger plus a power supply makes sense
If you run several big packs, a DC charger fed by a separate power supply gives you the full rated wattage at home, and the same charger can run from a 12 V battery at the track or field. The cost is one more box and cable to carry. For one or two 3S packs, a simple AC/DC unit is plenty; for 6S bashers and EDF jets, look hard at the DC rating and how you will power it.
USB-C chargers
USB-C Power Delivery chargers are the new compact option. Spektrum's S100 Smart charger delivers up to 100 W with a compatible power supply and cable, charges Smart and standard LiPo packs up to 4S, and the USB-C power supply is not included, per the product page. A weak phone brick will run it, but slowly, because output depends on the supply. Match the brick to the charger if you want the full 100 W.
Brand-matched chargers
Some chargers are built around one battery family. Traxxas's EZ-Peak Dual 100W, for example, reads Traxxas iD packs and sets itself up automatically. It handles LiPo up to 3S and NiMH, and splits its 100 W into 4 A per port with two packs or up to 8 A on one, according to Big Squid RC. Great if your fleet is all iD packs, limiting if it is not.
3. Balance Charging, Modes and the Safety Stuff
Power gets your packs full. Features keep them alive. These are the ones that matter on a LiPo charger.
Balance charging is mandatory
A LiPo pack is a stack of cells in series, and they drift apart over time. A balance charger plugs into the small white balance lead and watches each cell, so none goes over 4.20 V while the others catch up. Team Associated's safety sheet says to always use the balance option. Skip it and one cell gets overcharged while another runs low, which is how packs puff up and die early.
Storage mode and discharge
A storage mode charges or discharges packs to about 3.8 V per cell, the level Team Associated recommends for storage. If you fly or bash only on weekends, this feature alone is worth paying for. Discharge power on hobby chargers is usually small (the RDX1 200 is rated at 5 W on Hitec's page), so bringing a full pack down to storage voltage can take a while.
Chemistry and cell count
Check that the charger covers every pack you own: LiPo cell count (1-6S is the most common range), LiHV if you run high-voltage packs, and NiMH for the RTR packs that came with older trucks. The RDX1 200 handles LiPo, LiFe and Li-ion from 1-6S and NiMH from 1-15 cells, so one charger covers most of the fleet.
Charging safety checklist
- Use a LiPo-specific charger and set the correct chemistry and cell count from the battery label.
- Always balance charge, and charge at 1C unless the manufacturer allows more.
- Charge inside a fire-resistant bag or container on a non-flammable surface, away from anything that burns.
- Never charge a pack that is swollen, damaged or still hot from use. Let it cool first.
- Do not charge below 32°F (0°C) or above 113°F (45°C), and never charge inside a car.
- Never leave a charging LiPo unattended.
Conclusion
The quick formula: find your biggest pack, multiply its capacity in amps by its full-charge voltage, and make sure your charger can deliver that many watts on the power source you will actually use. Then insist on balance charging and a storage mode. A 100 W AC charger is fine for one or two 3S packs; 6S bashers and jets want 200 W or more, which often means DC power. Spend the money once and you will never wait on a charger again.
Not sure what your packs need? Bring them by our Cumming showroom and we will match a charger to your fleet, or browse our LiPo batteries and LiPo safety gear. Questions? Contact the shop.
Gear Mentioned in This Guide
Hitec RDX1 200 AC/DC Charger
One port, 100W on AC or 200W on DC, 1-6S LiPo with balance and storage modes.
Shop now

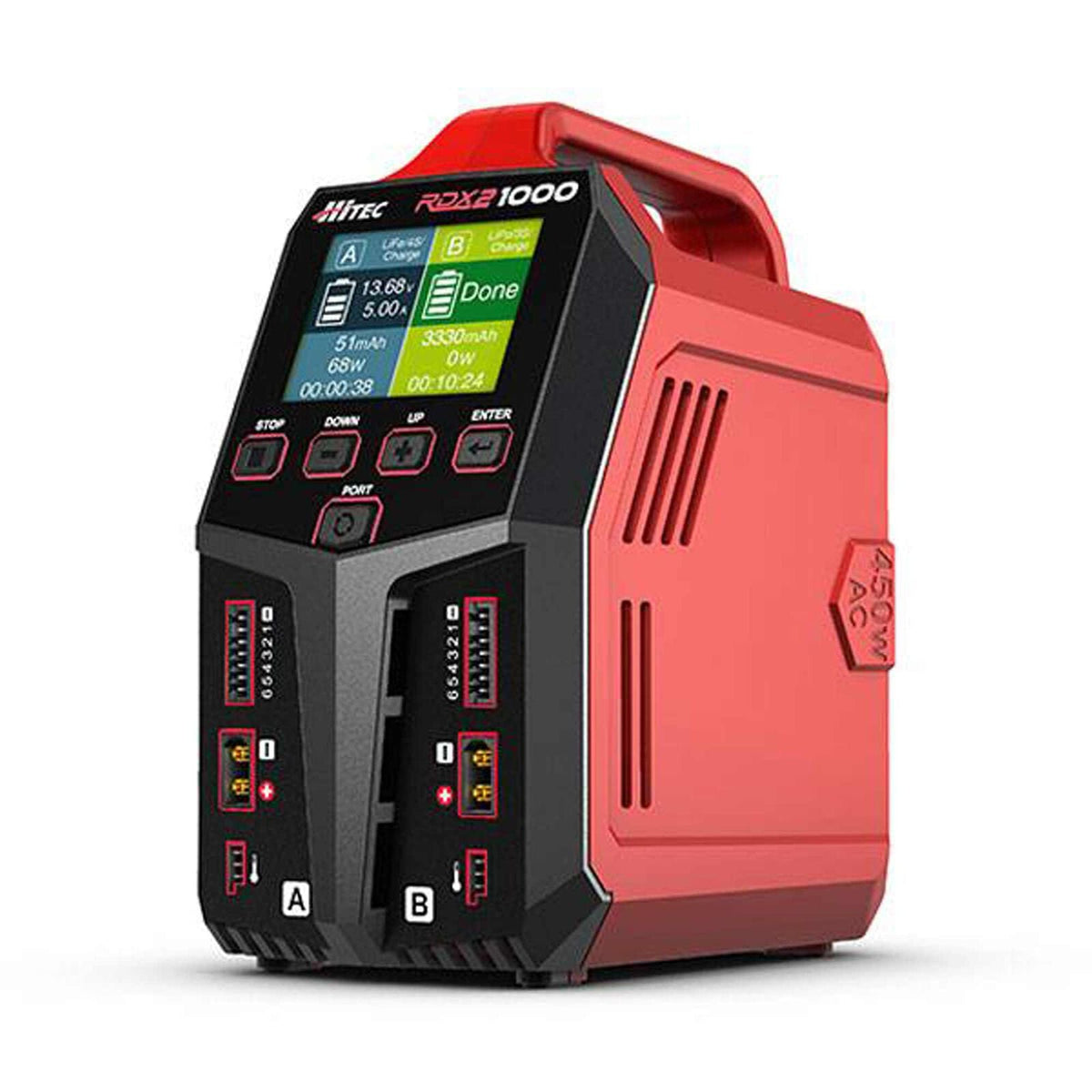

Hitec RDX2 1000 AC/DC Dual Port Charger
Two ports, 450W on AC and 1000W on DC, for big 6S packs and multi-pack sessions.
Shop now
Spektrum S100 G2 USB-C Smart Charger
Compact 100W USB-C charger for Spektrum Smart packs up to 4S.
Shop now
Traxxas EZ-Peak Dual 100W Charger
Plug-and-charge for Traxxas iD packs, 2S and 3S LiPo, two at a time.
Shop now
Frequently Asked Questions
How many watts do I need in a LiPo charger?
Multiply the charge current by the pack's full-charge voltage (4.20 V per cell). A 3S 5000mAh pack at 1C needs about 63 W, a 6S 5000mAh pack about 126 W. Add more if you want to charge two packs at once.
What does 1C charging mean?
1C is a charge current in amps equal to the pack's capacity in amp-hours. For a 2200mAh pack that is 2.2 A. It is the safe default rate unless the battery manufacturer specifies a higher maximum.
Why is my charger slower on AC than DC?
Most AC/DC chargers have a built-in power supply that is smaller than the charging circuit. The Hitec RDX1 200, for example, is rated 100 W on AC and 200 W on DC. On wall power you are limited to the AC rating.
Do I really need to balance charge every time?
Yes. Balance charging keeps every cell at or below 4.20 V and keeps the cells matched. Charging through the main leads alone can overcharge a weak cell, which shortens pack life and raises the risk of swelling or fire.
Can I use a NiMH charger for LiPo batteries?
No. LiPo packs need a charger with a LiPo mode that stops at the correct voltage and balances the cells. Never charge a LiPo on a NiMH-only charger.
Is a USB-C charger good enough?
For small and mid-size packs, often yes. The Spektrum S100 Smart charger delivers up to 100 W for packs up to 4S, but only with a USB-C power supply strong enough to deliver that power.
