1/18 TXC-4M Extreme Crawler: Orange
$299.95
Skip to product information
New Arrival
1/18 TXC-4M Extreme Crawler: Orange
$299.95
3s Brushless Power
3350 Kv outrunner motor
Portal Axles
1.7 in center ground clearance
60° Steering Angle
75 oz-in metal-gear 2265 servo
Three Drive Profiles
Sport, Trail and Crawl modes
Monocoque Chassis
One-piece molded composite
Battery and Charger
3s LiPo and USB charger included
Meet The TXC-4M1/18 scale extreme crawler

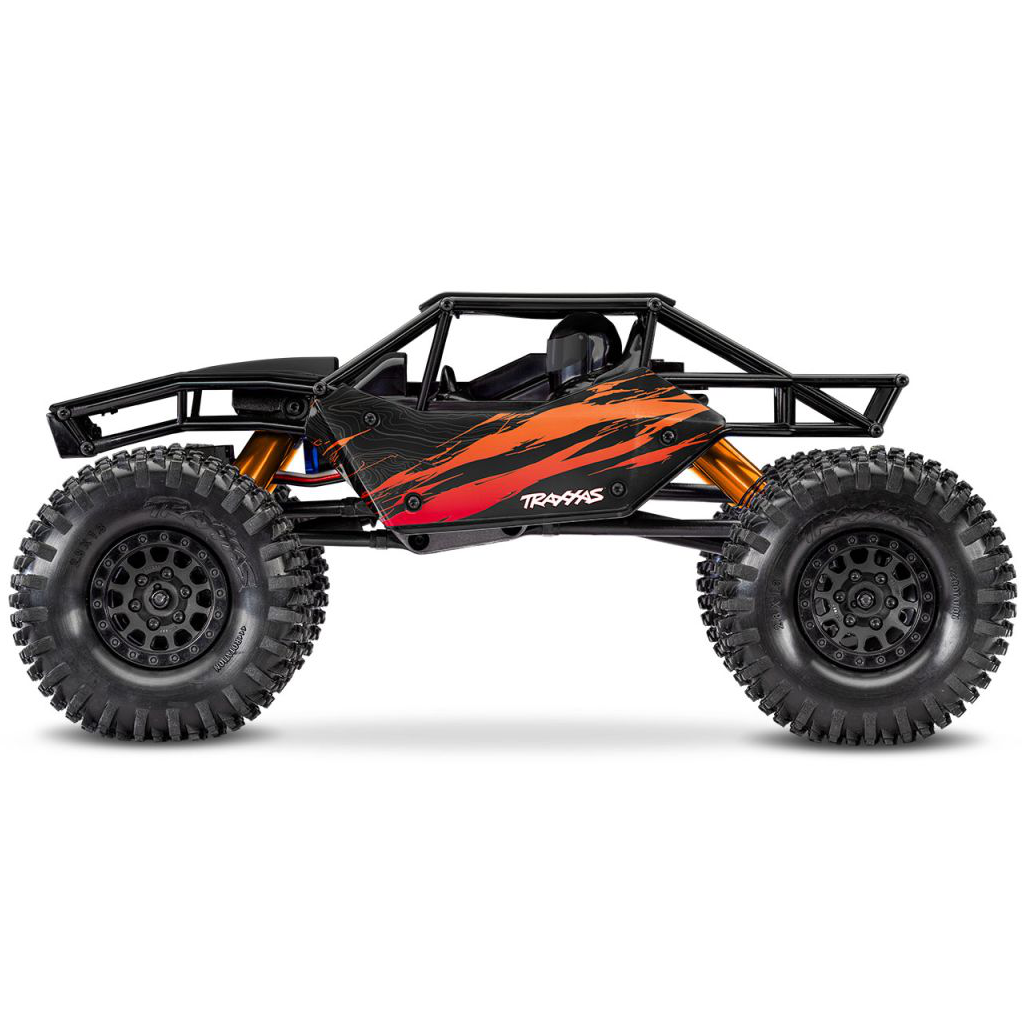

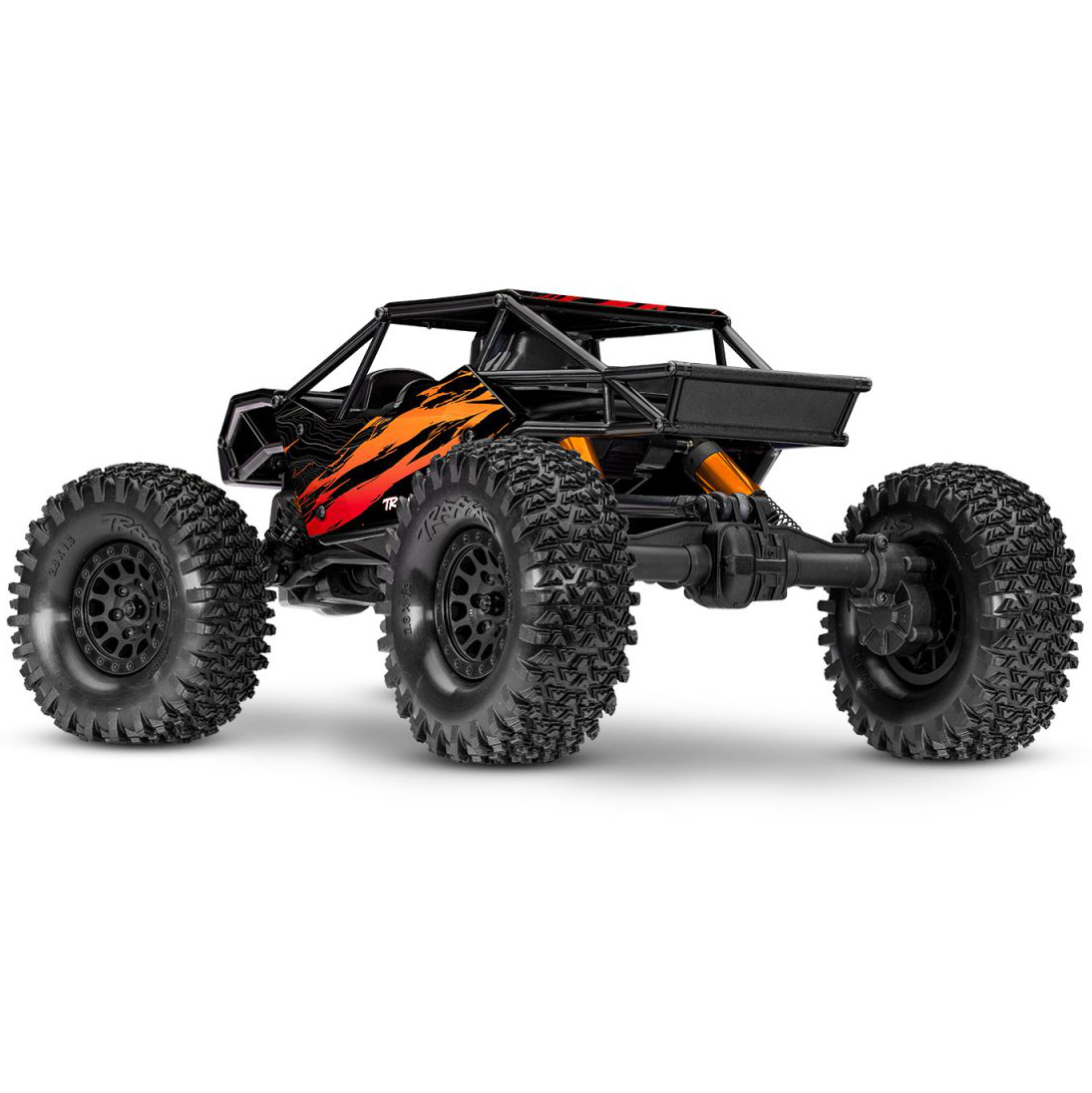

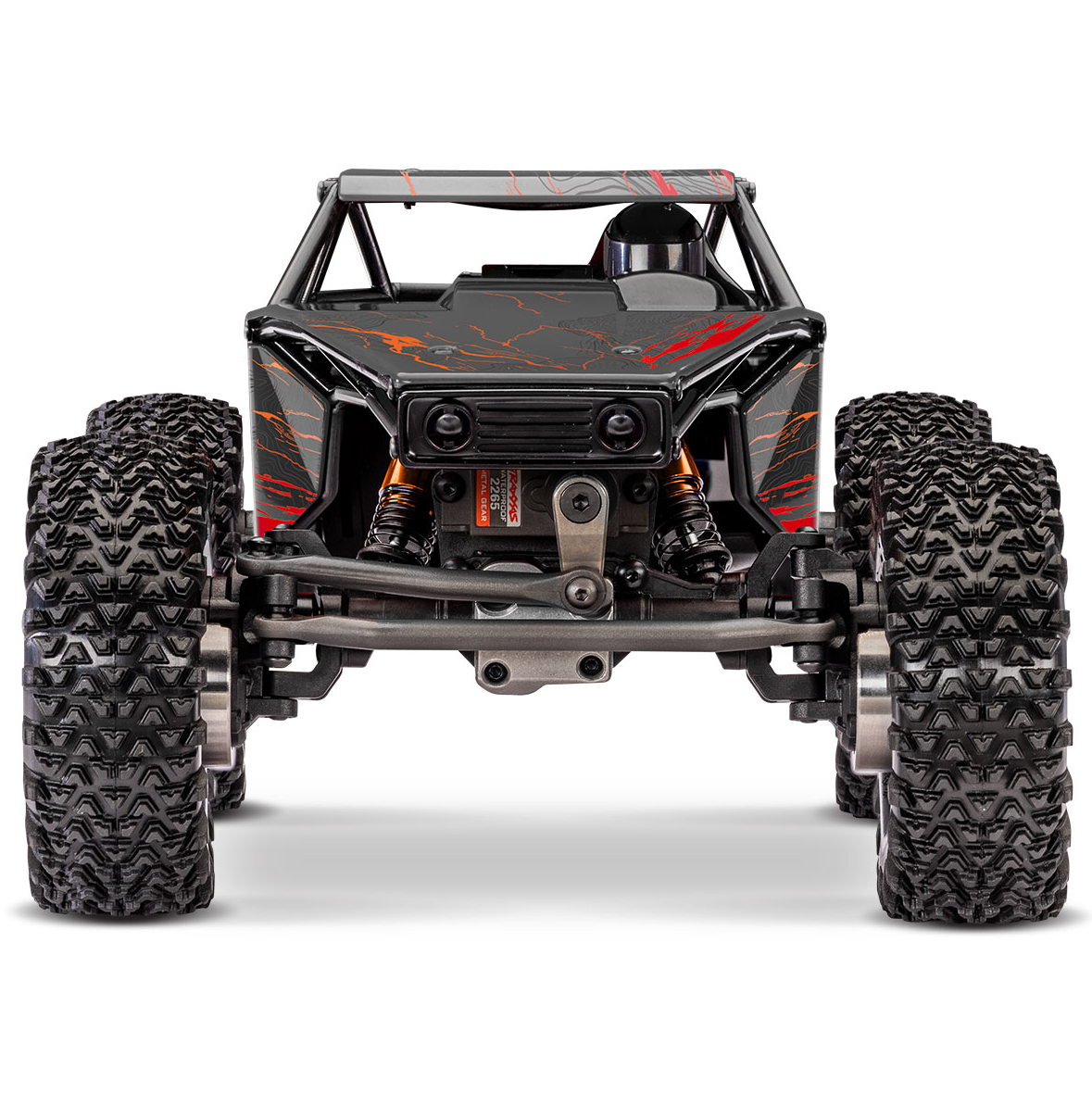

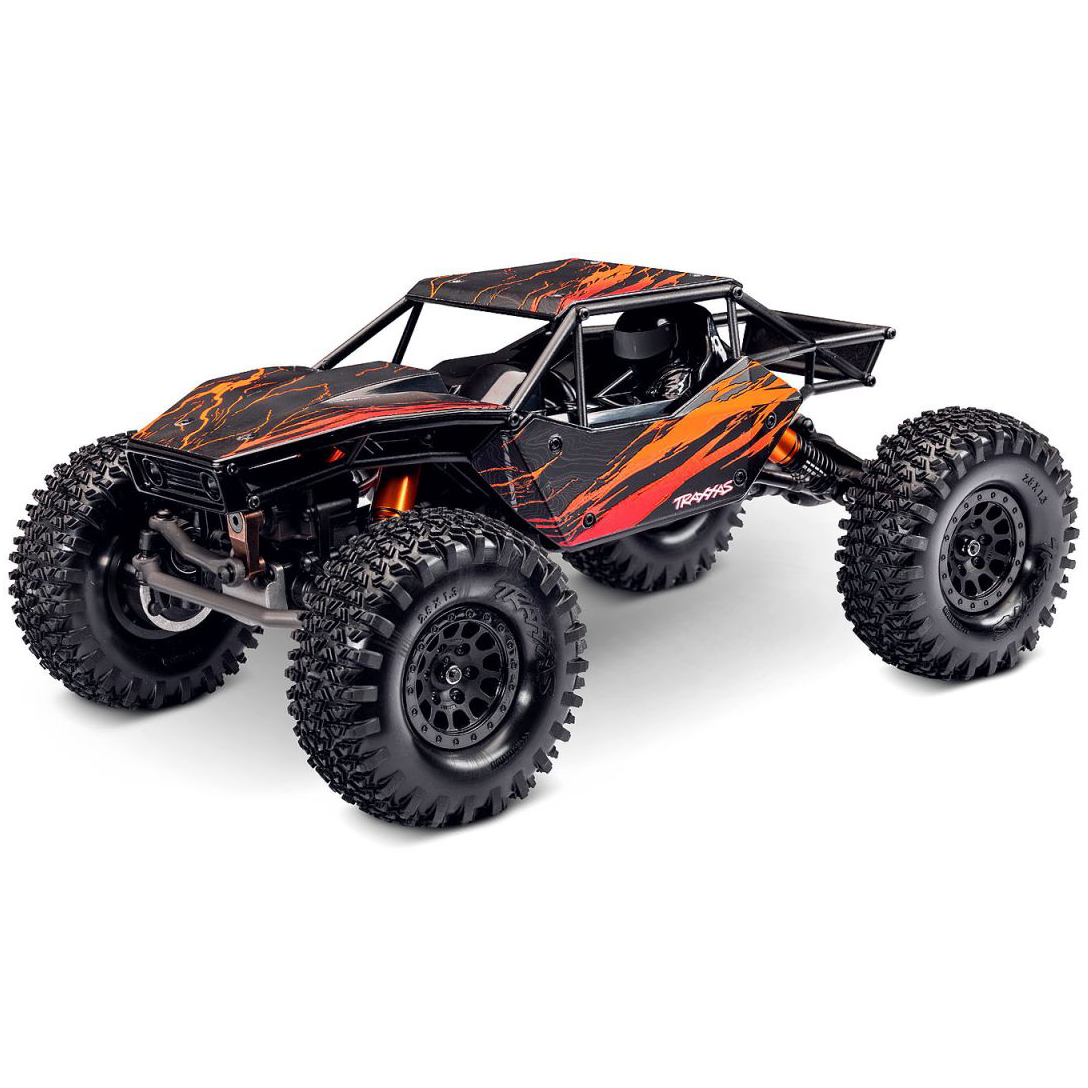

The Traxxas TXC-4M Extreme Crawler in Orange (model 120074-1-ORNG) is a 1/18 scale, ready-to-drive 4WD crawler built around a single-piece molded monocoque chassis and portal axles. A 3s brushless outrunner motor and waterproof speed control with Sport, Trail and Crawl profiles give it precise low-speed control, and the 3-cell LiPo battery and USB charger are in the box.
TXC-4M™ Extreme Crawler (120074-1) Manual - English.
Watch Overview
TXC-4M™ Extreme Crawler (120074-1) Manual - English.
Built For Extreme CrawlingMonocoque chassis and portal axles

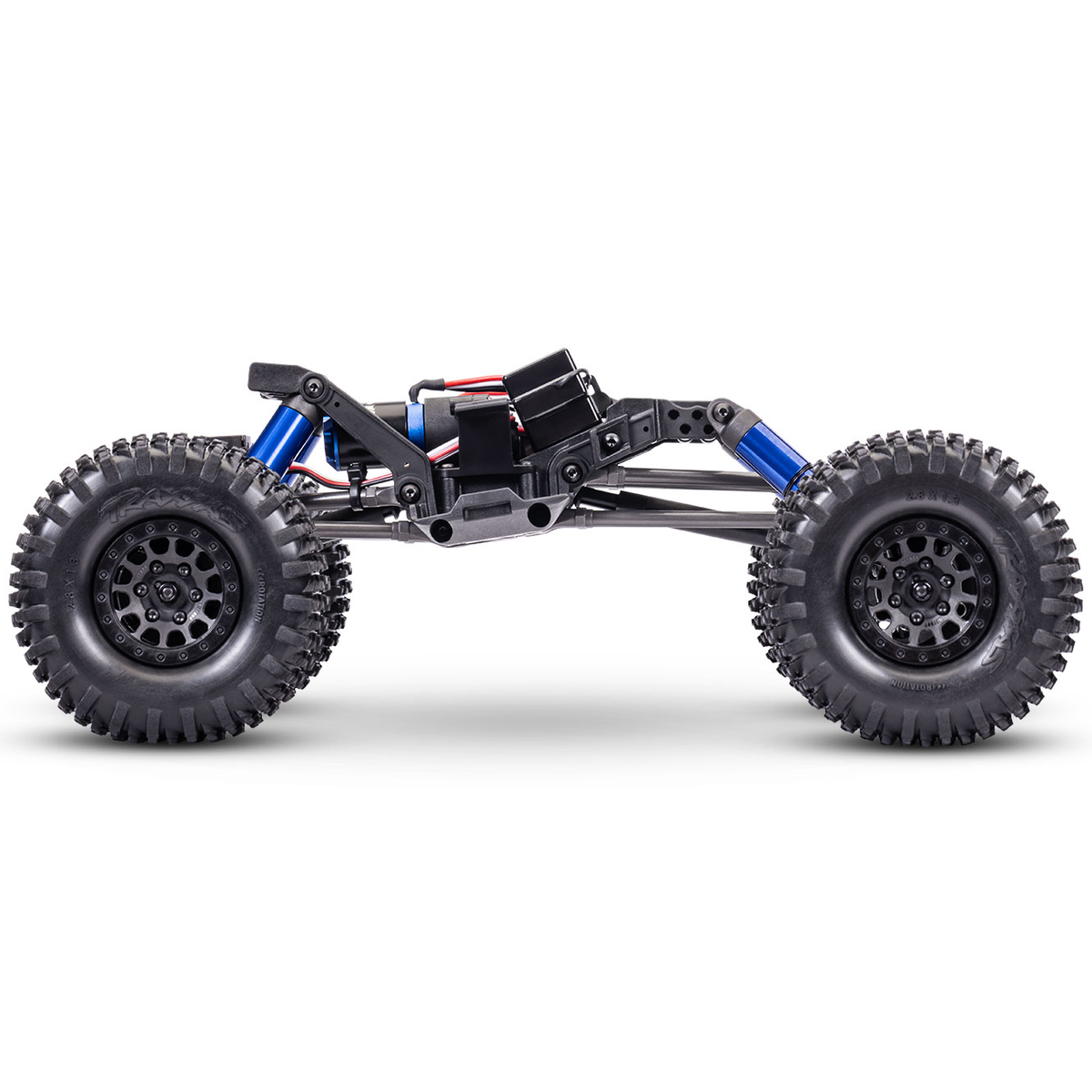

Traxxas gave the TXC-4M a molded monocoque chassis in place of a ladder frame, gaining torsional rigidity while cutting weight and keeping the battery and speed control low. Portal axles lift center ground clearance to 1.7 in / 43 mm and reduce torque twist, while locked steel-spool axles and a 25% overdrive front axle keep all four Stone Claw tires pulling through a 74.1:1 internal gear ratio.
Up front, a waterproof metal-gear 2265 servo with 75 oz-in of torque swings the wheels through a 60° steering angle with no servo saver. Triangulated 4-link suspension with lay-down, oil-filled aluminum GTM Pro shocks and licensed 1.3 in Method Race Wheels with 3-piece beadlocks finish the package under a clipless tube-frame body in Orange.
Technical SpecificationsPublished Traxxas figures
Scale
1/18
Length
9.22 in / 234 mm
Width
5.86 in / 149 mm
Track
5.86 in / 149 mm
Height
4.2 in / 107 mm
Wheelbase
6.6 in / 168 mm
Weight
1.03 lb / 467 g
Center Ground Clearance
1.7 in / 43 mm
Driveline
Shaft-driven 4WD
Transmission
Single-speed direct drive
Differentials
Locked spool
Internal Gear Ratio
74.1:1
Front Axle Overdrive
25%
Steering Angle
60°
Steering Servo
Traxxas 2265 waterproof metal gear, 75 oz-in
Driving Incline Angle
56.3°
Static Incline Angle
79.8°
Motor
3s sensorless brushless outrunner, 3350 Kv
Motor Size
0.94 in / 24 mm long, 0.63 in / 16 mm diameter, 0.63 oz / 18 g
Speed Control
3s brushless, waterproof, Field Oriented Control
ESC BEC Output
6 V
ESC Case Size
1.33 x 0.98 x 0.55 in / 34 x 25 x 14 mm, 0.92 oz / 26 g
Drive Profiles
Sport, Trail, Crawl
Battery
11.1 V 3-cell LiPo, 250 mAh, Traxxas iD
Battery Compartment
41 mm L x 22 mm W x 14 mm H
Charger
USB-powered iD quick charger
Transmitter
TQ Compact 2-channel, 2.4 GHz

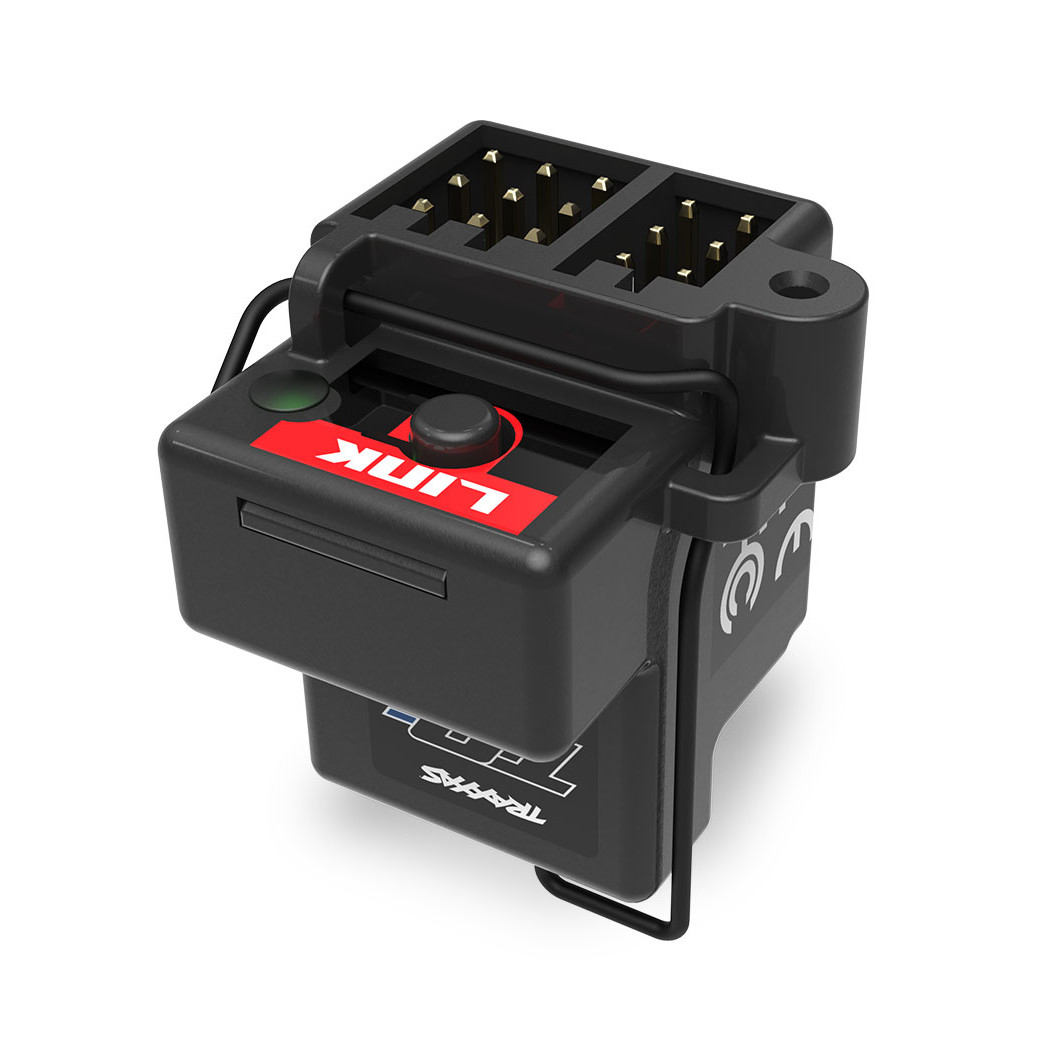

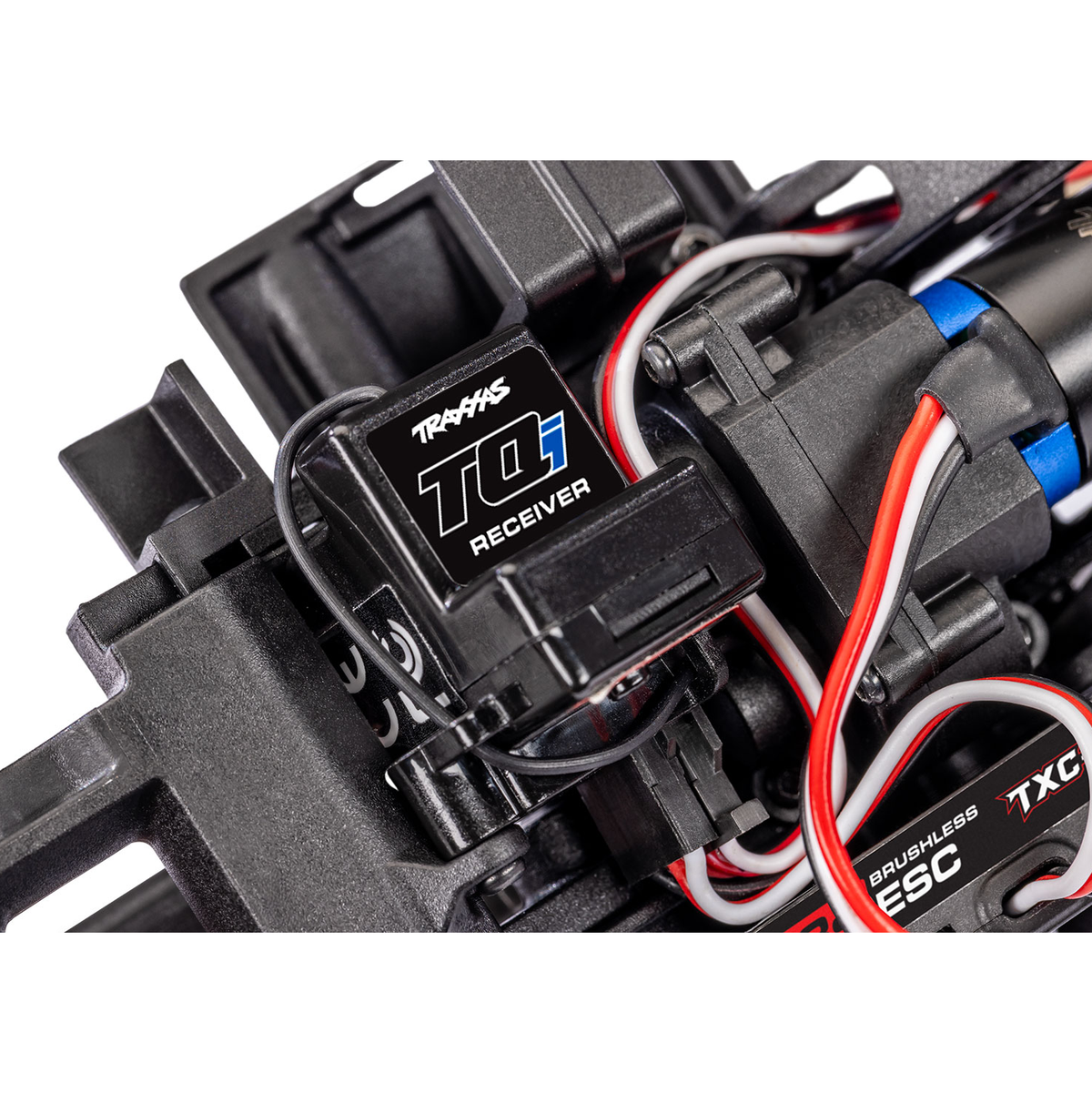

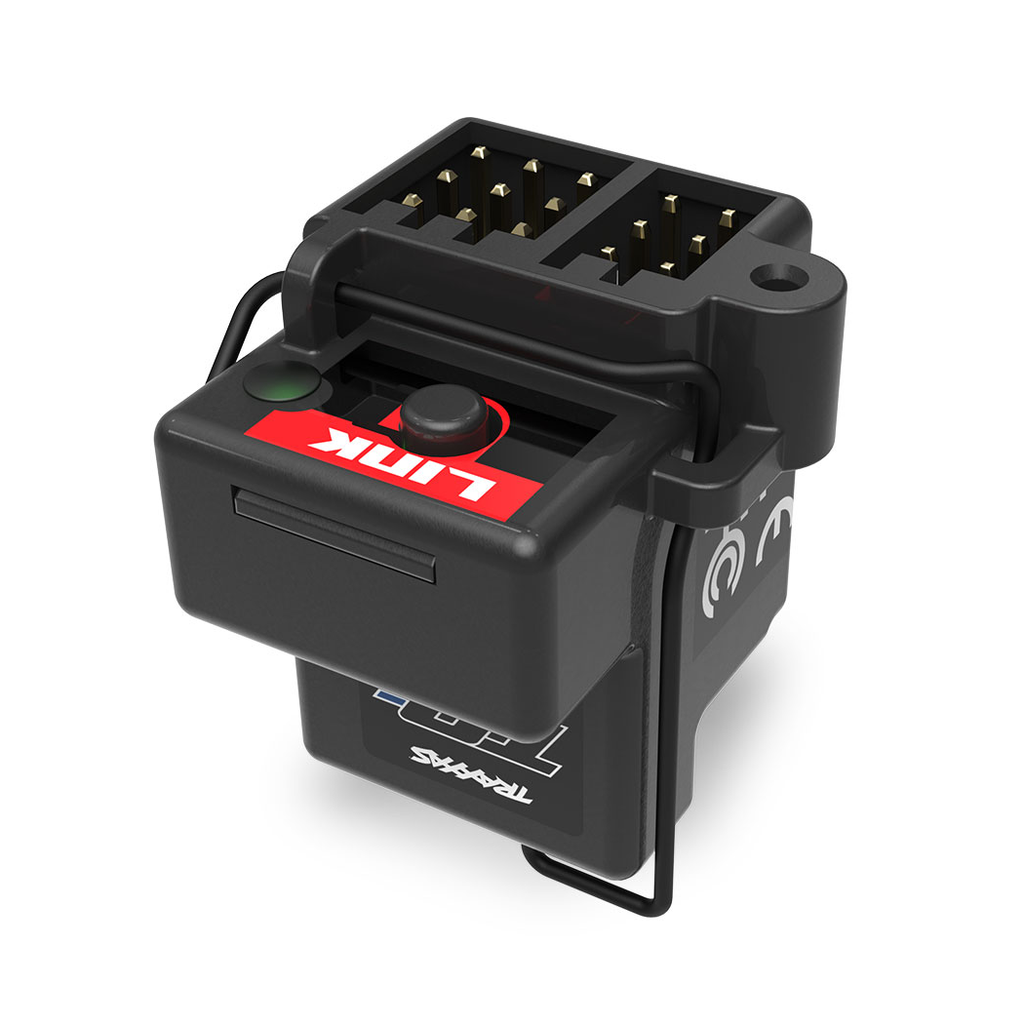

Receiver
Compact TQi-compatible receiver
Wheels
1.3 in Method Race Wheels 105 beadlock, 7 mm hex
Tires
1.3 x 2.8 in Stone Claw
Shocks
Oil-filled aluminum GTM Pro
Skill Level
1
Key FeaturesWhat sets the TXC-4M apart

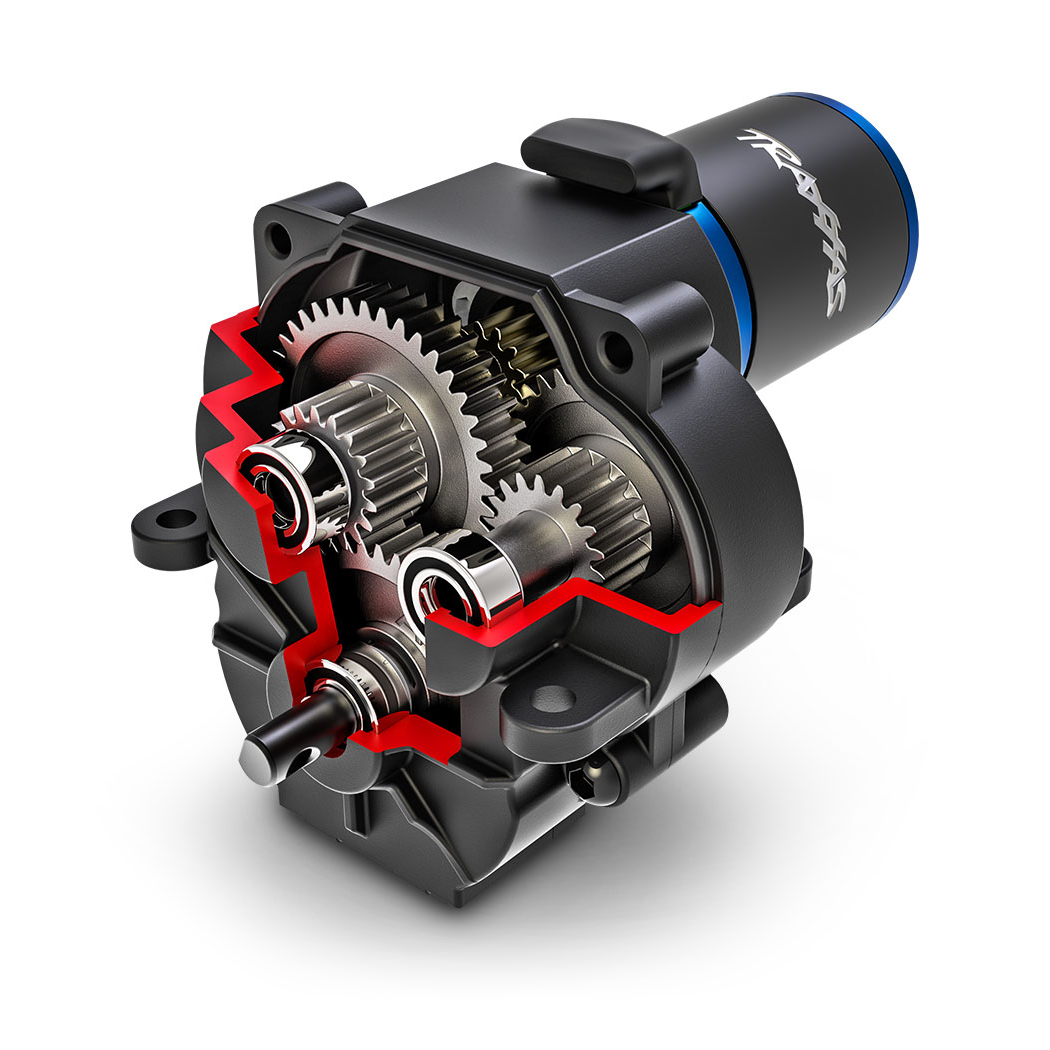

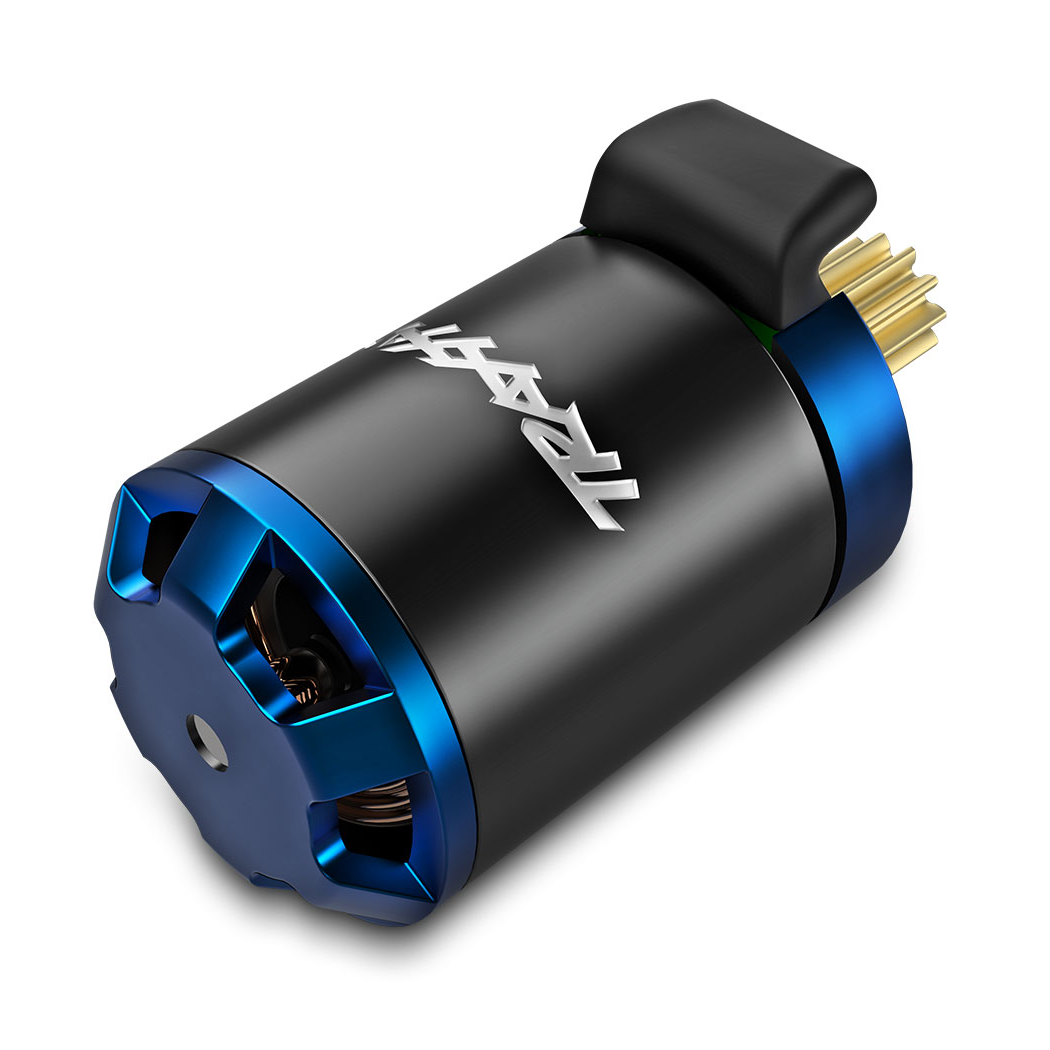

3s Brushless Outrunner MotorThe 3350 Kv sensorless brushless outrunner delivers more torque and finer low-speed control than conventional motor designs.

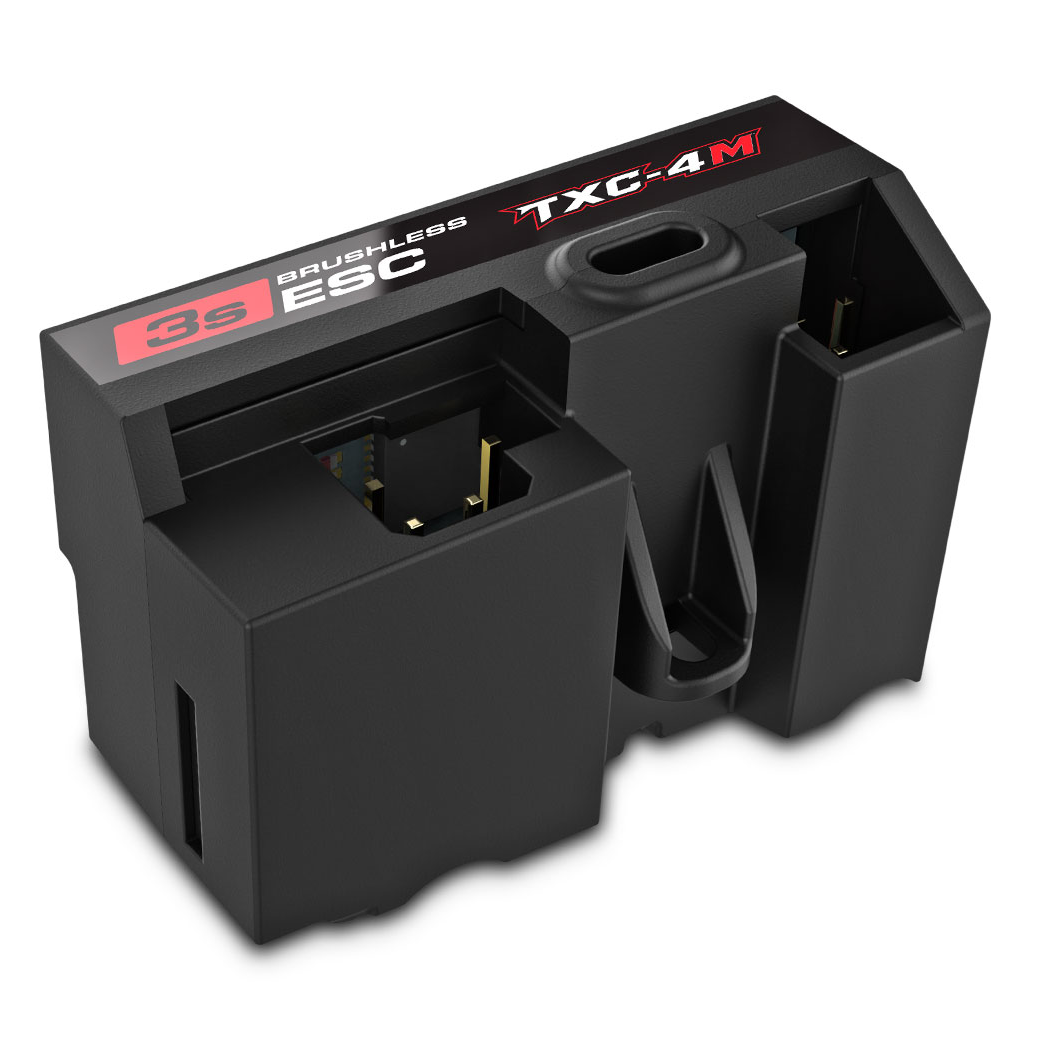

FOC Speed ControlThe waterproof 3s brushless ESC uses Field Oriented Control and offers Sport, Trail and Crawl drive profiles, with 100% hill-hold braking in Crawl.

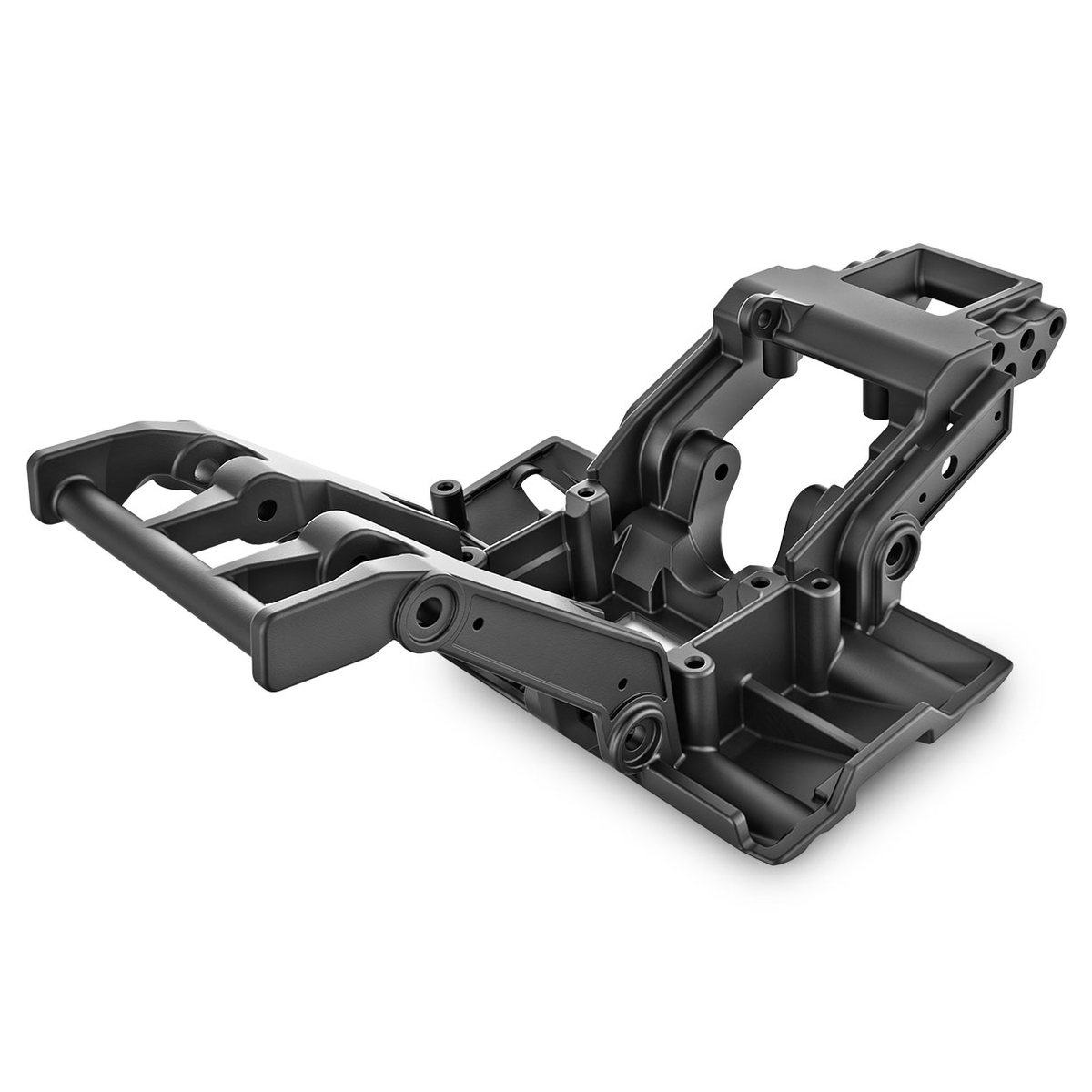

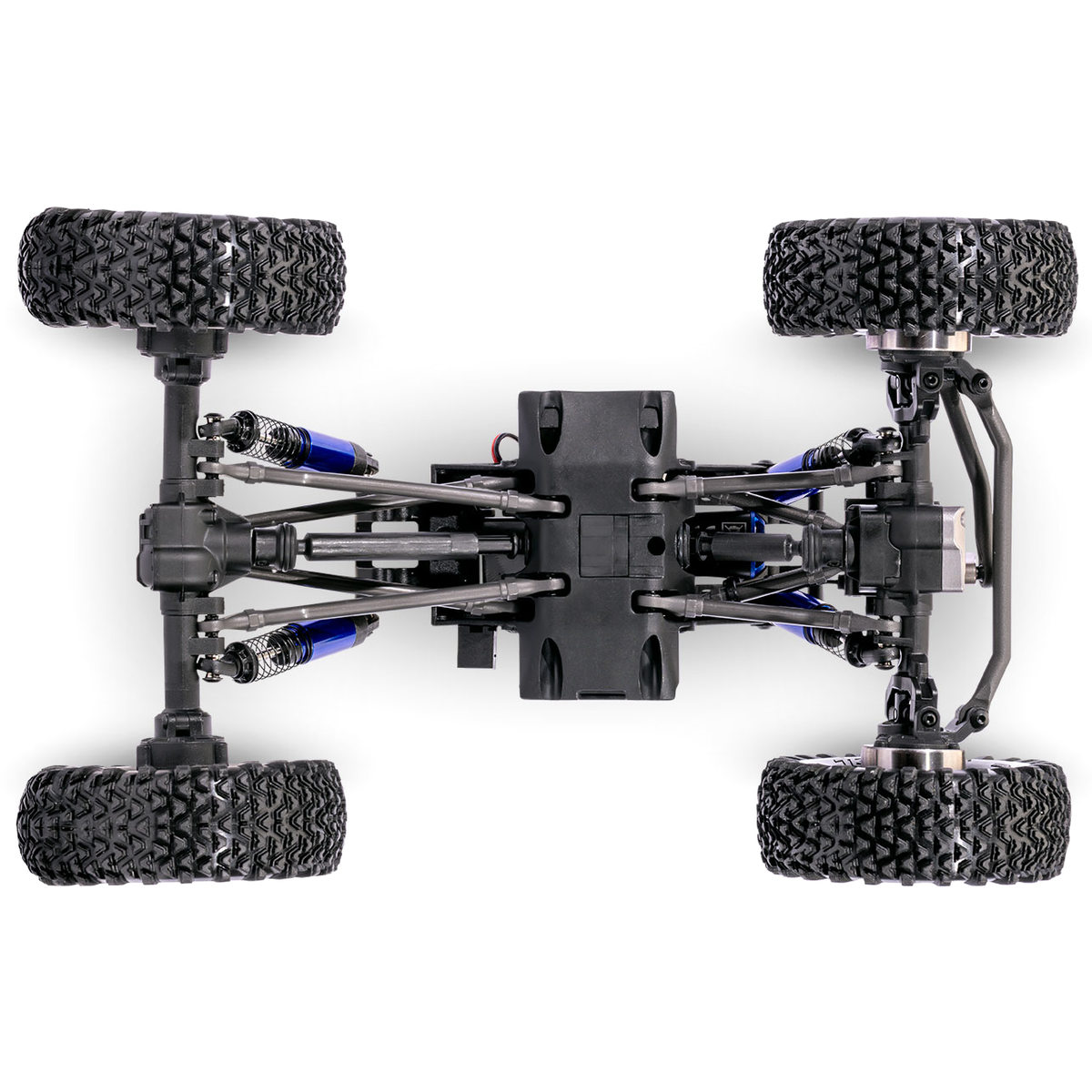

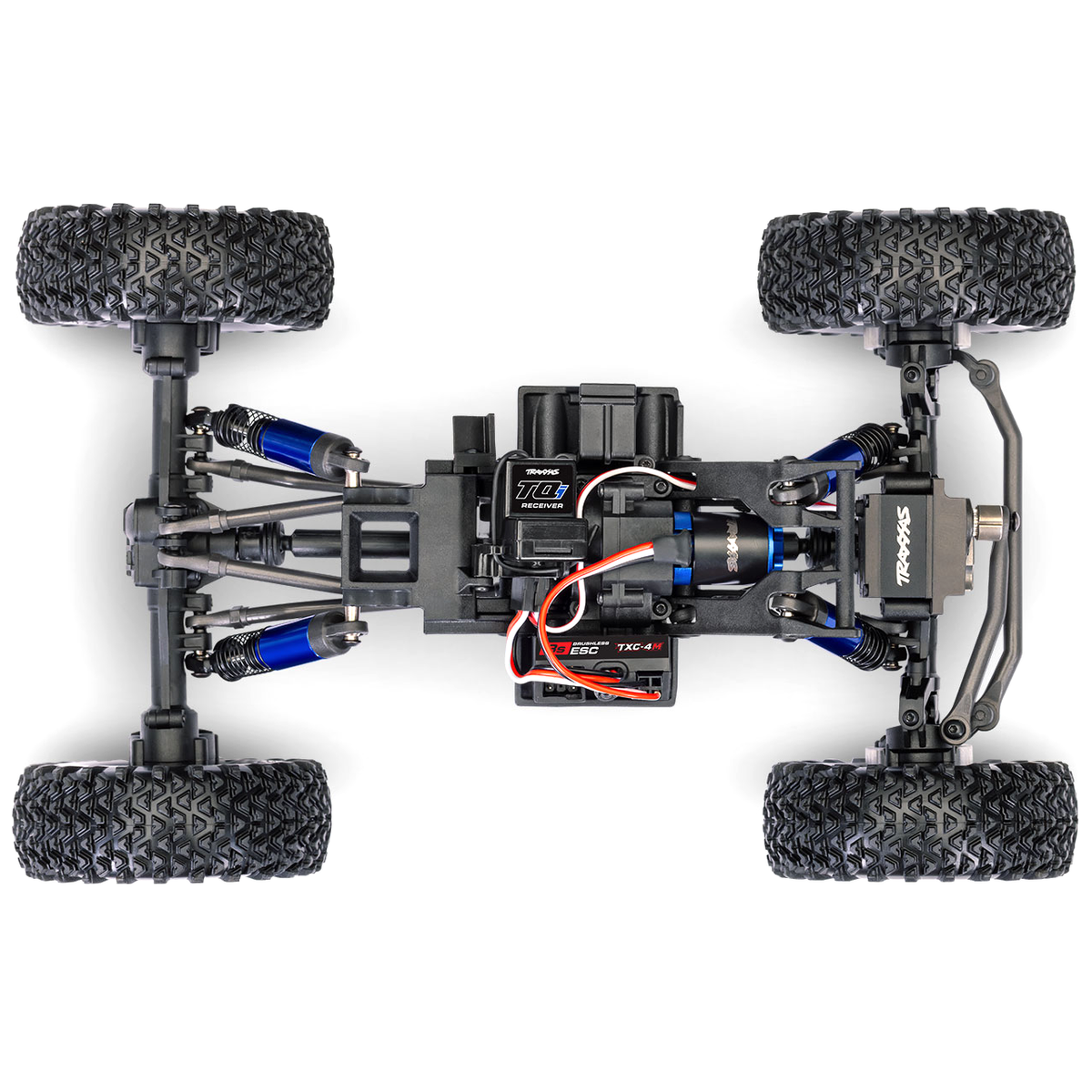

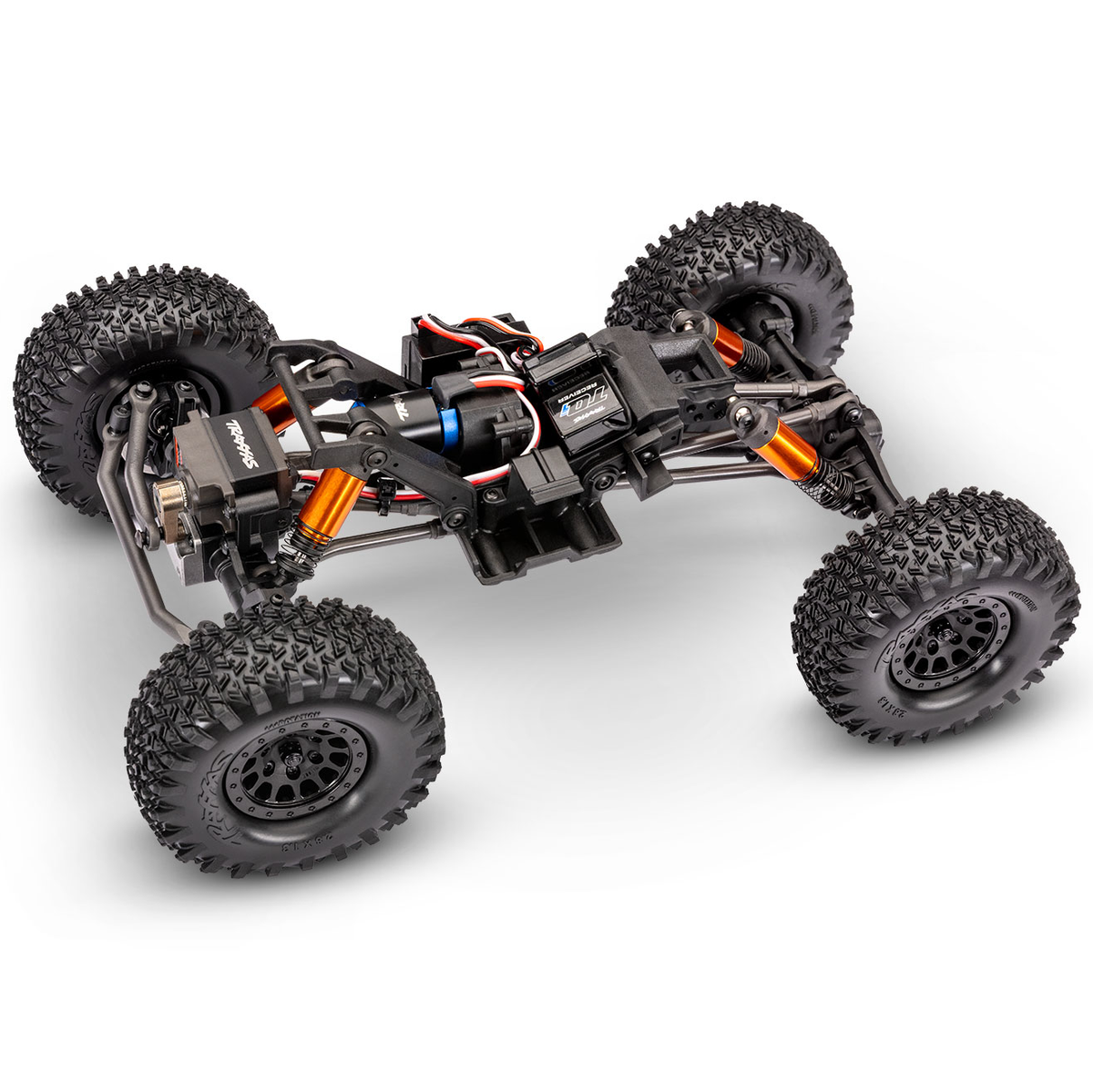

Molded Monocoque ChassisA single-piece composite chassis gives greater torsional rigidity than a ladder frame at lower weight, with the battery and ESC mounted low.

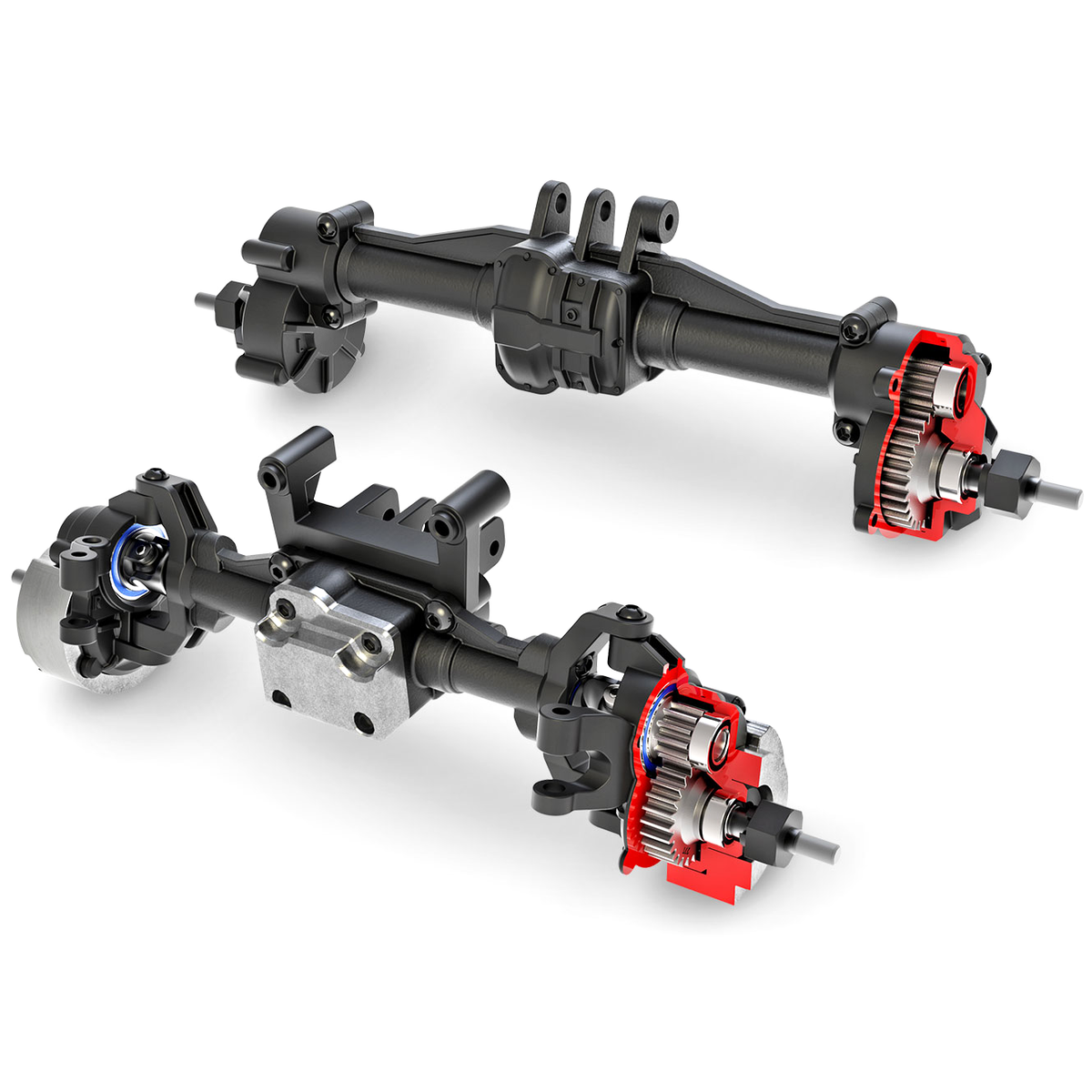

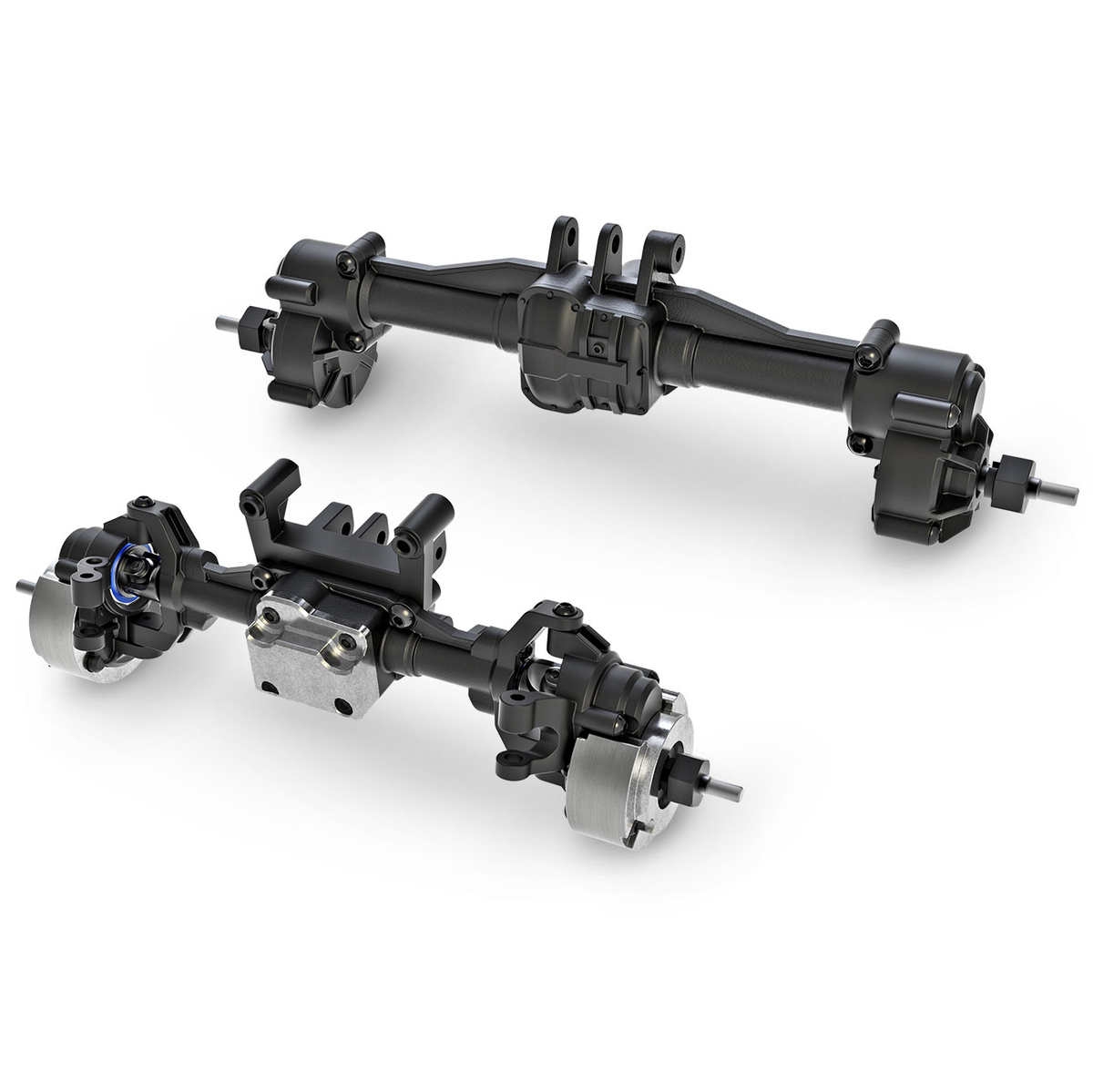

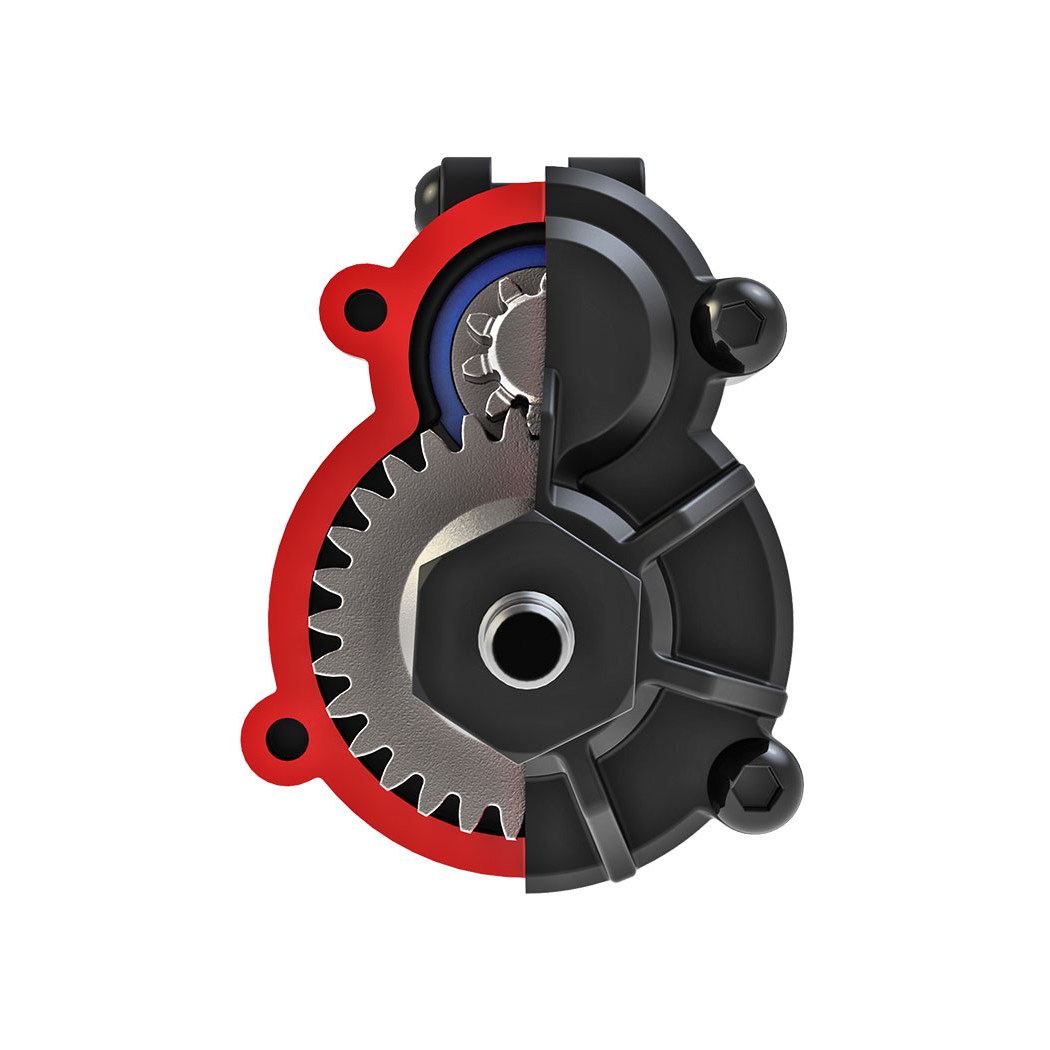

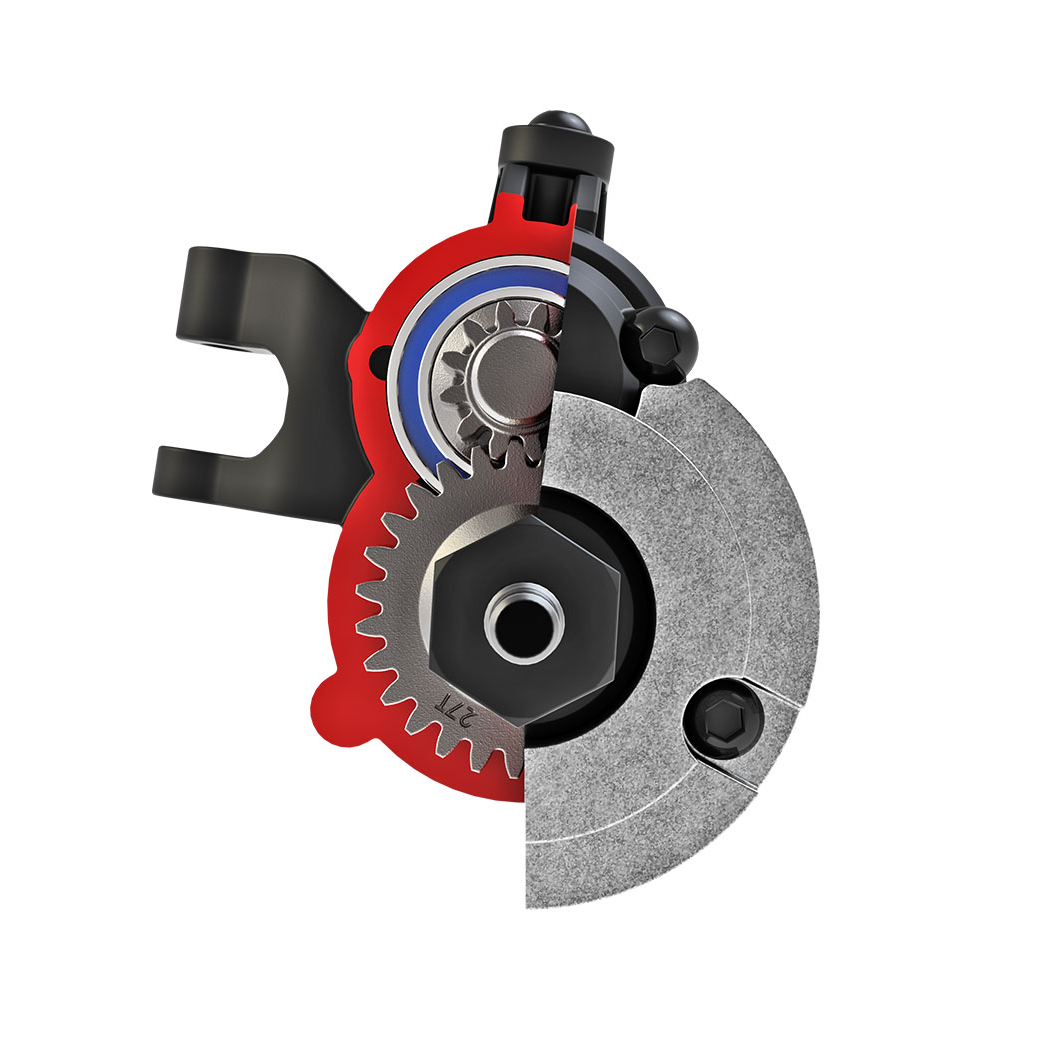

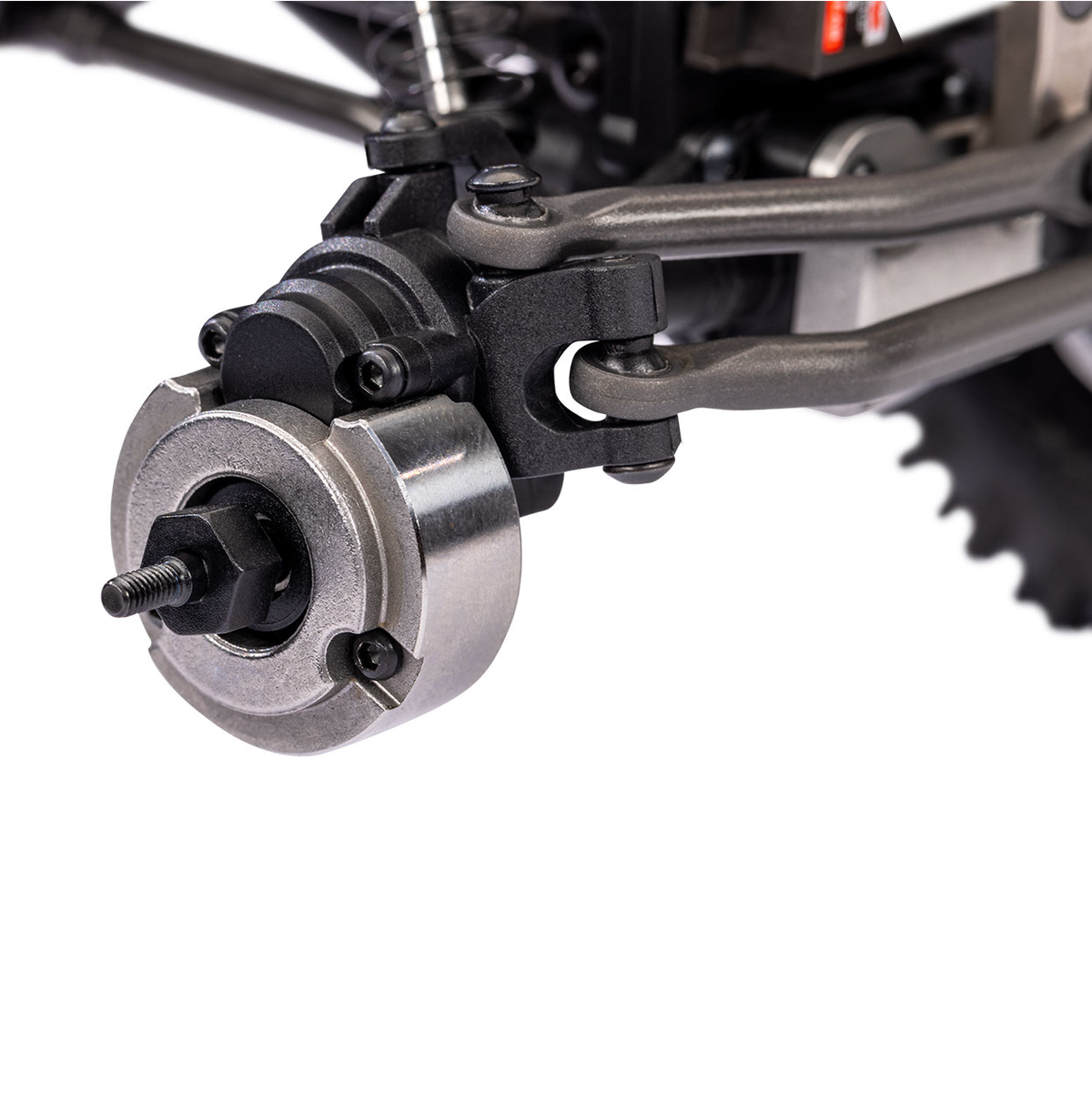

Portal AxlesPortal axles with all-metal gears and full ball bearings raise center ground clearance to 1.7 in and reduce torque twist.

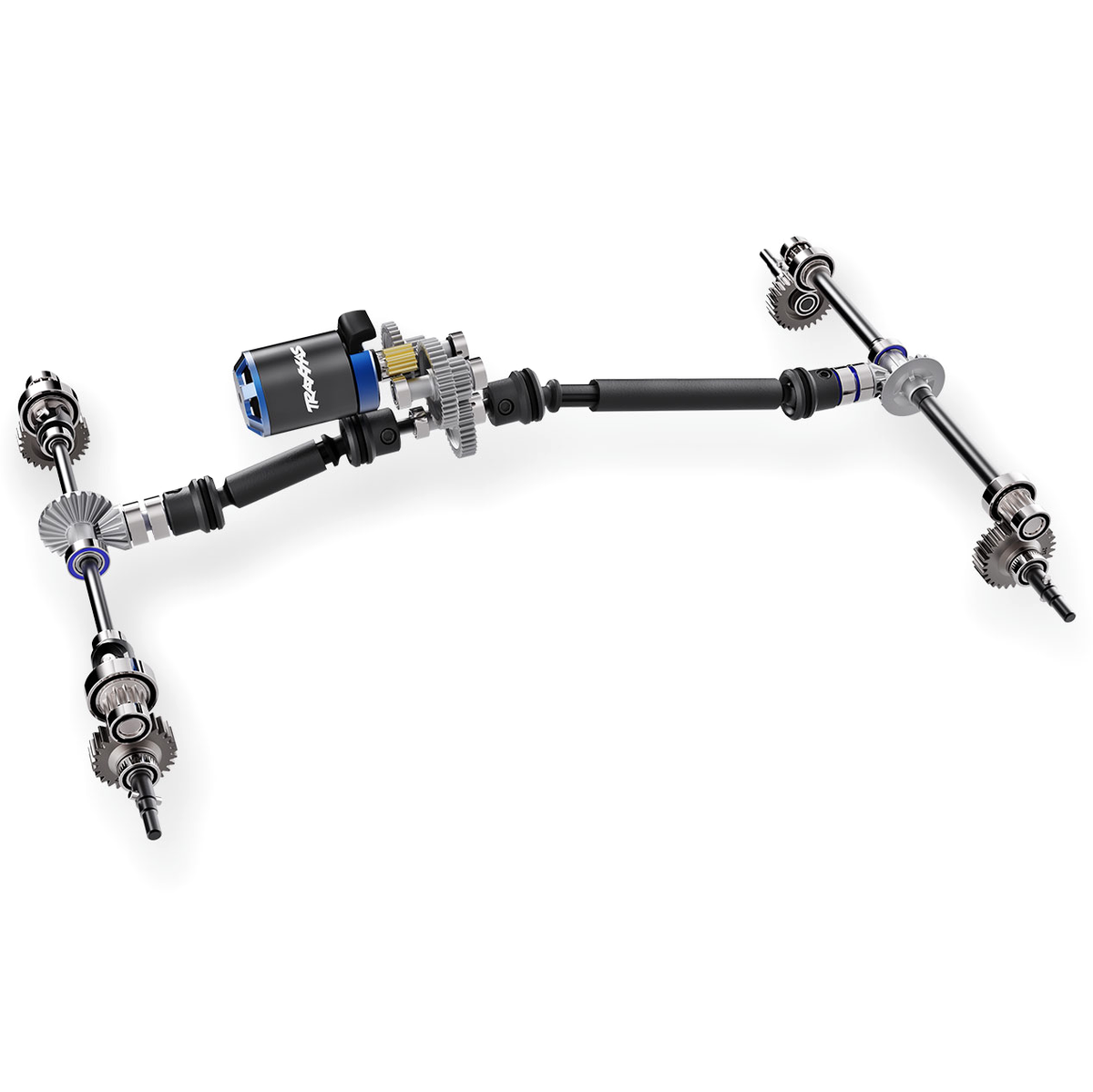

Locked 4WD DrivelineFull-time shaft-driven 4WD uses locked steel-spool axles, steel axle shafts and U-joints, and a 25% overdrive front axle.

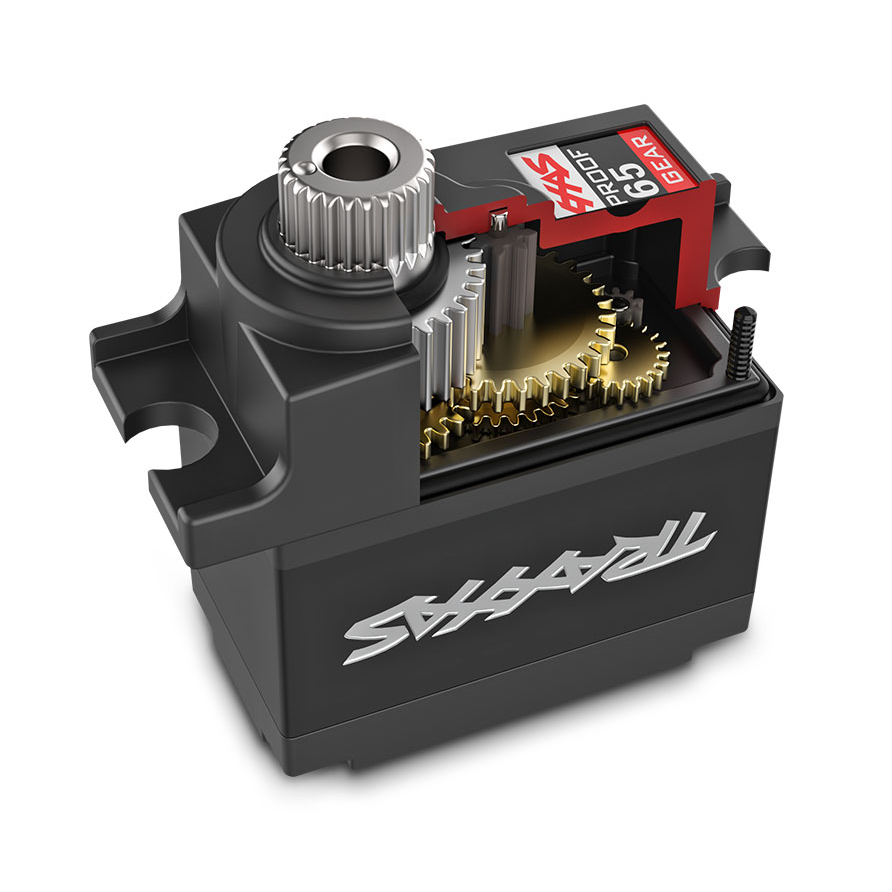

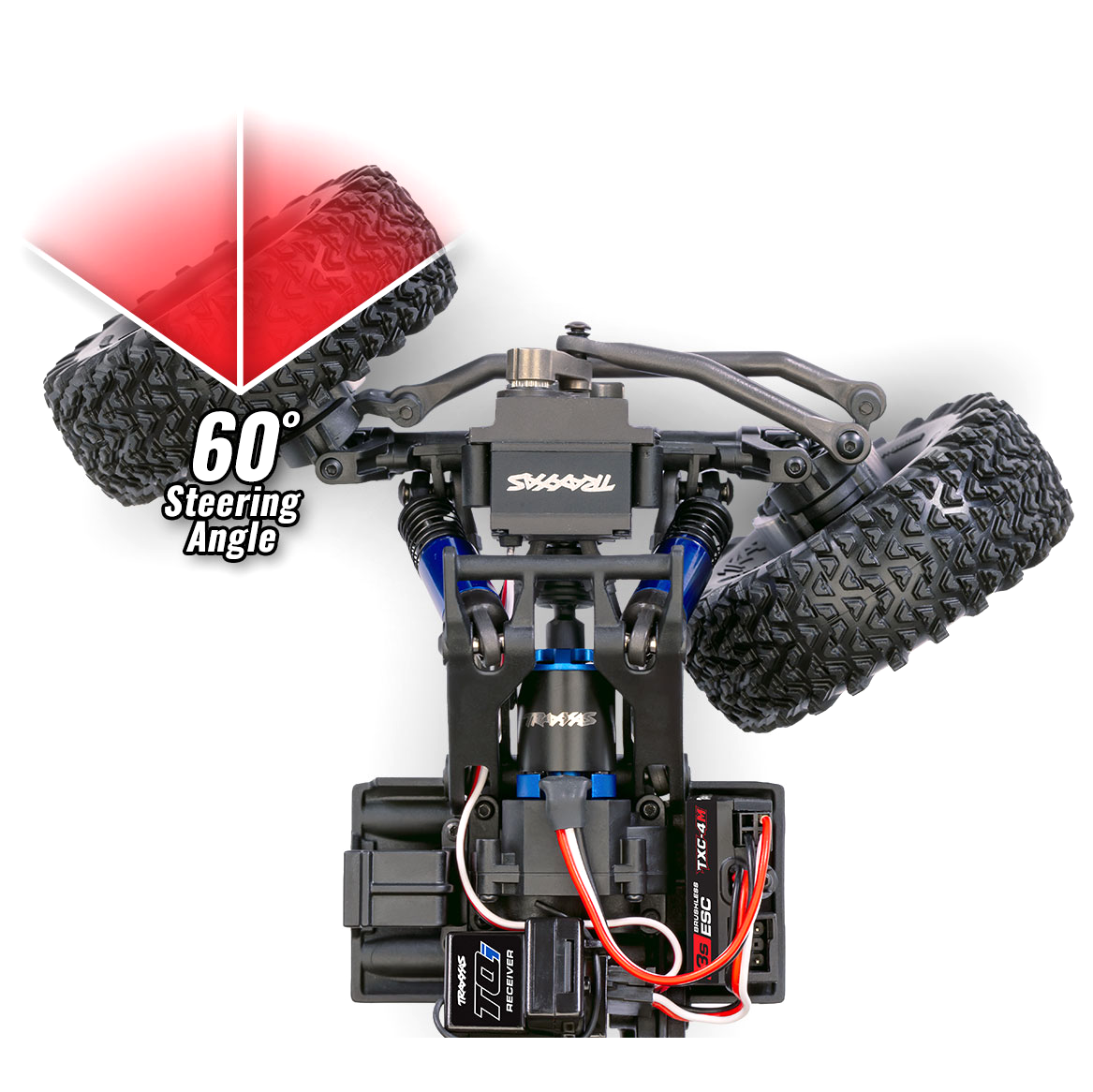

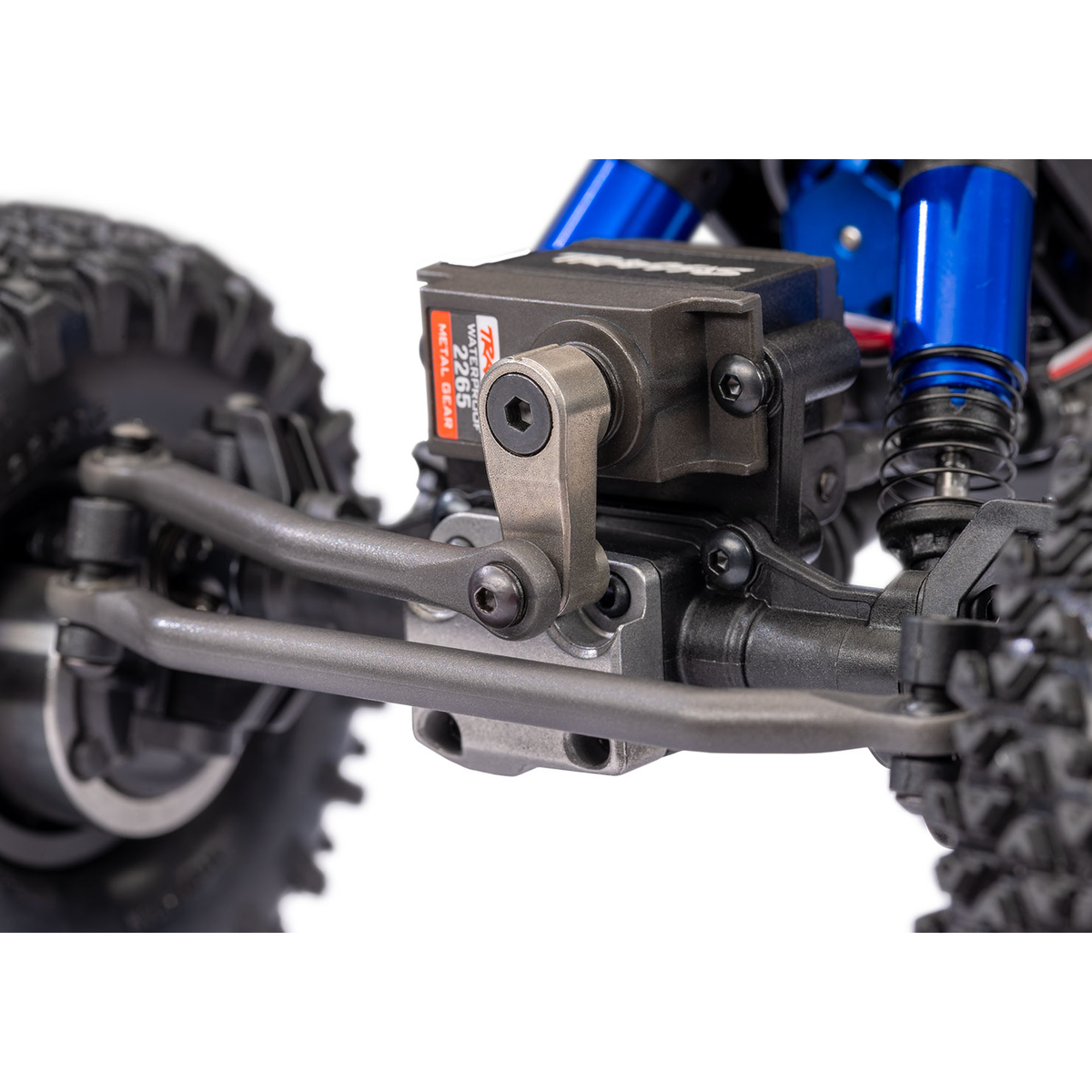

60° SteeringA waterproof metal-gear 2265 servo with 75 oz-in of torque drives direct steering with no servo saver for a 60° steering angle.

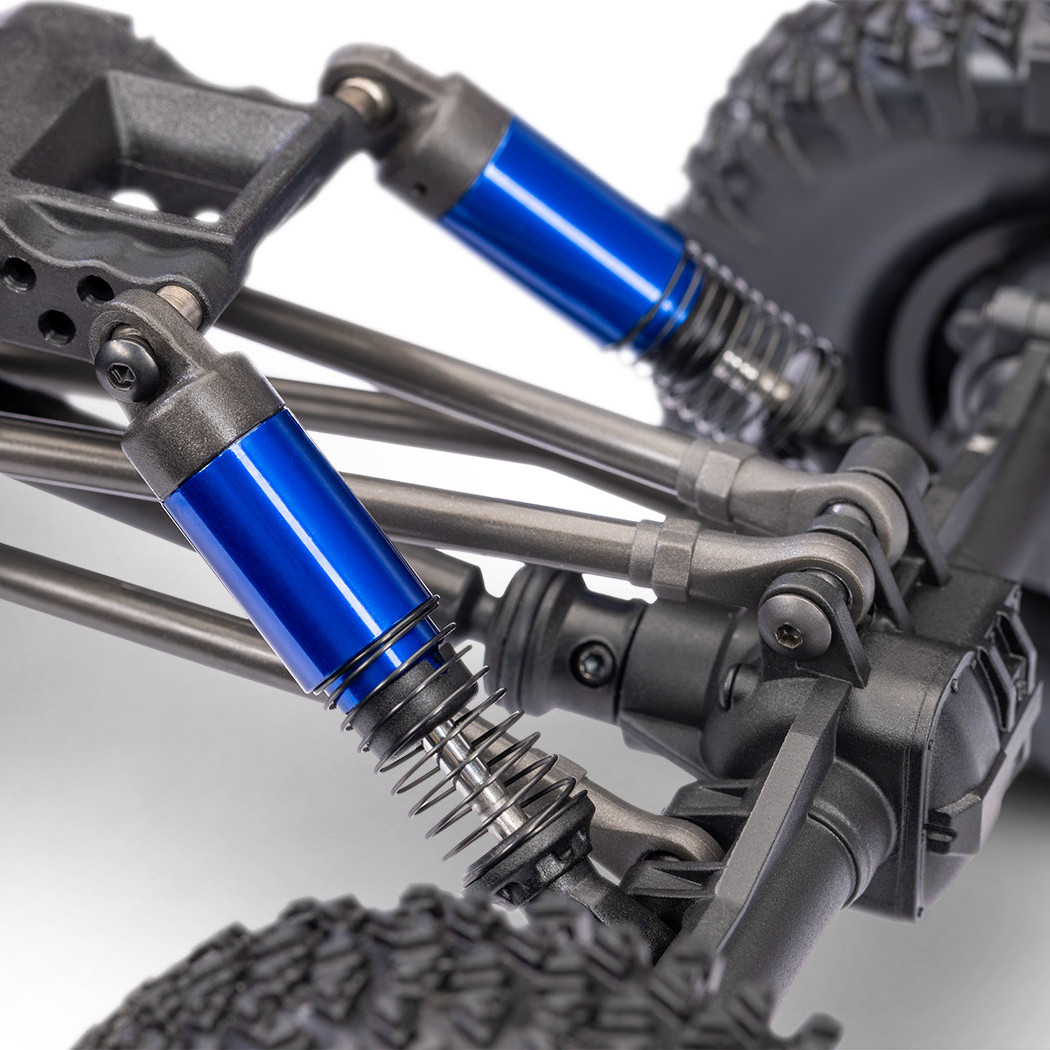

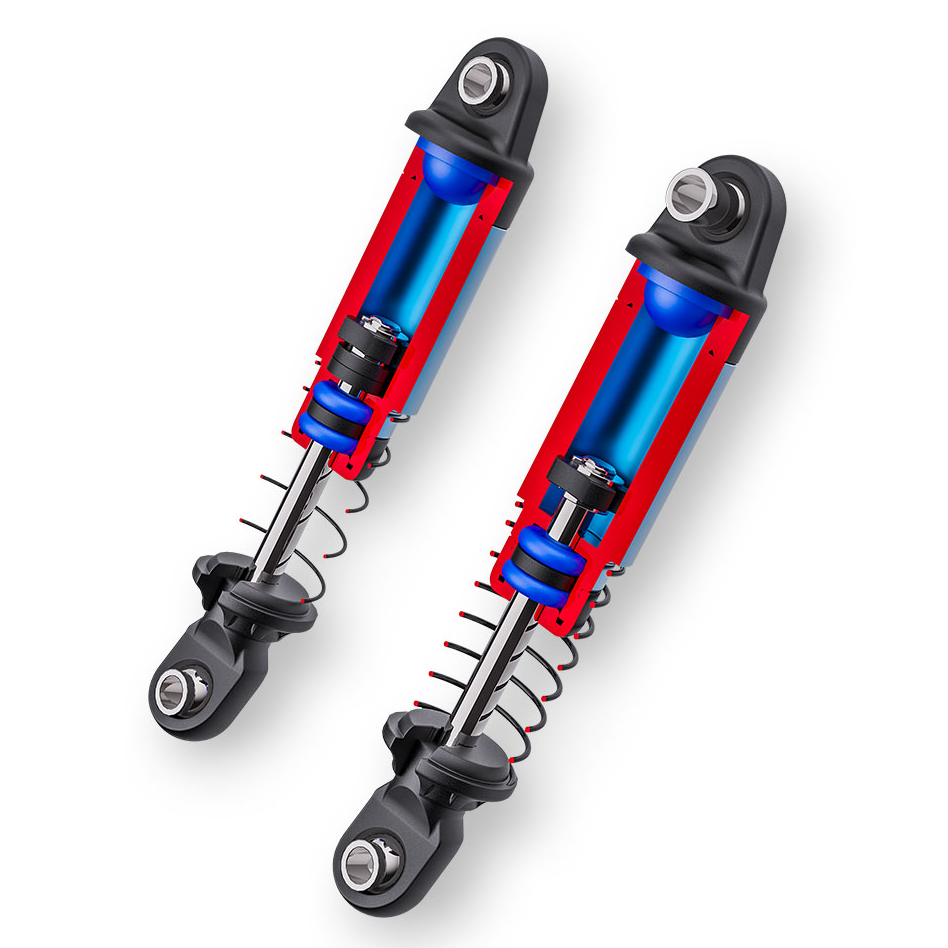

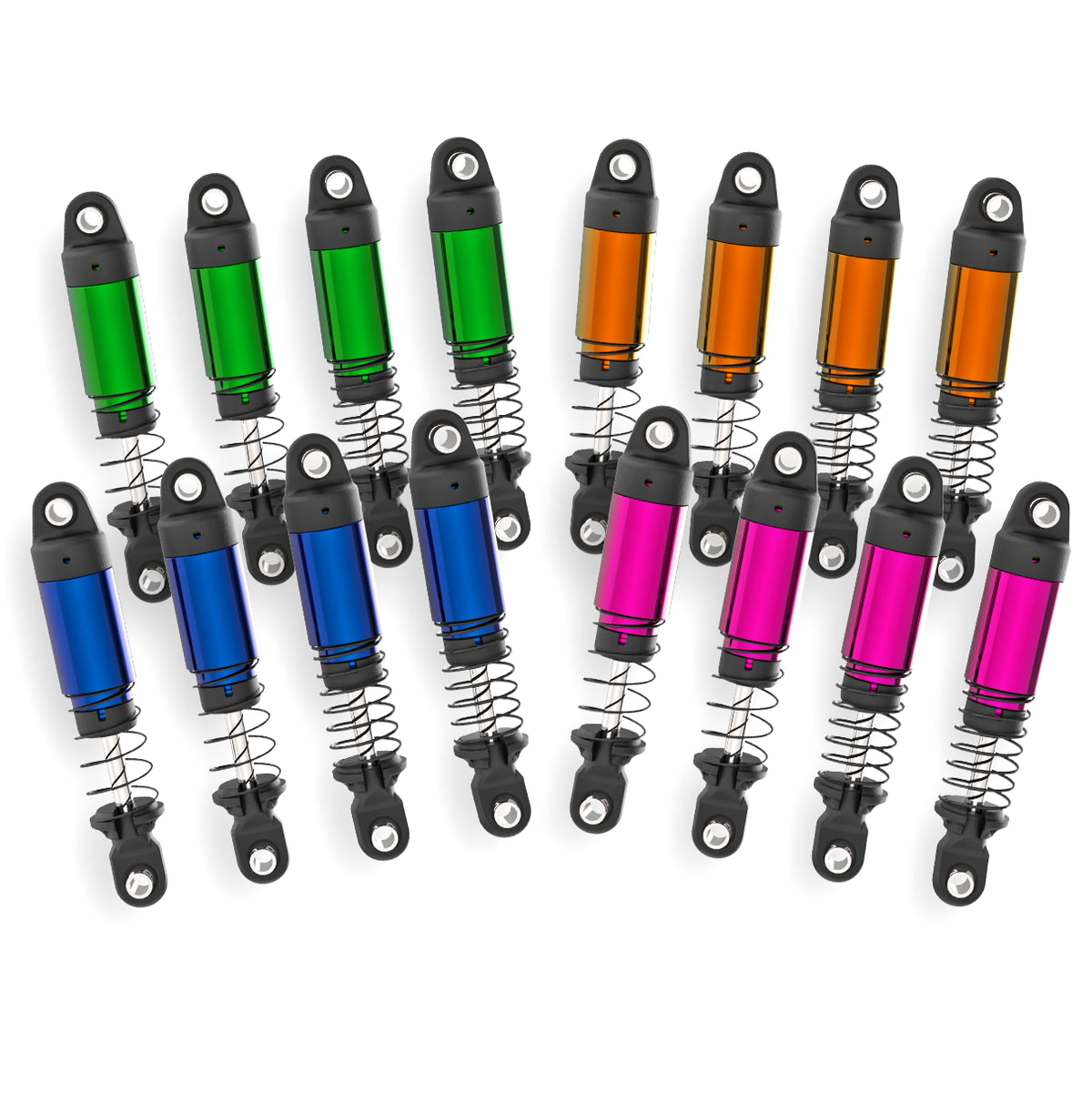

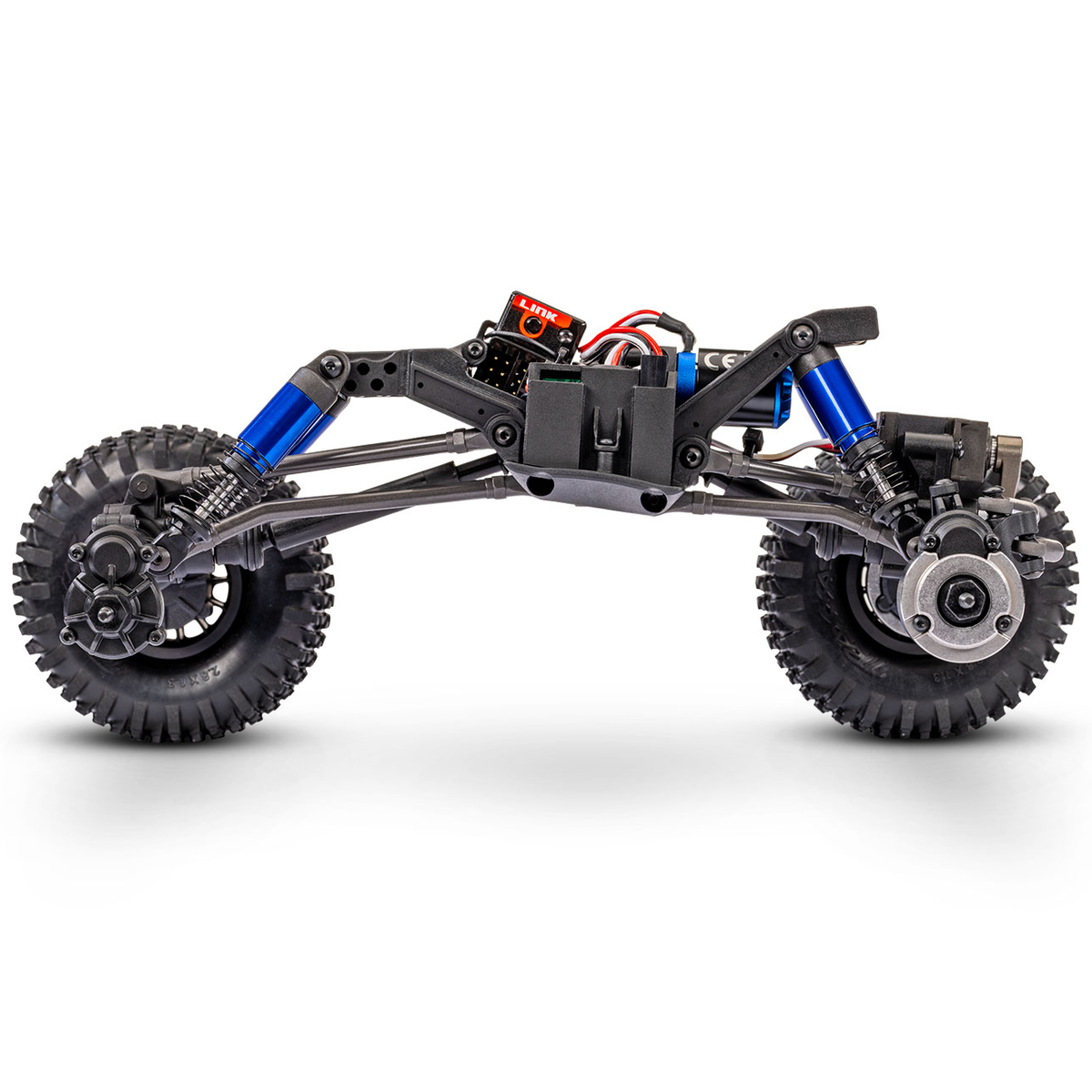

GTM Pro ShocksOil-filled aluminum GTM Pro shocks in a lay-down layout work with triangulated 4-link suspension front and rear.
Method Wheels and Stone Claw TiresLicensed 1.3 in Method Race Wheels with 3-piece beadlocks carry 1.3 x 2.8 in Stone Claw tires in high-grip rubber.
In The BoxEverything that comes in the box.
1X
TXC-4M Extreme Crawler Ready-To-Drive with Clipless Tube-Frame Body
1X

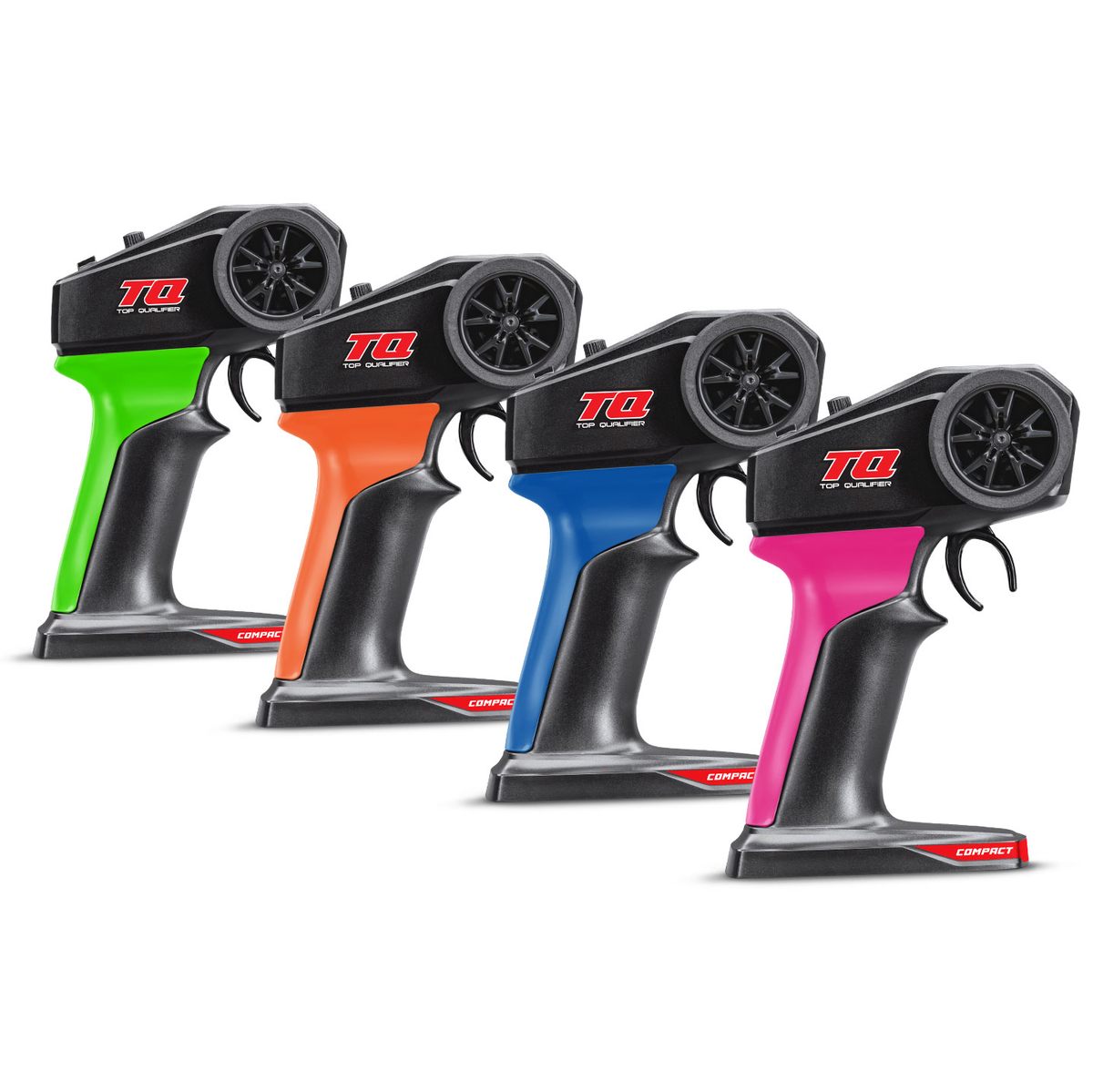

TQ Compact 2.4 GHz 2-Channel Transmitter
1X

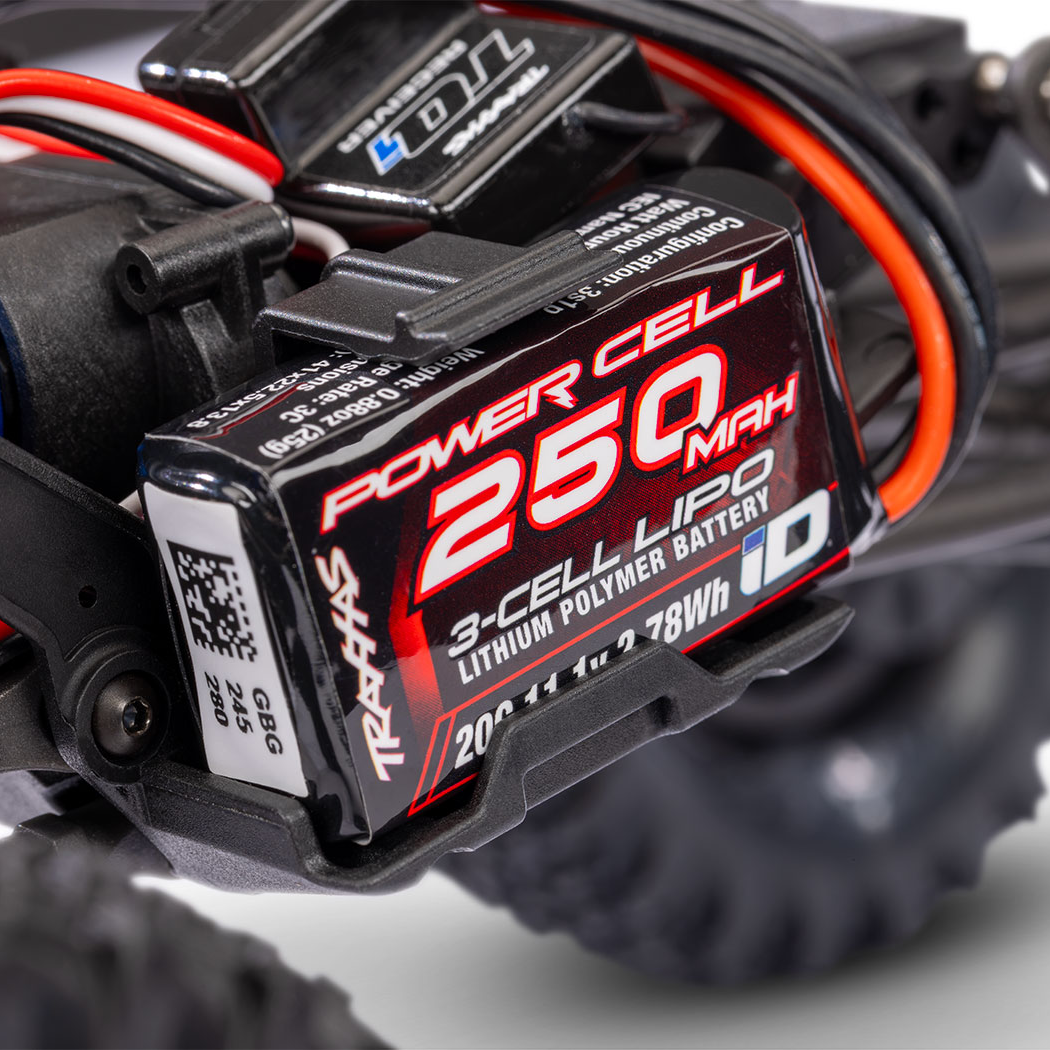

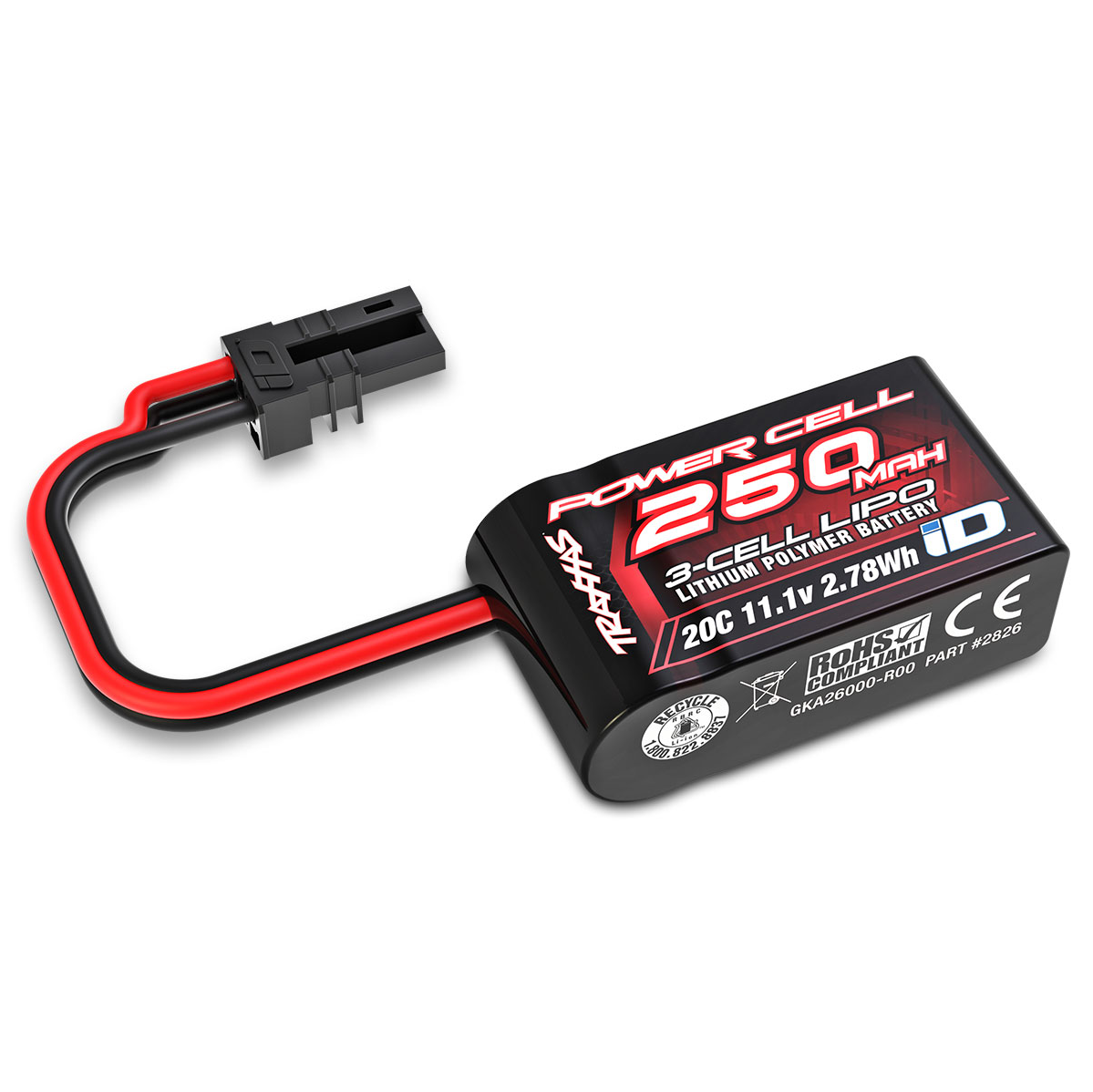

11.1 V 250 mAh 3-Cell LiPo Battery with iD
1X

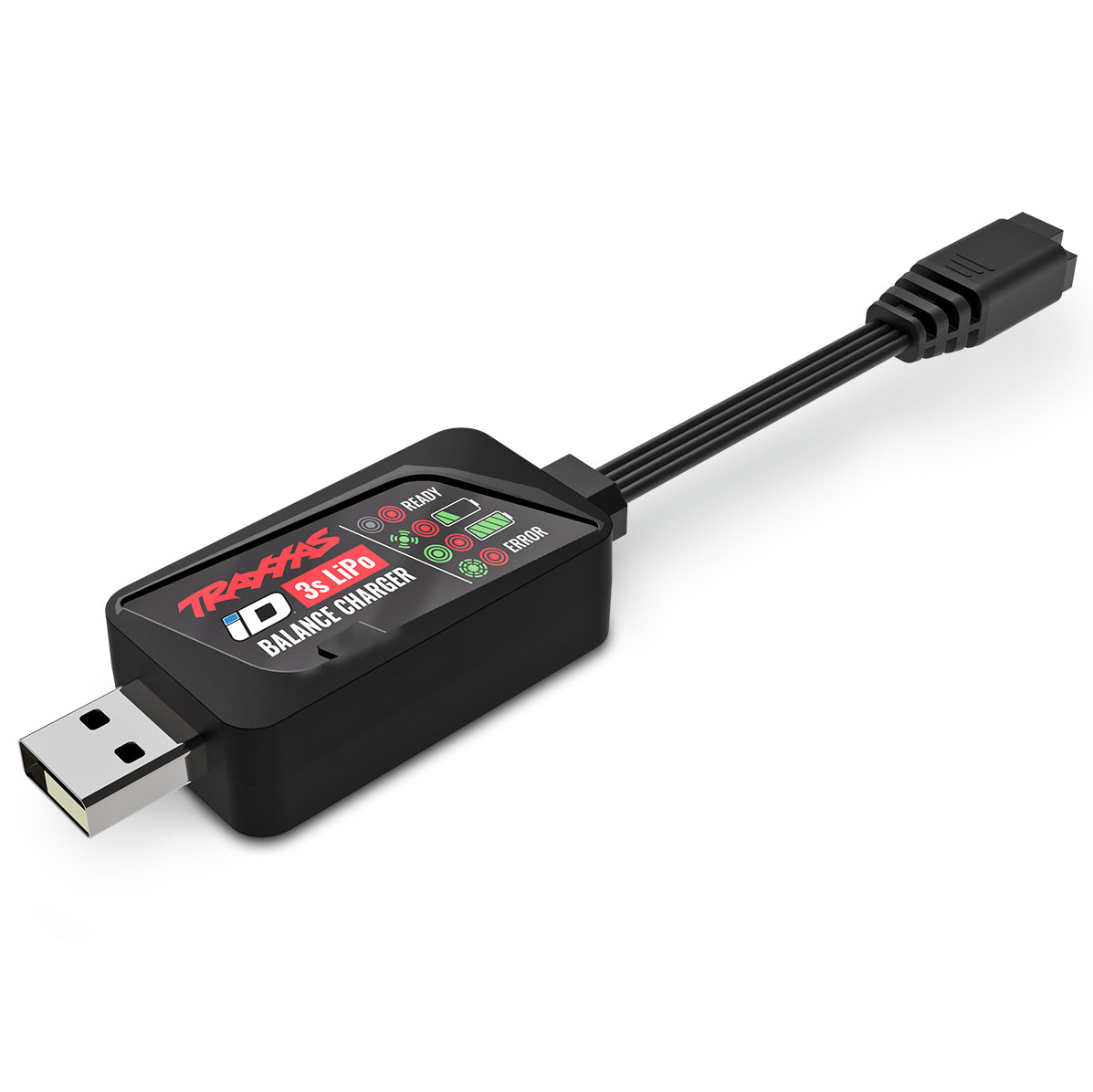

USB Quick Charger with iD
1X
Maintenance Tools
Frequently Asked QuestionsEverything you need to know
Does the TXC-4M come with a battery and charger?

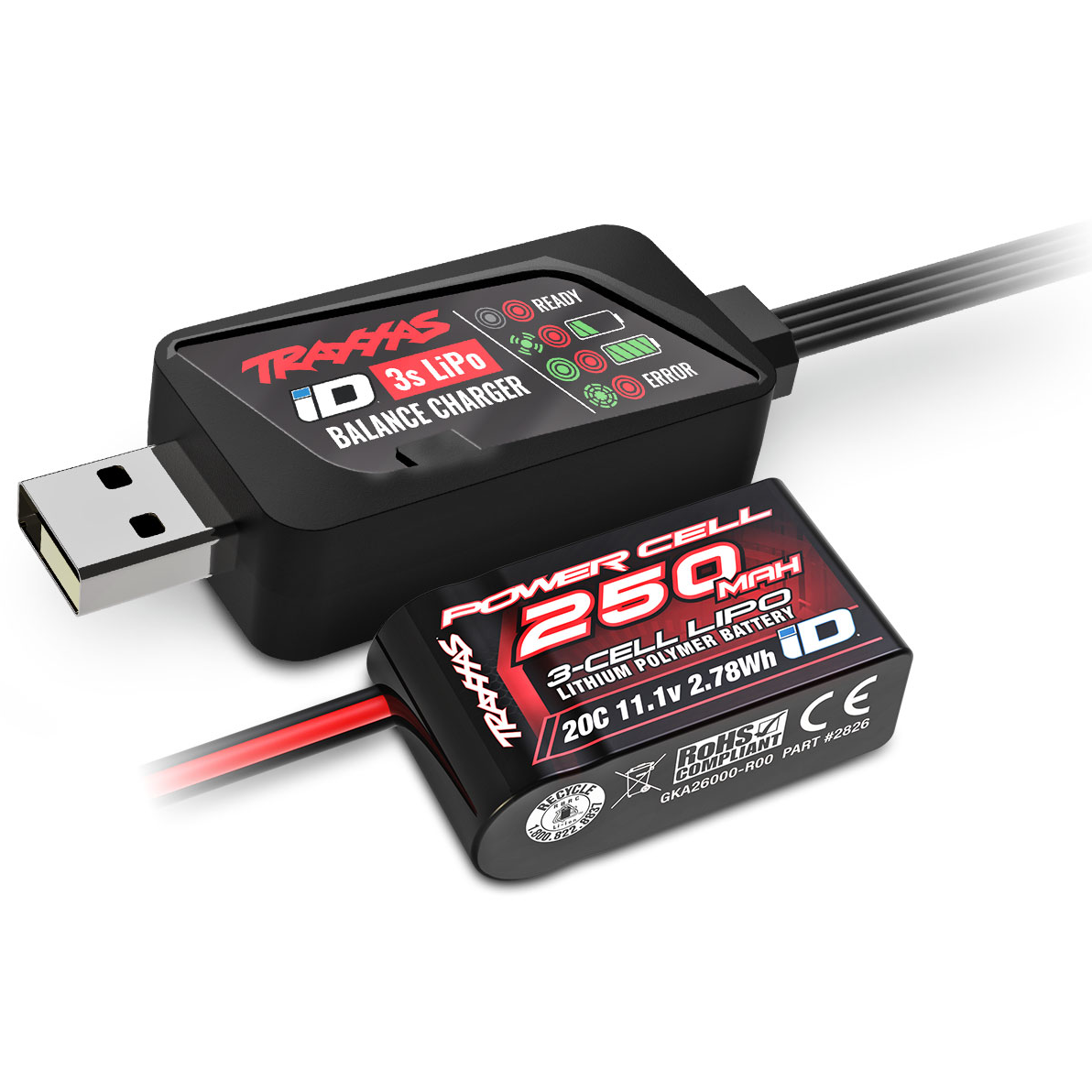

Yes. It includes an 11.1 V 250 mAh 3-cell LiPo battery with Traxxas iD and a USB-powered iD quick charger.
What else do I need to run it?
Four AA alkaline batteries for the transmitter and a USB-A power source for the charger. Traxxas recommends at least 2 amps at 5 volts.
Is it brushed or brushless?
Brushless. It uses a 3350 Kv 3s sensorless brushless outrunner motor and a 3s brushless speed control with Field Oriented Control.
What are the three drive profiles?
Sport gives forward, brake and reverse. Trail adds a trail-tuned drag brake in neutral. Crawl gives forward and instant reverse with no neutral, plus 100% hill-hold braking.
Are the electronics waterproof?
Traxxas lists the speed control as fully waterproof and the 2265 steering servo as waterproof.
