Kyosho 1/28 Mini Z 4x4 Jeep Wrangler Unlimited Rubicon Green (KYO32536GR)
$179.99
Skip to product information
Only 3 Left!

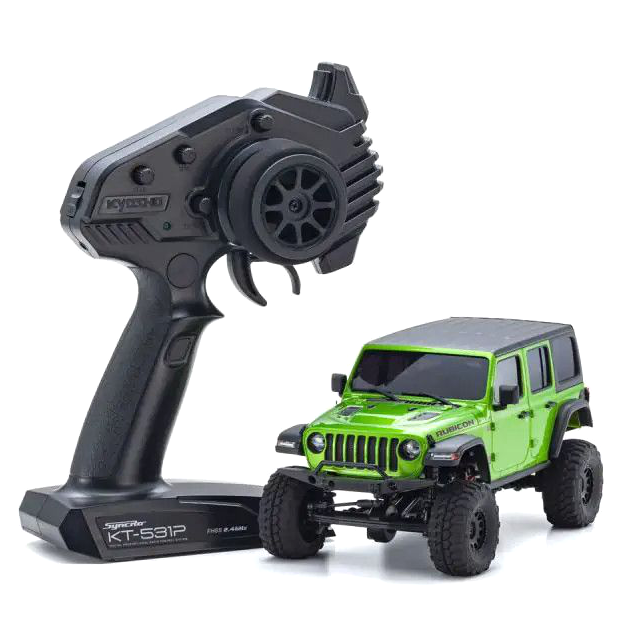

Kyosho 1/28 Mini Z 4x4 Jeep Wrangler Unlimited Rubicon Green (KYO32536GR)
$179.99
1/28 Scale
Palm Sized Off Road Power
Shaft Drive 4WD
Ladder Frame Chassis Design
2.4GHz Radio
Syncro Controller Included
Interco Tires
Aggressive Super Swamper LTB
130 Brushed Motor
High Torque Off Road Power
60 Min Runtime
Extended Micro Crawling Sessions
In Stock
Micro Off Road MasteryTrail Dominance in Palm Size
The Mini Z 4x4 Jeep Wrangler Unlimited Rubicon delivers unprecedented scale performance combined with extreme detail in a palm-sized package. Built on an innovative MX-01 4WD ladder frame chassis, this 1/28 scale RC Car offers authentic solid-axle performance for indoor and outdoor trail crawling.
Unmatched Scale EngineeringPrecision Micro Crawler Capabilities
Designed for passionate enthusiasts, the Mini Z 4x4 Jeep Wrangler Unlimited Rubicon captures the rugged essence of full-size trail crawlers. Featuring black over-fenders, a dark grey accent grille, round headlights, and a highly detailed hardtop, this factory-painted mini crawler delivers scale realism like never before. Beneath the body, steel vertical plates give the ladder frame ultimate rigidity, while metal ring and pinion gears in the solid axles ensure long-lasting performance. Equipped with a protective slipper clutch, coil-over shocks, and aggressive Interco Super Swamper LTB tires, this micro 4x4 crawler easily conquers tough terrain with precision control.
Technical SpecificationsComplete Vehicle Dimensions and Mechanical Specs
Completion Level
Readyset / Ready-to-Run
Drivetrain
Shaft Drive 4WD
Motor Size
130 Class
Power Type
Electric
Differential
Solid Axle Gear Differential
Vehicle Size
1/28 Scale
Product Width/Weight/Height
87.3mm / 234g (excl. battery) / 89.1mm (ruler)
Charger
Not Included
Connector Type
Integrated Micro Connector
Spur Gear
Stock Molded
Gear Pitch
Module 0.5
Speed Control
Integrated Receiver & ESC Unit
Servo
Integrated Steering Servo
Vehicle Type
Micro RC Crawler
Top Speed
Approx 2.7km/h to 5.4km/h
Battery Type
4 x AAA Batteries
LiPo Compatibility
No
Drive Type
Shaft Driven 4WD
Shock Type
Coil Over Shocks with 360 Degree Retainer
Body
Factory-Painted Jeep Wrangler Rubicon Hard Top
Wheel Hex Size
Micro Hex
Battery Tray
4x AAA Compartment
Motor Class
130 Motor
Final Drive Ratio
55.44:1 / 46.20:1 / 39.60:1 / 34.65:1 / 30.80:1 / 27.72:1
Roll Out
N/A
Radio
Syncro KT-531P 2.4GHz Transmitter
Assembly Time
None
Scale
1/28 Scale
Motor Type
Brushed 130 Class
Power System
AAA Battery Powered
Chassis
MX-01 Steel Vertical Ladder Frame (chassis)
Tire Tread/Hub Size
Interco Super Swamper LTB / 42.0mm Diameter x 14.3mm Width
Recommended Battery
4 x AAA NiMH or Alkaline
Pinion
10T, 12T, 14T, 16T, 18T, 20T Included
Internal Gear Ratio
Variable per Pinion Gear
Oil Type
Friction / Dry
Receiver
Integrated Receiver Unit
Wheelbase
120mm
Tread Width
72.7mm Front/Rear
Running Time
Approx 60 Minutes
Key Trail FeaturesBuilt for Rugged Terrain Performance

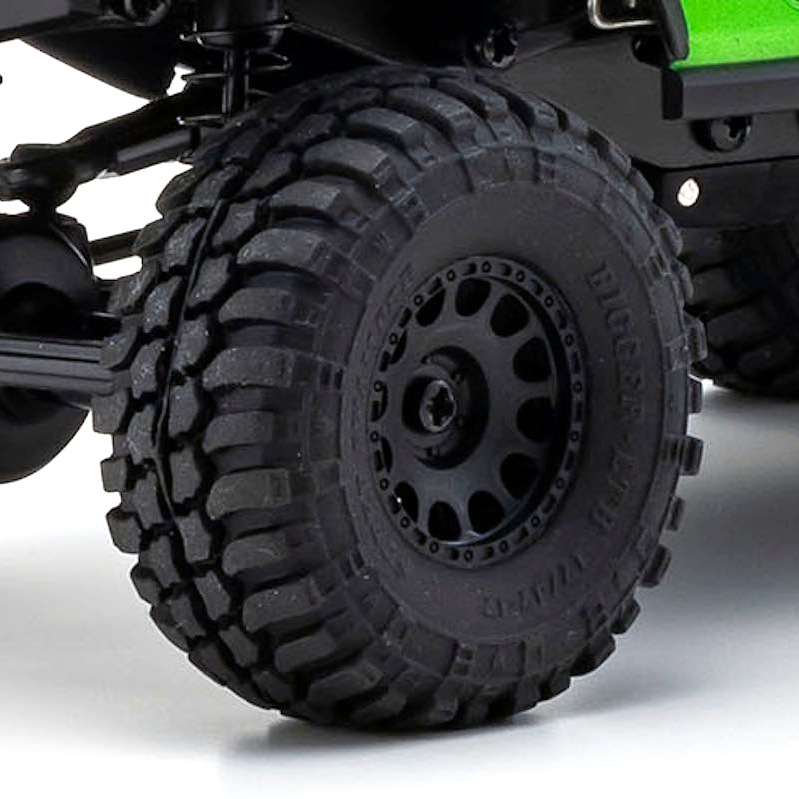

Tires & WheelsNew Fat Interco Super Swamper Bigger LTB tires on scale wheels

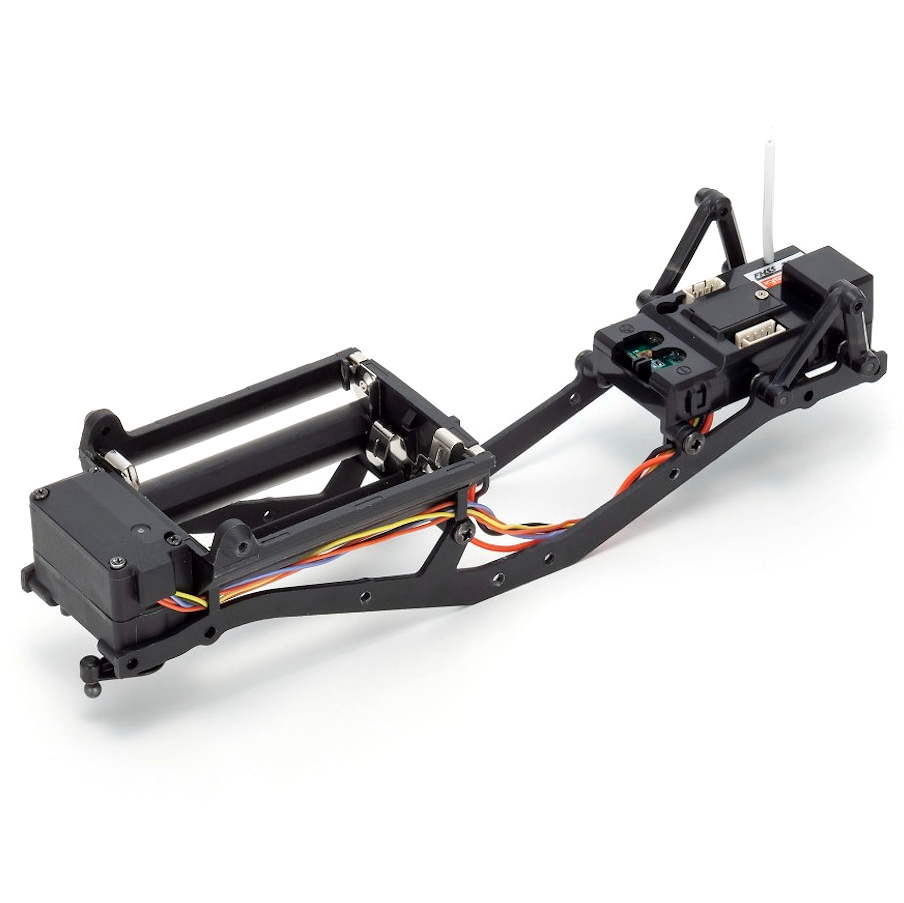

Chassis DesignMX-01 ladder frame with steel vertical side plates for maximum rigidity (chassis)

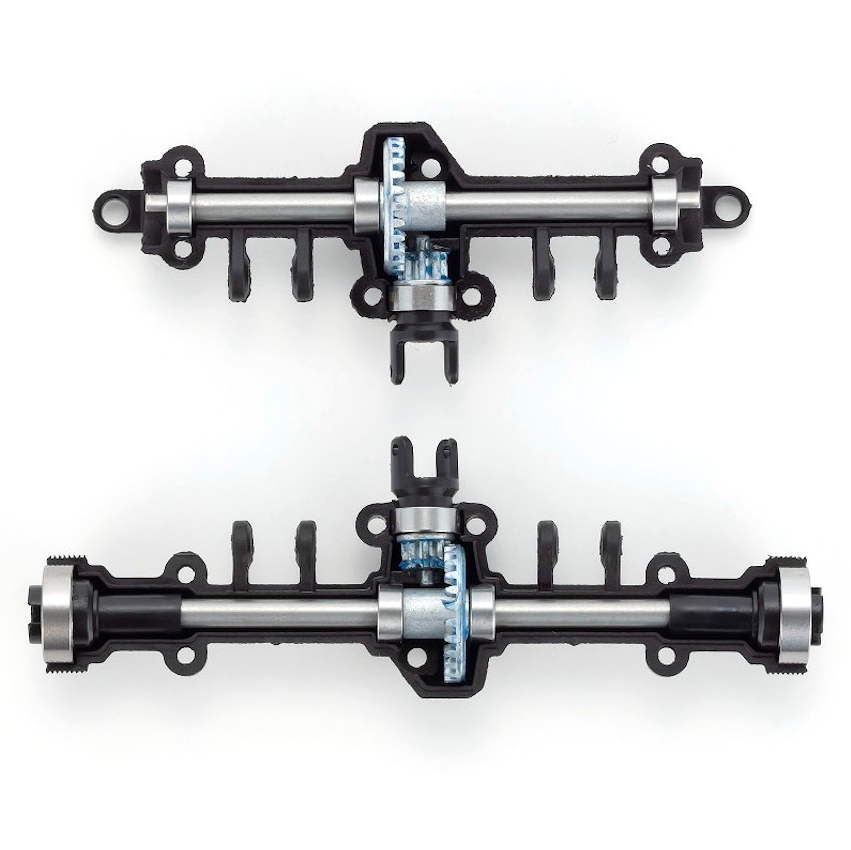

Axle AssemblySolid front and rear axles with metal ring and pinion gears

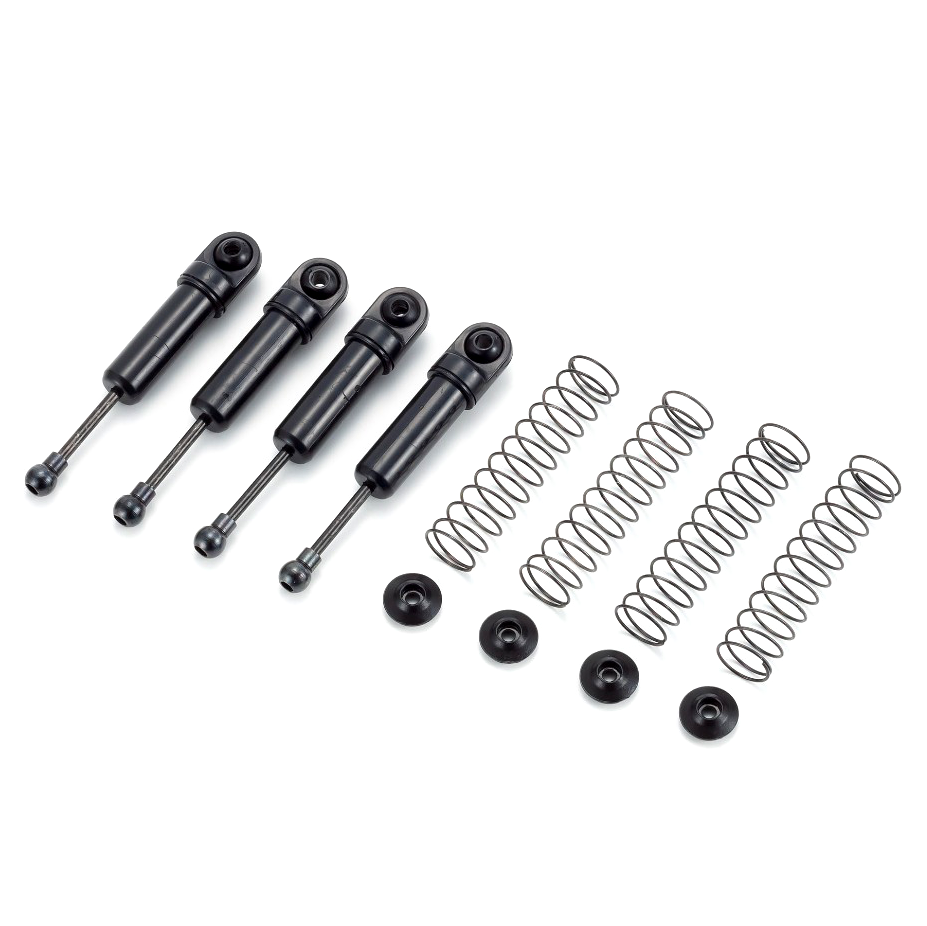

Suspension ShocksCoil over shocks with non-losable 360-degree spring retainers

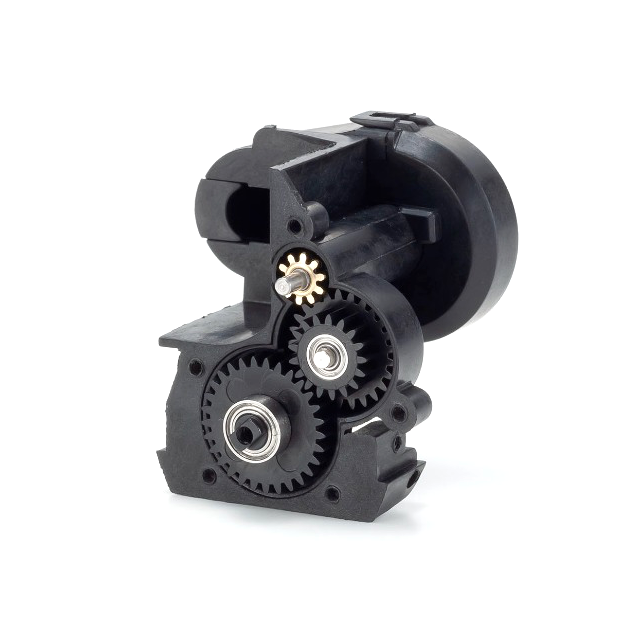

Gearbox & TuningMolded covers, ball bearings, and adjustable gear mesh with included spacers

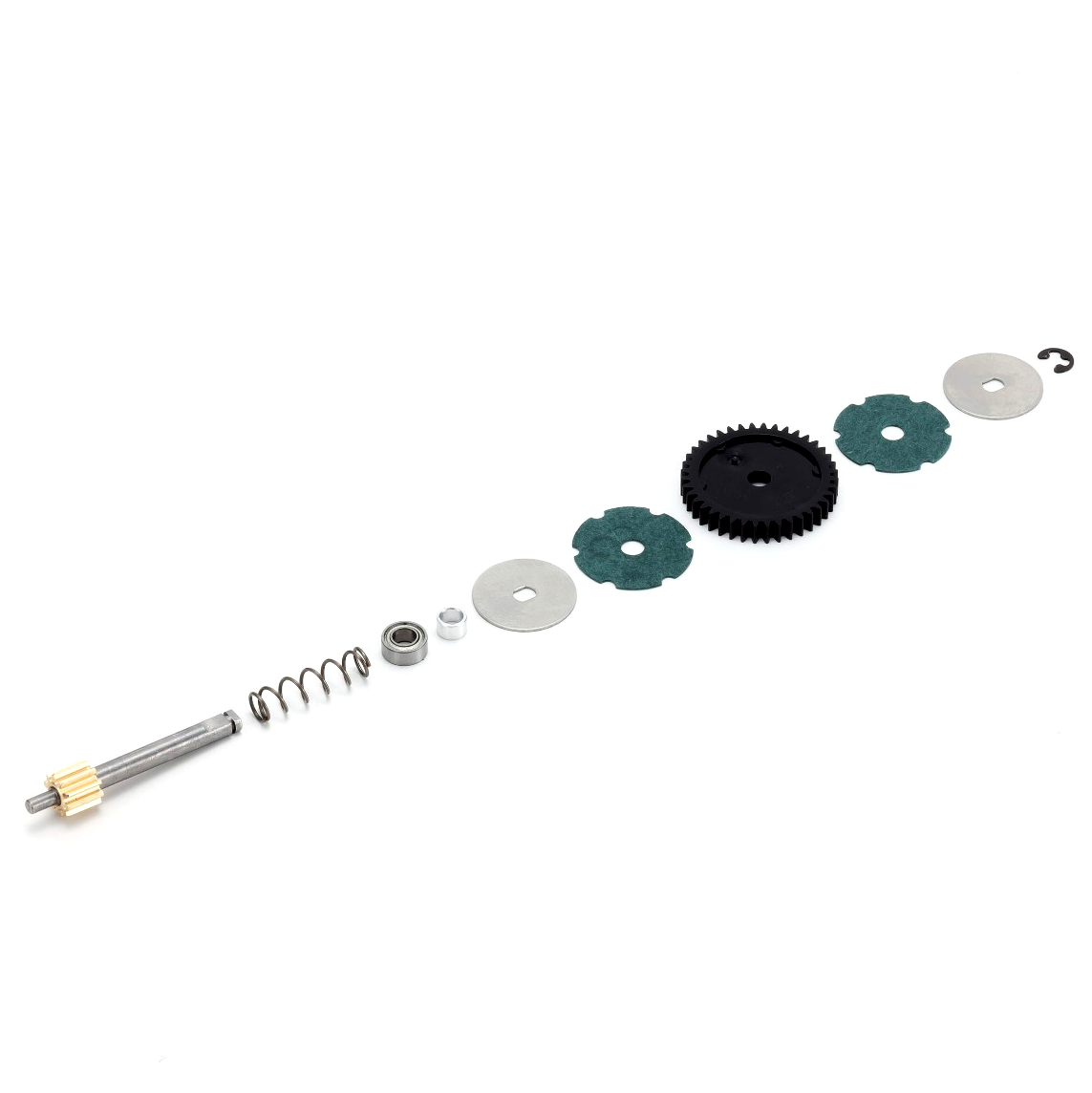

Drivetrain ProtectionStandard slipper clutch with metal shaft and primary gear
Radio ControlIncluded Syncro KT-531P 2.4GHz transmitter for responsive handling

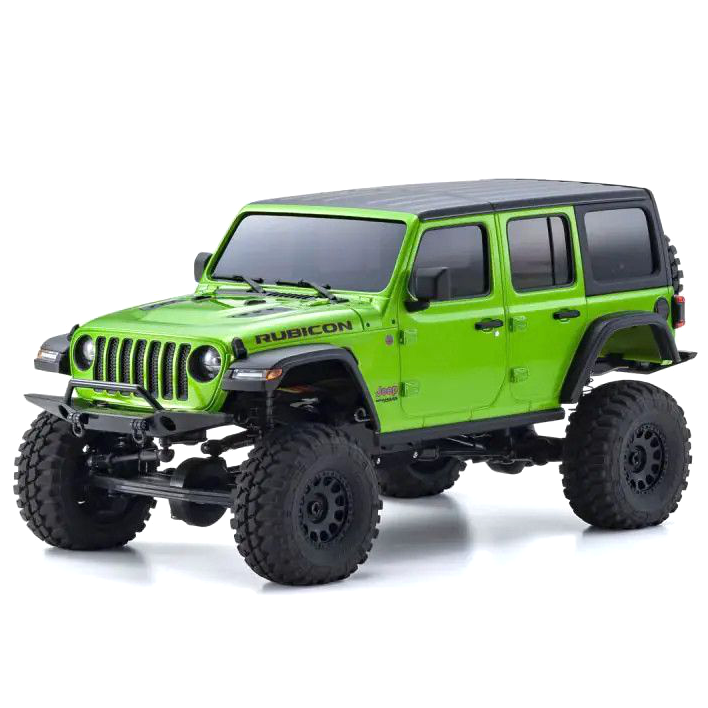

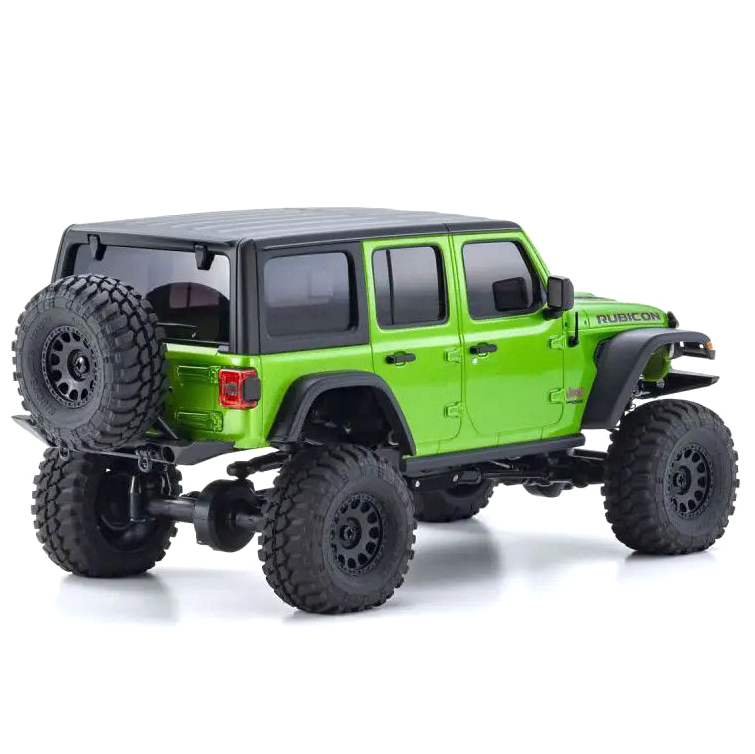

Scale Body DetailsFactory-painted Jeep Wrangler Rubicon body with detailed headlights and grille
Frequently Asked QuestionsEverything you need to know
What batteries are required to run the Mini Z 4x4 Jeep Wrangler Unlimited Rubicon?
The Mini Z 4x4 Jeep Wrangler Unlimited Rubicon requires 4 AAA batteries for the transmitter and 4 AAA batteries (Alkaline or NiMH) for the chassis.
Is the Mini Z 4x4 Jeep Wrangler Unlimited Rubicon good for indoor crawling?
Yes, the compact 1/28 scale size of the Mini Z 4x4 Jeep Wrangler Unlimited Rubicon makes it ideal for indoor crawling on desk obstacles, furniture, and custom micro trails.
Can I adjust the top speed on the Mini Z 4x4 Jeep Wrangler Unlimited Rubicon?
Yes, the included pinion gear set (10T through 20T) allows you to adjust gear ratios to change the vehicle speed from approximately 2.7 km/h up to 5.4 km/h.
What comes included with the Mini Z 4x4 Jeep Wrangler Unlimited Rubicon Readyset?
The package comes complete with a pre-assembled chassis, factory-painted body, 2.4GHz Syncro KT-531P transmitter, 6 pinion gears, and gear mesh spacers.
